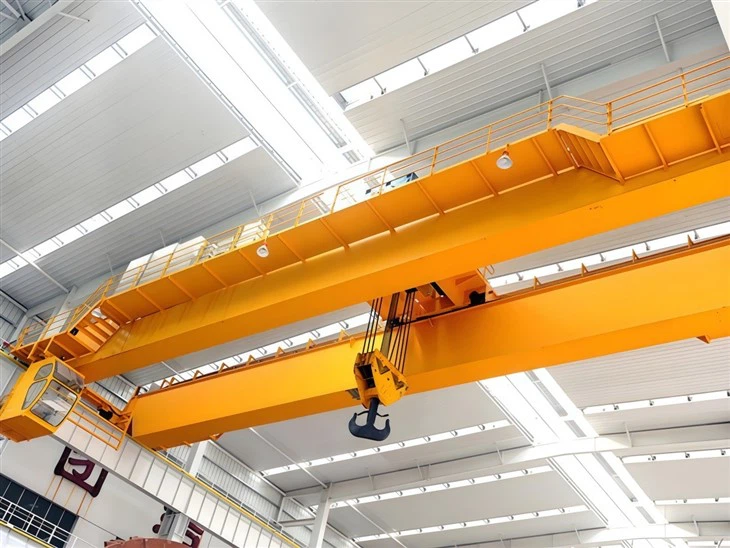

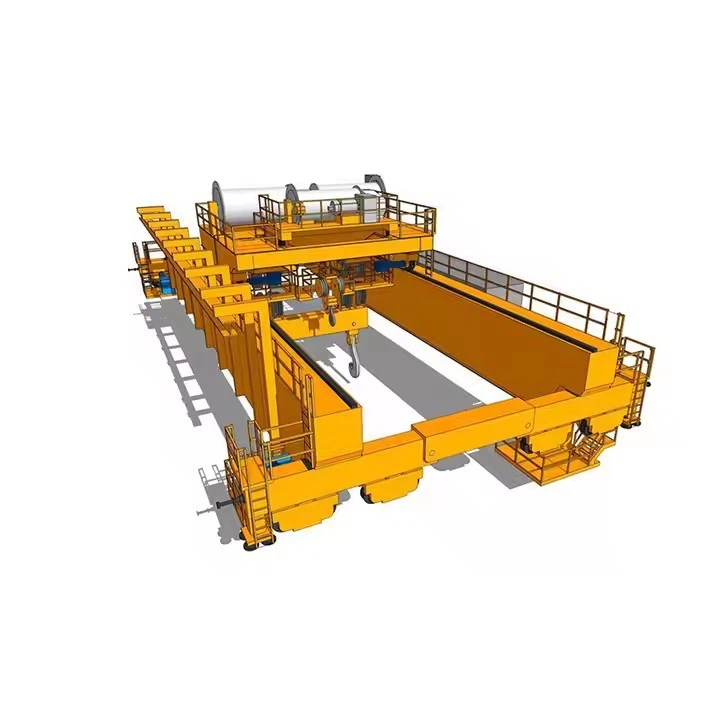

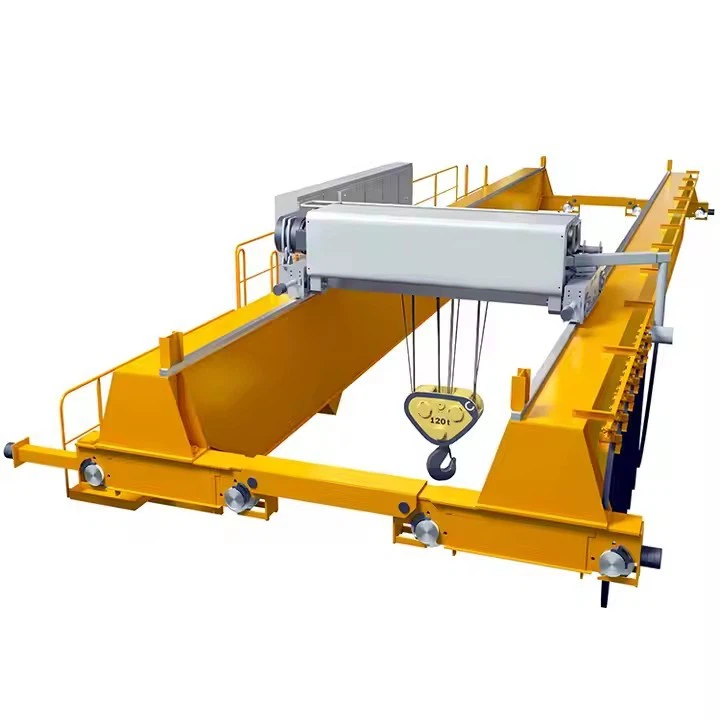

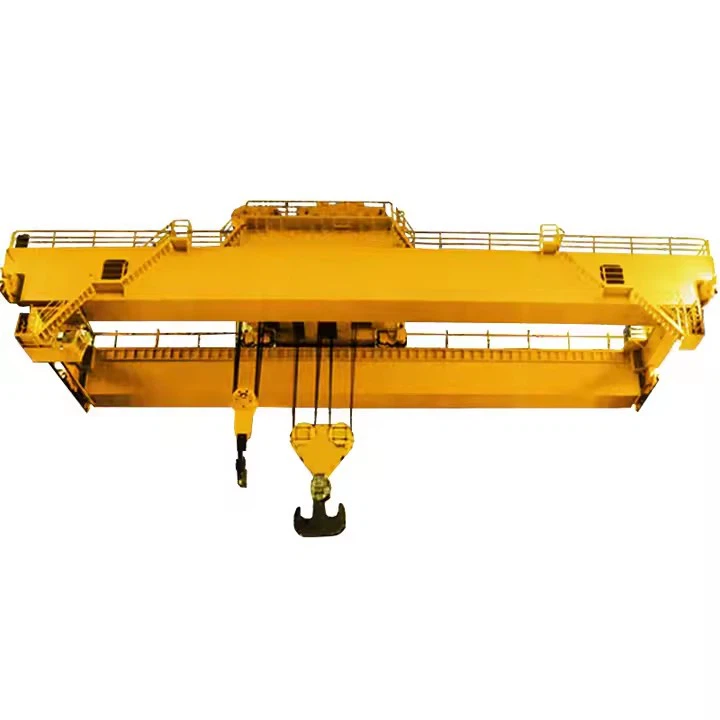

QD Hook Hook Ob Chav Girder Nyiaj Siv Ua Haujlwm Crane

Cov yam ntxwv tseem ceeb ntawm QD Hook Ob Chav Girder Nyiaj Siv Ua Haujlwm Crane:

Ob Chav Girder Tsim

Muaj ob tus tsiaj loj rau txhim kho lub zog thiab ruaj khov.

Ntau dua li ntawm lub peev xwm ntau dua piv rau cov girder cranes (feem ntau5t rau 550t).

QD (Look) Mechanism

Nruab nrog aNqe Lus Liftingrau cov khoom lag luam dav dav tuav.

Tuaj yeem kho tau nrogGrab thoob cov thoob, cov hlau nplaum, lossis lwm yam txuasrau cov ntawv teev tshwj xeeb.

Hoisting tshuab

Siv hluav taws kub siv hluav taws xob (feem ntauEuropean-style Hoist lossis Tsoos Trolley Tsoos).

Muaj nyob rau hauvIb Leeg lossis ob chav Hoistkev teeb tsa rau kev ua kom sib txawv.

Chav Ua Haujlwm & Lub Luag Haujlwm

Tsim rauA5 rau A7Lub Luag Haujlwm Chav Kawm (Nruab Nrab Kev Mob-Hnyav Cycles).

Haum rauNquag Lomting HaujlwmHauv kev muaj ib puag ncig.

Tswjhwm system

Ua haujlwm ntawmPendant Tswj (laub-khawm pendant)lossisXov Xwm Chaw Taws Xob.

Tuaj yeem sib xyaw nrogHom tsis paub meej zaus (VFD)rau kev ua kom du actedation thiab deceleration.

Mus Ncig Kho

Crab (Trolley) mus ncigraws cov tsiaj.

Choj mus ncigraws cov teeb khiav (kawg ntawm cov ntoo nrog lub log).

Kev Nyab Xeeb Nta

Kev tiv thaiv ntau tshaj(LoadTiter).

Txwv tsis pub hloovrau hoisting thiab ncig ua si.

Nres Nres Nres.

Anti-kev sib tsoo system(rau ntau cranes nyob rau hauv tib bay).



Yam zoo	QD ob chav girder crane	Ib Leeg Girder Crane
Lub peev xwm	5T–550T+	1T–20T
Khab mov	Txog 35m +	Txog 25m
Lub Luag Haujlwm Chav Kawm	A5-A7 (Hnyav Luag Haujlwm	A3-A5 (Lub teeb \/ nruab nrab)
Nuv qhov siab	Siab dua (zoo dua ntsug chaw siv)	Qi dua
Ruaj khov	Ntau nruj heev, tsis tshua muaj kev tiv thaiv	Hloov tau yooj yim
Tus nqi	Siab dua tus nqi	Ntau dua kev lag luam
Cov Ntawv Thov	Hnyav Industries, Hlau, Khoom Siv Hluav Taws Xob	Kev cob qhia, Chaw Tso Cai, Kev Lag Luam Lub Teeb



Cov qauv tshwj xeeb (qauv qauv piv txwv)

Lifting muaj peev xwm5T - 550T
Luv ntev10.5m {- 35 m (customizable)
Lifting qhov siab6m {- 30 m (kho tau)
Lub luag haujlwm A5, A6, A7
Kev khiav hauj lwm ceev
Hoisting:{{0 {0}}. {5-8 m \/ min (kho tau)
Ncig Tebchaws Trolley:5-30 m \/ min
Crane ncig tebchaws:10-60 m \/ min
Kev pab fais fab{{0 3-} theem, 380V \/ 50Hz (lossis raws li cov qauv hauv zos)





A QD Hook Hook Ob Chav Girder Nyiaj Siv Ua Haujlwm CraneMuaj ntau cov neeg siv tshuab thiab hluav taws xob cov khoom siv ua haujlwm ua ke kom ntseeg tau tias muaj txiaj ntsig zoo thiab muaj kev nyab xeeb lifting ua haujlwm. Hauv qab no yog cov ncauj lus kom ntxaws ntawm nws cov khoom loj:



1. Choj girders (kab teeb loj)

Ua Haujlwm:Thawj cov qauv-cov qauv qauv uas nthuav dav qhov dav ntawm CRANE AN.

Khoom siv:Feem ntau ua los ntawmBOX-hom hlau welded(los yog truss-hom rau cov khoom siv hnyav heev).

Nta:

Ob tus tsiaj muab lub zog siab dua ib qho tsiaj.

Tsim los tawm tsam dabtsi yog khoov thiab telionional rog.

2. End railriages (kawg truck)

Ua Haujlwm:Txhawb nqa tus mlom girders thiab pab txhawb crane mus los rau kev khiav ntawm cov ciav hlau.

Cheebtsam:

Yuav tsav tsheb(feem ntau 4 lossis ntau dua, ua los ntawm forged steel lossis polyurethane).

Buffers (bumers)- Ua tej kev cuam tshuam thaum lub crane ncav cuag cov kev txwv ncig.

Tsav Motors & Gearboxes- Lub zog ua kom lub zog ntev ntev.

3. Hoisting Mechanism

Ua Haujlwm:Nqa thiab lowers lub nra.

Cheebtsam:

Hluav taws xob hoist (More Hoist & Auxiliary hoist, yog tias muaj)- suav nrog lub cev muaj zog, nruas, hlua hlau, thiab nuv.

Cov hlua hlau & sheaves- Hloov kho lub zog.

KHWV NYOG- Txuas rau lub nra (tuaj yeem ua ib leeg lossis ob chav nuv).

Cav Nres- Tiv thaiv kev thauj khoom qeeb.

4. Trolley (Chav Crab)

Ua Haujlwm:Txav mus rau kab rov tav ntawm tus choj girders rau txoj hauj lwm lub nra.

Cheebtsam:

Trolley Ncej- Txhawb cov hoist thiab tsav system.

Trolley Yuav Tsav & Ntsia- Tso cai rau kev taug kev du taug kev mus nrog cov girders.

Tsav Tsav & Gearbox- Powers trolley txav.

5. Kev Tso Cai Tso Cai

Ua Haujlwm:Muab txoj kev rau tus crane lub zog.

Cheebtsam:

Ramway teeb- ntsia rau ntawm lub tsev kem lossis kev txhawb nqa ywj siab.

Cov ciav hlau- feem ntauP38, Qu70, Qu80, lossis qu120(nyob ntawm kev thauj khoom muaj peev xwm).

Rail clamps- Kev ruaj ntseg lub crane hauv qhov chaw thaum tsis siv.

6. Hluav taws xob system

Ua Haujlwm:Tswj Crane ua haujlwm.

Cheebtsam:

Tswj Vaj Huam Sib Luag (Txee Hluav Taws Xob)- Cov neeg ua npe hu, kev ncua npe, thiab PLC (yog siv tau).

Pendant Tswj \/ Xov Tooj Cua Chaw Taws Teeb- Tus neeg teb xov tooj neeg teb chaws interface rau kev tuav phau ntawv.

Txwv tsis pub hloov- Tiv thaiv kev hla kev ntawm kev tawm tsam thiab trolley.

Lub Zog Hluav Taws Xob – Festoon System (Cable rels)lossisBusbar (Lub Zog Rail).

Hom tsis paub meej zaus (VFDs)- Rau kev tswj ceev ceev (yeem).

.

7. Kev Nyab Xeeb Khoom Siv

Ua Haujlwm:Ua kom muaj kev nyab xeeb.

Cheebtsam:

Kev Tshaj Tawm Limited- Tiv thaiv kev thauj dhau kev sib tw muaj peev xwm.

Nres Nres Nres- Siv zog txiav ceev.

Anti-kev sib tsoo system- Siv thaum ntau cranes ua haujlwm nyob rau hauv tib bay.

Lus ceeb toom teeb & Horn- Kev ceeb toom cov neeg ua haujlwm thaum lub sijhawm txav.

8. Kev xaiv khoom ntxiv

Sib nqus Lifter \/ cle thoob- rau cov ntaub ntawv tshwj xeeb tuav.

Uas System- Kev ntsuas kev ntsuas hnyav hauv lub sijhawm tiag tiag.

Laser Installing System- Rau meej load chaw.

Crane Lub Koob Yees Duab System- txhim kho pom kev rau tus neeg teb xov tooj.



12.Sketch

Cov Tshuab Tseem Ceeb





TusQD (Lub Luag Haujlwm General) Hook Ob Chav Girder Nyiaj Siv Ua Haujlwm Craneyog lub zog thiab ntau yam kev daws teeb meem tsim rau cov ntawv thov hnyav. Ntawm no yog nws cov txiaj ntsig tseem ceeb:

1. Ntau dua lifting muaj peev xwm

Txhawb nqa5t rau 550t +, ua rau nws zoo tagnrho rau cov khoom siv hnyav (piv rau ib leeg girder cranes, uas feem ntau max tawm ntawm 20t).

Ob Chav Girder TsimKev ntsuas qhov hnyav dua tusyees, txo kev ntxhov siab ntawm cov khoom siv.

2. Ntau dua Span & Stability

Tuaj yeem cojNtev ntev (10m txog 35m +)Yog tsis muaj deflection, haum rau kev ua haujlwm thoob plaws.

Ntau duanruj thiab ruaj khovtshaj li ib leeg girder cranes, txo lub plarizing thaum nqa tawm.

3. Lub luag haujlwm siab tshaj chav kawm (5- A7)

Ua Kommob hnyav rau cov haujlwm hnyav, ua rau nws haum rau kev siv nquag hauv cov nroj tsuag steel, pasterries, thiab cov khoom lag luam hnyav.

Siv sijhawm ntevVim siv tau ruaj khov.

4. Txhim kho cov ho ntxias

Tuaj yeem nruab nrogDual Hoists (Main + AuXiliary)rau kev ua haujlwm ntau li ntau.

Tau tshajHooks, tuav, hlau nplaum, thiab lwm yam txuasrau kev tuav tshwj xeeb.

5. Zoo dua cov xov tooj qhov siab

TusTsim Tsawg Quav(Yog tias yuav tsum tau) ua kom muaj qhov chaw lifting, zoo tagnrho rau cov chaw nrog qhov siab txwv.

6. Smoother & ntau dua tswj

Kuj tsis paub meej zaus tsav (VFD) xaivcia rauMos pib \/ nres, txo kev thauj khoom viav vias.

Xov Tooj Cua Cov Chaw Taws Teeb & Pendant ControlsTxhim kho neeg tsav tsheb kev nyab xeeb thiab meej.

7. Txhim Kho Cov Khoom Nyab Xeeb

Kev Tshaj Tawm Limitedtxwv tsis pub muaj peev xwm tshaj lub peev xwm.

Nres thaum muaj xwm ceev, txwv tsis pub hloov, thiab kev sib cav sib cegtxhim kho kev ua haujlwm hauv chaw ua haujlwm.

8. Txheeb rau cov chaw tshwj xeeb

Muaj nyob rau hauvKev tawg-pov thawj, qhov kub kub, lossis corrosion-resistantCov variants rau cov mob hnyav.

Cov ntawv thov ntawm QD Hook Ob Chav Girder Nyiaj Siv Ua Haujlwm Crane

Qhov no crane yog siv dav hauv kev lag luam uas xav tauHnyav Lifting, Siab Precision, thiab DurabilityCov. Cov ntawv thov feem muaj xws li:

1. Hlau & Hlau Kev Lag Luam

TuavCoils Steel, Slabs, kev noj khoom haus, thiab pwmnyob rau hauv rolling mills thiab partries.

Chaw thau khoom \/ thau khoomCov Ntawv Hnyav HlauHauv cov khw fabrication.

2. Fais fab Nroj Tsuag & Cov Cav Nkhaus

NyomTurbines, cov tshuab hluav taws xob, thiab hloov pauv.

Txij Nkawm NtawmBoilers thiab ntau lub tsev neeg kho tshuab.

3. Lub Nkoj Nkoj & Chaw Nres Nkoj

Sib sauNkoj hulls thiab cov khoom loj.

Chaw thau khoom \/ thau khoomHnyav Cargohauv docks.

4. Tsuas yog & kev lag luam loj hlob

TsivCov Khoom Siv Raw, Crushers, Thiab Kiln Xeem.

TuavCov ntaub ntawv ntau nrog muab cov ntawv txuas ntxiv.

5. Automotive & Aerospace

NyomLub cav thaiv, fusel cov ntu, thiab cov pwm hnyav.

Siv nyob rau hauvLos ua ke cov kab rau cov tsheb loj.

6. Warehousing & Logistics

Hnyav-Luag HaujlwmCov Khoom Siv Khoom Siv Khoom Siv Khoom Siv(xws li, machinery, ntim ntau).

Kev cob qhiarau kev nqa locomotives thiab tsheb ciav hlau.

7. Ntawv & Tshuaj Kev Lag Luam

TuavCov yob loj lojhauv mills.

TsivCov tshuaj tiv thaiv hnyav thiab tso tsheb hlau luamHauv cov nroj tsuag tshuaj.





1. Tsim & Engineering
Paub meej tias cov neeg siv khoom (muaj peev xwm, ncua, qhov siab, chaw ua haujlwm).

Tsim cov txheej txheem ntxaws ntxaws thiab cov neeg siv tshuab tsim kev siv CAD thiab pojniam cov kev tshuaj xyuas.

Xaiv cov khoom tsim nyog, cov khoom siv, thiab cov khoom siv kev nyab xeeb.

2. Cov Khoom Siv Pauv
Yuav cov hlau loj-zoo cov hlau nplaum, cov ntu, cov motors, qhov hluav taws xob, thiab tswj hluav taws xob.

Tshawb cov ntaub ntawv ua raws cov qauv thiab cov lus qhia tshwj xeeb.

3. Txiav & Npaj
Cov phiaj hlau thiab cov profiles yog txiav siv cov tshuab ntshav cnc los yog laser txiav tshuab.

Npaj cov hlau seem rau vuam (Ntug ntxuav, beveling).

4. Vuam & Sib dhos ntawm cov khoom tseem ceeb
Weld can gacders, kawg cov neeg saib, thiab trolley thav ntawv siv cov ntawv pov thawj vuam cov txheej txheem.

Ua thawj zaug sib dhos ntawm cov khoom siv los kuaj xyuas kom haum thiab ua kom sib luag.

5. Kev kho cua sov & kev ntxhov siab rov qab (yog tias yuav tsum tau)
Thov kev kho kom sov sov kom txo tau vuam kev ntxhov siab thiab txhim kho cov khoom siv neeg kho.

6. Machining
Tshuab Keyals xws li cov rooj zaum rooj, cov kabmob housings, thiab lub cev muaj zog mounting chaw.

Ua kom ntseeg tau tseeb rau kev ua haujlwm du.

7. Nto Kho Mob
Huv si steel chaw (sandblasting).

Thov phau ntawv tshaj tawm thiab cov xim zoo rau kev tiv thaiv corrosion.

8. Ua ke ntawm cov neeg kho tshuab & hluav taws xob
Txhim kho cov motors, brakes, hoists, log, txwv kev hloov chaw, thiab cov khoom siv kev nyab xeeb.

Sib dhos hluav taws xob cov ntoo hluav taws xob thiab cov hlau hluav taws xob.

9. Kuaj & Kev Soj Ntsuam Zoo
Ua kev soj ntsuam kev ntsuas (feem ntau yog 125% rau 150% ntawm kev muaj peev xwm ntsuas).

Txheeb xyuas cov haujlwm ua haujlwm: hoisting, taug kev, txwv kev hloov chaw, nres tsheb thaum muaj xwm ceev.

Tshawb xyuas Welds, Xim, thiab kev ua kom zoo nkauj.

10. Thaum kawg kev hloov kho & ntim
Ua kom muaj kev hloov kho uas tsim nyog raws li kev sim.

Ntim Crane Cheebtsam kom zoo rau kev thauj.

11. Kev xa khoom & installation
Nkoj crane rau cov neeg siv lub chaw.

Txhim kho thiab commission crane rau ntawm thaj chaw.

Muab cov neeg teb xov xwm kev cob qhia thiab saib xyuas kev qhia.

Rhiav Saib:

Lub tuam txhab tau teeb tsa cov khoom siv tswj hwm kev txawj ntse platform, thiab tau teeb tsa 310 teev (teeb tsa) ntawm kev tuav thiab vuam hlau. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teev (teeb tsa), thiab cov khoom siv sib txuas lus yuav ncav cuag 95%. 32 VUAM txoj kab tau muab tso rau hauv kev siv, 50 tau npaj yuav tsum tau nruab, thiab kev siv lub tshuab ntawm cov kab ntawv tag nrho tau mus txog 85%.
