HD hom tib girder overhead crane

Cov Cheebtsam Tseem Ceeb: Gearbox, Tsav, Iav

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 1 xyoos

Qhov hnyav (kg): 10000 kg

Video tawm-soj ntsuam: muab

Kev Ntsuas Cov Lus Qhia: muab

Muag Chav Nyob: Ib Yam Khoom

Ib pob loj: 600x300x300 cm

Ib qho nyhav tag nrho: 200. 000 kg



A Ib Leeg Girder Nyiaj Siv Ua Haujlwm Crane (HD hom)Muaj ntau cov ntsiab lus tseem ceeb uas ua haujlwm ua ke kom pab tau kev nyab xeeb thiab cov khoom siv tau zoo. Hauv qab no yog cov ncauj lus kom ntxaws ntawm nws qhov tseem ceeb:



1. Cheebtsam tseem ceeb ntawm HD hom Girder Nyiaj Siv Ua Haujlwm Crane

A. Choj girder (lub nqaj loj)

TusThawj load-cov kab ke qauv, feem ntau ua los ntawmRolled steel (i-nqaj) lossis welded box girder.

Txhawb covhoist, trolley, thiab thauj khoom.

Tsim los ntawm kev puas khoov thiab deflection nyob rau hauv lub nra.





B. Kawg cov tsheb thauj khoom (End cab)

Nyob ntawm ob qho kawg ntawm Girder.

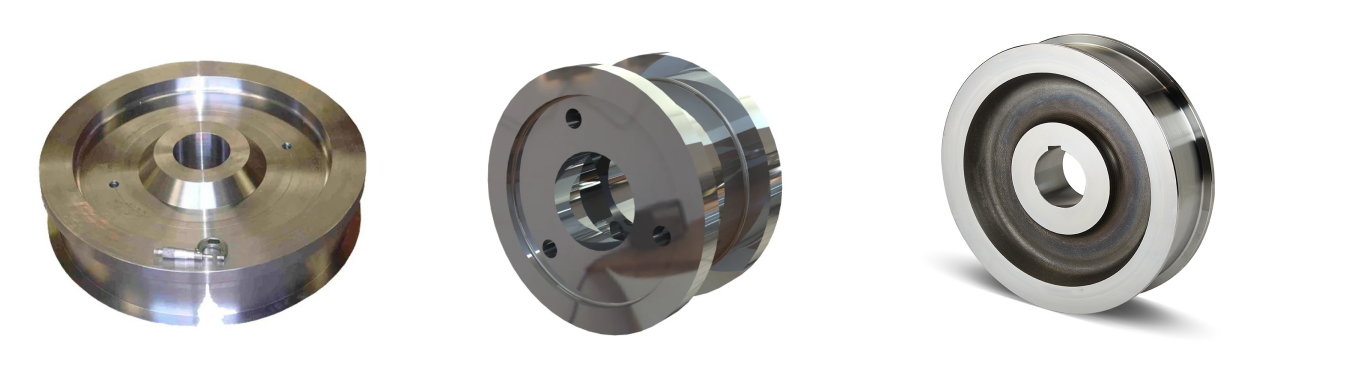

MuajCov log, bearings, thiab tsav tsheb(rau lub cev cranes).

Cia lub crane txav mus rauCov Rails Rails.

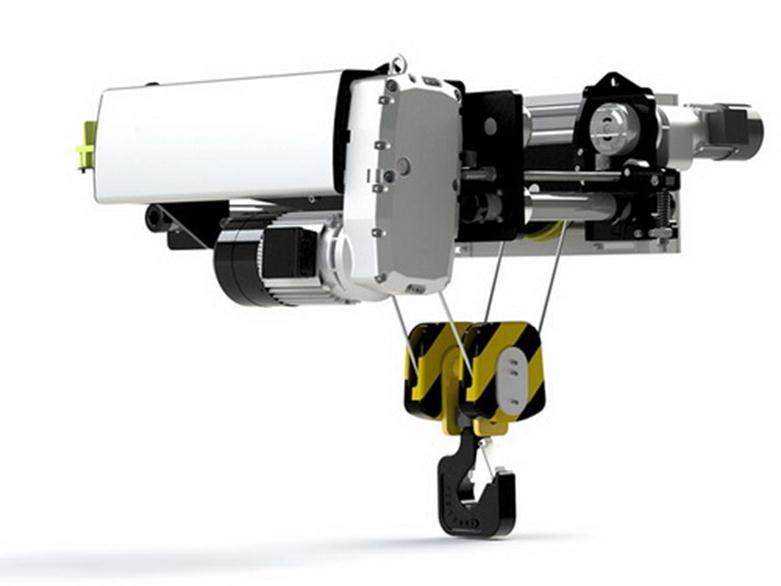

C. Hoist Chav

TusLifting tshuabuas tsa \/ lowers lub nra.

Hom:

Hluav Taws Xob Hlav Hoist(Rau lub teeb ci rau nruab nrab loads).

Hlau Hlua Hoist(rau cov nra hnyav).

Xws li:

Lub cav

Tus thawv

Nruas lossis cov kab sib tw sprocket

Cav Nres





D. Trolley

TusMus Chav Tsevuas nqa cov hoist raws girder.

YuavKev tuav laub, tes-khawm, lossis lub cev muaj zog.

Xws li lub log, tsav tsav (yog tias powered), thiab txwv cov nyom.

E. Kev Siv Txoj Haujlwm Tso Cai

Muaj hau xwmtus ncejmountedRamway teeb(txhawb nqa los ntawm cov kab ntawv hauv tsev lossis cov qauv ywj siab).

Muab txoj hauv kev rau Crane lub zog.

F. Hluav Taws Xob Hluav Taws Xob

Kev pab fais fab: Feem ntau3-} pege ac(380v, 50Hz) lossis customized voltage.

Kev Tswj Xaiv:

Pendant Tswj(hanging khawm chaw nres tsheb).

Xov Xwm Chaw Taws Xob(wireless kev ua haujlwm).

Lub tsev nqa khoom tswj(rau cranes loj).

Kev Nyab Xeeb Khoom:

Txwv tsis pub hloov(los tiv thaiv dhau kev ncig ua si).

Kev tiv thaiv ntau tshaj(kom tsis txhob load tshaj).

Nres Nres Nres.

G. Buffers & Bumers

Roj hmab lossis lub caij nplooj ntoo hlav ua kom lub siab chim ntawm lubxaus ntawm tus girderTxhawm rau tiv thaiv kev puas tsuaj los ntawm kev sib tsoo.

H. Festoon System (Rau Lub Cranes Powered)

Tswj hwmhlua tawsrau lub hwj chim thiab tswj cov cim.

YuavCable Festoon lossis Tus Neeg Saib Xyuas Bar System.

2. Kev xaiv sib xyaw (nyob ntawm daim ntawv thov)

Crane alarm(rau tus neeg teb xov tooj-tswj cranes).

Anti-Sway System(rau meej load chaw).

Uas System(Kev ntsuas kev ntsuas).

Kuj tsis paub meej zaus tsav (VFD)rau kom ceev ceev \/ decelerationation.

Kev tawg-ntawv pov thawj Cheebtsam(rau cov chaw muaj kev puas tsuaj).

.

3. Ua haujlwm ua haujlwm

TusHlob Nqalub nra ntsug.

TusTrolley txavLuboist kab rov tav ntawm GIRDER.

TusKawg Cov Tsheb Thauj MusTag nrho cov crane ua ke rau kev khiav rau kev mus ncig ntev.

TusTswjhwm system(pendant \/ chaw taws teeb) tswj txhua yam kev txav.

4. Kev saib xyuas & Kev Nyab Xeeb Kev Nyab Xeeb

Nquag tshuaj xyuasCov xov hlau, cov saw, thiab hooksrau hnav.

Kuajbrakes thiab txwv cov nyomrau kev ua haujlwm zoo.

Rau npluasCov log, bearings, thiab zogtsis tseg.

Ua kom tau tiag tiagKev khiav ceev kev ua kom tiavyog qhov tseeb rau kev tiv thaiv kev hnav tsis ncaj.

Daim duab kos



Cov Tshuab Tseem Ceeb



1. Nqi siv

Qis dua tus nqi piv rauOb Chav Girder CranesVim tsim yooj yim thiab tsawg dua khoom siv.

Txo cov nuj nqis nruab teeb tsa thiab kev saib xyuas txij nkawm.

2. Lub teeb yuag & chaw-txuag

Yuav tsum tauTsawg dua cov qauv kev txhawb nqa(Txuag ntawm lub tsev \/ cov nqi khiav).

Qhov zoo tagnrho rau cov chaw nrogQhov siab txwv tsis pub(txij li lub hoist hangs hauv qab girder).

3. Yooj yim installation & Txij Nkawm

Tsawg dua cov khoomYooj yim los ua kethiabqis qis duarau kev kho vaj tse.

Cov cuab yeej yooj yim cov qauv txo cov nqi ntev pab.

4. Zog Zog

Noj movTsawg lub zogtshaj li ob npaug girder cranes (haum rau ntau tab sis lub teeb-lub zog siv).

5. Ntau yam & customizable

Muaj nyob rau hauvLos ntawm txhais tes, hluav taws xob, lossis chaw taws teeb-tswjversions.

Tuaj yeem yoog nrogCov Hooks Tshwj Xeeb, tuav, lossis cov hlau nplaumrau cov khoom sib txawv.

6. Yog & Ua haujlwm zoo

Niaj hnub qauv featureHom tsis paub meej zaus (VFDs)rau lub zog tsis pub dawb.

Haum rauLos Ua Kexav tau qhov chaw tseeb.



Cov Kev Siv ntawm HD-Hom Ib Leeg Girder Nyiaj Siv Ua Haujlwm Crane

1. Kev Tsim Kho & Kev Kawm

Tsiv raw ntaub ntawv, Machinery qhov chaw, thiab cov khoom tiav.

Siv nyob rau hauvAutomotive, steel fabrication, thiab machinery nroj tsuag.

2. Warehousing & Logistics

Chaw thau khoom \/ unloading khoom, stacking pallets, thiab thauj khoom hnyav.

Ntau hauvChaw Xa Khoom thiab Chaw Thauj Khoom.

3. Kev tsim kho & khoom siv tuav

NyomHlau Beams, Qhob Thaiv, Thiab Siv Cov Cuab Yeej.

Feem ntau siv nyob rau hauvKev Ua Haujlwm Qhia Ua Haujlwm.

4. Fais Fab Cov Nroj Tsuag & Khoom Siv Hluav Taws Xob

TuavTransformers, cov tshuab hluav taws xob, thiab cov khoom siv hnyavthaum saib xyuas.

5. Ntawv & Maas Industries

Tsheb thaujYob cov ntawv, cov hnab xis, thiab cov ntaub ntawv loj.

6. Aviation & Nkoj

Pab nyob rau hauvLub Nkoj Tiv Thaiv Txheej TxheemthiabLub nkoj khoom siv.

7. Kev muaj kev lag luam loj & hnyav

Siv nyob rau hauvLub teeb mus rau nruab nrab-Dutcution nqantawm ores, khoom siv, thiab cov khoom seem.



1. Tsim thiab engineering
Kev Sab Laj pib: Cov txheej txheem pib nrog kev sib tham ntawm cov khw thiab cov neeg muaj peev xwm nkag siab qhov muaj peev xwm ua haujlwm, xws li kev siv nyob sab nraud lossis sab nraud, thiab lwm yam).

Engineering & Customization: Tus tsim pab pawg kev tsim kho cov crane, suav nrog cov qauv, nqa cov kab hluav taws xob, thiab xov tooj cua tswj chaw taws teeb. Cov ncauj lus qhia ntxaws ntxaws kos duab thiab cov kev qhia tshwj xeeb yog npaj, ua kom cov Crane ua tau raws li txhua tus qauv thiab cov lej kev nyab xeeb.

Kev tsim qauv tsim qauv: Cov xov tooj cua chaw taws teeb tswj tau muab tso rau qhov kev siv, ntau, kev tiv thaiv thaum muaj xwm ceev, kev tiv thaiv thaum muaj xwm ceev, thiab sib xyaw nrog crane lwm cov kev tiv thaiv.

2. Cov khoom siv xaiv thiab ua tiav
Cov Khoom Siv Txheej Txheem: Cov ntaub ntawv zoo zoo li cov hlau yog muaj rau crane lub nqaj, girder, kawg cov tsheb ciav hlau, thiab lwm yam qauv txheej txheem. Cov ntaub ntawv no tau xaiv rau lawv lub zog, durability, thiab muaj peev xwm tiv nrog kev thauj khoom hnyav.

Cheebtsam lwm yam: Cov Cheebtsam rau cov hlab hlwb, tshuab hluav taws xob, cov tsheb crane, nkab xov tooj cua chaw taws teeb los ntawm cov neeg xa khoom kom txhim khu kev qha.

Cheebtsam hluav taws xob: xaim, hluav taws xob ntoo, hloov hluav taws xob, cov khoom siv nyab xeeb, thiab lwm yam hluav taws xob rau cov kev tswj hwm crane rau cov txheej txheem tswj tau.

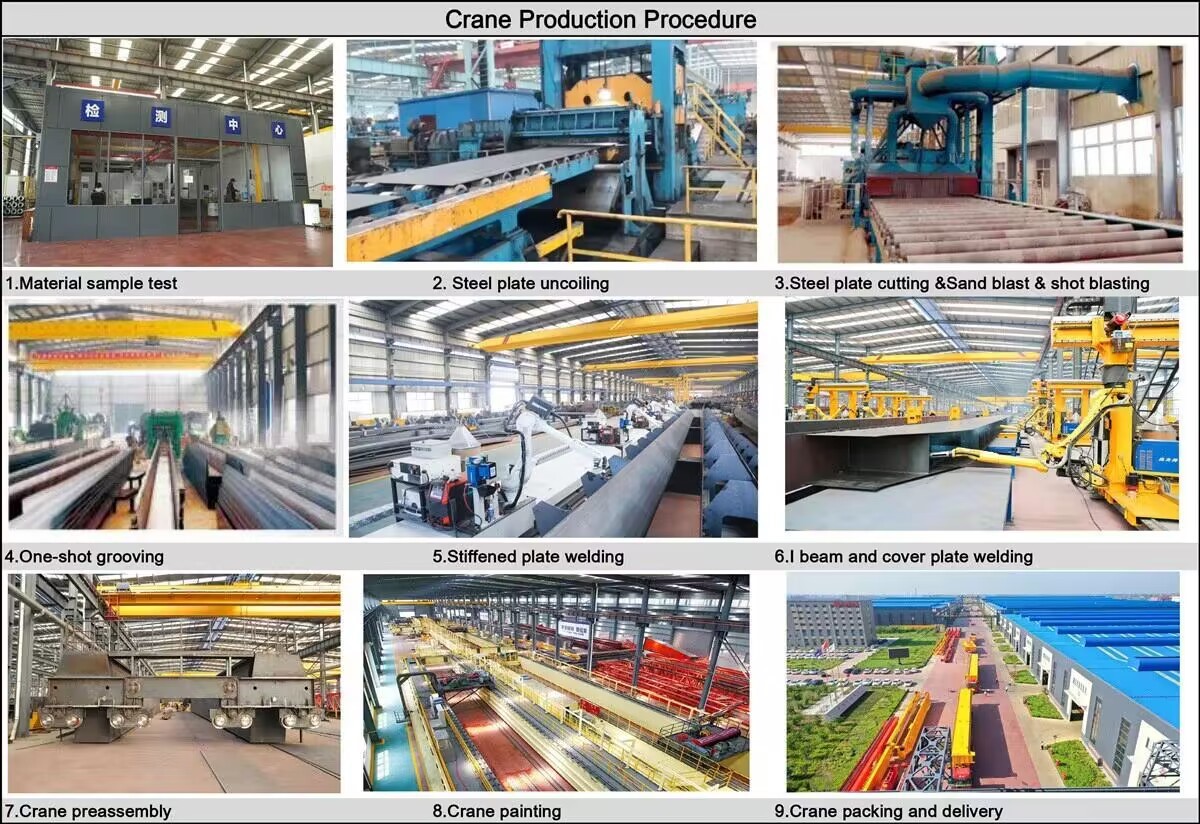

3. Fabrication thiab kev tsim khoom
Bean lub ntsiab lus tseem ceeb: cov hlau txiav, welded, thiab sib sau ua ke girder loj (ib nqaj) ntawm lub crane. Cov txheej txheem no feem ntau koom nrog precision txiav, dabtsi yog khoov, thiab vuam kom tau raws li kev tsim tshwj xeeb.

Kawg lub tsev pheeb suab ntaub: kawg ntug kev, uas txhawb nqa crane kev ua haujlwm taug kev, yog cov ntaub qhwv ntsej muag. Cov khoom siv no yog tsim rau kev ruaj ntseg thiab lub zog, ua kom muaj zog du crane tas mus li ntawm cov ciav hlau.

Los ua ke ntawm Lifting tshuab: lub hoist, nuv, thiab kev nqa lub tshuab coj ua ke, nrog cov motors, zog, thiab cov pulleys ua ke rau hauv cov kab ke. Lub neej nqa khoom yog kuaj rau load-coj tus xeeb zog muaj peev xwm thiab kev ua haujlwm du.

Trolley thiab Crane Mus Kev Ncig Xyuas Txheej Txheem: Trolley thiab Crane Mus Kev Ncig Xyuas Kev Ua Haujlwm yog tsim thiab sib sau ua ke. Qhov no suav nrog lub log, lub cev muaj zog, thiab cov tsheb ciav hlau, ua kom muaj kev txav mus los ntawm lub crane raws cov ntsia.

Xov tooj cua chaw taws teeb kev teeb tsa: Xov tooj cua cov chaw taws teeb hluav taws xob tau teeb tsa. Qhov no suav nrog kev tsim nyog tau txais cov tswv yim tsim nyog, antennas, thiab kev sib xyaw ua ke cov kev tswj hwm nrog cov tshuab hluav taws xob thiab tshuab siv tshuab.

4. Hluav Taws Xob thiab Tswj Kev Ua Haujlwm
Kev siv hluav taws xob thiab hluav taws xob: hluav taws xob hluav taws xob yog ntsia tau, txuas lub tshuab hoisting, tswj vaj huam sib luag, thiab xov tooj cua chaw taws teeb tswj. Cov xaim yog kuaj rau kev nyab xeeb thiab ua raws nrog cov cim hluav taws xob.

Tswj vaj huam sib luag sib dhos: Lub vaj huam sib luag crane crane sib sau ua ke thiab ua ke nrog xov tooj cua chaw taws teeb tswj. Nws tau sim rau kev teb thiab kev nyab xeeb nta, suav nrog nres thaum muaj xwm ceev thiab kev tiv thaiv thaum muaj xwm ceev.

Cov yam ntxwv kev nyab xeeb: cov khoom siv kev nyab xeeb xws li kev txwv cov cav tsuag, dhau constload, thiab suab thiab lub tswb lub tswb raug teeb tsa thiab ua ke rau hauv cov kev tswj hwm. Cov kab ke no ua kom muaj kev nyab xeeb crane ua haujlwm thiab tiv thaiv kev puas tsuaj.

5. Kuaj thiab Tswj Tswjhwm Zoo
Kev Tshawb Xyuas: Lub crane yog raug rau kev kuaj thauj kom ntseeg tau tias nws tuaj yeem ua qhov muaj peev xwm qhov hnyav. Qhov kev xeem yog ua tiav siv cov hnyav hnyav los xyuas cov luj ua kom paub tseeb tias cov kev ua tau zoo hauv kev ua haujlwm.

Kev sim ua hauj lwm: Cov kab ke crane tsis ua haujlwm tag nrho, uas nws tau khiav los ntawm nws cov lus taw (nqa, kev mus ncig, thiab lwm yam) siv lub xov tooj cua chaw taws teeb tswj. Lub Crane cov lus teb rau cov lus txib, nrog rau cov nres tsheb thaum muaj xwm txheej ceev thiab lub tswb ntsuas kev nyab xeeb, yog cov tshuaj xyuas kev nyab xeeb.

Kev kuaj hluav taws xob & kev siv hluav taws xob: Txhua lub tshuab hluav taws xob, suav nrog rau lub xov tooj cua chaw taws teeb tswj, raug kuaj rau kev ua haujlwm thiab kev nyab xeeb. Cov motors, brakes, thiab hluav taws xob hluav taws xob raug kuaj xyuas kom ua haujlwm tau zoo.

Soj ntsuam rau kev ua raws cai: tus crane yog kuaj xyuas kom ua raws li hauv zos thiab thoob ntiaj teb (xws li ISO, lossis OSHA) kom ntseeg tau tias nws tau raws li kev tswj hwm kev nyab xeeb. Cov qauv, cov khoom siv thauj khoom, thiab cov tshuab kev nyab xeeb yog cov tshuaj xyuas kom huv.

6. Zaum Kawg
Thaum kawg ua ke thiab tshuaj xyuas: tom qab sim, lub crane yog tag nrho cov kev sib sau ua ke, nrog txhua tus ntsuas ruaj ntseg txuas thiab tshuaj xyuas kom raug. Kev tswj hwm cov chaw taws teeb hluav taws xob tau teeb tsa, thiab lub kaw lus yog sim ib zaug kawg kom ntseeg tau kev sib xyaw.

Painting & Xov: Tus crane tau pleev xim nrog kev tiv thaiv tiv thaiv kom tiv thaiv corrosion thiab txhim kho nws cov tsos. Qhov kawg nkaus kawg kov tau ntxiv rau tus qauv, suav nrog txhua yam cim qig lossis kev nyab xeeb.

Cov Ntaub Ntawv: Txhua cov ntaub ntawv tsim nyog, suav nrog phau ntawv qhia, ntawv qhia txog kev ua raws li, cov ntaub ntawv xeem, thiab cov ntaub ntawv pov thawj, tau npaj rau cov qhua tuaj noj mov.


Rhiav Saib:

Lub tuam txhab tau teeb tsa cov khoom siv tswj hwm kev txawj ntse platform, thiab tau teeb tsa 310 teev (teeb tsa) ntawm kev tuav thiab vuam hlau. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teev (teeb tsa), thiab cov khoom siv sib txuas lus yuav ncav cuag 95%. 32 VUAM txoj kab tau muab tso rau hauv kev siv, 50 tau npaj yuav tsum tau nruab, thiab kev siv lub tshuab ntawm cov kab ntawv tag nrho tau mus txog 85%.
