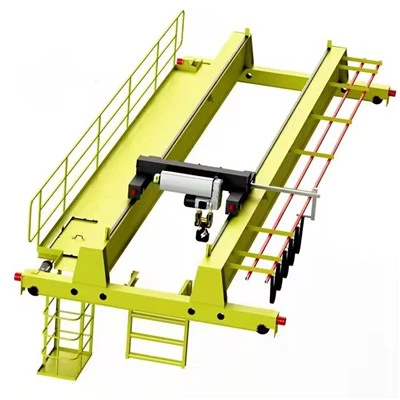

30t overhead crane ob kab teeb

Lub ntsiab nta:
Nyob Lob Lifting Peev: 30 Tons

Crane Hom: Ob Chav Girder (Ob-nqaj) Nyiaj Siv Ua Haujlwm \/ Choj Crane

Ntsev: Feem ntau ntawm 10.5 m thiab 35 m (customizable)

Lifting qhov siab: 6 m txog 30 m lossis customized

Kev Ua Haujlwm Chav Kawm: A5-A7 (Nruab Nrab Mus Rau Lub Luag Haujlwm Hnyav) Ib Poj Niam \/ Iso

Tswj hom: CARIN tswj, Pendant tswj, lossis xov tooj cua chaw taws teeb tswj



Cov Cheebtsam Tseem Ceeb: Cov kabmob, Gearbox, Tsav, Twj

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 1 xyoos

Qhov hnyav (kg): 2000 kg

Video tawm-soj ntsuam: muab

Kev Ntsuas Cov Lus Qhia: muab

Tsim: Ob Chav Beam

Effelliveness: High Efficiency

Kev khiav hauj lwm ceev: Kev ua haujlwm nrawm

STABILES: Anti-Viav Foos Ua Haujlwm

Xim: Yeem

Lub Hwj Chim Source: 110V \/ 220V \/ 230V \/ 380V \/ 480V \/ 440V, Mekas

Ntsev: 7. 5-31. 5m





1.Main Beam

Tus Qauv thiab Tsim
Hom: Welded Box-Girder lossis H-Beam qauv (lub thawv-girder feem ntau yog rau 30t thiab saum toj).

Kom muaj nuj nqis: 2 lub main teeb (parallel), sib sau sab qaum kev ntawm tus choj.

Cov Khoom Siv Hlau:

Q235B \/ Q345B carbon qauv txheem hlau

Yeem siab-muaj zog hlau yog tias ncua lossis lifting qhov siab yog loj

Qauv Tsim:

Poj niam, ISO, lossis GB nyob ntawm koj thaj av \/ cov cai

Finite elite tsom xam (fea) siv rau kev ntsuas kev ntxhov siab thiab kev nyab xeeb thauj khoom



2.Lifting system

Ua Haujlwm Cov Ntsiab Cai
Thaum lub cev muaj zog tau qhib, nws tau tig lub nruas ntawm lub gearbox, winding lossis unwinding cov hlua xov hlau.

Lub Hook thaiv tsa lossis lowers nyob ntawm lub nruas sib hloov.

Lub kaw lus braking kom lub load nyob qis qis thaum tsis muaj nyob hauv cov lus tsa suab.

Txwv kev hloov chaw nres tsheb nqa mus rau ntawm max qhov siab lossis hauv qab mus ncig ua si.

Pitectlub laub

Cov Khoom Siv: Ua Los Ntawm Q235B \/ Q345B Carbon Steel (Sharangular Box Qeeb Tus Qauv)
VUAM: High-precision welded qauv, kev nyuaj siab-ntxhov siab kom tsis txhob deformation
Kev sib txuas rau Main Bea: Flange phaj bolted los yog welded rau cov tsiaj loj nrog tshuab hluav taws xob
Precision Machining: Log Bases thiab kev sib txuas qhov yog cnc-machined rau cov txheej txheem zoo meej





4.Crary Traveling Mechanism

End Flriaes: nyob ntawm ob qho kawg ntawm tus choj crane; Txhawb nqa lub log thiab drives
Cov log tsheb taug kev: cov hlau kauj dav mounted ntawm kawg cov cable uas yob raws cov rails rails
Tsav Cov Hluav Taws Xob: Lub Zog Kev Ua Rau Lub Zog ntawm Crane raws tus ntsia
Iav Receducers: phim lub cev muaj zog ceev rau kev ua haujlwm torque
Brakes: Electromagnetic lossis HYDRAULIC, cia li koom thaum lub cev muaj zog nres
Tswj Txheej Txheem: Ua Haujlwm Ntawm Pendant, Chaw Taws Teeb, lossis Alarin
Zaus inverter (VFD): Tso cai kom ceev nrawm thiab deceleration, tiv thaiv cov txheej txheem

5.trolley Travelling Mechanism

Tsav tsheb
Tsav hom:

Txheem: Zov-tawb lossis qhov txhab-lub cev muaj zog

EURO-Style: Compact Peb-Hauv Ib Lub Cev Muaj Zog (Tsav + Nres + Reducer)

Tsav hom:

Ib lub tsheb uas muaj hla tus ncej (rau lub teeb-lub zog ua haujlwm)

Ob-lub cev muaj zog tsav (ntau ruaj khov rau 30t thiab saum toj)

Mus ncig ua si: Feem ntau 2-30 m \/ min, kho tau nrog VFD (inverter) rau kev ua kom du thiab ua kom nruj

Lub cev muaj zog: feem ntau ntawm 3-7.5 kw, nyob ntawm cov thauj khoom thiab yuav tsum tau nrawm

6.Cra log

Choj mus ncig teb chaws yuav tsav: mounted on kawg cabra, caij ntawm cov ciav hlau
Lub log trolley taug kev: mounted nyob rau hauv lub hoisting trolley, khiav ntawm cov ntsia hlau atop cov girders loj

7.CraCane Hook

Forged nuv: lub main nqa keeb, feem ntau ib lossis ob chav nuv
Nuv thaiv: steel sib dhos uas cov tsev tus nuv, pulleys, bearings, thiab thav duab
Pulley SheAses: Qhia cov hlua hlau; Txo kev siv zog los ntawm kev ua kom zoo dua
Swivel me ntsis kev sib hloov: tso cai rau cov pob tw kev sib hloov (phau ntawv lossis lub cev muaj zog) kom haum nrog lub nra
Kev Ruaj Ntseg Latch: Lub Caij Nplooj Hlav Hluav Taws Xob Tiv Thaiv Lub Sling lossis Load los ntawm Slipping Tawm Tus nuv
Bearings: Ua kom ntseeg tau du Hook kev sib hloov thiab kev thauj khoom txav

8.Moor

Hoisting lub cev muaj zog

Drives lub lifting nres kom nce thiab qis loads.

Yuav tsum muaj lub zog siab ntawm kev nrawm nrawm, feem ntau nrog tus nres.

Trolley Traveling Tsav

Tsiv lub hoisting trolley hla cov dev loj.

Nruab Nrab Fais Fab Lub Cev Muaj Zog, tsim rau kom ceev ceev thiab deceleration.

Crane Mus Ncig Tsav

Tsiv tag nrho cov choj crane raws cov rail kev tswm ciab.

Lub zog loj lub cev muaj zog nrog ruaj khov, tswj kev txav.

.

9.sound thiab Lub Teeb Lub Tswb System & txwv hloov

1) suab thiab lub teeb tswb system
Lub hom phiaj:
Txhawm rau ceeb toom cov neeg ua haujlwm hauv thaj chaw ua haujlwm thaum twg lub crane ua haujlwm lossis txog kev pib txav.

Txhim kho kom muaj kev nyab xeeb ua haujlwm los ntawm cov neeg ua haujlwm alerting rau crane kev txav, txo kev phom sij.
2) Txwv Tsis Pub Hloov
Lub hom phiaj:
Txhawm rau tiv thaiv crane los yog trolley los ntawm kev txav mus dhau ntawm thaj chaw nyab xeeb.

Tiv thaiv crane qauv thiab ib puag ncig ib puag ncig los ntawm kev sib tsoo thiab kev puas tsuaj.

Ua raws li kev nyab xeeb ntawm kev nyab xeeb los ntawm kev txiav tawm suab cia.

10.safety cov khoom siv

1) Kev Tiv Thaiv Kev Tiv Thaiv
Tiv thaiv kev nqa cov khoom thauj dhau ntawm lub peev xwm kev ntsuas (30 tons).

Siv cov tshuab ntsuas hluav taws xob lossis quav gauges ntawm lub tshuab hoisting.

Txiav txim siab tsis muaj ho xav tau yog tias muaj kev pom, tiv thaiv lub crane thiab thauj khoom.

2) Thaum Muaj Xwm Ceev Tseg (E-Nres) khawm
Loj, yooj yim nkag tau liab Push khawm-khawm hloov pauv rau ntawm Crane Tswj Panels, tswj lub cabin.

Tam sim ntawd txiav lub zog rau Crane motors thaum nias.

Tso cai rau kev kaw sai sai thaum muaj mob tsis zoo.

3) Kev sib tsoo ntaus ntawv
Tiv thaiv kev sib tsoo nrog lwm cov cranes lossis cov teeb meem hauv thaj chaw ua haujlwm.

Siv tau radar, ultrasonic sensors, lossis sensorsed infrared.

Cia li qeeb qeeb los yog nres lub crane thaum cov khoom raug kuaj pom tsis pub dhau lub sijhawm ua ntej.

4) Mus ncig teb chaws thiab hoist txoj kev hloov pauv
Cov neeg kho tshuab lossis phiv cov pob hluav taws xob uas nres taug kev lossis hoisting thaum kev txav mus dua li thaj tsam nyab xeeb.

Tiv thaiv crane los ntawm kev khiav tawm ntawm cov ntsia hlau lossis hoisting dhau lawm \/ tsawg.

5) slack rope ntes
Kuaj pom slack lossis slackening hauv cov hlua hlau thaum hoisting.

Tiv thaiv kev puas tsuaj los ntawm hlua entanglement lossis xa lub nra.

11.Control hom

1) Pendant Tswj (cov chaw taws teeb tswj)
Ib lub thawv tswj hwm txuas nrog lub crane los ntawm txoj cable.

Tus neeg teb xov tooj txhawb nqa Crane Tsuaj los ntawm nias khawm lossis toggles.

Kev nyab xeeb rau kev ua haujlwm ze-ntau yam, tshwj xeeb tshaj yog nyob rau hauv ib puag ncig tswj.

Feem ntau suav nrog kev nres tsheb thaum muaj xwm ceev thiab ntau yam kev muaj nuj nqis khawm (Hoist nce \/ Down, Trolley mus ncig ua si, choj mus ncig).

2) Xov tooj cua chaw taws teeb tswj (wireless tswj)
Wireless maub los tso cai rau tus neeg teb xov tooj los tswj lub crane los ntawm qhov deb (mus txog 100+ meters).

Muab kev mus ncig ntau dua thiab muaj kev pom zoo dua ntawm qhov chaw thauj khoom thiab thaj chaw ib puag ncig.

Xws li cov khoom nres tsheb thaum muaj xwm ceev thiab kev nyab xeeb rau kom tsis txhob muaj teeb meem poob.

Nrov nyob rau hauv sab nraum zoov lossis loj tsev rau ib qho chaw ib puag ncig.

3) Kev tswj tsev Cabin
Tus neeg teb xov tooj ua si sab hauv txee rau ntawm tus choj.

Muab cov qauv ncaj qha, tag nrho-nyob ib ncig ntawm kev pom thiab kev tswj hwm ergonomic.

Feem ntau tau nruab nrog joystick lossis kev tswj kav lossis kev tswj hwm, muab cov vaj huam sib luag, thiab kev nyab xeeb.

Haum rau hnyav-dej num thiab ua haujlwm meej, tshwj xeeb tshaj yog nyob rau hauv cov chaw loj lossis nyuaj.

4) PLC thiab TouchScreen tswj
Cov cranes niaj hnub tuaj yeem siv lub cav teeb meem (plc) nrog touchscreen human-tshuab interface (hmi).

Tso cai programmable ua haujlwm, automation, thiab kuaj mob.

Tuaj yeem sib xyaw ntau hom kev tawm tswv yim (pendant, xov tooj cua, cabm).

Txhawb kev nyab xeeb kev nyab xeeb thiab qib siab tshaj plaws.

5) Tsis siv neeg lossis ib nrab tsis siv neeg tswj (qib siab)
Qee cov cranes muaj cov yam ntxwv automation rau cov haujlwm rov ua dua tshiab.

Siv cov sensors, koob yees duab, lossis RFID system rau kev thauj khoom thiab txav chaw.

Txo tus neeg teb xov tooj ua haujlwm thiab nce qhov tseeb.



12.Sketch

Cov Tshuab Tseem Ceeb





1. Cov khoom lag luam muaj peev xwm & kev ruaj khov
Tsim tshwj xeeb los tuav cov khoom hnyav mus txog 30 tons muaj kev nyab xeeb thiab zoo.

Ob chav girder qauv muab lub zog zoo thiab nruj, txo qhov deflection thiab kev co hauv qab thauj.

2. Huab cua sov & thaj chaw ua haujlwm loj
Haum rau kev ua haujlwm thoob plaws thiab cov tsiaj loj ua tsaug ntev ntev girders thiab siab Lifting qhov siab.

Muab lub hnab ntawv ua haujlwm loj dua piv rau cov Crane Girder.

3. Txhim kho Lifting qhov siab
Ob chav Girder Destre tso cai rau cov trolley khiav rau saum cov girders, maxizing lub lifting qhov siab (nuv kab).

Pab tau thaum ua haujlwm hauv cov chaw nrog qhov kev txwv.

4. Txhim Kho Kev Nyab Xeeb
Nruab nrog ntau cov khoom siv kev nyab xeeb: kev tiv thaiv ntau dhau, txwv kev hloov chaw, nres tsheb thaum muaj xwm ceev, suab thiab lub tswb ceeb toom.

Cov txheej txheem muaj zog ua ke txo qhov kev pheej hmoo ntawm kev ua tsis yog.

5. Ntev & Ntev
Kev hnyav-tsim qauv nrog cov ntaub ntawv muaj zog thiab cov khoom siv rau lub neej pabcuam txuas ntxiv.

Muaj peev xwm tiv taus cov chaw muaj teeb meem nyuaj, suav nrog cov hlau mills, thiab cov nkoj nkoj.

6. Yog & Ua haujlwm zoo
Siv Adevore Motors thiab tswj cov tshuab (VFDs, plcs) rau kev pib du \/ nres thiab ua kom haum.

Txo hnav cov khoom siv kho tshuab thiab txhim kho tus neeg teb xov tooj tswj.

7. Versatility
Haum rau ntau yam kev lag luam xws li kev tsim khoom, hlauworking, tsim kho, xa khoom, thiab logistics.

Yuav tuaj yeem kho nrog cov qauv kev tswj txawv, cov yam ntxwv kev nyab xeeb, thiab nqa kev txuas.



1) Kev Raug Ntau Yam Nroj Tsuag
Siv los nqa thiab thauj cov tshuab hnyav siv cov tshuab hnyav, pwm, thiab khoom siv.

Feem ntau hauv kev kho tsheb, aerospace, thiab kev tsim khoom hnyav thiab kev tsim khoom hnyav.

2) Steel Mills thiab Hlau Ua
Ua haujlwm hnyav hlau Coils, cov ntawv txheeb, thiab cov qauv hlau txheem hlau.

Pab txhawb cov chaw thau khoom \/ thauj khoom, sib dhos, thiab cov khoom txav hauv cov khw mills thiab cov khw muag khoom ntaub.

3) Tsim Kev Lag Luam
Nqa cov ntaub ntawv loj xws li cov nqaj hlau, pob zeb ua vaj tse, thiab cov khoom ua ntej.

Siv rau hauv precast qhob nroj tsuag thiab nyob rau hauv-chaw sib dhos Yards.

4) shippebuilding thiab kho yards
Tsiv cov nkoj hnyav

Muab cov khoom ncaj ncees tuav tuav cov chaw nres nkoj nruj.

5) logistics thiab warehousing
Ua haujlwm cov thawv ntim cov khoom loj, pallets, thiab cov khoom lag luam loj hauv cov chaw khaws khoom thiab xa khoom faib khoom.

MetleLines Chaw thau khoom \/ thauj khoom rau cov tsheb thauj khoom thiab tsheb ciav hlau.

6) Fais fab ntoo thiab hluav taws xob
Nqa cov tawv hnyav, cov tshuab hluav taws xob, hloov pauv, thiab lwm yam cuab yeej siv thaum lub sijhawm teeb tsa thiab kev saib xyuas.

Siv nyob rau hauv thermal, hydroelectric, thiab cov nroj tsuag hluav taws xob nuclear.

7) Kev Railway thiab Automotive Cob Qhia
Nqa pob zeb, chassis, thiab cov khoom hnyav rau kev kho, sib dhos, thiab kev txij nkawm.

Facilitates cov kev txav ua tau zoo ntawm cov khoom loj hauv cov rhiav bays.

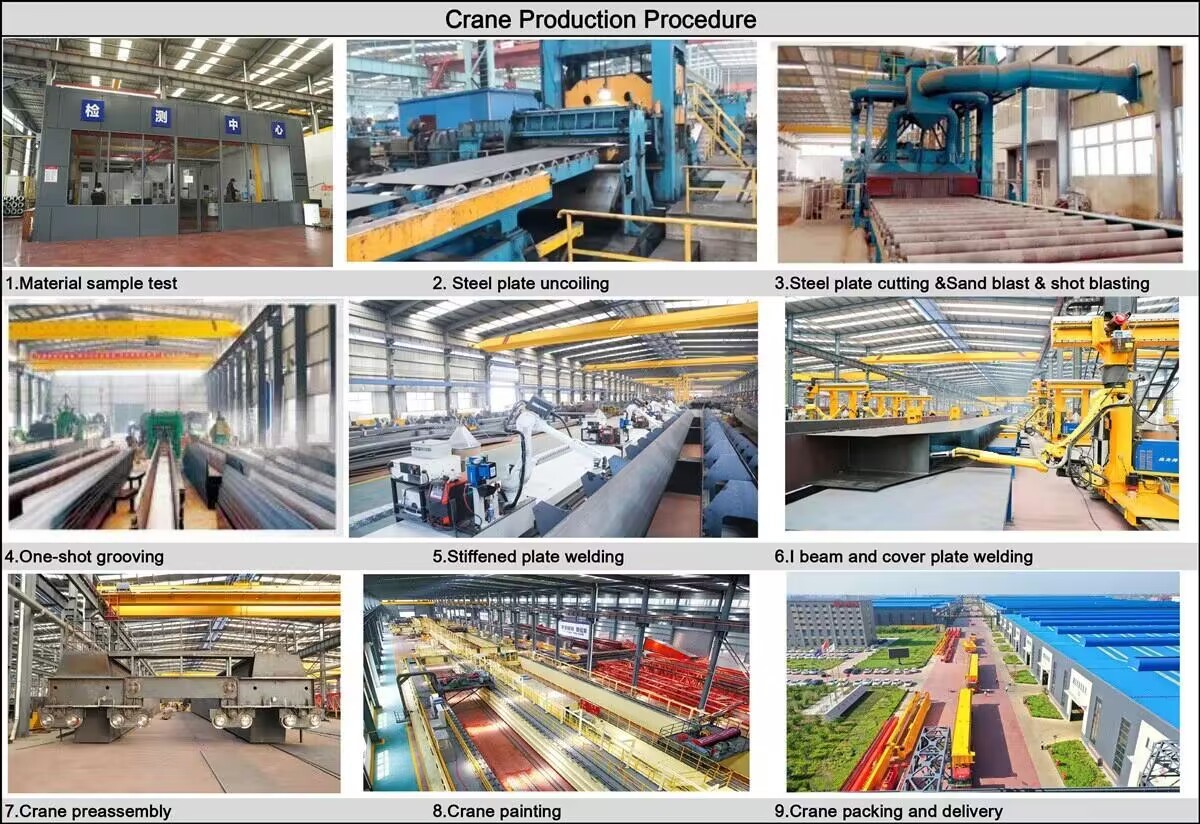

1) Tsim thiab engineering
Txheeb xyuas cov neeg siv khoom: thauj khoom muaj peev xwm, ncua sijhawm, Lifting qhov siab, chaw ua haujlwm.

Tsim cov qauv tsim qauv kom ntxaws thiab cov qauv 3D siv CAD software.

Ua cov txheej txheem kev tsom xam thiab kev ntxhov siab kom muaj kev nyab xeeb thiab ua raws li cov qauv (ISO, poj niam, thiab lwm yam).

2) Cov Khoom Siv Khoom
Tau qhov twg los zoo hlau daim hlau, teeb ci, motors, cov khoom siv hluav taws xob, thiab cov khoom siv hluav taws xob los ntawm cov neeg xa khoom.

Xyuas cov ntaub ntawv ua tau raws li cov ntaub ntawv tshwj xeeb.

3) Kev Txiav Thiab Kev Npaj
Cov phiaj hlau thiab cov ntu txiav kom loj siv cov tshuab cnc txiav tshuab lossis ntshav cutters.

Npaj qhov chaw rau vuam thiab sib dhos, suav nrog kev tho, khi, thiab kev kho kom nto.

4) VUAM THIAB RINGBLE NTAWM MAINATE
Weld tseem loj Girders (ob qho teeb ci) siv vuam lossis siv hluav taws xob vuam, kom paub meej thiab lub zog.

Sau tseg kawg kawg cov neeg saib xyuas, trolley thav ntawv, thiab lwm yam qauv txheej txheem.

Ua cov kev tshuaj xyuas kev soj ntsuam hauv qhov kev tshuaj xyuas kom muaj kev thev taus.

5) Kev Kho Mob Nto
Ua sandblasting lossis txhaj tshuaj tiv thaiv blasting rau huv steel nto.

Thov cov khoom lag luam thiab kev tiv thaiv corrosion xim los tiv thaiv xeb thiab hnav.

6) Kev Tsim Tshuaj Ntawm Hoisting Mechanism
Sib dhos hoist lub cev muaj zog, GEARBOX, nruas, hlau hlua, thiab nuv thaiv.

Kuaj hoist system rau kev ua haujlwm du thiab thauj khoom muaj peev xwm.

7) Los ua ke ntawm crane fab
Nruab Trolley Mus Ncig Ua Si (Motors, Log, Brakes).

Mount Crane Mus Ncig Ua Si ntawm kawg Flriages.

Haum hluav taws xob xaim hluav taws xob, tswj cov vaj huam sib luag, txwv cov hloov chaw, tswb, thiab cov khoom siv kev nyab xeeb.

8) hluav taws xob teeb tsa thiab kuaj
Txuas cov motors thiab tswj cov tshuab, thiab khoom siv fais fab.

Ua cov tshuaj hluav taws xob suav nrog rwb thaiv tsev tsis kam, txuas ntxiv, thiab kev ntsuas ua haujlwm.

Txoj haujlwm Plc lossis cov koog tswj tau yog tias muaj.

9) Kev Xeem Tawm thiab Chaw Haujlwm
Coned zoo li qub thiab dynamic kev ntsuas kev ntsuas kom pom tseeb lifting muaj peev xwm thiab ruaj khov.

Kuaj tag nrho cov khoom siv kev nyab xeeb, lub tswb, thiab txwv cov nyom.

Kho thiab tswj hwm kom ntsuas rau kev ua haujlwm du.

10) Kev kuaj xyuas zaum kawg thiab kev lees paub zoo
Ua kom huv raws raws cov qauv thiab cov neeg yuav khoom tshwj xeeb.

Qhov Teeb Meem Ntsuam Xyuas Cov Ntawv Qhia thiab Ntawv Pov Thawj Cov Ntaub Ntawv.

11) ntim khoom thiab xa khoom
Disassemble qhov chaw yog tias tsim nyog thauj.

Cov khoom siv pob kom ruaj ntseg los tiv thaiv kev puas tsuaj thaum lub sijhawm ua zaub mov xa tuaj.

Npaj cov lus qhia thiab kev teeb tsa.

12) installation thiab tom qab kev txhawb nqa
Saib xyuas ntawm-site constallation thiab commissioning yog tias yuav tsum tau ua.

Npaj cov neeg teb xov tooj, phau ntawv qhia thiab saib xyuas kev qhia.

Muab kev txhawb nqa kev lag luam thiab cov khoom xa khoom seem.

Rhiav Saib:

Lub tuam txhab tau teeb tsa cov khoom siv tswj hwm kev txawj ntse platform, thiab tau teeb tsa 310 teev (teeb tsa) ntawm kev tuav thiab vuam hlau. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teev (teeb tsa), thiab cov khoom siv sib txuas lus yuav ncav cuag 95%. 32 VUAM txoj kab tau muab tso rau hauv kev siv, 50 tau npaj yuav tsum tau nruab, thiab kev siv lub tshuab ntawm cov kab ntawv tag nrho tau mus txog 85%.
