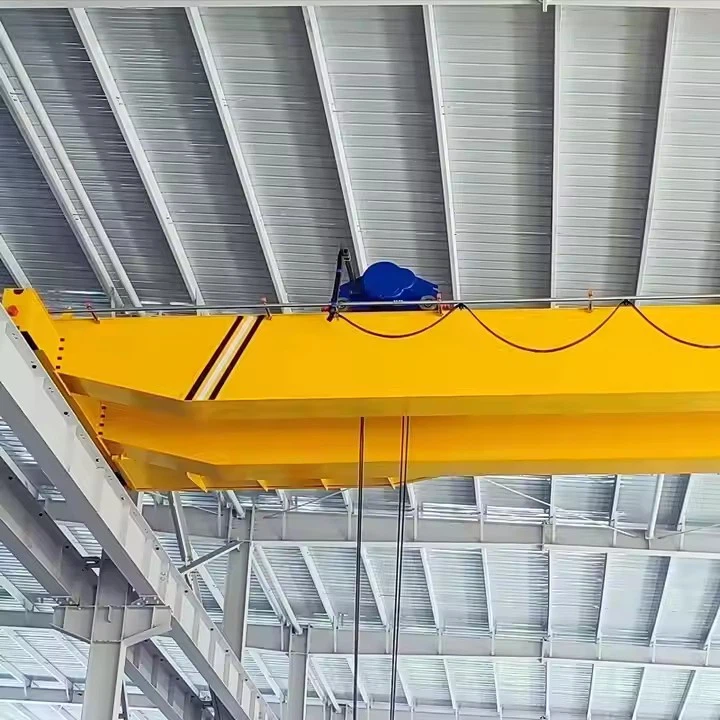

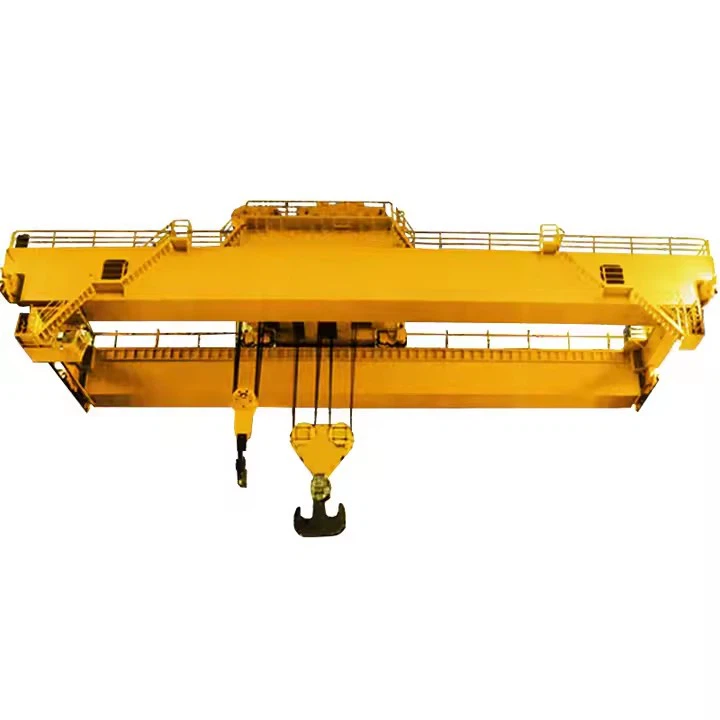

Ob chav Girder Crane nrog ob lub trolleys

1. Dual Trolley System rau Txhim Kho Kom Txhim Kho

Independent lossis Synchronized Kev Ua Haujlwm- Txhua txhua Trolley tuaj yeem ua haujlwm sib cais lossis ua ke rau Tandem nqa.

Muaj Peev Xwm Dual- tuaj yeem ua ob lub nra ua ke, ua ob npaug khoom tsim khoom.

Anti-kev sib tsoo system- Tiv thaiv kev cuam tshuam ntawm trolleys thaum lub sijhawm ua haujlwm.

2. Robust Ob Chav Girder qauv

Ntau Lub Peev Tsheb(feem ntau5 - 500+ tons) dua li girder cranes.

Nce nuv qhov siab- Ntau qhov chaw ntsug rau kev nqa hauv qab crane.

Lub thawv girder lossis truss tsim- Ua kom zoo rau lub cev thiab lub siab.

3. Ntsiab kev siv tshuab

Lub ntsiab + ib rab phom hoist- Rau kev tuav cov load txawv load ntau zog.

Kuj tsis paub meej-ceev tswj- Dog lipting \/ txo qis nrogVFD (Ntau zaus zaus tsav).

Kev tiv thaiv ntau tshaj- Sensors tiv thaiv kom tau txais kev nyab xeeb thauj cov kev txwv.



Kev sib piv nrog ib leeg trolley cranes

Yam zoo	Ob Chav Girder + 2 trolleys	Ib Leeg Trolley Crane
Thauj Peev Xwm	Mus txog 500+ tons	Feem ntau txog li 100 tons
Kev tsim ntau	Dual-load tuav tes	Ib leeg thauj xwb
Nuv qhov siab	Siab dua (tsis muaj girder qis dua)	Qis dua (gender hauv qab)
Tswj Yooj Yim	Indentent Trolley txav	Txwv rau ib txoj kev xav
Tus nqi	Ua siab dua thawj zaug peev	Ntau dua kev lag luam





Muaj peev xwm (txhua trolley)5 - 500+} tons
Khab mov10 - 40} meters
Lifting qhov siab6 - 50} meters
Lub luag haujlwm5 - A8 (Poj Niam \/ ISO Txuj)
Thaj kub cua sov{{0 {}} degree rau +50 degree
Hom Girder HomLub thawv Girder (Welded) lossis Truss
Log LogTxog li 1, 000 kn ib lub log
Rail HomQu80 \/ Qu100 \/ qua120 (lossis kev cai)
Txoj hauv kev ntevKev Cai Kawg

Kev pab fais fab3-} theem, 380V \/ 415V \/ 480V, 50 \/ 60Hz
Kev tswj voltage24V \/ 36V (Kev Nyab Xeeb Ntxiv-Kev Ntsuas Hluav Taws Xob)
Kev Tiv Thaiv Chav KawmIP54 \/ IP65 (hmoov av \/ Dej Resistant)
Chav Kawm Rwb Thaiv TsevF lossis h (rau qhov kub siab)



A Ob chav Girder Crane nrog ob lub trolleysMuaj ntau cov ntsiab lus tseem ceeb uas ua haujlwm ua ke kom pab ua haujlwm hnyav-ua haujlwm nqa nrog kev txhim kho. Hauv qab no yog cov ncauj lus kom ntxaws tawg ntawm lub ntsiab Cheebtsam:



1. Choj Qauv (Ob Chav Girder)

Girders Main (2)- Hnyav lub luag hauj lwm lub thawv lossis cov tsiaj muaj sia uas muaj cov tsiaj uas ntev tshaj plaws ntawm Crane ntawm Crane, muab kev txhawb nqa qauv.

Kawg Cov Tsheb (2)- Nyob ntawm txhua qhov kawg ntawm cov tsiaj, nruab nrog lub log rau kev sib tw ntev raws txoj kev sib tw khiav.

Tsav Motors & Brakes- Cov tshuab hluav taws xob nrog gearboxes rau Choj lub zog, feem ntau nrog cov hloov pauv zaus (VFDs) rau kev ua haujlwm du.

Cov Rails Rails- Hnyav-cov kab ke ntawm cov hlua khi ntawm cov tsev lossis cov qauv txhawb nqa rau Crane mus ncig.



2. Trolleys (2 Unferent UNITSENT)

Txhua lub trolley feem ntau suav nrog:

Trolley Ncej- Txhawb cov hoist thiab tsiv raws crane girders.

Mus ncig teb chaws Log & Motors- Tso cai rau kab rov tav kev mus hla tus choj ncua.

Hoisting tshuab- tuaj yeem yog:

Hluav Taws Xob Hlau Hlawv Ho Hoist- Rau cov khoom siv hnyav (ib txwm muaj hauv kev siv cov ntawv thov).

Saw hoist- Rau cov roj sib zog lossis cov qauv tsim qauv.

Dual Hoist Zog- Main + auxiliary hoist rau sib txawv thauj khoom ntau.

Nuv thaiv & sheaves- Rau kev nqa thiab txo qis.

Thauj khoom siv \/ kev tiv thaiv- Cov cuab yeej kev nyab xeeb los tiv thaiv kev tshaj lij.





3. Hoos & Lifting Cheebtsam

Hlau Hlua \/ saw- Nqa cov nruab nrab (nyob ntawm seb hom hom).

Nruas los yog saw log- Qhiav txoj hlua \/ saw rau kev nqa khoom.

Nuv (ib lossis ob zaug)- Txuas rau lub nra (tuaj yeem suav nrog tus tig mus rau kev sib hloov).

Cav Nres- cov neeg kho tshuab lossis hluav taws xob tus brakes rau thauj khoom tuav.

4. Hluav taws xob & tswj hwm lub tshuab

Kev pab fais fab- Festoon system, cable reels, lossis tus thawj coj rau hluav taws xob.

Tswj Vaj Huam Sib Luag- Cov neeg ua npe hu, kev ncua npe, thiab PLCS (yog siv tau ib qho).

Tus teb xov tooj- Cov kev xaiv muaj xws li:

Pendant Tswj(wonded Handheld tej thaj chaw deb).

Xov Xwm Chaw Taws Xob(wireless kev ua haujlwm).

Lub tsev nqa khoom tswj(Rau cov cabs mounted rau crane).

Txwv tsis pub hloov- Rau trolley thiab choj taug kev ncig.

Anti-kev sib tsoo system- Tiv thaiv cov trolleys los ntawm kev sib tsoo.

Hom tsis paub meej zaus (VFDs)- Rau cov nrawm dua \/ deceleration.

5. Kev Nyab Xeeb & Kev Nyab Xeeb Cheebtsam

Bumpers \/ Buffers- Kev cuam tshuam kev cuam tshuam ntawm kev txwv ncig ua si.

Ib qho txhabomometer(Rau sab nraum zoov cranes) - Cua ceev xyuas.

Teeb & Tswb- Cov paib qhia thaum lub sijhawm ua haujlwm.

Ntaiv & Txij Nkawm Platform- Rau kev nkag mus rau kev pabcuam.

Lubrication system- Rho tawm lossis phau ntawv rau txav chaw.

6. Xaiv cov yam ntxwv

Automation & Smart Tswj- Rau kev lag luam 4. 0} kev sib xyaw.

Uas System- Ua cov ntsuas kev ntsuas.

Tandem nqa synchronization- Rau kev sib koom tes nqa ntawm trolleys.

Kev tawg-ntawv pov thawj Cheebtsam- rau ib puag ncig muaj kev puas tsuaj.

Sib Nqus lossis Lub Tsev nqus tsev- Rau cov khoom lag luam tshwj xeeb (piv txwv li, phiaj hlau).

.

Yuav ua li cas cov khoom sib xyaw ua ke ua ke

Choj lub zog- Qhov kawg cov tsheb thauj khoom tsiv tag nrho crane ua raws cov kev sib tw.

Trolley Zog- Txhua Trolley Travels ywj siab ntawm tus tsiaj.

Hoisting- lub hoist licts \/ lowers lub load ntawm tus khawm khawm.

Kev tswj hwm- Tus neeg teb xov tooj yuav tsum tau ua haujlwm ntawm pendant, tej thaj chaw deb, lossis cov chaw tswj ntoo.

​

Daim duab kos

Cov Tshuab Tseem Ceeb



Nce Khoom Siv

Ob lub trolleys tuaj yeem ua haujlwmtib txhij, Tso cai ntau lub neej tsis tos rau ib lub trolley kom tiav nws txoj haujlwm.

Zoo tagnrho rauLos ua ke kab, steel mills, thiab cov tais loj lojqhov twg efficievicy yog qhov tseem ceeb.

Ntau zog thauj khoom & yooj yooj

Coj Girder Tsim Kev Txhawb NqaCov lo lus hnyav (mus txog 500+ tons)piv rau ib leeg girder cranes.

Independent trolleystuaj yeem siv cov ntim sib txawv ntawm ib zaug (piv txwv li, ib qho rau kev nqa khoom hnyav, lwm rau kev muab).

Txhim Kho Cov Ntaub Ntawv Siv Khoom Siv

Wider Spev kev pab them nqi rau cov chaw loj (piv txwv li,Cov nkoj xa khoom, cov nroj tsuag hluav taws xob).

Tandem nqaMuaj peev xwm tso cai rau kev sib txuas ntawm kev thauj khoom hnyav.

Kev Rov Qab & Kev Ntseeg Tau

Yog tias ib lub trolley tsis ua, lwm tus tuaj yeem ua haujlwm ntxiv, txo qis downtime.

Dual-Hoist kev teeb tsa(Main + AuXiliary) muab cov kev xaiv rov qab.

Precision & Tswj

Hom tsis paub meej zaus (VFDs)xyuas kom sai \/ deceleration.

Anti-sib tsoo tshuabtiv thaiv trolleys los ntawm kev cuam tshuam nrog txhua lwm yam.

Customization rau cov kev xav tau tshwj xeeb

Tuaj yeem nruab nrogHlau nplaum, tuav, lossis lub tsev nqus tsevrau cov ntaub ntawv tshwj xeeb.

Automation-npajrau kev koom ua ke nrog cov tshuab ua haujlwm ntse.



Cov ntawv thov ntawm ob tus girder cranes nrog ob lub trolleys

1. Hlau & Hlau Kev Lag Luam

TuavCoils Steel, Slabs, thiab Pwm.

TsivLoj Casting Qhov Chawnyob rau hauv lub founderries.

Tandem nqarau cov nqaj ntev lossis cov phiaj.

2. Fais fab Nroj Tsuag & Cov Cav Nkhaus

Txhim KhoTurbines, cov tshuab hluav taws xob, thiab hloov pauv.

Txij Nkawm NtawmBOILERS thiab cov khoom loj ntau yam loj.

3. Lub nkoj xa khoom & sab nrauv

Sib sauNkoj hulls thiab cov qauv loj.

TuavCov kws lij choj, tshuab, thiab nkoj hnyav.

4. AEROSPACACE & Automotive Raug

TsivDav hlau fuselages lossis cov rooj sib txoos koojtis.

Muab tso rauLub tsheb loj thav ntawv lossis tshuab.

5. Warehousing & Logistics

TuavCov khoom ntim hnyav lossis cov ntaub ntawv loj.

Ntau lub load tuav tuavHauv cov chaw ntim khoom loj.

6. Kev Lag Luam thiab Kev Lag Luam Yooj Yim

Tsheb thaujCov ntaub ntawv raw hnyav (ores, crushers).

Txij Nkawm NtawmCov khoom loj me thiab cov khoom siv ua khoom.



1.Design thiab engineering
Yuav tsum muaj kev sib sau ua ke:

Ntsaws muaj peev xwm (piv txwv li, 10t, 50t, 100t, thiab lwm yam), ncua sij hawm qhov siab, thiab ib puag ncig kev ua haujlwm yog txhais.

Xav tau kev xav tau yog ntsuas, xws li tswj cov qauv (pendant, wireless, cabin) thiab cov nta tshwj xeeb (piv txwv li, kev tiv thaiv kev sib tsoo).

Qauv Ua Ntej:

Cov kws tshaj lij cov qauv tsim qauv thiab cov crane tsim tsim cov crane thawj zaug tsim qauv, suav nrog lub ntsiab ntawm lub nqaj hlau, kev nqa khoom, trolley system, mus ncig ua si, thiab lwm yam kev sib tw.

Muab xam thiab simulation:

Kev ntsuas cov laij teb tau ua kom muaj cov crane tuaj yeem ua qhov peev xwm.

Cov tshuaj ntsuam xyuas zoo (fea) yuav siv rau simulate kev ntxhov siab thiab defllections nyob rau hauv tus qauv los xyuas kom muaj kev nyab xeeb thiab ruaj khov.

Cov qauv qhia kom ntxaws:

Tom qab kev pom zoo, cov duab kos kom ntxaws rau txhua feem yog tsim, nrog rau cov girder loj, cov kev tawm tsam, tswj hwm, thiab cov kev nyab xeeb.

2. Cov Khoom Siv Pauv
Xaiv cov khoom siv Raw:

Cov ntaub ntawv zoo xws li cov hlau, cov hlau sib cais, txhaws cov hlau, thiab cov khoom siv hluav taws xob yog muaj raws li cov lus qhia tshwj xeeb.

Cov ntaub ntawv tau tshawb fawb rau cov ntawv pov thawj zoo thiab ua raws li cov qauv kev lag luam (piv txwv li, CE).

Cheebtsam Sourcing:

Cov qauv hluav taws xob xws li cov motors, hoists, txwv cov lauj kaub, txwv cov hloov chaw, thiab cov khoom siv nyab xeeb yog kev tswj hwm los ntawm cov neeg muag khoom kom ntseeg tau.

3. Fabrication ntawm Cheebtsam
GIRDER MAYER:

Txiav thiab vuam ntawm steel daim hlau los ua tus choj girder.

Tus Girder yog sib sau ua ke los ntawm vuam lossis cov ntu bolting, kom nws ua tau raws li qhov yuav tsum muaj zog thiab meej.

Xaus cov tsheb sib dhos ua ke:

Qhov kawg lub carriage yog muabricated thiab sib sau ua ke los tuav lub crane ntawm cov kev khiav pails.

Cov kev sib dhos log sib dhos tau muab ntsia kom ntseeg tau tias txoj kev taug kev du raws txoj kev tsheb ciav hlau.

Hoist thiab trolley system:

Lub Hoist chav (hluav taws xob lossis phau ntawv) tau sib sau ua ke, suav nrog lub nruas, ntaus hlau, thiab lub cev muaj zog.

Cov txheej txheem trolley tau tsim los thauj cov kev cuam tshuam ntawm tus choj, suav nrog cov log tsheb thiab tsav tsheb tsav tsheb.

Crane Taug Kev Tsheb:

Lub log crane yog mounted rau thaum kawg cov cab, kom sawv rov qab ncaj qha.

Lub zog tsav tau muab ntsia kom tswj kev mus ncig ua si.

4. Sib dhos ntawm Crane
Lub ntsiab lub nqaj installation:

Lub sib sau ua ke loj girder tau nqa thiab muab tso rau ntawm qhov kawg ntawm cov ciaj.

Tus girder yog mus raws li kom ntseeg tau txoj kev ncaj ncees.

Trolley thiab Hoist installation:

Lub tuam txhab Trolley system yog mounted rau hauv lub loj girder, thiab lub hoist yog mounted rau trolley.

Lub nra txoj saw hlau los yog cov hlua xaim loj yog ntsia thiab kuaj rau kev ua haujlwm du.

Taug kev tshuabchanism teeb:

Lub log crane yog ntsuas, thiab cov tshuab tsav tsheb tau txuas nrog cov tswj kev tswj hwm rau kab rov tav.

5. Hluav Taws Xob thiab Tswj Kev Tsim Kho
Kev sib luag thiab tswj vaj huam sib luag:

Lub vaj huam sib luag tswj tau nruab thiab wired kom tswj tag nrho cov crane txav (hoisting, trolley, crane mus ncig).

Txwv txoj kev hloov chaw, cov nyees khawm thaum muaj xwm ceev, thiab lub tswb ntsuas kev nyab xeeb tau ua ke rau hauv kev tswj hwm.

Lub cev muaj zog thiab cov iav installation:

Cov Motors rau hoisting, taug kev, thiab trolley tau nruab thiab txuas nrog lawv cov iav reli.

Kev kuaj ntawm cov tshuab tswj:

Tswj cov txheej txheem tau kuaj xyuas kom muaj kev sib koom ua ke ntawm kev tswj pendant, wireless tej thaj chaw deb, lossis cov chaw taws teeb.

6. Kuaj thiab Tswj Tswjhwm Zoo
Kev Tshawb Xyuas:

Crane undergoes zoo li qub kev sim ntsuas (los xyuas kev ruaj khov) thiab kev ntsuas kev ua haujlwm zoo (los kuaj xyuas kev ua haujlwm raws li kev ua haujlwm tiag tiag).

Kev tiv thaiv ntau tshaj thiab txwv cov chaw nias raug sim kom ntseeg tau tias lawv muaj nuj nqi kom raug.

Kev Ntsuam Xyuas Kev Nyab Xeeb Kev Nyab Xeeb:

Lub suab thiab lub teeb ci ntsa iab, txwv cov nyom, nres khawm, thiab cov khoom siv ceev xwm ceev, thiab cov kev ruaj ntseg yog txhua yam kev sim ua haujlwm.

Kev kuaj sim:

Txhua qhov kev txav-kev txav-kev txav trolley, choj mus ncig, thiab Sway tswj-raug sim rau kev ua haujlwm du thiab precision.

Kuaj Hluav Taws Xob:

Txhua cov khoom siv hluav taws xob raug sim rau cov xaim hluav taws xob kom raug, thiab kev sib txuas lus nruab nrab ntawm cov tshuab.

Cov ntaub ntawv thiab ntawv pov thawj:

Crane tau kuaj xyuas raws li cov qauv kev nyab xeeb thoob ntiaj teb thiab cov ntawv pov thawj tsis txaus ntseeg los ntawm cov tub ceev xwm (piv txwv li, ISO).

Daim ntawv pov thawj xeem ntawv rau cov motors, cranes, thiab kev thauj khoom yog npaj.

7. Kev tshuaj xyuas zaum kawg thiab tha xim
Kev Ntsuam Xyuas Pom:

Kev soj ntsuam kom huv si yog ua kom ntseeg tau tias cov crane ua tau raws cov qauv tsim qauv thiab cov kev xav tau kev nyab xeeb.

Painting:

Lub crane yog pleev xim nrog cov tshuaj tiv thaiv zoo los tiv thaiv kev tiv thaiv nws los ntawm cov neeg ib puag ncig.

Npav thiab labelling:

Kev ruaj ntseg ntawv cim, lus ceeb toom, thiab cov cim muaj peev xwm siv rau crane kom paub tseeb.

8. Kev xa khoom thiab teeb tsa
Shipping:

Lub crane yog ua tib zoo disassembled rau hauv cov chaw thauj tau (yog xav tau) thiab xa mus rau tus neeg yuav khoom thaj chaw.

:

Lub crane yog nruab rau ntawm-site, thiab txhua yam sib txuas (fais fab, mechanical, tswj) tau ua.

Qhov kawg comvissioning:

Tus Crane tau cog lus los ntawm kev khiav nws los ntawm kev ntsuam xyuas kev ua haujlwm kom ntseeg tau tias nws ua haujlwm zoo.

Cov neeg teb xov tooj kev cob qhia tau ua, yog tias tsim nyog, rau kev nyab xeeb thiab txuag tau.

9. Tom qab-kev txhawb nqa
Kev Kawm Txog Neeg Siv:

Cov neeg teb xov tooj kev kawm txog kev yuav ua li cas siv cov crane kev nyab xeeb thiab ua kom zoo.

Teem Sijhawm Txij Nkawm:

Muab cov phiaj xwm saib xyuas rau cov crane kev ua haujlwm txuas ntxiv ua haujlwm, suav nrog kev tshuaj xyuas tas li, lubrication, thiab sim.

Tom qab muag txhawb:

Muab cov khoom seem, daws teeb meem, thiab kho cov kev pabcuam.

Rhiav Saib:

Lub tuam txhab tau teeb tsa cov khoom siv tswj hwm kev txawj ntse platform, thiab tau teeb tsa 310 teev (teeb tsa) ntawm kev tuav thiab vuam hlau. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teev (teeb tsa), thiab cov khoom siv sib txuas lus yuav ncav cuag 95%. 32 VUAM txoj kab tau muab tso rau hauv kev siv, 50 tau npaj yuav tsum tau nruab, thiab kev siv lub tshuab ntawm cov kab ntawv tag nrho tau mus txog 85%.
