Workstation Choj Crane

Lub chaw ua haujlwm choj crane yog ib qho tshwj xeeb tuav cov khoom tsim los txhim kho cov khoom tsim tau, kev nyab xeeb, thiab kev ua haujlwm zoo hauv ntau yam kev lag luam. Cov cranes no zoo tagnrho rau cov haujlwm rov ua dua uas cuam tshuam nrog kev txav cov khoom sib zog hla ib qho chaw ua haujlwm.

Workstation choj crane Cov yam ntxwv tseem ceeb: Ergonomic Tsim: Engineered rau kev yooj yim ntawm kev siv, ua kom du thiab meej tuav nrog tsawg kawg nkaus lub cev siv zog.Lightweight Siv: Feem ntau yog ua los ntawm txhuas los yog hlau, cov cranes yog robust tsis tau yooj yim rau maneuver.Load Peev xwm: feem ntau tsim los rau kov cov khoom hnyav li ntawm 125 kg txog 2, 000 kg, haum rau cov khoom siv sib dua.

Workstation choj crane Flexible Installation: Muaj nyob rau hauv freestanding los yog qab nthab-mounted configurations hloov mus rau qhov chaw ua hauj lwm txwv.

Low-Maintenance Operations: Ua nrog cov khoom siv ruaj khov kom ntseeg tau ntev ntev thiab qis qis qis.Scalable Solutions: Modular systems tso cai rau yav tom ntej expansion los yog reconfiguration raws li kev ua hauj lwm xav tau kev loj hlob. Cov txiaj ntsig: Ntau Efficiency: Txo kev siv zog ua haujlwm thiab ua kom rov ua dua thiab rov ua dua. hauj lwm.

3) Workstation choj crane Qhov chaw Optimization: Freestanding systems lossis qab nthab mounts dawb li qhov chaw muaj txiaj ntsig hauv pem teb.Cost-Effective Investment: Muab cov khoom siv ruaj khov thiab siv tau ntev nrog cov nqi tu me me.Tswj siv: Kev tsim khoom: txav cov cuab yeej, khoom siv, thiab cov khoom siv rau Cov kab ntau lawm.Assembly Ua hauj lwm: Muab tso rau thiab ruaj qhov chaw thaum lub sij hawm sib dhos txheej txheem.Warehousing: tuav cov khoom sib zog rau kev khaws cia lossis xa tawm.Precision Industries: thauj cov khoom muag muag lossis cov khoom rhiab hauv cov chaw sim lossis cov khoom siv hluav taws xob.

Warranty: 1 Xyoo

Qhov hnyav (KG): 2000 kg

Feature: Choj Crane

Qhov xwm txheej: Tshiab

Rated Lifting Moment: 50KN-3000KN

Max. Lifting Load: 500ton

Ntev: 10-80m

Xim: xaiv tau

Peev xwm: 1-20t

Hom: Ob chav nqaj

Lifting mechanism: Electric Hoist

Lub luag haujlwm ua haujlwm: A3-A4

1.Main beam

Lub ntsiab nqaj yog ib qho tseem ceeb ntawm lub chaw ua haujlwm choj crane, tsim cov txheej txheem pob txha uas txhawb nqa thiab hloov cov khoom thauj. Nws yog tsim los xa lub zog, ruaj khov, thiab precision, ua kom muaj kev nyab xeeb thiab siv tau zoo ntawm cov khoom siv.

workstation choj crane Cov yam ntxwv tseem ceeb ntawm lub ntsiab nqaj: Cov khoom siv siab zog: tsim los ntawm cov khoom siv ruaj khov xws li steel lossis txhuas los tuav ntau lub peev xwm thauj khoom thaum txo qhov hnyav. .Lightweight Design: Aluminium beams feem ntau yog siv rau lawv lub zog-rau-hnyav piv, ua kom smoother thiab yooj yim zog.

Workstation choj crane Integrated Tracks: nta built-in khiav qhov chaw los yog lem rau lub trolley thiab hoist glide seamlessly raws lub beam.Modular siv: tso cai rau yooj yim los ua ke, disassembly, los yog yav tom ntej system hloov khoom dua tshiab yam tsis muaj kev hloov kho.Low Deflection: Engineered los tswj rigidity nyob rau hauv load, txo sway thiab txhim khu kev ua hauj lwm precision.

Workstation choj crane Lub luag haujlwm ntawm lub ntsiab Beam: Load Transfer: Txhawb nqa lub trolley thiab hoist, tusyees faib qhov hnyav ntawm lub load hla cov nqaj thiab cov qauv kev txhawb nqa.Guided Movement: Muab txoj hauv kev ruaj khov rau lub trolley, kom ntseeg tau tias du, tswj kab rov tav txav. .Durability: tiv taus hnav thiab tsim kua muag los ntawm kev siv rov ua dua, ua kom muaj kev ntseeg siab ntev hauv qhov xav tau ib puag ncig.

Workstation choj crane Customization Options: Cov Khoom Siv: Hlau rau kev siv hnyav; aluminium rau kev ua haujlwm sib zog ua kom yooj yim ntawm kev txav.Coatings: Kev xaiv rau kev tiv thaiv corrosion lossis tshwj xeeb ua tiav kom haum rau ib puag ncig xws li chav huv lossis chaw sab nraum zoov.Beam Profile: Muaj ntau yam profiles xws li lub thawv, I-beam, lossis kev cai extrusion raws li cov kev xav tau. .

Lifting System

Lub tshuab nqa yog cov txheej txheem tseem ceeb ntawm lub chaw ua haujlwm choj crane, lub luag haujlwm rau kev nyab xeeb nce, txo qis, thiab tso cov khoom thauj. Nws feem ntau muaj xws li lub hoist, trolley, thiab kev tswj hwm, txhua yam tsim los ua haujlwm seamlessly hauv lub crane system.

workstation choj crane yog Cov Khoom Tseem Ceeb ntawm Lifting System: Cov khoom siv tseem ceeb rau kev nqa thiab txo cov loads.Types muaj xws li hluav taws xob saw hoists, phau ntawv hoists, los yog pneumatic hoists, nyob ntawm daim ntawv thov.Equipped nrog kev ruaj ntseg nta xws li load limiters thiab overload tiv thaiv.

Control System: Tej zaum yuav muaj xws li pendant tswj, xov tooj cua chaw taws teeb tswj, los yog integrated control panels.Muab cov neeg ua hauj lwm nrog meej kev tswj ntawm load zog thiab positioning.

Cov yam ntxwv ntawm Lifting System: Tsis tshua muaj peev xwm Load Capacities: Kov loads feem ntau xws li ntawm 125 kg mus rau 2, 000 kg, nrog rau kev xaiv rau customization.Smooth Operation: Tsim los tswj thiab jerk-free txav los xyuas kom meej load stability.Compact Design : Optimized rau kev siv chaw ua haujlwm, muab kev ua haujlwm siab nyob rau hauv qhov chaw txwv.

Cov qauv kev nyab xeeb siab: suav nrog kev ua haujlwm tsis zoo xws li nres thaum muaj xwm txheej ceev, lub tshuab nres, thiab cov khoom siv ntau dhau.Durable Siv: Ua nrog cov ntaub ntawv zoo los tiv thaiv kev siv dua thiab txo hnav.

Xauslub tsheb

Workstation Choj Crane - End Carriage Overview Qhov kawg carriage yog ib qho tseem ceeb ntawm lub chaw ua haujlwm choj crane, txhawb nqa lub ntsiab nqaj thiab ua kom yooj yim txav mus los ntawm crane txoj kev khiav. Nws ua kom muaj kev ruaj ntseg, kev sib tw, thiab kev ua haujlwm zoo ntawm tag nrho cov system.

Cov yam ntxwv tseem ceeb ntawm qhov kawg Carriage: Cov qauv tsim: Fabricated los ntawm high-strength steel los yog txhuas los muab durability thiab kev txhawb nqa rau lub crane lub load.Designed kom tusyees faib lub load hla lub runway rails los yog lem.

Nruab nrog precision-engineered log ua los ntawm cov ntaub ntawv muaj zog xws li forged steel los yog polymer.Wheels tej zaum yuav muaj ib tug ca los yog tapered profile, nyob ntawm seb hom khiav.Features anti-kev sib txhuam bearings kom du, tsis tshua muaj zog txav.

Kev mus ncig Mechanism: tuaj yeem yog phau ntawv, hluav taws xob, lossis pneumatic, nyob ntawm daim ntawv thov thiab kev xav tau ntawm kev ua haujlwm.Electric end carriages suav nrog cov motors nrog cov tsav tsheb sib txawv kom tswj tau meej.

Compact Design: Optimized rau qhov tsawg kawg nkaus qhov yuav tsum tau, kom ntseeg tau tias qhov tsawg-profile haum nyob rau hauv lub crane qauv.

4.Crane mus ncig teb chaws mechanism

Lub crane taug kev mechanism yog ib qho tseem ceeb ntawm lub chaw ua haujlwm choj crane, ua kom txoj kab rov tav txav ntawm crane raws nws txoj kev khiav. Cov txheej txheem no ua kom pom tseeb qhov chaw thiab cov khoom siv tau zoo hauv qhov chaw ua haujlwm.

Cov Cheebtsam tseem ceeb ntawm Crane Traveling Mechanism: Tsav Tsheb Tsav Tsheb: Kev Taw Qhia Kev Mus Los: Ua haujlwm los ntawm kev thawb lossis rub, haum rau kev sib tw thiab kev ua haujlwm me me.Motorized Travel: Siv lub tshuab hluav taws xob los tsav lub crane raws txoj kev khiav kom nrawm dua thiab ua haujlwm ntau dua.

Kev tswj ceev ceev: Tso cai rau cov neeg ua haujlwm kho qhov kev mus los kom meej thiab nyab xeeb. Log thiab Bearings: Precision-engineered log ua los ntawm cov khoom siv ruaj khov xws li steel lossis polyurethane.Enquipped nrog kev sib txhuam cov kabmob kom du, tsis muaj suab nrov. muaj ib lub tiaj tus los yog tapered profile nyob ntawm tus tsim txoj kev khiav.

Khiav System: Cov lem los yog rails uas lub crane txav.Yuav ua tau pem teb-mounted los yog qab nthab-txhawb, nyob ntawm seb qhov chaw ua hauj lwm configuration.

5.Trolley mus ncig teb chaws mechanism

Cov Cheebtsam tseem ceeb ntawm Trolley Mus Ncig Mechanism: Trolley Ncej: Lub hauv paus txheej txheem uas txhawb nqa lub hoist.Ua los ntawm cov hlau muaj zog lossis txhuas rau kev ua haujlwm ntev thiab lub teeb yuag.

Log: Feem ntau yog ua los ntawm cov hlau los yog nylon, tsim kom txav tau yooj yim raws txoj kab lossis nqaj.

Tsav System: Kev Taw Qhia Tsav Tsheb: Ua haujlwm los ntawm kev thawb lossis rub lub trolley, haum rau cov khoom sib zog.Motorized Tsav: Siv lub tshuab hluav taws xob lossis pneumatic lub cev muaj zog kom nrawm dua thiab siv lub zog txav, zoo tagnrho rau cov khoom hnyav lossis kev ua haujlwm ntau zaus.Variable Speed ​​Control: Rau kev hloov kho ntawm cov trolley txoj kev mus ncig ceev.

Qhia Cov Menyuam Yaus: Pab tswj kev sib raug zoo thiab txo qis kev txav mus los.Txhob lub trolley ntawm derailing thaum lub sijhawm ua haujlwm.

Crane log

Cov Khoom Siv Khoom Siv: Feem ntau yog tsim los ntawm cov ntaub ntawv muaj zog xws li forged steel, cam khwb cia hlau, lossis polyurethane kom ntseeg tau tias muaj zog thiab hnav tsis kam.

Tsim Profiles: Pav ca Profile: Feem ntau siv rau ntawm txoj kev tiaj tus kom ruaj khov siab tshaj plaws.Tapered Profile: Ua kom tus kheej ua raws li cov qauv kev tsheb ciav hlau tshwj xeeb, txo qis rau sab-rau-sab txav.

Cov Kabmob Cov Kabmob: Nruab nrog cov kabmob tiv thaiv kev sib txhuam kom txo qis dov ua haujlwm thiab xyuas kom meej cov lus tsa suab.Designed los lis ob leeg radial thiab axial loads zoo.

Customization: Lub log loj, cov ntaub ntawv, thiab cov ntaub ntawv tuaj yeem raug kho kom tau raws li cov kev xav tau tshwj xeeb.Kev xaiv rau lub suab nrov-dampening lossis kev sib txhuam qis rau cov chaw tshwj xeeb.Functions of Crane Log: Load Transfer: Distributes the load of the crane and its payload mus rau lub runway system.

Crane Hook

Cov yam ntxwv tseem ceeb ntawm Crane Hooks: Cov Khoom Siv thiab Kev Tsim Kho: Ua los ntawm cov hlau muaj zog alloy steel los tuav cov khoom hnyav thiab tiv thaiv deformation.Forged los yog kub-kho kom muaj zog durability thiab toughness.

Load Capacities: Muaj nyob rau hauv ntau lub peev xwm, feem ntau yog li ntawm 125 kg mus rau 2, 000 kg rau workstation cranes.Equipped nrog cov npoo kev nyab xeeb los daws cov kev hloov pauv tsis tau xav txog.

Hook Tsim: Ib Hook: Feem ntau siv rau cov qauv nqa kev siv.Double Hook: Rau cov khoom loj lossis ntau qhov sib npaug uas yuav tsum tau nqa ob lub ntsiab lus.

Kev Nyab Xeeb Nta: Latch Mechanism: Tiv thaiv kev sib tsoo ntawm lub load, ua kom ruaj ntseg lifting.Swivel Functionality: Tso cai rau tus nuv kom tig 360 degrees, txhim kho load alignment thiab txo kev ntxhov siab ntawm lub lifting mechanism.

Lub cev muaj zog

Ntsiab nta ntawm Crane Tsav: Hom Tsav: Hoist Tsav: Lub zog nqa lub tshuab, tsim los rau kev txav ntsug ntsug.Travel Motor: Tsav lub trolley lossis crane raws cov lem lossis khiav rau kab rov tav.Dual-Purpose Motors: Siv hauv cov qauv tsim. los tuav ob qho tib si lifting thiab txav.

Kev Siv Hluav Taws Xob: Ua haujlwm ntawm lub zog hluav taws xob (feem ntau) nrog ib-theem lossis peb-theem kev xaiv, nyob ntawm qhov muaj peev xwm thauj khoom thiab kev siv.Pneumatic motors yuav siv tau rau cov chaw tshwj xeeb xws li tawg-pov thawj lossis cov chaw txaus ntshai.

Kev Tswj Ceev: suav nrog cov tsav tsheb sib txawv (VFD) kom tso cai rau kev hloov nrawm nrawm rau kev tswj lub zog.Supports ob qho tib si qis thiab kev kub ceev ua haujlwm rau ntau yam kev xav tau.

Tsim Cov Nta: compact thiab lub teeb yuag: Optimized rau workstation ib puag ncig nrog rau qhov chaw constraints.Low suab nrov thiab vibration: pab neeg ua hauj lwm kev nplij siab thiab kev nyab xeeb chaw ua hauj lwm.High Efficiency: txo lub zog noj thaum lub sij hawm ntev siv.

Kev Tiv Thaiv Kev Nyab Xeeb: Kev Tiv Thaiv Kev Kub Kub: Tiv thaiv kom tsis txhob muaj cua sov nrog cov sensors built-in.Overload Protection: Ua kom lub cev muaj zog nres kev ua haujlwm yog tias lub nra hnyav tshaj qhov txwv tsis pub muaj kev nyab xeeb.Brake Systems: Electromagnetic lossis mechanical brakes kom nres thaum muaj xwm txheej ceev.

.

Suab thiab lub teeb tswb system & txwv hloov

Lub tswb nrov thiab lub teeb ceeb toom cov yam ntxwv tseem ceeb: Suab ceeb toom: Nruab nrog lub suab nrov nrov lossis lub suab nrov ceeb toom rau cov tswv lag luam thiab cov neeg ua haujlwm nyob ze ntawm crane txav los yog muaj peev xwm txaus ntshai.Sound qib yog kho kom haum rau qhov chaw ua haujlwm.

Lub teeb pom kev zoo: Ci ntsa iab LED lossis strobe teeb pom kev ceeb toom, ua kom pom kev pom nyob rau hauv lub suab nrov lossis lub teeb qis.Multi-xim teeb (xws li, liab rau kev phom sij, daj rau kev ceev faj) rau kev sib txuas lus meej ntawm crane txoj haujlwm ua haujlwm.

Integrated Design: Ua kom tau txais kev txhawb nqa thaum nqa, txo qis, lossis kev mus ncig ua haujlwm.Yuav tau synchronized nrog rau lwm yam kev nyab xeeb xws li kev tiv thaiv overload lossis nres thaum muaj xwm ceev.

Daim ntaub ntawv: Siv nyob rau hauv ib puag ncig nrog cov tshuab hnyav, cov neeg ua haujlwm siab ceev, lossis kev pom tsis tshua pom los xyuas kom txhua tus neeg tseem paub txog crane txav.

Cov cuab yeej kev nyab xeeb

Overload Protection Device, Lub Hom Phiaj: Tiv thaiv lub crane los ntawm kev nqa cov khoom uas tshaj nws lub peev xwm siab tshaj plaws.Functionality: Saib xyuas qhov hnyav ntawm lub sijhawm ntawm lub sijhawm.Ua lub tswb nrov lossis nres kev nqa haujlwm yog tias lub nra hnyav dhau qhov kev txwv tsis pub dhau.

Limit Switches; Lub Hom Phiaj: Tswj qhov ntau ntawm cov lus tsa suab rau lub crane, trolley, thiab hoist.Types: Hoist Limit Switch: Nres nqa lossis txo qis thaum qhov siab tshaj plaws lossis qhov siab tshaj plaws mus txog.Travel Limit Switch: Tiv thaiv lub crane lossis trolley los ntawm overrunning lub txoj kev khiav.

Cov txiaj ntsig: Tiv thaiv lub crane los ntawm cov neeg kho tshuab kev ntxhov siab. Tiv thaiv kev sib tsoo thiab kev sib tsoo ntau dhau.3. Anti-Collision System Lub Hom Phiaj: Tiv thaiv kev sib tsoo ntawm ntau lub cranes ua haujlwm ntawm tib txoj kev khiav lossis nyob ze ze.

Lub suab thiab lub teeb tswb System Lub hom phiaj: ceeb toom cov neeg ua haujlwm ntawm crane ua haujlwm los tiv thaiv kev sib tsoo.Functionality: Emits audible and visual signals while lifting, lowering, or travel.

. Emergency Stop System; Lub Hom Phiaj: Tso cai tam sim ntawd nres ntawm crane ua haujlwm thaum muaj xwm txheej ceev.Functionality:

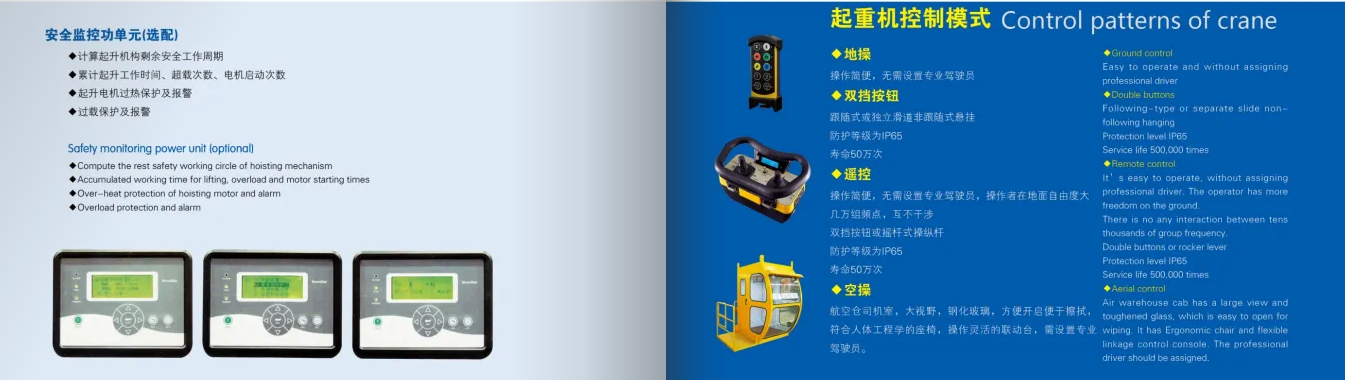

11.Control hom

1) Kev tswj tuav tswj: Tus neeg teb xov tooj ncaj qha tswj ntau yam kev khiav hauj lwm ntawm lub crane los ntawm cov nyees khawm los yog hloov ntawm phau ntawv tswj vaj huam sib luag. Kev ua haujlwm yooj yim, haum rau kev ua haujlwm me me lossis luv luv; tuaj yeem hloov kho sai raws li kev xav tau tshwj xeeb.

2) Wireless chaw taws teeb tswj: ntau yam haujlwm ntawm crane yog tswj los ntawm wireless chaw taws teeb tswj, thiab tus neeg teb xov tooj tuaj yeem ua haujlwm ntawm qhov chaw nyab xeeb. Txhim kho qhov yooj yim thiab kev nyab xeeb ntawm kev ua haujlwm, tshwj xeeb tshaj yog tsim rau cov chaw ua haujlwm nyuaj lossis txaus ntshai.

3) Wired chaw taws teeb tswj: Ua haujlwm los ntawm kev tswj kab txuas nrog lub crane, thiab tus neeg teb xov tooj inputs cov lus qhia los ntawm tus tswj tuav. Piv nrog rau cov chaw taws teeb tswj wireless, lub teeb liab yog qhov ruaj khov thiab tsis yooj yim cuam tshuam nrog, uas yog tsim rau kev ua haujlwm hauv thaj chaw ruaj khov.

4) Kev tswj tsis siv neeg: Kev ua haujlwm tsis siv neeg ua tiav los ntawm PLC (Programmable Logic Controller) lossis lub khoos phis tawj, thiab kev ua haujlwm ntawm crane yog tswj raws li qhov kev pab cuam preset. Txhim kho qhov raug thiab sib xws ntawm kev ua haujlwm, haum rau kev ua haujlwm loj thiab rov ua dua, thiab txo kev cuam tshuam los ntawm tib neeg yam.

5) Kev tswj hwm kev hloov pauv ntau zaus: Kev ceev ntawm lub cev muaj zog tau hloov kho los ntawm kev hloov pauv zaus kom ua tiav kev tswj hwm ntawm kev khiav hauj lwm ceev ntawm lub crane. Nws tuaj yeem ua kom nrawm nrawm thiab nrawm, txhim kho kev nyab xeeb thiab ua haujlwm ntawm kev nqa nqa, thiab txo qhov cuam tshuam ntawm cov khoom siv.

12. Daim duab

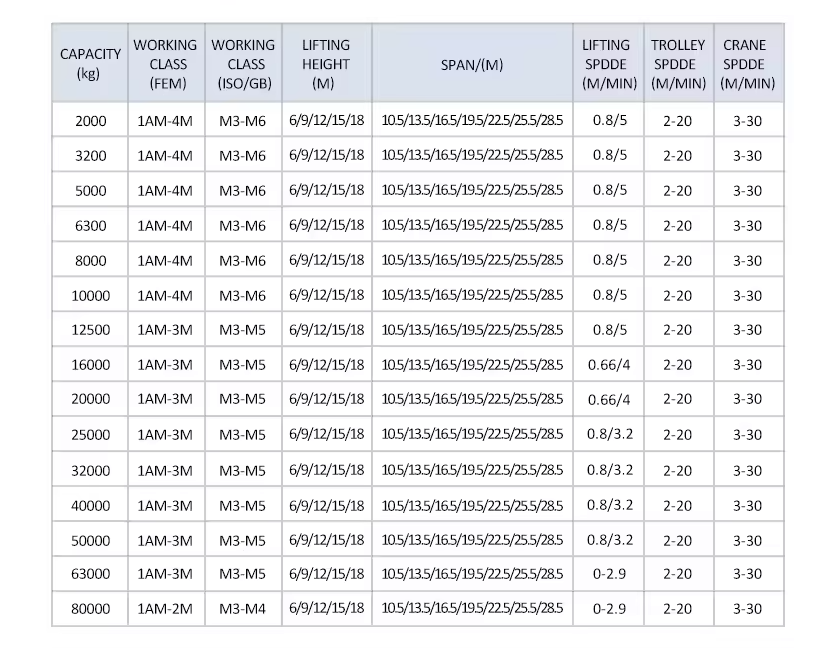

Main technical

1) Muaj peev xwm ua haujlwm siab

Ob chav nqaj choj cranes txais yuav ob lub ntsiab nqaj qauv, uas tuaj yeem nqa cov khoom hnyav dua thiab tsim nyog rau nqa cov khoom hnyav. Lawv feem ntau siv nyob rau hauv kev lag luam xws li steel, shipbuilding thiab hnyav machinery manufacturing.

2) Muaj zog stability

Kev tsim ob-nqaj muab kev ruaj ntseg zoo dua thiab kev nruj, uas tuaj yeem txo qhov tilting thiab co thaum nqa cov khoom hnyav, ua kom muaj kev nyab xeeb.

3) Loj nqa qhov siab

Vim qhov tsim ntawm lub ntsiab nqaj, ob-beam choj cranes tuaj yeem muab qhov siab nqa loj dua, uas yog tsim rau kev ua haujlwm siab thiab qhov chaw loj.

4) Qhov dav dav dav

Hom crane no tuaj yeem tsim nrog qhov sib txawv raws li qhov xav tau, haum rau ntau qhov chaw, tuaj yeem npog thaj chaw ua haujlwm loj dua, thiab txhim kho kev ua haujlwm.

5) Kev ua haujlwm yooj yim

Ob chav nqaj choj cranes feem ntau yog nruab nrog trolleys thiab cov tsheb loj, uas tuaj yeem txav tau yooj yim ntawm lub nqaj loj kom ua tiav ntau txoj kev nqa nqa thiab hloov mus rau kev ua haujlwm nyuaj.

6) Kev ua haujlwm ruaj ntseg

Nruab nrog ntau yam khoom siv kev nyab xeeb, xws li kev tiv thaiv overload, txwv cov keyboards thiab lub suab thiab lub teeb ceeb toom, kom muaj kev nyab xeeb thaum ua haujlwm thiab txo qhov kev pheej hmoo ntawm kev raug mob.

Kev tsim khoom: Siv los nqa billets, steel thiab lwm yam khoom hnyav hauv steel mills. Nqa cov khoom siv tshuab loj thiab cov cuab yeej siv hauv tshuab cuab yeej rhiav.

Kev tsim kho: Siv los nqa cov khoom siv hauv tsev xws li cov khoom siv pob zeb, cov qauv hlau thiab lwm yam khoom siv hnyav. Siv cov khoom hnyav hauv kev tsim cov tsev siab.

Shipbuilding: Siv los nqa thiab txav cov hulls loj, cabins thiab cov khoom siv, tsim nyog rau cov txheej txheem shipbuilding complex.

Warehousing thiab logistics: Siv los nqa thiab ntim cov khoom hnyav hauv cov chaw khaws khoom loj thiab chaw thauj khoom kom txhim kho kev ua haujlwm. Nyob rau hauv cov chaw nres nkoj thiab thawv terminals, ob-beam choj cranes yog siv los txav cov thawv thiab muaj zog adaptability.

Mining: Siv los nqa cov khoom hnyav, ores thiab lwm yam khoom siv hauv mines kom haum rau qhov chaw ua haujlwm hnyav.

Kev lag luam fais fab: Cov cuab yeej teeb tsa thiab kev saib xyuas hauv cov chaw tsim hluav taws xob, tshwj xeeb tshaj yog nyob rau hauv kev ua haujlwm siab. Siv los nqa thiab txav cov khoom siv hluav taws xob hnyav.

Kev lag luam tsheb thauj mus los: Siv los txav cov khoom hnyav thiab txhim kho cargo loading thiab unloading efficiency.

Cranentau lawm txheej txheem

1. Tsim theem: nkag siab txog cov kev xav tau tshwj xeeb ntawm cov neeg siv khoom, suav nrog cov peev txheej thauj khoom, ncua, qhov siab thiab siv ib puag ncig. Ua raws li kev tsim ua ntej raws li qhov xav tau thiab kos cov phiaj xwm kos duab, suav nrog kev tsim qauv, lub zog hluav taws xob thiab kev tswj hwm kev tsim qauv. Ua kom muaj zog ntawm cov qauv, kev ruaj ntseg thiab kev tsom xam kom ntseeg tau tias tus qauv tsim ua tau raws li cov qauv tsim thiab cov qauv tshwj xeeb.

2. Kev npaj cov khoom siv: xaiv cov khoom tsim nyog raws li kev tsim qauv, xws li cov hlau muaj zog, aluminium alloy, thiab lwm yam, kom ntseeg tau tias cov khoom siv zoo thiab ua haujlwm ntev. Yuav cov khoom siv raw thiab cov khoom siv raws li cov qauv tsim, nrog rau cov motors, reducers, hooks, tswj systems, thiab lwm yam.

3. Kev ua thiab kev tsim khoom: Txiav cov hlau thiab ua cov nqaj loj, cov nqaj kawg thiab lwm yam khoom siv raws li qhov tsim qhov ntev. Txuas cov ntu ntuag los ntawm kev vuam los tsim cov txheej txheem tseem ceeb ntawm crane. Ua kom tiav cov welded Cheebtsam, suav nrog drilling, tig thiab milling, kom ntseeg tau tias qhov sib txuam ntawm txhua yam.

4. Kev sib dhos: Kev sib dhos ua ntej ntawm cov khoom ua tiav los xyuas qhov ruaj khov thiab sib txuam ntawm cov qauv. Nruab lub lifting mechanism, trolley khiav mechanism thiab trolley khiav mechanism los xyuas kom meej tias tag nrho cov txav qhov chaw tuaj yeem khiav tau zoo.

5. Kev teeb tsa hluav taws xob: Nruab cov motors, inverter, tswj vaj huam sib luag thiab lwm yam khoom siv hluav taws xob kom ntseeg tau tias cov hluav taws xob txuas nrog raug. Npaj cov kab kab tsim nyog kom muaj kev nyab xeeb thiab kev zoo nkauj, thiab txo kev cuam tshuam thiab hnav.

6. Kev ua haujlwm thiab kev sim: Ntsuas ntau yam haujlwm ntawm lub crane, suav nrog kev nqa, txav, nres thiab lub tswb, kom ntseeg tau tias txhua yam haujlwm zoo li qub. Ua cov kev ntsuam xyuas kev nyab xeeb kom ntseeg tau tias lub crane ua haujlwm ruaj khov hauv qhov siab tshaj plaws thiab ua tau raws li cov qauv kev nyab xeeb.

7. Kev tshuaj xyuas thiab kev tswj xyuas kom zoo: Ua cov kev soj ntsuam zoo ntawm txhua qhov txuas ntawm kev tsim khoom kom ntseeg tau tias tag nrho cov khoom ua tau raws li cov qauv tsim thiab cov qauv. Ua cov ntawv pov thawj tsim nyog raws li cov cai tswj hwm kom ntseeg tau tias cov cuab yeej ua tau raws li lub teb chaws thiab cov qauv kev lag luam.

8. Kev xa khoom thiab kev teeb tsa: thauj cov khoom siv crane mus rau qhov chaw neeg siv khoom. Nruab nws ntawm tus neeg siv khoom, suav nrog kev txhim kho lub hauv paus, commissioning thiab txuas cov khoom siv hluav taws xob. Muab kev cob qhia ua haujlwm rau cov neeg siv khoom kom ntseeg tau tias lawv tuaj yeem siv cov cuab yeej siv tau zoo thiab muaj txiaj ntsig, thiab xa tuaj rau kev siv.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas yuav ncav cuag 95%. 32 welding kab tau muab tso rau hauv kev siv, 50 yog npaj rau nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
