Ob Chav Girder Choj Crane Nrog Hoist



Ob Chav Girder Choj Crane nrog Hluav Taws Xob Hoist yog qhov muaj zog, muaj peev xwm nqa nqa kev daws teeb meem tsim los rau cov ntawv thov kev lag luam uas hnyav hnyav yuav tsum tau nqa, txav mus los, thiab tso nrog qhov tseeb. Nws muaj ob qho tib si girders (cov kab teeb tseem ceeb) txhawb nqa lub trolley thiab hoist system uas txav raws tus choj kom nqa thiab thauj khoom hauv thaj chaw ua haujlwm loj. Qhov no crane yog zoo tagnrho rau factories, warehouses, steel mills, thiab kev tsim kho qhov chaw uas yuav tsum tau hnyav-duty lifting.

Cov yam ntxwv tseem ceeb ntawm ob chav girder choj crane nrog hluav taws xob hoist: Muab kev ruaj ntseg thiab lub zog piv rau ib leeg girder cranes.Zoo rau nqa hnyav thiab loj loads nrog tsawg deflection.Nws yog tsim rau lifting peev xws li los ntawm ob peb tons mus rau pua pua tons.

Ob chav girder choj crane nrog hluav taws xob hoist muab superior stability thiab lub zog piv rau ib leeg girder cranes.Ideal rau lifting hnyav thiab loj loads nrog tsawg deflection. Nws yog qhov tsim nyog rau kev nqa cov peev txheej xws li los ntawm ntau tons mus rau ntau pua tons.Features lub tshuab hluav taws xob hoist rau kev nqa ntsug ntsug.High-kev ua haujlwm hluav taws xob lub cev muaj zog ua kom ceev, txhim khu kev qha, thiab lub zog txuag kev ua haujlwm. Muaj kev nqa thiab txo qis nrog kev tswj xyuas meej. .Optional nuv, lifting platform, los yog sib nqus lifting li rau ntau yam kev siv.

Ob chav girder choj crane nrog hluav taws xob hoist yog tsim los ntawm cov khoom siv zoo xws li cov hlau kom ntxiv dag zog thiab tsis kam hnav thiab tsim kua muag.Safety nta muaj xws li kev tiv thaiv overload, thaum muaj xwm ceev nres khawm, txwv keyboards, thiab tiv thaiv kev sib tsoo systems.Ua raws li thoob ntiaj teb. cov qauv xws li ISO, IEC, thiab OSHA rau kev nyab xeeb thiab kev ua haujlwm.

Ob chav Girder Choj Crane nrog Fais Hoist yog ib qho tseem ceeb lifting kev daws teeb meem rau cov khoom siv hnyav. Nws muab lub peev xwm thauj khoom siab, txhim kho kev nyab xeeb, thiab ua haujlwm yooj yim rau kev ua haujlwm hauv ntau qhov chaw, ua rau nws mus rau kev xaiv rau kev lag luam uas xav tau kev txhim khu kev qha, muaj txiaj ntsig, thiab muaj zog nqa kev daws teeb meem.

Core Cheebtsam: Cav, Tsav

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 3 xyoos

Qhov hnyav (KG): 1000 kg

Video tawm-kev tshuaj xyuas: Muab

Machinery Test Report: Muab

Kev Pabcuam Tomqab Muag Khoom: Kev teeb tsa, kev ua haujlwm thiab kev cob qhia

Txoj kev tswj: cabin tswj / hlau hlua chaw taws teeb tswj

Lifting ceev: 5-15M/MIN

Xim: Raws li kev thov

Fais fab mov: 380V 50Hz los yog thov

Crane khiav ceev:50-100M/MIN

Kev tiv thaiv qib: IP54

Rwb thaiv tsev: F

Lub luag haujlwm ua haujlwm: A6



Duab & Cheebtsam





1.Main beam

1) Lub ntsiab nqaj ntawm Ob Chav Girder Choj Crane yog ib qho tseem ceeb ntawm cov khoom siv uas txhawb nqa lub nra, suav nrog lub tshuab hluav taws xob, trolley, thiab txhua yam khoom raug nqa. Lub ntsiab nqaj (los yog girder) yog kab rov tav txhawb nqa cov qauv uas nthuav qhov kev ncua deb ntawm ob lub choj cranes 'kawg tsheb thauj khoom (cov thav duab sab nrauv uas zaum ntawm cov ntsia hlau). loads.Nws ua raws li lub hauv paus load-bearing caij, faib qhov hnyav ntawm cov khoom nqa thiab lub hoist.

2) Lub ntsiab nqaj yog feem ntau yog ua los ntawm cov hlau uas muaj zog los yog hlau alloys los muab lub zog siab tshaj plaws thiab ruaj khov thaum tuav lub teeb txaus kom yooj yim rau kev txav ntawm crane.Cov duab ntu ntu muaj xws li lub thawv girder, I-beam (los yog H-beam ), thiab lwm yam, nyob ntawm seb qhov yuav tsum tau muaj zog thiab daim ntawv thov. Lub thawv girders feem ntau siv nyob rau hauv ob chav girder cranes rau kev ruaj ntseg zoo dua thiab thauj khoom xa tawm.

3) Qhov ntev ntawm lub nqaj tuaj yeem sib txawv nyob ntawm qhov dav ntawm tus choj thiab qhov yuav tsum tau ua. Lub beam yuav tsum tau tsim los tswj ob qho tib si zoo li qub thiab dynamic rog generated los ntawm lifting operations.Qhov siab thiab dav ntawm lub ntsiab beam yog ib qho tseem ceeb heev rau lub crane load peev xwm. Cov kab loj loj yog siv rau cov cranes hnyav los txhawb nqa ntau dua..



Lifting System

1) Lub cev muaj zog: Thaum tus neeg tsav tsheb crane qhib lub hoist, lub cev muaj zog pib tig lub nruas. Nyob ntawm kev thauj khoom thiab cov crane tsim, lub cev muaj zog tuaj yeem pib qis dua kom tsis txhob muaj kev ntxhov siab ntau dhau.Nyob rau hauv ob chav girder choj crane nrog hluav taws xob hoist, lub tshuab nqa nqa feem ntau yog ib feem ntawm lub crane loj dua uas yog tsim los rau kev ua haujlwm siab. muaj peev xwm thiab precision tswj.

2) Reducer: Lub reducer nyob rau hauv ib tug lifting system ntawm ob chav girder choj crane nrog ib tug hluav taws xob hoist plays lub luag hauj lwm tseem ceeb nyob rau hauv lub mechanical kis tau tus mob. Nws feem ntau yog siv los txo qhov ceev ntawm lub cev muaj zog tsav lub hoist thiab nce lub zog kom nqa cov khoom hnyav dua.

3) Nruas: Lub nruas yog ib qho cylindrical tivthaiv uas tuav thiab cua cov hlua hlau siv los nqa thiab txo cov load. Thaum lub tshuab hluav taws xob hoist tau qhib, lub nruas tig mus rau cua los yog unwind txoj hlua, cia lub hoist nqa lossis txo qhov load.

4) Hlau hlua: Lub luag haujlwm tseem ceeb ntawm txoj hlua hlau yog nqa thiab txo cov khoom hnyav los ntawm kev xa cov tshuab hluav taws xob los ntawm lub hoist lub cev muaj zog mus rau lub nra ntawm nws tus kheej. Cov hlua hlau yog tsim los tiv thaiv kev nruj nruj thiab compression quab yuam. Lawv yuav tsum muaj kev ruaj khov thiab tiv taus hnav, corrosion, thiab qaug zog, vim tias lawv ua haujlwm hauv cov khoom hnyav thiab nyob rau hauv ib puag ncig dynamic.

5) Pulley thaiv: Pulley thaiv pab faib cov khoom hla ntau txoj hlua lossis cables. Nws txo qhov kev nyuaj siab ntawm ib qho cable thiab ua kom lub zog nqa tau zoo dua.Nws pab hloov cov kev taw qhia ntawm kev thauj khoom los ntawm kev coj cov hlua los yog saw hlau raws li lub tshuab hluav taws xob hoist nce lossis txo cov load.Kev siv ntau lub rubeys hauv lub block txo kev sib txhuam, pab. kom ntev lub neej ntawm txoj hlua hoisting lossis cable.

6) Cov cuab yeej nqa nqa: Cov cuab yeej nqa ntawm lub Lifting System ntawm Ob Chav Girder Choj Crane nrog Hluav Taws Xob Hoist feem ntau yog tsim los ntawm ntau yam tseem ceeb uas ua haujlwm ua ke los nqa, txo qis, thiab txav mus los tau zoo.





3.Endlub tsheb

Qhov kawg ntawm kev thauj mus los ntawm ob chav girder choj crane nrog lub tshuab hluav taws xob hoist yog ib qho tseem ceeb uas muab kev txav mus los rau lub crane raws cov crane rails lossis cov kab hluav taws xob khiav.

Qhov kawg carriage ncej feem ntau yog tsim los ntawm steel thiab lub tsev lub log, qag, thiab hluav taws xob tsav lub cev muaj zog. Nws yog tsim los nqa tag nrho qhov hnyav ntawm lub crane, hoist, thiab lub thauj khoom tau nqa, kom ntseeg tau tias nws tuaj yeem taug kev mus tau yooj yim hla txoj kab. Cov brakes no ua kom muaj kev nyab xeeb, tshwj xeeb tshaj yog thaum muaj xwm ceev nres lossis thaum lub crane nres nyob rau hauv ib qho chaw tshwj xeeb.Rail cov lus qhia tau haum los xyuas kom meej tias lub log ntawm qhov kawg ntawm lub tsheb thauj khoom nyob twj ywm nrog cov ntsia hlau, tiv thaiv derailing thiab ua kom ruaj khov thaum lub sijhawm ua haujlwm.

Lub tshuab hluav taws xob feem ntau muaj lub tshuab hluav taws xob uas siv lub zog kawg kom txav tau tag nrho cov crane raws cov ntsia hlau. Qhov kev tsav tsheb no tuaj yeem yog ib leeg lossis dual, nyob ntawm qhov kev teeb tsa crane, thiab feem ntau suav nrog cov tsav tsheb sib txawv (VFDs) kom smoother, meej dua.

Qhov kawg carriage tus tsim thiab nta ncaj qha cuam tshuam rau crane qhov kev ua tau zoo nyob rau hauv cov nqe lus ntawm kev ceev, ruaj khov, thiab lub peev xwm kom meej qhov chaw ntawm lub load. Nws ua haujlwm ua ke nrog lub ntsiab girder, hoist, thiab lwm yam khoom siv crane los muab kev nqa thiab kev thauj mus los.



4.Crane mus ncig teb chaws mechanism

1) Txoj cai ua haujlwm

Lub tshuab hluav taws xob hauv lub tshuab mus ncig yog qhib thaum tus neeg tsav tsheb crane siv lub zog tswj kom pib txav. Lub cev muaj zog txuas nrog lub iav uas tsav lub log ntawm cov tsheb thauj khoom kawg.Raws li lub cev muaj zog tig lub log, cov tsheb thauj khoom kawg txav mus raws txoj kev tsheb ciav hlau khiav, ua rau tag nrho tus choj (nrog lub hoist thiab trolley) mus rau kab rov tav. crane txoj kev txav ntawm txoj kev tso cai rau cov khoom thauj mus rau qhov chaw nyob ntawm qhov ntev ntawm crane, los ntawm ib qho kawg ntawm tus choj mus rau lwm qhov.

2) Kev ua haujlwm ntawm crane khiav haujlwm mechanism

Lub crane mus ncig ua haujlwm yog lub luag haujlwm rau kev txav ntawm lub crane raws qhov ntev ntawm txoj kev khiav los yog choj hla. Nws tso cai rau tag nrho cov qauv crane (nrog lub hoist) taug kev kab rov tav hla qhov chaw ua haujlwm.

Lub crane mus ncig ua haujlwm yog lub luag haujlwm rau kev txav ntawm lub crane raws qhov ntev ntawm txoj kev khiav los yog choj hla. Nws tso cai rau tag nrho cov qauv crane (nrog lub hoist) taug kev kab rov tav hla qhov chaw ua haujlwm.

Lub tshuab taug kev txhawb nqa kev txav ntawm cov khoom thauj los ntawm ib qho chaw mus rau lwm qhov hauv crane txoj haujlwm ua haujlwm. Thaum ua ke nrog lub hoist, nws yooj yim rau ob qho tib si kab rov tav thiab ntsug txav ntawm cov ntaub ntawv.

Lub tshuab hluav taws xob hoist feem ntau muaj qhov hloov tau ceev tswj tau, uas yog qhov tseem ceeb rau kev tswj tus nqi ntawm kev mus los rau qhov chaw thauj khoom thiab kev nyab xeeb. Qhov ceev tuaj yeem sib txawv nyob ntawm qhov load, ib puag ncig, thiab cov haujlwm tshwj xeeb ntawm tes.

Lub crane mus ncig ua haujlwm yuav tsum xyuas kom meej tias tag nrho cov crane system ruaj khov thaum lub sijhawm txav mus los, tiv thaiv tipping lossis kev hloov pauv sai sai hauv kev thauj khoom. Qhov kev ruaj ntseg no yog ua kom ntseeg tau los ntawm kev tsim kho tshuab, kev sib tw tsheb ciav hlau, thiab kev tswj xyuas meej.

5.Trolley mus ncig teb chaws mechanism

1) Cov qauv tsim qauv

Trolley thav duab: Lub trolley thav duab yog lub hauv paus qauv uas tuav thiab txhawb nqa lub tshuab hoist. Nws feem ntau yog ua los ntawm cov hlau muaj zog los yog hlau alloy los muab kev ruaj ntseg thiab kav ntev.

Lub log teeb: Cov log tsheb trolley tso cai rau lub trolley taug kev raws txoj hlua ntawm tus choj girder.Cov log no feem ntau yog ua los ntawm forged steel lossis cam khwb cia hlau los tuav cov khoom hnyav. Kev xaiv cov khoom kom ntseeg tau tias lawv muaj zog thiab hnav-resistant.

Tsav tsheb: Lub tshuab tsav yog lub luag haujlwm rau kev txav lub trolley raws li txoj hlua khi.Qhov no feem ntau yog lub cev muaj zog uas suav nrog lub tshuab hluav taws xob, gearbox, thiab tsav sprockets lossis lub zog. Lub cev muaj zog feem ntau yog tswj los ntawm lub zaus tsav lossis tsav tsis muaj zog los tswj kev ceev thiab lub zog.

2) Kev ua haujlwm ntawm lub trolley kev khiav haujlwm mechanism

Kev txav ntawm lub Hoist: Lub trolley mechanism tso cai rau lub hoist (lub luag hauj lwm rau kev nqa thiab txo cov loads) txav kab rov tav raws tus choj, npog qhov ntev ntawm lub crane.

Electric Tsav System: Lub trolley yog siv los ntawm lub tshuab hluav taws xob uas tsav lub log. Lub cev muaj zog feem ntau txuas nrog lub iav txo kom kho qhov nrawm thiab lub zog mus rau qib uas yuav tsum tau ua kom du thiab meej txav.

Load Distribution: Lub trolley yog tsim los faib cov khoom sib npaug thoob plaws nws cov log thiab cov hlua khi. Qhov no ua kom lub crane tuaj yeem nqa cov khoom hnyav yam tsis muaj kev cuam tshuam cov qauv kev ncaj ncees ntawm crane lossis cov txheej txheem mus ncig.

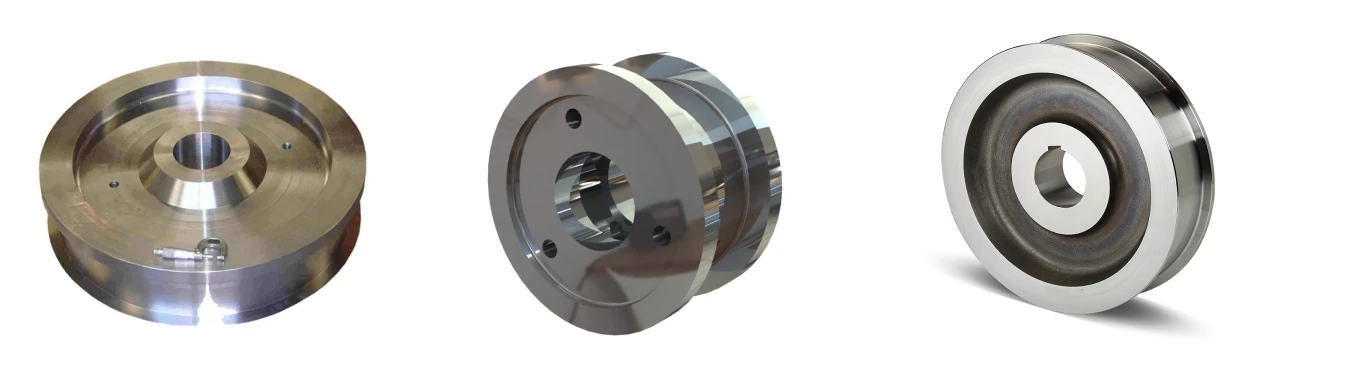

.6.Crane log

1) Kev ua haujlwm ntawm lub log

Load-bearing Capacity: Lub log crane yog tsim los ua tus luj ntawm tus choj crane, nrog rau cov khoom nqa los ntawm lub tshuab hluav taws xob. Lub log no feem ntau ua haujlwm ntawm txoj kev tsheb ciav hlau (feem ntau overhead lossis ntawm txoj kev khiav) thiab yog ua los ntawm cov ntaub ntawv muaj zog, ruaj khov, xws li forged steel, los txhawb cov khoom siab.

Kev txav mus los: Cov log yog mounted rau ntawm qhov kawg ntawm tus choj crane girders thiab tso cai rau tag nrho tus choj taug kev raws txoj hlua. Nyob rau hauv ob lub girder system, feem ntau muaj ob txoj hlua (ib qho rau txhua tus girder), thiab lub log txav lub crane horizontally raws qhov ntev ntawm txoj kev khiav.

2) Cov kev cai tsim

High-Strength Steel: Crane log feem ntau yog tsim los ntawm cov ntaub ntawv muaj zog, xws li forged steel lossis cam khwb cia hlau, kom tiv taus cov khoom hnyav thiab hnav. Cov ntaub ntawv uas muaj kev hnav tsis zoo (xws li alloy steels) yuav tsum tau xaiv kom ntev lub neej ntawm lub log.Yog hais tias lub crane siv nyob rau hauv ib puag ncig hnyav, cov ntaub ntawv yuav tsum muaj kev tiv thaiv zoo rau corrosion (xws li, txheej lossis hlau xaiv). .

7.Crane Hook

1) Lub crane nuv yog txuas nrog lub lifting mechanism ntawm lub hoist (feem ntau yog los ntawm lub lifting block lossis lwm yam rigging system).

2) Crane hooks feem ntau yog ua los ntawm cov ntaub ntawv muaj zog zoo li cov hlau forged, tsim los tswj cov kev ua haujlwm siab hauv kev nqa cov khoom hnyav.Lawv feem ntau tuaj nrog cov yam ntxwv xws li kev ruaj ntseg latches los tiv thaiv lub load los ntawm slipping thaum nqa.

Lub cev muaj zog

1) Choj txav (Lub Tsav Tsheb Mus Los): Choj mus ncig lub cev muaj zog tsav tag nrho cov crane raws cov kab ciav hlau khiav. Nws feem ntau yog qhov sib txawv-ceev AC lub cev muaj zog lossis DC lub cev muaj zog nrog lub iav uas tso cai rau tus choj txav mus rau kab rov tav hla qhov ntev ntawm lub crane txoj kev khiav.

2) Trolley Movement (Cross Travel Motor): Lub trolley mus ncig teb chaws lub cev muaj zog tswj kev txav ntawm lub trolley raws tus choj. Lub trolley nqa lub hoist thiab tuaj yeem hla tus choj, ua kom lub tshuab nqa nqa los npog tag nrho qhov dav ntawm crane. Lub cev muaj zog no zoo ib yam li tus choj lub cev muaj zog hauv kev ua haujlwm tab sis feem ntau me me.

3) Hoist Movement (Lifting Tsav): Lub cev muaj zog hoist yog lub cev muaj zog tshaj plaws nyob rau hauv lub crane system, raws li nws lub zog hoisting mechanism, uas nqa thiab txo cov load.

.

Suab thiab lub teeb tswb system & txwv hloov

1) Suab thiab lub teeb tswb system

Lub suab nrov thiab lub teeb ceeb toom rau ntawm Ob Chav Girder Choj Crane nrog Hluav Taws Xob Hoist yog qhov kev nyab xeeb tsim los ceeb toom cov neeg ua haujlwm thiab cov neeg ua haujlwm nyob ib puag ncig ntawm crane txoj haujlwm ua haujlwm lossis muaj kev phom sij.

Lub tswb nrov (Horn lossis Siren): Feem ntau yog lub suab nrov lossis lub suab nrov uas tawm suab ceeb toom thaum muaj qee qhov xwm txheej tau ntsib. yog ib qho malfunction lossis overload.Siv cov qauv suab sib txawv los yog zaus yuav raug siv los teeb tsa cov xwm txheej tshwj xeeb, xws li lub suab txuas ntxiv rau kev ua haujlwm ib txwm lossis ib lub suab nrov sib cuam tshuam rau kev ceeb toom.

Lub Teeb Tswb (Flashing Lights lossis Beacons): Cov teeb pom kev zoo xws li lub teeb flashing, strobe teeb, lossis rotating beacons muab tso rau ntawm lub crane lossis ib ncig ntawm lub crane ua haujlwm. theem lossis qhov taw qhia qhov muag pom tau ntau dua.Lub teeb yuav flash hauv cov xim sib txawv (xws li, liab rau kev phom sij, daj rau kev ceev faj, lossis ntsuab rau kev nyab xeeb) los qhia ntau hom kev mob.

2) txwv hloov

Ib qho kev txwv hloov nyob rau hauv ob chav girder choj crane nrog lub tshuab hluav taws xob hoist plays lub luag haujlwm tseem ceeb ntawm kev nyab xeeb. Nws pab tiv thaiv lub crane thiab hoist los ntawm tshaj lawv cov kev txwv kev mus los, ua kom muaj kev nyab xeeb los ntawm kev txiav tawm lub zog thaum lub crane lossis hoist mus txog qhov chaw ua ntej.

Limit Switches: Cov no yog cov khoom siv hluav taws xob lossis cov khoom siv hluav taws xob tau nruab rau ntawm qhov kawg ntawm lub crane txoj kev taug kev (ob kab rov tav thiab ntsug) txhawm rau txheeb xyuas cov haujlwm ntawm lub hoist lossis trolley. Lawv ua haujlwm raws li kev nyab xeeb nres los tiv thaiv kev hla dhau mus.

Mus ncig teb chaws Limit Switches (kab rov tav): Cov no yog ntsia rau qhov kawg ntawm lub crane txoj kev tsheb ciav hlau los yog girder mus ncig teb chaws txoj kev. Lawv txwv tsis pub lub crane txav mus dhau txoj kev txwv, tiv thaiv kev sib tsoo nrog cov phab ntsa lossis lwm yam teeb meem.

Hoist Limit Switches (Vertical): Cov no feem ntau yog ntsia rau ntawm qhov siab thiab qis ntawm lub hoist txoj kev mus los (qhov siab tshaj plaws lub hoist tuaj yeem nqa lossis qhov siab tshaj plaws nws tuaj yeem qis dua). Lawv nres lub hoist ntawm over-lifting, uas yuav ua rau lub load los yog lub crane qauv.

10. Cov khoom siv ruaj ntseg

1) Overload tiv thaiv ntaus ntawv: Overload Limit Switch tiv thaiv lub crane los ntawm kev nqa lub load uas tshaj nws cov peev txheej. Nws cia li nres lub hoist thaum kuaj pom qhov overloading.Load Indicator qhia txog cov khoom thauj tam sim no thiab pab cov neeg ua haujlwm kom tsis txhob overloading.

2) Limit Switches: End Travel Limit Switch yog siv los txwv txoj kab rov tav mus ncig ntawm lub crane thiab tiv thaiv lub trolley lossis choj los ntawm kev txav mus dhau lawv qhov kev txwv mus los.Hoisting Limit Switch kom ntseeg tau tias lub hoist tsis nqa lub load siab dhau, tiv thaiv nws. los ntawm kev puas tsuaj rau lub crane los yog tsoo rau sab saum toj ntawm cov qauv.Lowering Limit Switch tiv thaiv lub hoist hoist los ntawm kev txo cov load kom deb dhau thiab ua rau kev puas tsuaj.

3) Anti-Sway Devices: Qee qhov ob chav girder cranes tau nruab nrog cov txheej txheem los tiv thaiv sway uas txo cov viav vias thaum nqa thiab txo qis, txhim kho kev ruaj ntseg thiab kev nyab xeeb.

4) Thaum muaj xwm ceev nres khawm: Nyob rau ntawm lub crane tswj vaj huam sib luag, nws tam sim ntawd kaw lub crane txoj haujlwm thaum muaj xwm ceev.

5) Safety Limiters: Trolley Travel Safety Limiters tiv thaiv lub trolley kom tsis pub dhau nws txoj kev mus los ntawm lub girder.Bridge Travel Safety Limiters tiv thaiv tus choj los ntawm kev mus dhau nws txoj kev txwv ntawm txoj kev tsheb ciav hlau.

6) Brake Systems: Nres lub load los ntawm kev poob yog tias lub zog poob lossis yog tias tus neeg teb xov tooj yuam kev tawm ntawm cov tswj.Crane Nres tiv thaiv kev txav ntawm lub crane thaum tsis ua haujlwm.

11.Control hom

1) Manual tswj: Hauv phau ntawv hom, tus neeg tsav tsheb crane tswj lub crane thiab hoist ua haujlwm los ntawm kev tswj pendant lossis joystick. Hom no feem ntau yog siv rau kev ua haujlwm zoo thiab thaum lub sijhawm tu.

2) Xov tooj cua tswj chaw taws teeb hom: Hauv hom no, tus neeg tsav tsheb crane tswj lub crane los ntawm qhov deb uas siv lub handheld wireless chaw taws teeb. Nws tso cai rau kev hloov pauv ntau dua thiab muaj kev nyab xeeb los ntawm kev tso cai rau tus neeg teb xov tooj txav mus los ntawm lub crane thiab lub load, tshwj xeeb tshaj yog muaj txiaj ntsig zoo thaum ua haujlwm hauv qhov chaw muaj kev phom sij lossis qhov chaw nruj.

3) Cab Control Hom: Rau loj ob chav girder choj cranes, tshwj xeeb tshaj yog cov tuav hnyav hnyav, tus neeg teb xov tooj yuav tswj tau lub crane los ntawm lub alarm nyob rau ntawm lub crane nws tus kheej, feem ntau mounted ntawm tus choj girder. Hom no muab kev pom zoo dua thiab kev tswj xyuas tag nrho cov txheej txheem nqa.

4) Tsis siv neeg tswj hom: Qee qhov niaj hnub cranes muaj kev ua haujlwm tsis siv neeg lossis semi-automatic. Hauv hom no, lub crane tuaj yeem ua cov haujlwm rov ua dua (xws li nqa thiab txav cov khoom thauj raws li txoj hauv kev) yam tsis muaj kev cuam tshuam los ntawm phau ntawv. Qhov no feem ntau yog siv rau cov ntawv thov xws li kev tuav cov khoom hauv cov chaw tsim khoom.

5) PLC (Programmable Logic Controller) Kev Tswj: Ib hom kev tswj hwm qib siab dua nrog PLC-raws li automation, uas siv lub programmable maub los ua haujlwm ntau yam haujlwm raws li cov tswv yim los ntawm cov sensors thiab cov neeg siv cov lus txib. Hom no muaj ntau dua nyob rau hauv kev lag luam chaw uas siab precision thiab kev nyab xeeb yog qhov tseem ceeb.

12. Daim duab



Main technical





Siab Lifting Capacity

Ob chav girder tsim: Ob lub girders muab kev txhawb nqa ntau dua, tso cai rau lub crane los tuav cov khoom hnyav dua piv rau ib leeg girder cranes.Suitable rau loj, hnyav machinery los yog loj-scale kev siv.

Nce Vertical Lifting Qhov siab

Nrog lub hoist muab tso rau nruab nrab ntawm ob lub girders, tus tsim tso cai rau ib tug ntau dua lifting qhov siab, ua rau nws zoo tagnrho rau kev khiav hauj lwm yuav tsum tau clearance tseem ceeb los yog rau lifting cov ntaub ntawv loj.

Txhim khu kev ruaj ntseg

Ob chav girder configuration muaj superior stability thiab tsawg sway thaum lub sij hawm ua hauj lwm, uas pab txhim kho kev nyab xeeb thiab precision thaum nqa, tshwj xeeb tshaj yog nrog hnyav loads.

Zoo dua Hook Coverage

Ob lub girders muab qhov dav dav, txhais tau hais tias lub crane tuaj yeem npog thaj tsam loj dua hauv qhov chaw ua haujlwm, tso cai rau cov khoom siv tau zoo dua los tuav hla ntau ntu ntawm qhov chaw.

Ntau Qhov Ua Haujlwm Hoist Movement

Lub tshuab hluav taws xob hoist, uas ua haujlwm nrog kev sib txhuam me me thiab lub zog poob, tuaj yeem txav tau nrawm nrawm ntawm tus choj, txo lub sijhawm tag nrho lub voj voog thiab ua kom cov khoom tsim tau.

Durability thiab Longevity

Ob chav girder cranes feem ntau muaj zog dua thiab tuaj yeem tiv taus kev ua haujlwm hnyav, muab lub neej ua haujlwm ntev dua piv rau ib leeg girder cranes. Lawv tsim rugged txo qhov hnav thiab tsim kua muag.

Txhim kho kev nyab xeeb

Kev tsim kho hnyav txo qhov kev pheej hmoo ntawm kev ua haujlwm tsis ua haujlwm nyob rau hauv siab loads. Tsis tas li ntawd, lub hoist lub tshuab hluav taws xob ua haujlwm muaj kev tswj xyuas zoo dua ntawm kev txav txav, txo qis kev pheej hmoo cuam tshuam nrog kev tuav tuav.

Customization rau cov kev xav tau tshwj xeeb

Ob chav girder choj cranes tuaj yeem tsim thiab hloov kho kom tau raws li cov kev xav tau tshwj xeeb xws li dav dav, nqa qhov siab dua, lossis tshwj xeeb hoists nyob ntawm hom kev thauj khoom.

Kev kho yooj yim

Nrog rau cov hluav taws xob hoist thiab modular tsim ntawm ob chav girder cranes, kev saib xyuas thiab kho tuaj yeem ua tau yooj yim dua, ua kom tsis muaj sijhawm poob qis thiab txo nqi kho tag nrho.

Zog Efficiency

Hluav taws xob hoists feem ntau yog siv zog ntau dua piv rau phau ntawv los yog pneumatic systems. Cov cranes no kuj muaj kev xaiv rau kev hloov pauv zaus tsav (VFDs) uas tso cai rau kev tswj xyuas ntau dua, txo kev siv zog.

Txo Cov Hneev Taw rau Cov Chaw Loj

Txawm hais tias ob chav girder cranes muaj qhov pib loj dua piv rau ib leeg girder cranes, lawv lub peev xwm nqa hnyav dua thiab npog qhov dav dav tuaj yeem tshem tawm qhov xav tau rau ntau lub cranes me, txo qhov chaw siv hauv cov nroj tsuag loj.





Heavy Lifting Operations

Ob chav girder cranes yog tsim los nqa cov khoom loj, feem ntau nyob rau hauv qhov ntau ntawm ob peb tons, ua rau lawv zoo tagnrho rau kev nqa cov tshuab hnyav, khoom siv, lossis cov khoom siv raw hauv kev lag luam hnyav.Lub tshuab hluav taws xob hoist ntxiv efficiency thiab precision hauv lifting thiab txo loads, tshwj xeeb tshaj yog rau cov khoom hnyav lossis hnyav. Nws muab kev ua haujlwm du, zoo ib yam piv rau phau ntawv hoisting tshuab.

Manufacturing thiab Assembly Lines

Nyob rau hauv qhov chaw tsim khoom, qhov twg cov khoom hnyav (xws li cov motors loj, turbines, lossis cov khoom siv tsheb) yuav tsum tau sib sau ua ke los yog muab tso rau kom raug, ob chav girder choj crane nrog hluav taws xob hoist tso cai rau siab precision thiab ceev hauv kev txav cov ntaub ntawv. txo qis kev ua haujlwm ntawm phau ntawv thiab txhim kho kev nyab xeeb, raws li cov neeg ua haujlwm tuaj yeem tsom mus rau cov haujlwm sib dhos thaum lub crane ua haujlwm nqa cov khoom hnyav.

warehouses thiab khoom tuav

Nyob rau hauv cov tsev khaws khoom loj, ob chav girder cranes nrog hluav taws xob hoists yog siv rau kev thauj khoom, thauj khoom thiab tshem tawm cov thawv, lossis txav cov ntaub ntawv hla mus ntev.Cov cranes tso cai rau kev nqa nqa ntsug siab, uas muaj txiaj ntsig zoo rau kev ua kom qhov chaw khaws cia, nrog rau kev tuav. cov khoom loj lossis cov khoom hnyav uas yuav tsum tau nqa mus rau qhov chaw cia siab.

Shipyards thiab Ports

Cov cranes no nquag siv nyob rau hauv cov chaw nres nkoj thiab shipyards los lis shipping thawv, thauj khoom thiab unload cargo, los yog nqa hnyav maritime khoom thiab cov khoom.Lub tshuab hluav taws xob hoist xyuas kom meej kev khiav hauj lwm nyob rau hauv lub sij hawm ntev ua hauj lwm, thaum lub ob chav girder tsim muab lub zog structural xav tau rau loj- scale kev ua haujlwm.

Cov chaw tsim kho

Hauv kev tsim kho, tshwj xeeb tshaj yog rau cov tsev siab siab lossis cov phiaj xwm loj loj, ob chav girder cranes yog siv los nqa cov kab hlau, pob zeb ua vaj huam sib luag, tshuab, thiab cov khoom siv tsim kho rau thaj chaw siab.Lub tshuab hluav taws xob hoist tso cai rau qhov chaw ntawm cov ntaub ntawv, txo qhov kev pheej hmoo ntawm raug xwm txheej thiab txhim kho qhov chaw ua haujlwm tag nrho.

Kev tu thiab kho cov cuab yeej hnyav

Rau kev tu cov haujlwm hauv kev lag luam hnyav xws li steel mills, fais fab nroj tsuag, lossis cov chaw tsim khoom, ob chav girder cranes nrog hluav taws xob hoists tuaj yeem siv los nqa thiab ua haujlwm loj, cov cuab yeej hnyav rau kev pabcuam lossis kho.Cov hoists tuaj yeem nruab nrog tshwj xeeb txuas lossis hlua. los tswj cov khoom tshwj xeeb lossis cov tshuab ua haujlwm, ua kom muaj kev nyab xeeb thiab ua haujlwm tau zoo thaum ua haujlwm tu.

Steel Mills thiab Foundries

Steel mills thiab foundries feem ntau siv ob chav girder cranes rau nqa thiab thauj cov hlau molten, steel slabs, thiab lwm yam khoom hnyav nyob rau hauv qhov chaw.Lub tshuab hluav taws xob hoist enables meej thiab du tuav ntawm cov ntaub ntawv no, kom muaj kev ruaj ntseg thiab txo qis downtime.

Fais fab nroj tsuag

Hauv cov chaw tsim hluav taws xob, ob chav girder choj cranes yog siv los nqa cov khoom hnyav, xws li turbines, generators, thiab boilers, thaum lub sij hawm installation, tshuaj xyuas, los yog kho.Qhov siab load peev xwm thiab precision ntawm cov cranes ua rau lawv zoo tagnrho rau kev tuav loj Cheebtsam yam xyuam xim thiab ua tau zoo.

Aerospace thiab Aircraft Manufacturing

Hauv kev lag luam aerospace, qhov loj thiab rhiab Cheebtsam (xws li lub dav hlau tis lossis lub fuselages) yuav tsum tau nqa thiab txav mus rau qhov siab, ob chav girder choj cranes nrog hluav taws xob hoists yog qhov tseem ceeb.Lub hoist muab kev nqa du, thaum lub crane qauv tso cai rau kev txav mus los. ntawm cov khoom loj raws li cov kab ntau lawm lossis mus rau thaj chaw sib dhos.

Kev lag luam mining

Rau kev txav cov cuab yeej siv mining hnyav, pob zeb loj, lossis cov khoom rho tawm hauv thiab tawm ntawm kev ua haujlwm mining, cov cranes muab lub zog nqa lub zog xav tau rau cov ntawv thov.Lub tshuab hluav taws xob hoist ntxiv ib theem ntawm kev nyab xeeb thiab kev cia siab rau cov txheej txheem ntawm kev nqa hnyav thiab tej zaum yuav muaj kev phom sij. cov ntaub ntawv..





Tsim thiab Engineering: Nkag siab txog crane lub peev xwm thauj khoom, ncua sij hawm, nqa qhov siab, thiab kev ua haujlwm yuav tsum tau ua.Engineers tsim cov duab kos kom ntxaws thiab cov lus qhia tshwj xeeb rau cov qauv crane, cov khoom siv hluav taws xob, thiab hoisting mechanism, feem ntau siv CAD software.

Cov khoom siv: Cov khoom siv muaj zog muaj zog (xws li Q235, Q345, lossis sib npaug) raug txiav txim rau lub girder, trolley, thiab lwm yam khoom siv.Electric motors, hlau ropes, brakes, thiab lwm yam khoom siv khoom siv.Qhov no suav nrog cov khoom siv hluav taws xob. vaj huam sib luag, tswj systems, cables, thiab cov khoom siv kev nyab xeeb.

Fabrication ntawm Girders: Hlau daim hlau raug txiav raws li tus qauv tsim siv CNC plasma txiav los yog laser txiav machine.Cov hlau txiav yog welded ua ke los tsim ob lub ntsiab girders ntawm lub crane. Cov txheej txheem vuam yuav tsum xyuas kom cov qauv muaj zog txaus los txhawb cov loads.Tom qab vuam, lub girder yuav raug kho kom sov (kev ntxhov siab) kom tsis txhob muaj kev ntxhov siab thiab kev ntxhov siab.

Kev kho deg: Cov hlau feem ntau yog sandblasted thiab tom qab ntawd coated nrog primer thiab xim rau kev tiv thaiv corrosion.

Fabrication of End Carriages: Cov no txhawb cov girders ntawm txoj kev khiav. Lawv yog fabricated los ntawm kev txiav, vuam, thiab assembling steel Cheebtsam, zoo ib yam li cov txheej txheem rau lub girders.Qhov kawg carriages yog haum nrog log (feem ntau steel nrog bearings) uas tso cai rau lub crane txav raws tus choj.

Kev sib dhos ntawm Crane Choj: Ob lub girders yog mounted rau qhov kawg carriages thiab ua raws li kev sib dhos. Qhov no tsim cov qauv choj tseem ceeb ntawm crane.Cross beams yog ntsia los txhawb cov qauv thiab muab cov ntsiab lus mounting rau lub hoist thiab trolley systems.Lub tshuab hluav taws xob hoist, nrog rau lub cev muaj zog, hlua nruas, thiab nuv, yog ntsia rau ntawm lub trolley, uas yuav taug kev raws tus choj.

Hoisting System Fabrication: Lub tshuab hluav taws xob hoist, nrog rau lub cev muaj zog, gearbox, xaim hlua los yog saw nruas, thiab hoist nuv, yog sib sau ua ke.Ib lub zog muaj zog hlau hlua los yog saw yog ntsia thiab kuaj kom zoo nro thiab du txav.Hoist brakes yog ntsia los muab kev tswj xyuas qhov tseeb thiab kev nyab xeeb thaum lub sijhawm nqa khoom.

Trolley Assembly: Lub trolley yog sib sau ua ke nrog nws cov log, uas khiav raws cov girders ntawm tus choj crane. Nws yog tsim los nqa lub hoisting mechanism hla tag nrho qhov ntev ntawm lub crane.Lub trolley yog nruab nrog lub tshuab hluav taws xob uas muaj cov motors, gearboxes, thiab cov khoom siv hluav taws xob rau kev tswj kom meej.

Kev Siv Hluav Taws Xob thiab Kev Tswj Xyuas Kev Txhim Kho: Lub vaj huam sib luag tswj hluav taws xob tau teeb tsa, suav nrog cov yam ntxwv ntawm kev nyab xeeb, txwv kev hloov pauv, kev tswj ceev, thiab kev tiv thaiv overload.Wiring rau lub hoist, trolley motors, thiab crane choj system yog ua tib zoo ntsia thiab sim. Ib qho chaw taws teeb tswj lossis pendant tswj tau ua ke rau kev ua haujlwm yooj yim ntawm crane.

Kev kuaj thiab tshuaj xyuas: Lub crane tau raug kuaj xyuas kom paub tseeb tias nws tuaj yeem nqa thiab nqa lub peev xwm tsim tau.Lub hoisting, trolley txav, choj txav, thiab kev ruaj ntseg tshuab raug kuaj xyuas kom ua haujlwm zoo. nrog cov qauv kev nyab xeeb hauv zos (xws li ISO, CE, OSHA).

Painting thiab Final Assembly: Lub crane tus qauv yog huv si thiab repainted los muab ntxiv corrosion kuj. Txhua qhov chaw raug muab tso ua ke, thiab txhua qhov kev hloov kho zaum kawg tau ua.

Shipping thiab Installation: Lub crane tej zaum yuav yog ib feem disassembled kom yooj yim rau kev thauj mus los, tshwj xeeb tshaj yog rau cov cranes loj.On-site, lub crane yog sib sau ua ke ntawm cov ntsia hlau (khiav qhov system) thiab txuas nrog lub tshuab hluav taws xob. Lub crane yog tom qab ntawd sim ib zaug kawg.

Kev Ntsuam Xyuas Tom Qab Kev Txhim Kho thiab Kev Xa Khoom: Kev tshuaj xyuas zaum kawg yog ua los ntawm tus kws tshaj lij lossis tus neeg soj ntsuam xyuas kom ntseeg tau tias txhua yam ua haujlwm raug. Lub crane raug xa mus rau cov neeg siv khoom nrog cov neeg siv phau ntawv, lub sijhawm saib xyuas, thiab cov txheej txheem kev nyab xeeb.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas yuav ncav cuag 95%. 32 welding kab tau muab tso rau hauv kev siv, 50 yog npaj rau nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
