Ob chav Girder Choj Crane nrog Fais Hoist

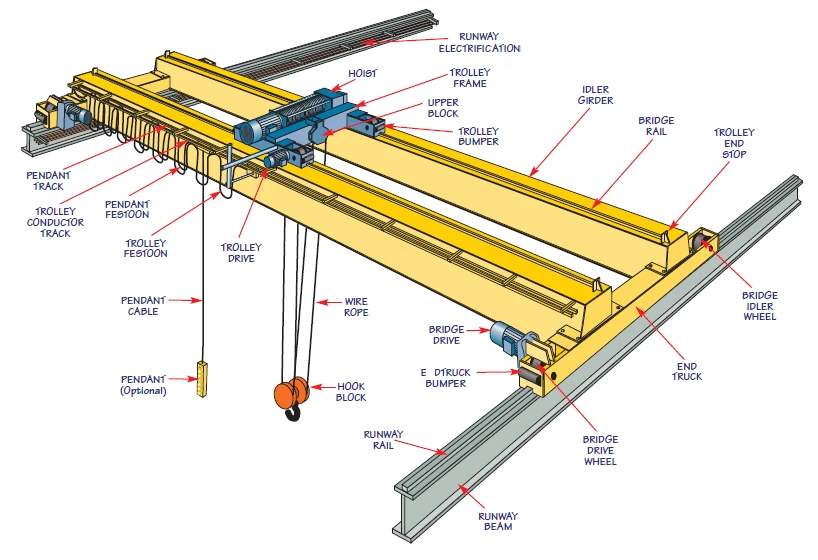

Lub crane yog tsim los ntawm ntau yam, nrog rau lub ntsiab girders, kawg tsheb, trolley, thiab hoist. Cov girders tseem ceeb yog kab kab kab rov tav uas txhawb nqa lub trolley, thaum kawg cov tsheb thauj khoom muaj cov log uas ua rau lub crane taug kev raws txoj kev khiav. Lub trolley txav raws tus choj thiab nqa lub hoist, uas ua rau hnyav nqa.



Ib qho ntawm cov txiaj ntsig tseem ceeb ntawm ob chav girder hluav taws xob hoist choj crane yog nws lub peev xwm nqa tau siab, uas tuaj yeem muaj li ntawm 5 txog 500 tons nyob ntawm daim ntawv thov. Qhov no ua rau nws yog qhov kev xaiv nrov rau kev tsim khoom hnyav, mining, thiab kev tsim kho kev lag luam uas cov khoom loj yuav tsum tau nqa thiab thauj.



Lwm qhov zoo muaj xws li nws lub peev xwm los npog thaj tsam loj dua li ib lub girder crane thiab nws qhov profile tsis tshua muaj, uas tso cai rau nws siv rau hauv cov tsev uas tsis tshua muaj taub hau. Tsis tas li ntawd, nws cov hluav taws xob siv hluav taws xob hoist feem ntau ua haujlwm tau zoo thiab yooj yim los tswj dua li cov tshuab hydraulic.



Zuag qhia tag nrho, ob chav girder hluav taws xob hoist choj crane yog ib qho kev txhim khu kev qha thiab ntau yam kev nqa nqa uas tuaj yeem txhim kho cov khoom tsim tau thiab kev nyab xeeb hauv ntau qhov chaw tsim khoom.

• Peev xwm: 5-1200ton
• Ntev: 4-35m
• Lifting qhov siab:6m, 9m, 12m, 18m, 24m, 30m
• Lub luag haujlwm: A4, A5, A6, A7 A8
• Qhov voltage:380V, 50Hz, 3Phase los yog raws li koj xav tau
• Ua haujlwm qhov kub thiab txias: -28 degree - ntxiv rau 55 degree ,
• Crane tswj hom: Pem teb tswj / chaw taws teeb tswj / Cabin tswj

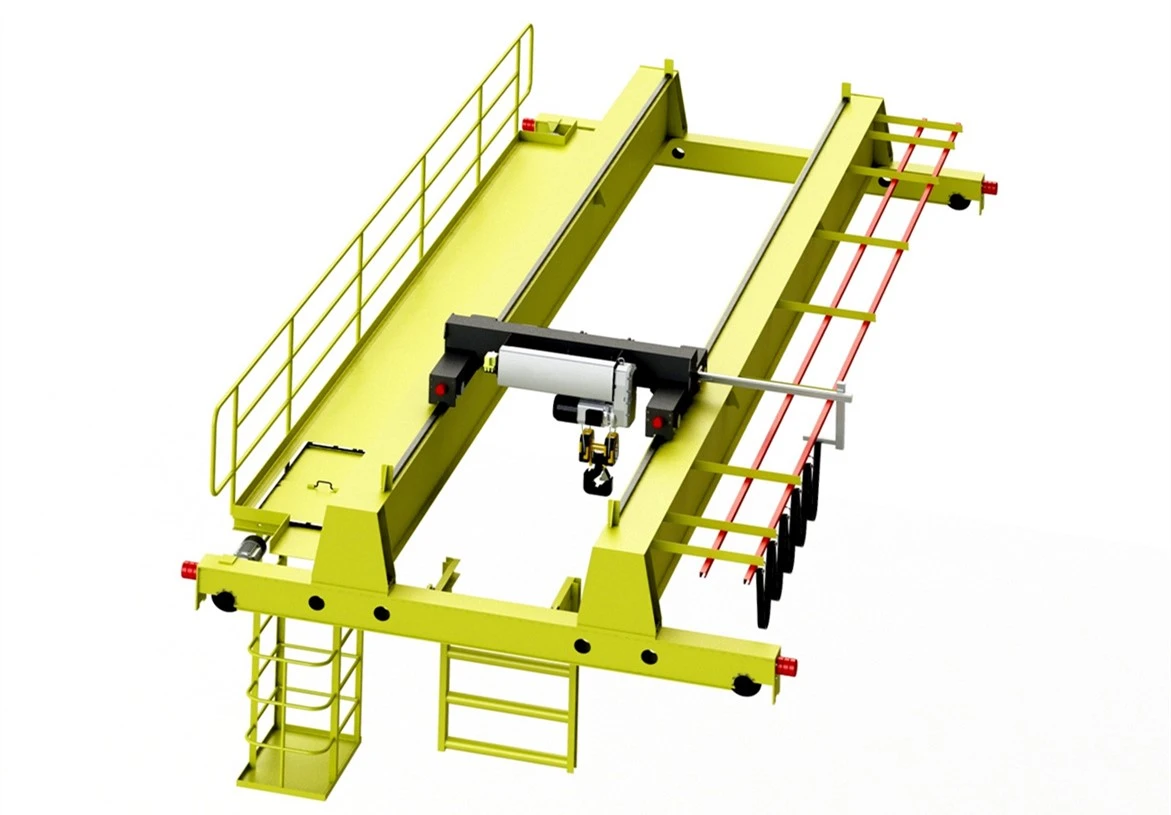

1. Tag nrho cov crane

Ob Chav Girder Electric Hoist Choj Crane yog ib hom khoom siv tuav cov khoom siv hauv kev lag luam siv los nqa thiab thauj cov khoom hnyav. Lub crane muaj ob qho tib si girders txhawb nqa los ntawm tus choj qauv hla thaj chaw ua haujlwm. Lub hoist unit uas nqa cov load yog mounted rau ntawm tus choj thiab txav horizontally raws qhov ntev ntawm cov girders. Lub tshuab hluav taws xob hoist yog siv los nqa, txo qis thiab txav cov load hla qhov ntev thiab dav ntawm lub crane qhov chaw ua haujlwm. Kev tsim ob chav girder muab lub zog muaj zog thiab ruaj khov rau lub crane thaum tuav cov khoom hnyav, ua rau nws zoo tagnrho rau cov ntawv thov kev lag luam uas hnyav hnyav yuav tsum tau nqa thiab thauj mus ntev. Cov cranes no feem ntau siv hauv kev lag luam xws li steel mills, ntawv mills, automotive manufacturing, thiab cov chaw tsim kho.

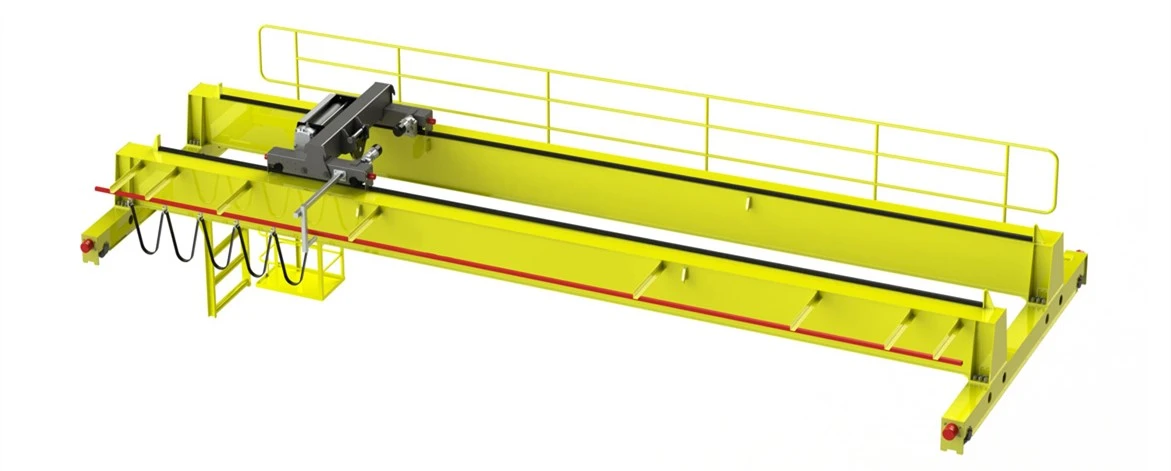

2. Main girder

Lub ntsiab girder ntawm Ob Chav Girder Hluav Taws Xob Hoist Choj Crane yog lub hauv paus txheej txheem uas cuam tshuam qhov sib txawv ntawm ob txoj kev khiav ntawm crane. Nws yog tsim los txhawb nqa qhov hnyav ntawm lub tshuab hluav taws xob hoist thiab txhua qhov kev thauj khoom raug nqa, nrog rau txhua qhov kab rov tav rog uas yuav siv tau thaum lub sijhawm ua haujlwm. Lub ntsiab girder feem ntau yog ua los ntawm cov hlau thiab yog tsim los ntawm lub thawv los yog truss tsim los muab lub zog siab tshaj plaws thiab ruaj khov. Nws tseem yog nruab nrog trolley rails uas tso cai rau lub fais hoist txav horizontally raws qhov ntev ntawm lub ntsiab girder. Lub ntsiab girder yog ib qho tseem ceeb ntawm cov crane system thiab yuav tsum tau tsim, tsim, thiab ntsia kom tau raws li cov qauv kev nyab xeeb thiab cov kev cai nruj.

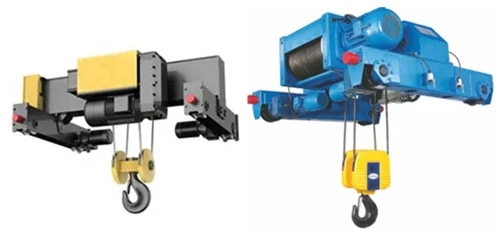

3. Lifting System

1) Ob chav girder hluav taws xob hoist choj crane lifting system muaj ib tug crane uas yog mounted rau ob qho tib si girders uas tau txais kev txhawb los ntawm ib tug trolley. Lub trolley khiav raws qhov ntev ntawm cov girders, cia lub crane mus txog txhua qhov chaw hauv cheeb tsam nws yog tsim los npog. Lub tshuab hluav taws xob hoist txuas nrog lub trolley thiab siv lub cev muaj zog los nqa thiab txo qis.

2) Lub peev xwm nqa ntawm ob chav girder hluav taws xob hoist choj crane tuaj yeem nyob ntawm ob peb tons mus rau ntau pua tons nyob ntawm qhov yuav tsum tau ua ntawm daim ntawv thov. Cov hom cranes no feem ntau siv hauv kev tsim khoom, kev tsim kho, thiab kev lag luam thauj khoom los nqa cov khoom hnyav thiab khoom siv.

3) Lub tshuab hluav taws xob yog siv los ntawm hluav taws xob uas tau muab los ntawm lub zog siv hluav taws xob, xws li cable lossis xaim. Lub hoist ua haujlwm siv cov tswj, uas feem ntau nyob ntawm lub pendant lossis chaw taws teeb tswj. Cov kev tswj xyuas no tso cai rau tus neeg teb xov tooj txav lub crane thiab lub hoist kom muaj kev nyab xeeb thiab meej.

4) Zuag qhia tag nrho, ob chav girder hluav taws xob hoist choj crane lifting system yog cov khoom siv ntau yam thiab txhim khu kev qha uas tuaj yeem txhim kho kev ua tau zoo thiab kev tsim khoom ntawm ntau yam kev lag luam.



4. Xaus Carriages

Ob Chav Girder Electric Hoist Choj Crane End Carriages yog ib feem ntawm lub crane uas txhawb nqa tus choj thiab tag nrho nws cov khoom. Cov tsheb thauj khoom kawg muaj ob lub log txuas rau ntawm txhua sab ntawm tus choj girder, thiab lub cev muaj zog rau kev txav ntawm lub crane raws txoj kev. Cov tsheb thauj khoom kawg no muab kev txhawb nqa thiab kev ruaj ntseg rau lub crane thaum nws txav mus raws txoj kev khiav, cia nws thauj cov khoom hnyav nrog qhov tseeb thiab raug. Lub tshuab hluav taws xob hoist yog ntsia rau ntawm tus choj kom nqa thiab txo qis, thaum kawg cov tsheb thauj khoom txav lub crane ntawm ib qho mus rau lwm qhov. Ob Chav Girder Electric Hoist Choj Crane End Carriages tuaj yeem ua raws li cov kev xav tau tshwj xeeb ntawm ib daim ntawv thov, suav nrog qhov loj me, qhov hnyav, thiab kev ua haujlwm.



5. crane mus ncig teb chaws mechanism

1) Ob Chav Girder Electric Hoist Choj Crane Mus Ncig Mechanism yog hais txog lub tshuab siv los txav tus choj ntawm ob chav girder hluav taws xob hoist crane raws txoj kev khiav. Cov txheej txheem mus txawv tebchaws muaj tus choj, lub trolley, thiab cov tsheb ciav hlau.

2) Tus choj yog cov qauv kab rov tav uas txhawb nqa txoj haujlwm ntsug hoist thiab tau nruab rau ntawm ob lub voj voog sib luag lossis kab teeb uas khiav qhov ntev ntawm lub crane. Lub trolley yog lub tshuab txav raws tus choj thiab nqa lub nra. Cov tsheb ciav hlau muab kev txhawb nqa thiab kev taw qhia rau kev mus ncig.

3) Ob chav girder hluav taws xob hoist crane mus ncig teb chaws mechanism yog siv los ntawm lub tshuab hluav taws xob uas tsav lub trolley thiab choj raws txoj kab. Qhov ceev ntawm lub tshuab mus ncig tuaj yeem tswj tau los ntawm qhov sib txawv ntawm lub zog tsav thiab tuaj yeem hloov kho kom haum raws li qhov xav tau ntawm daim ntawv thov.

4) Ob chav girder hluav taws xob hoist choj crane mus ncig ua haujlwm feem ntau yog siv rau hauv kev lag luam hnyav xws li chaw tsim khoom, chaw tsim khoom, thiab chaw nres nkoj, qhov chaw thauj khoom loj yuav tsum tau txav mus los nrog qhov tseeb thiab kev ua haujlwm zoo.



6. Trolley traversing mechanism

1) Ob Chav Girder Electric Hoist Choj Crane Mus Ncig Mechanism yog hais txog lub tshuab siv los txav tus choj ntawm ob chav girder hluav taws xob hoist crane raws txoj kev khiav. Cov txheej txheem mus txawv tebchaws muaj tus choj, lub trolley, thiab cov tsheb ciav hlau.

2) Tus choj yog cov qauv kab rov tav uas txhawb nqa txoj haujlwm ntsug hoist thiab tau nruab rau ntawm ob lub voj voog sib luag lossis kab teeb uas khiav qhov ntev ntawm lub crane. Lub trolley yog lub tshuab txav raws tus choj thiab nqa lub nra. Cov tsheb ciav hlau muab kev txhawb nqa thiab kev taw qhia rau kev mus ncig.

3) Ob chav girder hluav taws xob hoist crane mus ncig teb chaws mechanism yog siv los ntawm lub tshuab hluav taws xob uas tsav lub trolley thiab choj raws txoj kab. Qhov ceev ntawm lub tshuab mus ncig tuaj yeem tswj tau los ntawm qhov sib txawv ntawm lub zog tsav thiab tuaj yeem hloov kho kom haum raws li qhov xav tau ntawm daim ntawv thov.

4) Ob chav girder hluav taws xob hoist choj crane mus ncig ua haujlwm feem ntau yog siv rau hauv kev lag luam hnyav xws li chaw tsim khoom, chaw tsim khoom, thiab chaw nres nkoj, qhov chaw thauj khoom loj yuav tsum tau txav mus los nrog qhov tseeb thiab kev ua haujlwm zoo.



7. Crane log

1) Ob chav girder hluav taws xob hoist choj crane log yog hais txog lub log ntsia ntawm tus choj nqaj ntawm ob chav girder hluav taws xob hoist choj crane. Lub log crane yog lub luag haujlwm rau kev txav ntawm tus choj nqaj raws txoj kab khiav, tso cai rau lub crane taug kev horizontally hla thaj chaw ua haujlwm. Cov log no feem ntau yog ua los ntawm cov hlau forged los yog cam khwb cia hlau, thiab yog tsim los tiv thaiv qhov hnyav ntawm crane thiab nws cov load. Lub log yog feem ntau nruab nrog bearings lossis lubrication systems kom ntseeg tau tias kev ua haujlwm du thiab txo qis hnav thiab tsim kua muag. Kev saib xyuas kom raug thiab kev tshuaj xyuas ntawm lub log crane yog qhov tseem ceeb rau kev nyab xeeb thiab ua haujlwm zoo ntawm crane.

2) Lub log zoo yog ua los ntawm 45 # steel tuag forging, roughing, txias thiab tiav. Lub hardness ntawm kev kho cua sov yog HB305 ~ 385, thiab hardness ntawm hardening txheej ntawm 18 hli qhov tob yog tsis tsawg tshaj li HB250. Lub log ncej yog ua los ntawm 45 # steel, uas yog roughed, tempered thiab tiav. Lub hardness ntawm kev kho cua sov yog 250 ~ 280HB.



8. Crane nuv

Lub crane nuv yog ib qho cuab yeej siv hauv kev ua haujlwm nqa khoom uas txuas rau cov khoom nqa. Nws yog ib tug hlau nuv uas yog tsim los tiv taus qhov hnyav ntawm lub load, thiab nws txuas nrog lub crane los ntawm txoj hlua, hlua, los yog cable. Qhov loj thiab lub zog ntawm lub crane nuv yog nyob ntawm hom crane, qhov hnyav ntawm qhov hnyav, thiab qhov siab ntawm nqa. Crane hooks yog ua los ntawm cov hlau zoo thiab tuaj yeem ua ib leeg lossis ob lub hooks. Lawv tuaj nyob rau hauv ntau qhov ntau thiab tsawg, duab, thiab kev teeb tsa kom haum rau ntau hom kev thauj khoom thiab nqa daim ntawv thov.



9. Lub cev muaj zog

1) Lub cev muaj zog siv nyob rau hauv ob chav girder hluav taws xob hoist choj crane feem ntau yog AC squirrel tawb lub cev muaj zog. Cov motors no ua tau zoo, txhim khu kev qha, thiab muaj lub neej ua haujlwm ntev. Lawv tau tsim los muab lub zog du thiab tsis muaj kev cuam tshuam rau lub crane, kom ntseeg tau tias kev ua haujlwm tau zoo thiab nqa kev ua haujlwm.

2) Lub cev muaj zog feem ntau nyob hauv lub crane lub trolley, uas txav raws qhov ntev ntawm tus choj. Nws txuas nrog lub hoist mechanism, uas nce thiab txo cov load. Lub cev muaj zog tsav lub gearbox, uas nyob rau hauv lem tsav lub hoist nruas nqa los yog txo lub load.

3) Kev ntsuas lub cev muaj zog nyob ntawm lub peev xwm crane thiab kev ua haujlwm. Lub peev xwm ntau dua yuav tsum muaj lub cev muaj zog ntau dua los nqa cov khoom hnyav dua. Ib yam li ntawd, cranes ua haujlwm nyob rau hauv ib puag ncig hnyav yuav xav tau cov motors uas muaj zog dua thiab muaj peev xwm tiv taus qhov kub thiab av noo.

4) Zuag qhia tag nrho, lub cev muaj zog yog ib qho tseem ceeb nyob rau hauv ob chav girder hluav taws xob hoist choj crane, thiab nws cov kev qhia kom raug thiab kev saib xyuas yog qhov tseem ceeb rau kev nyab xeeb thiab ua haujlwm tau zoo.



10. Lub suab thiab lub teeb ceeb toom thiab txwv kev hloov

Txhua lub crane yuav tau nruab lub suab thiab lub teeb ceeb toom thiab yog li nws yog ib txoj hauv kev zoo kom tib neeg muaj kev nyab xeeb thaum muaj xwm txheej ceev. Nws yog ib qho tseem ceeb los xyuas kom meej tias lub kaw lus tsis tu ncua thiab tswj xyuas kom ntseeg tau tias nws ua haujlwm zoo.



Kev txwv kev hloov pauv tuaj yeem siv dav hauv peb qhov kev tswj hwm thiab kev txwv kev mus los ntawm kev siv tshuab hoisting, thiab nws tuaj yeem tiv thaiv cov crane.



11. Tswj hom



12. Daim duab





Ib txwm CD MD Hoist Crane
Lifting peev	t	5	10	16	20	32
Span		10.5m -31.5m, lossis customized
Lifting Qhov siab	m	6m -24m, lossis customized
Lifting ceev	m/min	8 or 8/0.8	7 los yog 7/0.7	3.5 los yog 0.35/3.5	3.3 los yog 0.33/3.3	3.3 los yog 0.33/3.3
Trolley Taug Kev Ceev	m/min	20
Crane Taug Kev Ceev	m/min	30
Ua Haujlwm		A4
Fais fab mov		380V, 50Hz



European Standard Electric Hoist Ob Chav Girder Nyiaj Siv Ua Haujlwm Crane
Lifting peev	t	5	10	16	20	32	50
Span	m	10.5m -31.5m, lossis customized
Lifting Qhov siab	m	6m-24m, lossis customized
Lifting ceev	m/min	0.8/5	0.8/5	0.66/4	0.53/3.4	0.8/3.3	0.53/3.2
Trolley Taug Kev Ceev	m/min	2~20
Crane Taug Kev Ceev	m/min	3~30
Ua Haujlwm		A5
Fais fab mov		380V, 50Hz lossis customized





1. Siab Load Capacity:Ob chav girder hluav taws xob hoist txuas hniav muaj lub peev xwm thauj khoom siab thiab tuaj yeem ua haujlwm hnyav dua li cov kab hluav taws xob ib leeg.

2. Nce Lifting Qhov siab:Ob chav girder systems tso cai rau kom nce qhov siab vim tias lub hoist raug tshem tawm ntawm ob kab teeb, tso cai rau kev txav ntau dua.

3. Txhim khu kev ruaj ntseg:Kev tsim kho ob chav nqaj ntawm tus choj pab kom muaj kev ruaj ntseg, muab lub platform ruaj ntseg dua rau kev nqa hnyav dua.

4. Versatility:Ob chav girder hluav taws xob hoist txuas hniav yog ntau yam thiab siv tau rau ntau yam kev siv, nrog rau cov tsev khaws khoom, chaw tsim khoom, thiab chaw tsim kho.

5. Ntev Lifespan:Ob chav girder systems yog tsim los tiv thaiv kev siv hnyav thiab siv tau ntau xyoo, txo kev xav tau kev kho thiab hloov ntau zaus.

6. Kev nyab xeeb:Ob chav girder hluav taws xob hoist txuas hniav tuaj nrog cov yam ntxwv kev nyab xeeb xws li kev tiv thaiv overload, khawm nres thaum muaj xwm ceev, thiab cov khoom siv pov tseg, ua rau lawv muaj kev nyab xeeb dua rau kev ua haujlwm.





Ob chav girder hluav taws xob hoists feem ntau yog siv hauv kev siv choj, tshwj xeeb tshaj yog nyob rau hauv kev tsim kho thiab kev saib xyuas cov choj. Lawv yog siv los nqa thiab txav cov khoom hnyav, khoom siv, thiab tshuab los ntawm ib qho chaw mus rau lwm qhov. Qee qhov tshwj xeeb choj daim ntawv thov rau ob chav girder hluav taws xob hoists suav nrog:



1. Kev tsim kho choj:Thaum lub sij hawm tsim kho tus choj tshiab, ob chav girder hluav taws xob hoists yog siv los nqa thiab txav cov khoom hnyav xws li kab teeb, girders, thiab trusses. Cov hoists no tseem ceeb heev rau kev txav cov khoom loj thiab hnyav mus rau qhov chaw tsim nyog rau kev teeb tsa.

2. Kev tu choj:Ob chav girder hluav taws xob hoists kuj tau siv thaum lub sij hawm tu choj thiab kho ua hauj lwm. Lawv tuaj yeem siv los nqa thiab txav mus los ntawm cov khoom siv, cov khoom siv, thiab cov tshuab uas xav tau rau kev ua haujlwm txij nkawm. Qhov no suav nrog cov khoom xws li cranes, scaffolding, thiab lwm yam kev txhawb nqa.

3. Kev ua haujlwm demolition:Qee zaum, cov choj yuav tsum tau rhuav tshem lossis rhuav tshem. Ob chav girder hluav taws xob hoists tuaj yeem siv los nqa thiab txav cov khib nyiab, khoom siv, thiab cov khoom siv thaum lub sijhawm demolition.

4. Kev tshuaj xyuas choj:Cov choj yuav tsum tau kuaj xyuas tsis tu ncua kom ntseeg tau tias lawv muaj kev nyab xeeb thiab ua haujlwm zoo. Ob chav girder hluav taws xob hoists tuaj yeem siv los nqa thiab txav cov neeg soj ntsuam thiab cov khoom siv mus rau ntau qhov chaw ntawm tus choj rau kev tshuaj xyuas.





Zuag qhia tag nrho, ob chav girder hluav taws xob hoists yog ib qho cuab yeej tseem ceeb rau kev tsim choj, kev saib xyuas, thiab tshuaj xyuas. Lawv pab cov neeg ua haujlwm kom muaj kev nyab xeeb thiab ua haujlwm zoo txav cov khoom hnyav, khoom siv, thiab tshuab, ua rau cov haujlwm no yooj yim dua thiab sai dua.









Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas yuav ncav cuag 95 feem pua. 32 welding kab tau muab tso rau hauv kev siv, 50 yog npaj rau kev teeb tsa, thiab tus nqi automation ntawm tag nrho cov khoom kab tau mus txog 85 feem pua.
