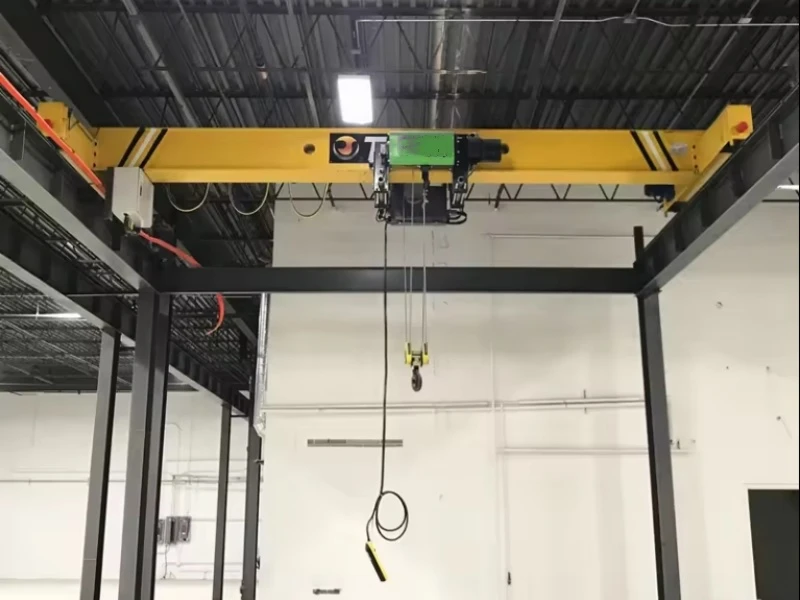

10 Tuj Nyiaj Siv Ua Haujlwm Crane





A 10-tuj ib leeg girder nyiaj siv ua haujlwm crane yog ib lub hoist tsim los rau cov khoom hnyav txog li 10 tonnes. Txawm hais tias ob chav girder cranes zoo dua rau cov khoom hnyav dua thiab muaj kev ruaj ntseg ntau dua, ib leeg girder cranes muaj lawv tus kheej zoo xws li cov nqi qis dua, tsis tshua muaj qhov nyuaj thiab cov hneev taw me dua.



Warranty: 2 xyoos

Qhov hnyav (KG): 10000 kg

Feature: Choj Crane

Qhov xwm txheej: Tshiab

Rated Lifting Moment: 100KN

Max. Lifting Load: 12.5t

Loj: 8m

Lifting mechanism: Hluav taws xob Hoist

Xim: Thov

Lub ntsiab hluav taws xob qhov chaw: Schneider

Hwj chim Source: 3 Theem 380V 50hz

Crane hom: Ib Girder Nyiaj Siv Ua Haujlwm Choj Crane





Choj: Ib tug tib girder overhead crane choj yog kab rov tav cov qauv girder uas spans ntawm ob sab los yog qhov kawg ntawm lub crane, feem ntau yog txhawb nqa los ntawm cov tsheb thauj neeg los yog cov log uas txav mus los ntawm cov tsheb ciav hlau lossis cov tsheb ciav hlau ntawm crane. Tus choj ua haujlwm tseem ceeb hauv kev txhawb nqa rau lub hoist thiab trolley mechanism, txav rov qab mus rau nws qhov ntev thiab nqa cov khoom thauj hauv txoj haujlwm kab rov tav.

2.Lifting Mechanism: Lub lifting mechanism ntawm ib-txoj kev overhead mus ncig teb chaws crane yog lub luag hauj lwm rau lifting thiab txo loads. Nws feem ntau muaj ob peb yam tseem ceeb uas ua haujlwm ua ke los tsim kom muaj lub zog nqa lub zog thaum ua kom muaj kev nyab xeeb thiab tswj tau thaum lub sijhawm ua haujlwm.

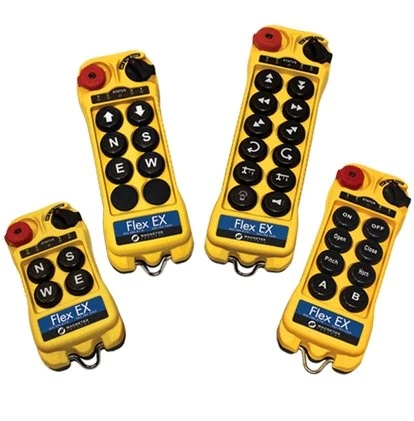

Kev tswj chaw taws teeb: Kev tswj chaw taws teeb ntawm ib leeg-nqaj crane tso cai rau cov neeg ua haujlwm tswj cov crane txav thiab ua haujlwm yam tsis muaj lub cev nyob ntawm crane. Qhov no tuaj yeem txhim kho kev ua haujlwm, kev nyab xeeb thiab kev nplij siab ntawm tus neeg teb xov tooj. Lub kaw lus tswj chaw taws teeb tuaj yeem siv cov thev naus laus zis sib txawv, xws li chaw nres tsheb tswj, wireless xov tooj cua tswj lossis cov tswj hluav taws xob.

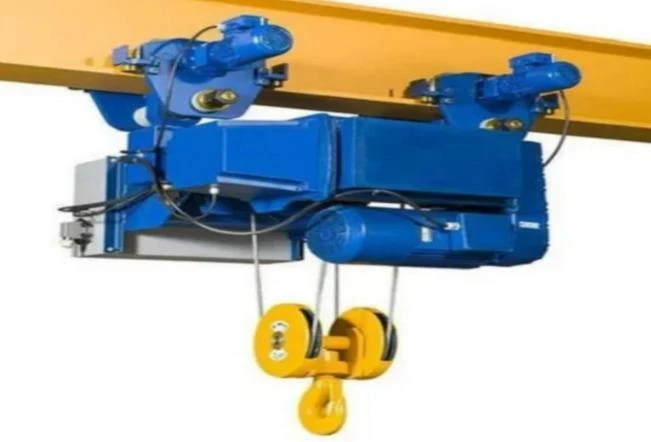

Hoist: Lub hoist ntawm ib leeg girder nyiaj siv ua haujlwm crane yog cov khoom tseem ceeb uas ua qhov tseeb nqa ntawm cov khoom thauj. Nws feem ntau yog nyob rau ntawm lub tsheb thauj mus los uas khiav raws tus choj ntawm crane. Lub hoist mechanism muaj ob peb yam tseem ceeb uas ua haujlwm ua ke los muab lub zog nqa tsim nyog thiab tswj kev tuav ntau yam khoom.

Nres system: Lub braking system ntawm ib leeg-girder nyiaj siv ua haujlwm crane yog qhov tseem ceeb ntawm kev nyab xeeb uas tiv thaiv kev txav tsis tau lossis txo qis ntawm cov nqa nqa thiab tuav lub crane txoj haujlwm thaum tsis ua haujlwm. Ntau hom braking tshuab muaj rau cov nyiaj siv ua haujlwm cranes, tab sis lawv feem ntau poob rau hauv ib qho ntawm ob pawg: cov neeg kho tshuab nres thiab hluav taws xob nres.

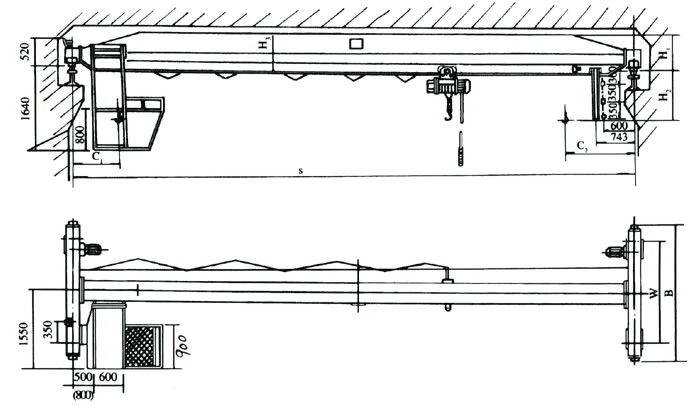

6. Daim duab:









Nqi-effectiveness:Piv nrog rau ob chav girder cranes, ib leeg girder cranes feem ntau muaj tus nqi qis dua, ua rau lawv xaiv kev lag luam rau cov ntawv thov nrog cov kev xav tau nruab nrab.

Yooj Yim Tsim:Ib leeg-girder cranes muaj cov qauv tsim yooj yim dua li lawv ob lub girder counterparts, uas txhais tau hais tias lawv xav tau kev saib xyuas tsawg dua thiab yooj yim rau kev khiav lag luam thiab kho.

Compact Loj:Cov cranes no muaj cov hneev taw me me, ua rau lawv tsim nyog rau thaj chaw uas muaj qhov chaw tsawg, xws li cov chaw ua haujlwm me me lossis cov chaw ua haujlwm nrog lub taub hau qis.

Ib qho yooj yim installation:Vim lawv qhov loj me me thiab tsim qauv yooj yim, ib leeg girder cranes feem ntau yooj yim dua thiab nrawm dua rau nruab dua ob chav girder cranes.

Haum rau Lub Teeb rau Nruab Nrab Loads:Lawv ua tau zoo rau kev tuav lub teeb rau nruab nrab ntawm cov khoom siv hauv ntau yam kev lag luam, xws li kev tsim khoom, kev tuav khoom, thiab kev tu wok.

Zoo Maneuverability:Ib leeg-girder cranes feem ntau tuaj nrog hloov tau yooj yim hoist thiab trolley systems uas tso cai rau kom meej qhov chaw ntawm cov khoom thauj, txhim kho kev ua haujlwm zoo.

Zog Efficiency:Raws li lawv me thiab sib zog dua ob lub girder cranes, ib leeg girder cranes yuav siv zog tsawg dua thaum ua haujlwm, pab txuag hluav taws xob thaum lub sijhawm.

Adaptability:Lawv tuaj yeem raug kho nrog ntau hom hoists, suav nrog cov saw hluav taws xob lossis cov hlua hlau hoists, kom tau raws li cov kev xav tau tshwj xeeb.

Txhim kho Workflow:Nyob rau hauv ib puag ncig uas siv cov crane nquag, ib leeg-girder crane tuaj yeem txhim kho kev ua haujlwm los ntawm kev tso cai nrawm ntawm cov khoom thiab cov khoom.

Yam tsawg kawg nkaus Headroom Requirement:Nrog rau kev tsim qauv me me, cov cranes xav tau qhov chaw siv nyiaj tsawg dua, ua rau lawv tsim nyog rau cov chaw tsis muaj kev tshem tawm.





Automotive Kho Garages:Ib leeg-girder cranes yog siv rau hauv cov khw kho tsheb los nqa cov cav, kev sib kis, thiab lwm yam khoom hnyav rau kev pabcuam thiab tu.

Recycling Centers:Hauv cov chaw rov ua dua tshiab, cov cranes no pab hauv kev tuav thiab txheeb xyuas cov khoom siv rov ua dua tshiab, ua rau muaj txiaj ntsig zoo rau kev tswj cov khib nyiab.

Forestry:Hauv kev lag luam hav zoov, ib leeg girder cranes tuaj yeem siv rau kev thauj khoom thiab tshem tawm cov cav ntawm sawmills thiab lwm qhov chaw ua haujlwm.

Cov chaw tsim kho:Ntawm cov chaw tsim kho, cov cranes no tuaj yeem siv rau kev txav cov khoom siv hauv tsev, cov khoom siv precast, thiab lwm yam khoom hnyav rau ntau qhov chaw ntawm qhov chaw.

Kev ua haujlwm mining:Nyob rau hauv ib puag ncig mining, ib leeg girder cranes txhawb nqa cov khoom txav thiab cov khoom siv tu cov dej num.

Shipyards:Hauv cov nkoj me me, cov cranes no tuaj yeem siv rau cov khoom sib zog xws li cov khoom txav, khoom siv, thiab cov khoom siv me me.

Aerospace Kev Lag Luam:Hauv kev sib dhos aerospace thiab cov chaw tu, ib leeg girder cranes tuaj yeem siv los txav cov khoom me me thiab cov khoom siv dav hlau.

Cov nroj tsuag ua zaub mov:Hauv cov chaw ua zaub mov, cov cranes pab txav cov khoom thiab cov khoom xyaw los ntawm ib theem ntawm kev tsim khoom mus rau lwm qhov.

Zog Sector:Hauv cov chaw tsim hluav taws xob thiab lwm qhov chaw siv hluav taws xob, ib leeg girder cranes yog siv rau kev saib xyuas cov dej num thiab cov cuab yeej txav mus los.

Theatre thiab Film Production:Hauv kev lom zem ntau lawm, cov cranes no yuav siv tau rau kev txav chaw, scenery, thiab cov cuab yeej siv.

















Kev tshuaj xyuas cov khoom

Kev Tshuaj Xyuas Zoo: Kev tshuaj xyuas nruj nruj yog ua los ntawm cov khoom siv raw khoom kom ntseeg tau tias lawv ua tau raws li cov qauv tsim thiab cov qauv hauv tebchaws.

Cov Khoom Siv Cia: Cov ntaub ntawv tsim nyog tau muab khaws cia raws li kev faib tawm los tiv thaiv corrosion lossis kev puas tsuaj.

Txiav thiab sib sau

Hlau Txiav: Siv cov plasma txiav, laser txiav lossis nplaim txiav thiab lwm yam thev naus laus zis los txiav cov hlau raws li qhov loj ntawm daim duab tsim.

Kev tsim cov txheej txheem: Tsim cov hlau phaj los ntawm kev khoov, dov, vuam thiab lwm yam txheej txheem los tsim cov nqaj loj, kawg nqaj thiab lwm yam khoom siv.

Vuam

Cheebtsam Vuam: Cov txiav thiab tsim steel qhov chaw yog welded rau hauv cov qauv tseem ceeb xws li lub ntsiab nqaj, kawg nqaj thiab trolley. Cov txheej txheem vuam yuav tsum tau tswj nruj me ntsis kom ntseeg tau tias cov txheej txheem muaj zog thiab vuam zoo.

Weld Inspection: Siv cov cuab yeej ntsuas tsis muaj kev puas tsuaj (xws li kuaj ultrasonic, kuaj hluav taws xob) los tshuaj xyuas cov welds kom paub tseeb tias tsis muaj qhov tawg lossis lwm yam tsis xws luag.

Tshuab dhos

Precision Machining: Precision machining yog ua los ntawm cov khoom tseem ceeb ntawm lub crane, xws li lub log teeb, bearing rooj, pulleys, thiab lwm yam.

Kev sib dhos ntawm tag nrho lub tshuab

Kev sib dhos dav dav: Raws li kev sib dhos ua ntej, kev sib dhos tag nrho ntawm lub crane yog nqa tawm, suav nrog kev teeb tsa zaum kawg ntawm lub ntsiab nqaj, kawg nqaj, nqa mechanism, taug kev mechanism, thiab lwm yam.

Kev ua haujlwm thiab kev sim

Nyob rau hauv cov xwm txheej zoo, kev ua haujlwm ntawm lub crane raug kuaj, suav nrog kev kuaj nqa, taug kev, kauj thiab lwm yam haujlwm. Zuag qhia tag nrho qhov loj ntawm tus choj sib dhos crane raug kuaj xyuas kom ntseeg tau tias tag nrho qhov ntev ua tau raws li cov qauv tsim.

Txau thiab tiv thaiv corrosion

Kev kho deg xeb tshem tawm: xeb tshem tawm ntawm qhov chaw ntawm lub crane, ntau txoj hauv kev muaj xws li sandblasting, pickling, thiab lwm yam. Primer spraying: Txau los tiv thaiv corrosion primer rau saum npoo kho kom tsis txhob hlau oxidation thiab corrosion. Topcoat spraying Xim txau: Txau topcoat raws li cov neeg siv khoom xav tau lossis cov qauv kev lag luam kom muab cov crane muaj kev tiv thaiv thiab kho kom zoo nkauj. Marking: Tom qab txau, kos lub crane cov ntaub ntawv txheeb xyuas raws li cov lus qhia tshwj xeeb, xws li qauv, ntsuas load, thiab lwm yam.

Factory thiab installation

Ntim thiab thauj

Kev tiv thaiv kev ntim khoom: Tiv thaiv ntim cov khoom tseem ceeb ntawm crane kom tsis txhob muaj kev puas tsuaj thaum thauj. Kev thauj mus los: Raws li cov khoom siv loj thiab kev thauj mus los, xaiv txoj kev thauj mus los uas tsim nyog los thauj cov crane mus rau cov neeg siv khoom qhov chaw.

Txais thiab xa khoom

Kev txais neeg siv khoom

Kev lees txais ntawm qhov chaw: Tus neeg siv khoom tau txais kev lees paub ntawm qhov chaw crane raws li daim ntawv cog lus yuav tsum tau thiab cov kev qhia tshwj xeeb los xyuas qhov ua tau zoo thiab cov khoom siv zoo.

Kev kho qhov teeb meem: Yog tias pom muaj teeb meem, cov chaw tsim khoom yuav tsum tau kho lawv raws sijhawm kom ntseeg tau tias cov cuab yeej ua tau raws li cov neeg siv khoom xav tau. Kev xa khoom thiab siv kev cob qhia Kev Ua Haujlwm: Cov chaw tsim khoom feem ntau cob qhia cov neeg siv khoom lag luam kom ntseeg tau tias lawv tuaj yeem ua haujlwm crane kom raug thiab nyab xeeb.
