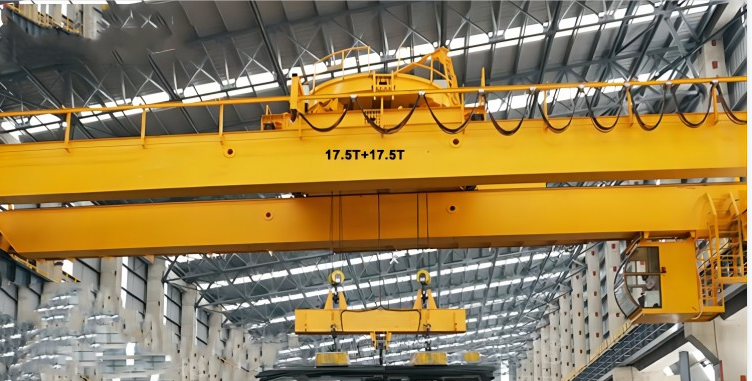

Upper Rotary Electromagnetic Choj Crane

Lub Upper Rotary Electromagnetic Choj Crane nta cov qauv muaj zog uas tuaj yeem tiv taus cov khoom hnyav thiab huab cua huab cua. Lub caj npab crane yog nruab nrog lub tshuab nqa hluav taws xob uas tuaj yeem tuav thiab txav cov hlau hlau, xws li cov phaj hlau thiab cov kav dej, tsis muaj kev swb lossis kev puas tsuaj. Nrog nws cov kev tswj hwm qib siab, tus neeg teb xov tooj crane tuaj yeem txav mus los thiab tso lub nra, ua kom muaj kev nyab xeeb thiab siv tau zoo.

Upper Rotary Electromagnetic Choj Crane yog ib qho kev daws teeb meem ntau yam thiab raug nqi rau kev lag luam khoom siv. Nws tuaj yeem ua tau raws li qhov xav tau tshwj xeeb ntawm txhua daim ntawv thov, xws li lub peev xwm thauj khoom, ncua, thiab nqa qhov siab. Nrog nws cov thev naus laus zis siab heev thiab kev ua haujlwm txhim khu kev qha, lub crane no yog ib qho tseem ceeb rau ntau lub lag luam hnyav thoob ntiaj teb.

• Peev xwm: 5-800/50ton
• Ntev: 4-35m
• Lifting qhov siab: 3-50m
• Lub luag haujlwm: A4, A5, A6, A7
• Raged voltage: 220V ~ 690V, 50-60Hz, 3ph AC
• Qhov chaw ua haujlwm kub: -25 degree - ntxiv rau 50 degree, txheeb ze av noo tsawg dua lossis sib npaug li 85 feem pua
• Crane tswj hom: Pem teb tswj / chaw taws teeb tswj / Cabin chav

1. Tag nrho cov crane

Upper Rotary Electromagnetic Choj Crane yog hom crane siv los nqa cov khoom hnyav thiab cov khoom siv hauv chaw tsim khoom. Nws nta lub tshuab hluav taws xob tig uas tuaj yeem siv los nqa thiab thauj cov khoom hlau tau yooj yim. Lub crane yog mounted rau ntawm ib tug choj, uas spans thoob plaws hauv lub chaw ua hauj lwm cheeb tsam, thiab muaj peev xwm tsiv mus nyob rau hauv lem mus txog rau ntau qhov chaw. Sab saum toj teb electromagnetic choj crane feem ntau yog siv nyob rau hauv steel mills, foundries, thiab lwm yam hnyav industries. Nws tsim tso cai rau kev tuav cov khoom siv tau zoo thiab ua tau zoo, ua rau nws yog ib qho tseem ceeb ntawm cov cuab yeej siv hauv ntau cov txheej txheem tsim khoom.

2. Main girder

1) Upper Rotary Electromagnetic Choj Crane Maingirder yog ib qho tseem ceeb ntawm cov nyiaj siv ua haujlwm crane. Nws muaj qhov loj, kab rov tav kab uas hla qhov dav ntawm lub Hoobkas lossis chaw cia khoom. Lub maingirder yog lub luag haujlwm rau kev txhawb nqa lub trolley thiab hoist, cia nws txav mus raws qhov ntev ntawm lub crane.

2) Sab saum toj rotary electromagnetic feature tso cai rau lub maingirder tig raws nws axis, muab ntxiv yooj thiab maneuverability rau lub crane system. Qhov no feature yog tshwj xeeb tshaj yog pab tau rau tsiv loads loj nyob ib ncig ntawm nruj ces kaum los yog mus rau hauv ib tug nyuaj-mus txog qhov chaw.

3) Lub maingirder feem ntau yog ua los ntawm cov hlau thiab tsim los tiv thaiv cov khoom hnyav thiab rov siv dua lub sijhawm. Nws kuj tau nruab nrog ntau yam kev nyab xeeb, suav nrog kev txwv cov keyboards, nres nres, thiab kev tswj hwm thaum muaj xwm ceev.

4) Zuag qhia tag nrho, Upper Rotary Electromagnetic Choj Crane Maingirder yog ib qho tseem ceeb ntawm txhua qhov nyiaj siv ua haujlwm crane, muab kev txhawb nqa tsim nyog thiab yooj yim rau kev txav cov khoom hnyav nrog qhov tseeb thiab kev nyab xeeb.

3. Lifting System

1) Upper Rotary Electromagnetic Choj Crane Lifting System yog cov cuab yeej siv los nqa cov khoom hnyav hauv ntau qhov kev lag luam. Lub tshuab nqa no yog tsim los ntawm lub tshuab hluav taws xob sab saud uas muab lub zog sib nqus kom nqa cov khoom hnyav.

2) Lub tshuab hluav taws xob sab saud yog tsim los siv lub zog sib nqus uas tuav lub nra hnyav thaum lub sijhawm nqa. Cov kab ke no yog tsim los ntawm lub zog hluav taws xob uas muaj peev xwm tsim tau ib qho chaw sib nqus ntawm ob peb tons. Cov hlau nplaum yog tswj los ntawm lub zog hluav taws xob muaj zog uas ua kom cov txheej txheem nqa tau zoo thiab ua haujlwm tau zoo.

3) Lub tshuab nqa kuj suav nrog lub tshuab crane uas muab kev txhawb nqa thiab kev ruaj ntseg thaum lub sijhawm nqa. Lub kaw lus crane yog tsim los ntawm tus choj uas hla qhov chaw ua haujlwm thiab lub trolley uas txav raws tus choj. Lub trolley txuas nrog lub lifting electromagnet, uas ua rau nws nqa thiab txav mus los hnyav.

4) Zuag qhia tag nrho, Upper Rotary Electromagnetic Choj Crane Lifting System yog ib qho tseem ceeb hauv kev lag luam uas yuav tsum tau nqa hnyav. Nws lub peev xwm nqa tau zoo thiab tsim tau zoo ua rau nws yog ib qho tseem ceeb hauv ntau daim ntawv thov, suav nrog kev tsim cov hlau, kev tsim nkoj, thiab kev tsim tsheb.

4. Xaus Carriages

1) Upper teb electromagnetic choj crane kawg carriages yog cov khoom siv ntawm tus choj crane uas txhawb nqa crane lub trolley thiab hoist. Cov tsheb thauj khoom kawg no yog tsim los tig rau ntawm txoj kab ncig kom tso cai rau thaj chaw ua haujlwm loj dua, thiab lawv siv lub tshuab hluav taws xob nres kom muaj kev nyab xeeb thiab ruaj khov ntawm lub hoist.

2) Sab saum toj rotary electromagnetic choj crane kawg cov tsheb thauj khoom feem ntau yog ua los ntawm cov khoom siv ruaj khov, xws li hlau lossis txhuas, thiab lawv yuav raug coated nrog cov khoom siv los tiv thaiv kom lawv lub neej ntev. Lawv tuaj yeem ua kev cai tsim los ua kom tau raws li qhov yuav tsum tau muaj peev xwm thauj khoom, thiab lawv tuaj yeem haum nrog ntau yam kev nyab xeeb, suav nrog kev txwv cov keyboards thiab cov nyees khawm nres thaum muaj xwm ceev.

3) Zuag qhia tag nrho, lub qaum teb electromagnetic choj crane kawg cov tsheb thauj khoom yog ib qho tseem ceeb ntawm cov choj crane system. Lawv muab cov kev txhawb nqa tsim nyog thiab kev sib hloov ua haujlwm uas tso cai rau lub crane los tswj cov khoom hnyav nrog kev yooj yim thiab raug, ua rau lawv yog ib qho tseem ceeb hauv ntau qhov kev lag luam, suav nrog kev tsim khoom, kev tsim kho, thiab kev xa khoom.

5. crane mus ncig teb chaws mechanism

1) Sab qaum teb electromagnetic choj crane feem ntau muaj cov txheej txheem taug kev uas tso cai rau lub crane txav mus rau kab rov tav raws txoj kev khiav lossis crane khiav. Cov txheej txheem mus txawv tebchaws feem ntau muaj cov log lossis trolleys uas txuas rau hauv qab ntawm lub crane, uas yob raws txoj kev tsheb ciav hlau lossis cov lem ntsia ntawm lub crane khiav.

2) Lub crane tuaj yeem txav mus rau pem hauv ntej thiab rov qab, thiab tuaj yeem tig los yog tig ib ncig ntawm nws cov axis, muab kev txav siab tshaj plaws thiab yooj yim. Lub qaum teb electromagnetic choj crane lub crane mus ncig ua haujlwm yog qhov tseem ceeb rau kev txav cov khoom hnyav ntawm cov chaw ua haujlwm sib txawv lossis chaw tsim khoom, thiab rau kev siv tau zoo ntawm crane lub peev xwm nqa.

6. crane log

Upper teb electromagnetic choj crane crane log yog hais txog lub log uas txhawb nqa lub zog ntawm lub qaum teb electromagnetic choj crane. Lub log feem ntau yog ntsia rau ntawm lub qag thiab tuaj yeem tig ib ncig ntawm lub axis kom txav lub crane raws txoj kev lossis kev tsheb ciav hlau. Sab saum toj rotary electromagnetic choj crane muaj ob lub girders, ib tug kawg carriage, ib tug hoist, ib tug trolley, thiab lub log system. Lub tshuab electromagnetic ntawm lub crane ua rau nws nqa thiab txav cov khoom hnyav sai thiab ua tau zoo. Lub log crane yog ua los ntawm cov ntaub ntawv zoo uas muaj zog thiab tuaj yeem tiv taus qhov hnyav ntawm lub crane thiab cov khoom thauj. Lub log yog ib qho tseem ceeb ntawm lub crane vim nws ua kom du thiab ruaj khov txav ntawm tag nrho cov kab ke.

7. Rotary system thiab electromagnet

1) Upper Rotary Electromagnetic Choj Crane yog ib hom crane uas siv los txav cov khoom hnyav hauv ntau yam lag luam xws li kev tsim kho, tsim khoom, thiab kev xa khoom. Hom crane no siv lub tshuab teb thiab lub tshuab hluav taws xob los nqa thiab txav cov khoom hnyav.

Lub tshuab hluav taws xob tso cai rau lub crane tig 360 degrees, tso cai rau nws mus txog thaj tsam loj yam tsis tas yuav txav tag nrho crane. Qhov no ua rau nws zoo tagnrho rau kev ua haujlwm hauv qhov chaw nruj lossis hauv thaj chaw uas muaj kev txwv tsis pub muaj. Cov electromagnet yog siv los nqa thiab txav cov khoom hlau. Cov hlau nplaum yog siv los ntawm hluav taws xob tam sim no thiab tuaj yeem qhib thiab tawm raws li xav tau.

2) Upper Rotary Electromagnetic Choj Crane Electromagnet yog ib hom khoom nqa nqa uas siv lub tshuab hluav taws xob los nqa thiab txav cov khoom hnyav. Nws yog feem ntau siv hauv kev lag luam xws li steel mills, seem yards, thiab cov chaw tsim kho rau kev thauj khoom thiab tshem tawm cov ntaub ntawv.

3) Lub tshuab hluav taws xob hluav taws xob sab saud crane electromagnet txuas nrog rau tus choj ntawm crane thiab tuaj yeem tig mus nqa thiab txav mus los ntawm txhua qhov kev taw qhia. Lub tshuab hluav taws xob siv hluav taws xob siv hluav taws xob los tsim ib qho chaw sib nqus uas nyiam thiab tuav lub nra, tso cai rau nws nqa thiab txav mus.

4) Hom crane electromagnet no tshwj xeeb tshaj yog siv rau kev nqa thiab txav ferrous cov ntaub ntawv xws li hlau, hlau, thiab lwm yam hlau nplaum. Nws muaj txoj hauv kev nrawm thiab muaj txiaj ntsig los txav cov khoom hnyav yam tsis tas yuav tsum tau nqa phau ntawv lossis rigging.

5) Sab saum toj rotary electromagnetic choj crane electromagnet yog tsim los tiv thaiv hnyav kev lag luam ib puag ncig thiab tuaj yeem hloov kho kom tau raws li cov kev xav tau tshwj xeeb. Nws yog ib qho tseem ceeb ntawm cov cuab yeej siv rau ntau qhov kev lag luam uas vam khom hnyav thiab tuav cov khoom siv.

8. Lub cev muaj zog

1) Upper teb electromagnetic choj crane motors yog tsim tshwj xeeb rau siv nyob rau hauv choj cranes. Lawv siv cov txheej txheem electromagnetic los tsim kom muaj kev sib hloov uas siv los txav lub crane raws tus choj. Cov motors no feem ntau yog ntsia rau sab sauv ntawm cov qauv crane thiab tuaj yeem tswj tau los ntawm kev txav mus rau crane nyob rau hauv ntau cov lus qhia.

Lub Upper rotary electromagnetic choj crane lub cev muaj zog muaj ob yam tseem ceeb: stator thiab rotor. Lub stator yog ib qho chaw ruaj khov uas txuas nrog tus choj ntawm lub crane. Nws muaj cov khoom siv hluav taws xob uas tsim cov hlau nplaum thaum muaj hluav taws xob tam sim no dhau los ntawm lawv.

Lub rotor, ntawm qhov tod tes, yog ib qho rotating tivthaiv uas yog mounted ntawm lub cev muaj zog ncej. Nws muaj ib tug series ntawm conductive tuav uas yog mounted nyob rau hauv ib tug ncig qauv nyob ib ncig ntawm lub ncej. Thaum lub stator lub magnetic teb yog siv rau lub rotor, nws generates ib tug electromagnetic quab yuam uas ua rau lub rotor tig.

2) Cov motors no feem ntau yog tsim los tiv thaiv kev ua haujlwm hnyav thiab feem ntau siv rau hauv kev siv hnyav xws li cov chaw tsim khoom, chaw tsim khoom, thiab chaw tsim khoom. Lawv kuj tau siv dav hauv mining, roj thiab roj, thiab kev lag luam tsheb thauj mus los.

3) Hauv kev xaus, sab sauv teb electromagnetic choj crane motors yog ib qho tseem ceeb rau kev ua haujlwm ntawm choj cranes. Lawv muab cov kev sib hloov tsim nyog yuav tsum tau txav lub crane raws tus choj thiab tau tsim los tiv thaiv ib puag ncig nyuaj thiab kev siv hnyav.

9. Lub suab thiab lub teeb ceeb toom & txwv kev hloov pauv & qhov chaw nyab xeeb

1) Upper Rotary Electromagnetic Choj Crane Suab thiab Lub Teeb Tswb System, txwv Hloov, thiab Cov Khoom Siv Kev Nyab Xeeb yog txhua yam tseem ceeb uas ua kom muaj kev nyab xeeb ntawm lub crane.

2) Lub Suab thiab Lub Teeb Tswb System yog tsim los ceeb toom cov neeg ua haujlwm nyob ib puag ncig tias lub crane tab tom yuav pib lossis txav mus. Qhov no tseem ceeb tshwj xeeb tshaj yog nyob rau hauv qhov chaw nrov nrov lossis thaum cov neeg ua haujlwm cuam tshuam. Lub tswb nrov tuaj yeem qhib tau manually lossis txiav, nyob ntawm qhov tshwj xeeb xav tau ntawm crane.

3) Lub Limit Switch yog ib qho kev ruaj ntseg mechanism uas tiv thaiv lub crane los ntawm overloading los yog mus deb heev nyob rau hauv ob txoj kev. Lub tshuab hluav taws xob tau qhib thaum lub crane mus txog qhov kev txwv ua ntej, txwv tsis pub nws los ntawm kev txav mus ntxiv. Yog tias tsis muaj kev txwv kev hloov pauv, lub crane yuav txuas ntxiv mus, uas yuav ua rau muaj kev puas tsuaj loj lossis raug mob.

4) Cov Khoom Siv Kev Nyab Xeeb muaj xws li ntau yam khoom siv, xws li cov khawm nres thaum muaj xwm ceev thiab cov teeb meem kev nyab xeeb, uas yog tsim los tiv thaiv kev raug mob thiab raug mob. Cov khoom no tau muab tso rau hauv qhov chaw muaj tswv yim nyob ib puag ncig lub crane kom ntseeg tau tias cov neeg ua haujlwm tuaj yeem nres lub crane sai thiab yooj yim thaum muaj xwm txheej ceev.

5) Tag nrho cov khoom no ua haujlwm ua ke kom muaj kev nyab xeeb ntawm lub crane. Yog tsis muaj lawv, lub crane yuav muaj kev pheej hmoo ntawm kev ua haujlwm tsis zoo, uas ua rau muaj kev raug mob hnyav lossis puas tsuaj. Nws yog ib qho tseem ceeb kom tsis tu ncua tshuaj xyuas thiab tswj cov khoom tiv thaiv kev nyab xeeb no kom ntseeg tau tias lawv ua haujlwm zoo.

10. Cov khoom siv kev nyab xeeb

Upper Rotary Electromagnetic Choj Cranes tau nruab nrog ntau yam khoom siv kev nyab xeeb kom ntseeg tau tias muaj kev nyab xeeb ntawm cov neeg ua haujlwm thiab tiv thaiv cov khoom siv. Qee cov khoom siv kev nyab xeeb muaj xws li:

1) Kev tiv thaiv overload:Lub crane yog nruab nrog ib qho kev tiv thaiv overload uas pom thaum lub load tshaj lub crane lub peev xwm siab tshaj plaws. Qhov no system yuav cia li kaw lub crane yog hais tias nws hnov ​​ib tug overload mob.

2) Emergency Stop Button:Lub crane tau nruab nrog lub khawm nres thaum muaj xwm ceev uas tuaj yeem siv tau sai thiab nyab xeeb nres lub crane thaum muaj xwm txheej ceev.

3) Kev Sib tsoo Avoidance System:Qhov system no yog tsim los xyuas kom muaj kev cuam tshuam ntawm crane txoj kev thiab tiv thaiv kev sib tsoo. Lub kaw lus siv cov sensors txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm

4) Limit Switches:Lub crane yog nruab nrog kev txwv kev hloov pauv uas tiv thaiv lub crane los ntawm kev hla mus rau txhua qhov kev taw qhia. Cov keyboards no tau muab tso rau ntawm qhov kawg ntawm lub crane txoj kev taug kev thiab yuav kaw lub crane thaum tshwm sim.

5) Anti-Sway System:Lub kaw lus no yog tsim los tiv thaiv lub nra ntawm lub viav vias lossis swaying thaum lub sijhawm thauj mus los. Lub kaw lus cia li them nyiaj rau txhua qhov kev txav mus los, kom ntseeg tau tias cov khoom thauj khoom ruaj khov thaum thauj.

Zuag qhia tag nrho, cov cuab yeej kev nyab xeeb no ua haujlwm ua ke los xyuas kom meej tias lub crane ua haujlwm zoo thiab ua haujlwm zoo, tiv thaiv kev raug mob thiab raug mob rau cov neeg ua haujlwm.

11. Tswj hom

1) Lub Upper Rotary Electromagnetic Choj Crane Control system yog cov kev tswj hwm siv nyob rau hauv cov nyiaj siv ua haujlwm cranes nrog cov peev xwm nqa hluav taws xob. Lub kaw lus no yog lub luag haujlwm tswj kev txav ntawm lub crane, suav nrog nws txoj haujlwm, kev koom tes, thiab tso tawm cov khoom siv hluav taws xob nqa hluav taws xob.

2) Lub Upper Rotary Electromagnetic Choj Crane Control system muaj ntau yam khoom, nrog rau lub ntsiab tswj vaj huam sib luag, lub tshuab hluav taws xob, thiab kev nyab xeeb. Lub ntsiab tswj vaj huam sib luag yog lub hauv paus tswj chav tsev uas tau txais cov teeb liab los ntawm tus neeg teb xov tooj thiab txhais lawv mus rau hauv kev ua rau lub crane. Lub tshuab hluav taws xob muab lub zog rau lub crane motors, thaum lub tshuab kev nyab xeeb ua kom lub crane ua haujlwm zoo thiab ua haujlwm zoo.

3) Lub Upper Rotary Electromagnetic Choj Crane Control system kuj suav nrog kev tswj hwm thev naus laus zis, xws li kev hloov pauv zaus thiab cov programmable logic controllers, uas ua kom muaj kev tswj xyuas meej ntawm crane kev txav thiab kev siv fais fab. Cov kev tswj hwm no ua haujlwm ua ke los xyuas kom meej tias lub crane ua haujlwm zoo, txo qhov kev pheej hmoo ntawm kev sib tsoo thiab txhim kho kev ua haujlwm.

4) Zuag qhia tag nrho, Upper Rotary Electromagnetic Choj Crane Control system yog ib qho tseem ceeb ntawm cov nyiaj siv ua haujlwm crane nrog lub peev xwm nqa hluav taws xob. Nws ua kom muaj kev nyab xeeb thiab ua haujlwm zoo ntawm lub crane, thaum tseem muab kev tswj xyuas meej ntawm nws cov kev txav thiab kev siv fais fab.

12. Daim duab

Nov yog cov txiaj ntsig zoo ntawm Upper Rotary Electromagnetic Choj Crane:

1. Versatility:Lub Upper Rotary Electromagnetic Choj Crane muaj cov hlau nplaum teb, uas txhais tau hais tias nws tuaj yeem txav thiab nqa ntau yam khoom siv hlau xws li bar Tshuag, hlau rods, thiab hlau coils.

2. High productivity:Kev tsim qauv ntawm crane tso cai rau kev thauj khoom sai thiab ua haujlwm tau zoo, ua rau cov neeg ua haujlwm ua haujlwm tau zoo.

3. Precise Control:Lub tshuab electromagnetic tso cai rau kev tswj xyuas meej ntawm cov khoom nqa, kom muaj kev nyab xeeb siab tshaj plaws thiab txo cov khoom puas tsuaj.

4. Txo Cov Nqi Ua Haujlwm:Lub crane lub automation thiab lifting muaj peev xwm txo tus naj npawb ntawm cov neeg ua haujlwm xav tau los ua tib txoj haujlwm manually.

5. Kev txuag chaw:Cov qauv siv nyiaj siv ua haujlwm crane no tshem tawm qhov xav tau ntawm lub crane khiav ruaj khov, ua rau kom txuag tau qhov chaw hauv koj lub Hoobkas lossis lub tsev khaws khoom.

1) Upper Rotary Electromagnetic Choj Crane yog hom tshwj xeeb ntawm crane siv feem ntau hauv cov hlau thiab hlau kev lag luam. Nws yog tsim los tuav cov khoom hnyav, xws li cov blocks loj lossis coils ntawm cov hlau, thiab muaj cov khoom siv hluav taws xob nqa hluav taws xob uas tuaj yeem tuav cov khoom ruaj ntseg.

2) Hom crane no muaj txiaj ntsig tshwj xeeb yog qhov chaw txwv thiab qhov yuav tsum tau ua. Nws rotating mechanism tso cai rau nws mus cuag thiab txav hnyav loads nyob rau hauv txhua qhov kev taw qhia yam tsis xav tau ntau qhov chaw. Electromagnetic lifting system muab kev ruaj ntseg tuav ntawm lub nra, kom ntseeg tau tias nws tsis plam lossis poob thaum tsiv.

3) Zuag qhia tag nrho, Upper Rotary Electromagnetic Choj Crane yog qhov kev xaiv zoo tshaj plaws rau kev lag luam uas xav tau cov cuab yeej nqa hnyav uas muaj ntau yam thiab meej. Qee qhov ntawm nws cov ntawv thov suav nrog steel dov mills, steel fabrication shops, thiab warehouses.

Cov txheej txheem tsim khoom ntawm Rotary Carrier Beam Electromagnetic Overhead Crane feem ntau suav nrog cov kauj ruam hauv qab no:

1. Tsim thiab engineering:Thawj kauj ruam hauv cov txheej txheem tsim khoom ntawm Upper Rotary Electromagnetic Choj Crane yog cov qauv tsim thiab engineering theem. Pab pawg neeg tsim khoom tsim cov phiaj xwm tag nrho rau lub crane, suav nrog lub peev xwm thauj khoom, nqa qhov siab, thiab ceev.

2. Cov khoom siv:Tom qab tus tsim tiav lawm, cov kauj ruam tom ntej yog los muab cov ntaub ntawv xav tau. Cov ntaub ntawv yuav tsum muaj xws li steel, motors, controllers, cables, thiab lwm yam khoom.

3. Txiav thiab shaping ntawm steel:Thaum cov ntaub ntawv tau txais los, cov hlau raug txiav thiab ua raws li cov lus qhia tshwj xeeb hauv kev tsim. Qhov no suav nrog kev siv cov tshuab CNC los txiav cov hlau kom meej.

4. Fabrication thiab vuam:Tom qab shaping thiab txiav, steel pieces yog welded ua ke los tsim lub ntsiab qauv ntawm lub crane. Lwm yam khoom xws li lub mast, trolley, thiab sab sauv txheej txheem kuj yog fabricated thiab welded.

5. Kev teeb tsa lub cev muaj zog thiab kev tswj xyuas:Tom qab ntawd cov motors thiab controllers raug ntsia mus rau lub ntsiab qauv ntawm lub crane. Qhov no suav nrog cov motors sab sauv thiab qis, uas tsav lub crane txav.

6. Kev sib dhos ntawm sab sauv thiab sab qis teb electromagnetic system:Lub sab sauv thiab qis electro-magnetic system yog ces sib sau ua ke mus rau lub ntsiab qauv ntawm lub crane. Qhov no suav nrog cov khoom siv hluav taws xob sab saud thiab qis, uas tuaj yeem nqa cov khoom hnyav.

7. Kev kuaj xyuas zoo thiab kev sib dhos zaum kawg:Ua ntej lub rooj sib txoos zaum kawg, lub crane yuav raug kuaj xyuas kom paub tseeb tias nws ua tau raws li cov qauv. Kev sib dhos zaum kawg suav nrog kev teeb tsa ntawm cov cables, tswj, thiab lwm yam khoom siv hluav taws xob.

8. Kev kuaj thiab kev ua haujlwm:Tom qab kev sib dhos zaum kawg, lub crane raug kuaj xyuas kom ntseeg tau tias nws ua haujlwm raug. Thaum qhov kev ntsuam xyuas tiav lawm, lub crane yog commissioned thiab npaj rau kev xa khoom.

9. Kev xa khoom thiab kev teeb tsa:Thaum kawg, lub crane raug xa mus rau qhov chaw teeb tsa, qhov chaw nws tau sib sau ua ke thiab nruab los ntawm pab pawg kws tshaj lij. Tom qab ntawd lub crane tau npaj txhij los siv ntau yam kev lag luam, suav nrog kev tsim kho, kev thauj mus los, thiab kev tsim khoom.

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas yuav ncav cuag 95 feem pua. 32 welding kab tau muab tso rau hauv kev siv, 50 yog npaj rau kev teeb tsa, thiab tus nqi automation ntawm tag nrho cov khoom kab tau mus txog 85 feem pua.
