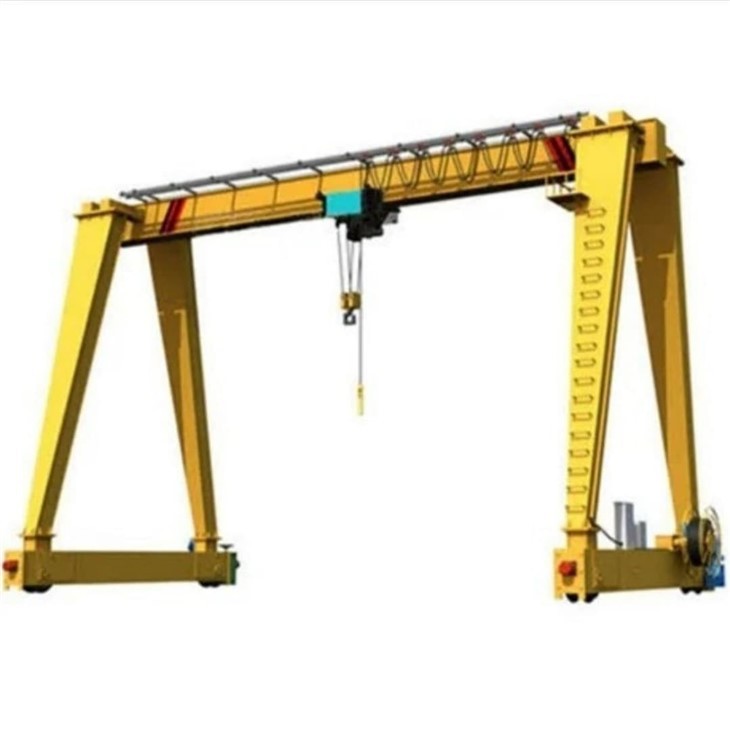

Godden Girder Gantry Crane nrog MD Hluav Taws Xob Hoist

A Godden Girder Gantry Crane nrog MD Hluav Taws Xob Hoistyog cov khoom siv ruaj ruaj tuav cov tshuaj tshwj xeeb yog tsim rau cov chaw muag khoom sab hauv xws li cov chaw khaws khoom noj khoom haus, Godown), Chaw Thauj Khoom, thiab kev cob qhia. Hom crane no muaj peev xwm zoo nkauj li cas, kev ruaj khov, thiab qhov ua tau zoo tshaj plaws uas nws zoo rau kev ua kom cov khoom hnyav nyob hauv ib qho chaw tsis raug lossis qhov chaw muaj teeb meem.

Cov Nta Tseem Ceeb:

Ob chav girder qauv:
Muab ntau zog thiab thauj tau muaj peev xwm, tso cai rau crane los tuav cov haujlwm nruab nrab mus rau cov haujlwm ruaj khov kom muaj kev tshem tawm hnyav.

MD Hom Hluav Taws Xob Hoist:
Nruab nrog kev sib zog md zoo (nruab nrab

Gantry tsim rau Godows:
Ua nrog ob txhais ceg uas txhawb nqa cov qauv crane, tshem tawm cov kev xav tau tsim ua kom zoo lossis siv cov teeb ua haujlwm tsis muaj cov chaw muaj keeb kwm.

Kev siv qhov chaw siv tau zoo:
Tsim los ua kom ntau tshaj qhov ntsug thiab kab rov tav chaw, txhim kho cov kev ua haujlwm sib txuas hauv cov chaw sab hauv tsev.

Txhim khu kev qha hype:
Kev noj khoom haus du nrog kev tsav tsheb mus ncig ntawm cov log lossis ntsia, kom ua tiav cov chaw tso tawm thiab txhim kho workflow.

Cov Ntawv Thov:

Nyob sab hauv vajtswv thiab cov tsev ua haujlwm

Muaj Chav Nyob

Logistics thiab faib cov chaw

Prefast thiab hlau ntu tuav

Qhov Zoo:

Muaj zog thiab ruaj khov rau kev nqa khoom hnyav

Txuj ci hoist nrog dual-ceev md hluav taws xob hoist

Yooj yim rau nruab yam tsis muaj kev hloov pauv loj

Tsawg txij nkawm thiab lub neej ua haujlwm ntev

Customizable Span thiab Qhov Siab Kom Haum Rau Vajtswv

Cov Cheebtsam tseem ceeb plc, cov kabmob, kabmob, gearbox, lub cev muaj zog, cov hlab ntsha siab, iav, twj tso kua mis, Twj

Qhov chaw ntawm Keeb Kwm Henan, Suav

Warranty 1 xyoo

Hnyav (kg) 30000 kg

Daim ntawv thov precast mev, kev tsim kho chaw, chaw khaws khoom, thiab lwm yam.

Khoom npe 40 tuj Straddle Carrier Cov Roj Hmab Nkaus Nkaus Ib Girder Gantry Cranes

CRANE HOM HOM, Tib GIRDER, COJ GIRDER STADLE CARRIER

Lifting kho tshuab cov neeg siv khoom

Kev tswj txoj xov cabin tswj + chaw taws teeb tswj

Lifting muaj peev xwm 5 ~ 1200 tuj

Ntau cov kauj ruam mus ncaj, transverse taug kev, carousel kauj, thiab lwm yam.

Nruab rau ntawm-site thiab online

Lub Cev Muaj Zog Hom

Ua Haujlwm A3 ~ A5

Ob Chav Girder Choj (Cov Teeb Loj):

Ob lub voj voog girders ua cov thawj qauv kab rov tav.

Muab siab lub zog thiab load-coj muaj peev xwm muaj peev xwm.

Txhawb cov trolley thiab hoisting tshuab rau kev nyab xeeb, ruaj ruaj tsa.

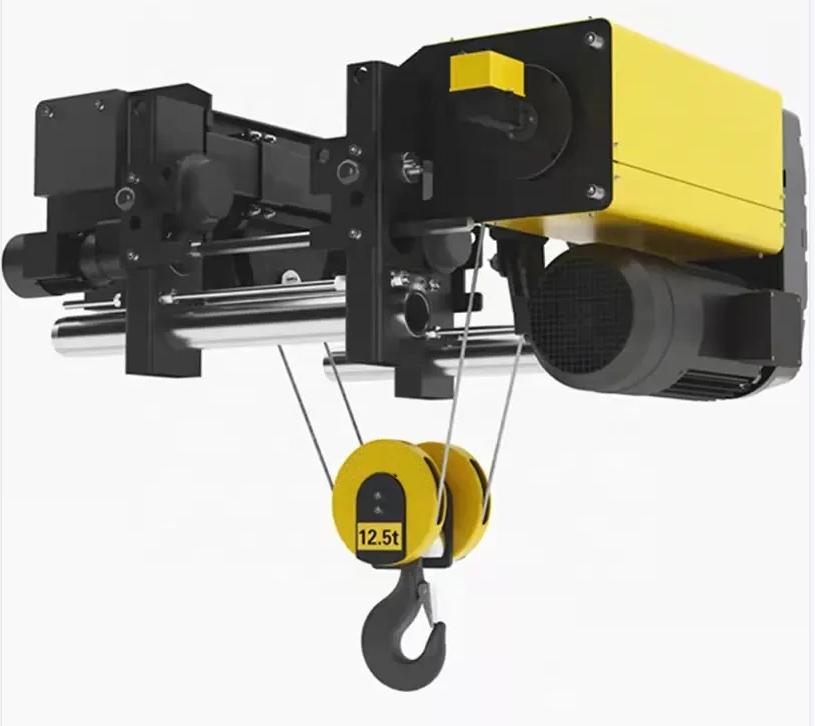

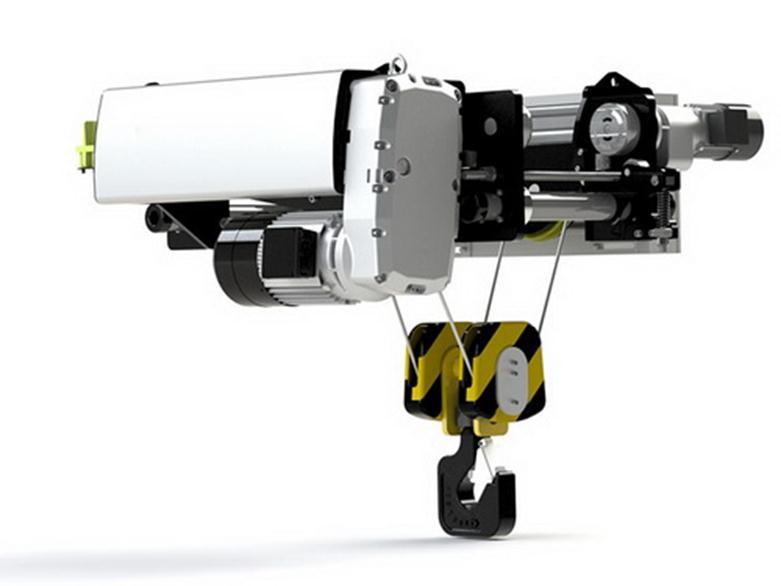

MD Fais Hlau Hlaws Hoed:

Tus ntseeg tau hluav taws xob hawv hawv haum rau ntawm Trolley.

NtaDual Lifting Ceev(li qub thiab qeeb) rau qhov tseeb thiab ua tau zoo.

Xws li lub cev muaj zog, nruas, gearbox, cov hlua hlau, thiab nuv kom sib dhos.

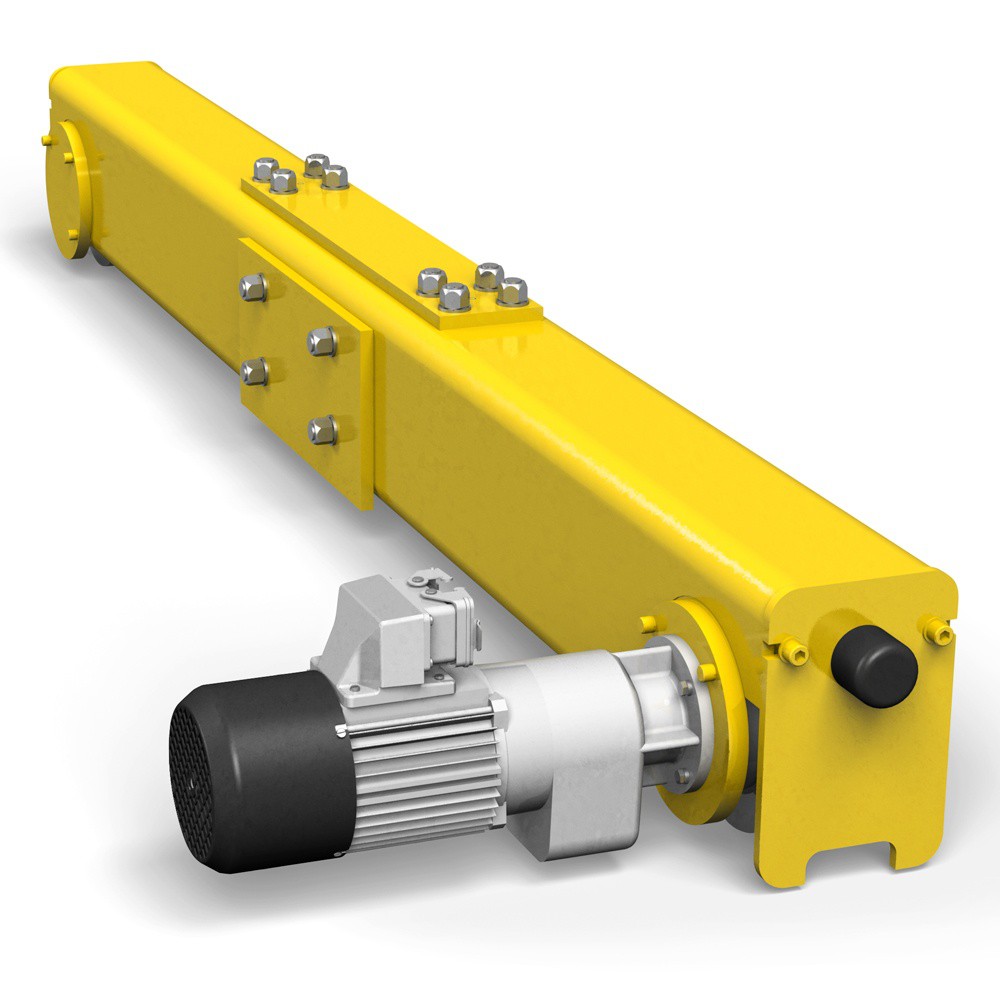

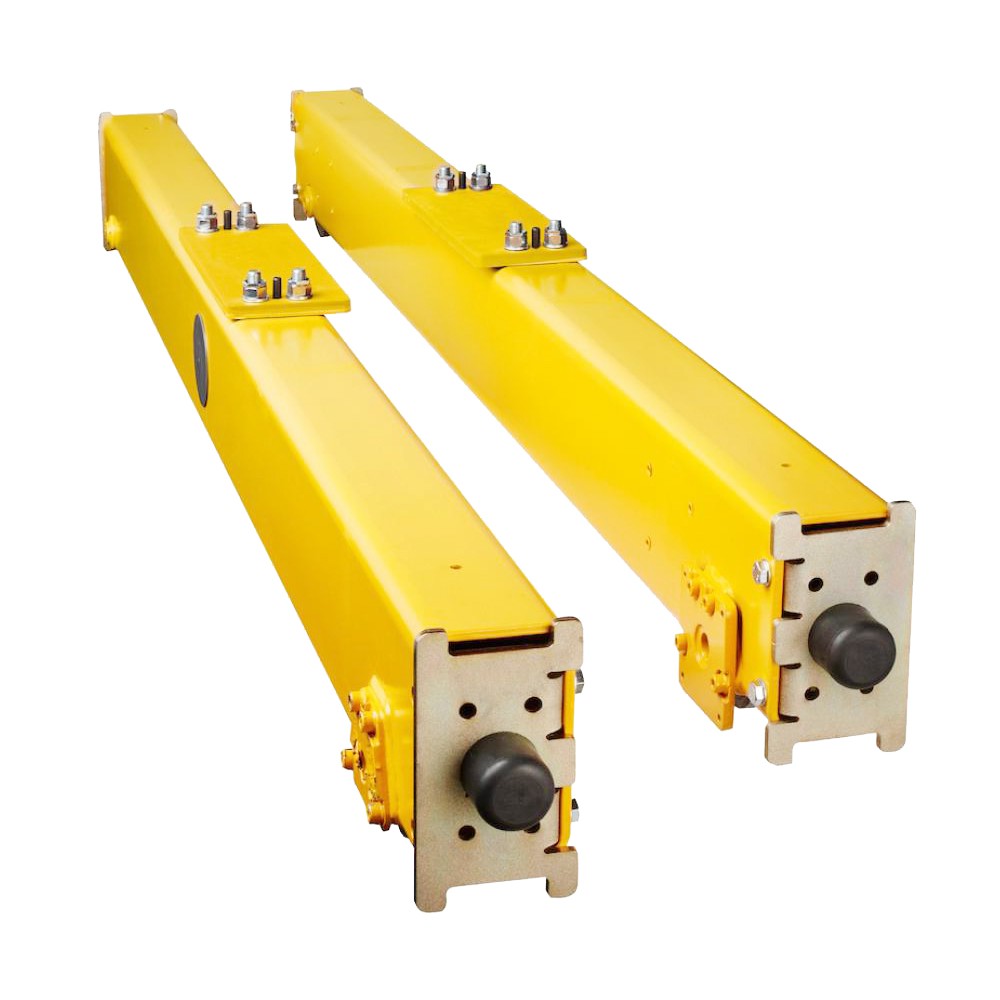

3.Nend thav duab \/ log sib txoos:

Nyob ntawm lub hauv paus ntawm txhua ceg.

Nruab nrog kev tsheb ciav hlau log (rau cov ciav hlau sib tw) lossis roj hmab log (rau kev txav hauv tsev).

Suav cov tsav lub tshuab rau crane taug kev raws lub tswv ntuj lossis cov ciav hlau.

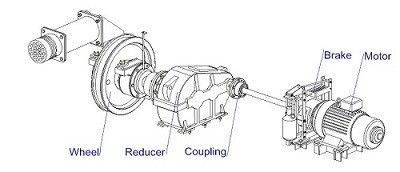

4.Travel mechanism (crane txav chaw):

Xws li cov motors, gearboxes, thiab cov log drives rau kab rov tav crane txav.

Ua kom cov kev taug kev du nrog thaj chaw ua haujlwm, nrog lossis tsis tuav.

5.trolley Travelling Mechanism

1. Trolley ncej: ib lub zog steel qauv tsim los txhawb kev xav tau zoo thiab kov cov khoom hnyav. Nws txuas tag nrho cov cheebtsam ntawm trolley mechanism.Wheels: lub trolley tau nruab cov log ntawm lub ntsej muag gantry thiab ntau dua), uas yog qhov sib tw, los yog kev tsim qauv tsheb ciav hlau, nyob ntawm tus qauv tsheb nqaj hlau lossis nqaj.

2. Lub cev muaj zog hluav taws xob: Powers lub trolley lub zog. Cov Motors feem ntau tau nruab nrog ntau zaus zaus tsav (VFD) rau kev txav lub trolley.Cov xwm txheej thiab muab cov hluav taws xob: Hloov cov hwj chim los ntawm lub cev muaj zog rau lub log.

3. Kev tswj hwm: Tus tswj hwm pendant: ib tus wired maub los tshem tawm los ntawm crane.Remote tswj: wireless kev ua haujlwm siv xov tooj cua.

CARIN tswj: Rau cov cranes loj dua, tus neeg teb xov tooj lub tsev kho mob.

4.Brzoo system: suav nrog cov tshuab lossis hluav taws xob brakes kom nres thiab tuav lub trolley hauv qhov chaw tau txiav lossis thaum Trolley yog nyob ruaj khov.

Crane log

Cov yam ntxwv tseem ceeb ntawm crane log; cov khoom siv: feem ntau ua los ntawm cov khoom siv hnyav thiab tiv thaiv cov hlau siv cov hlau, txhaws cov hlau kom huv si.

Tsim: Cov log tiaj: siv rau cov ciav hlau tiaj-topped ntawm txoj kev tsheb ciav hlau: Muaj kev nyab xeeb ntxiv los ntawm kev ntsuas lub log: tsim kom faib cov khoom seem thiab txo cov kev hnav.

TENT PROFILE: Tsim kom faib lub nra hnyav thiab txo cov kab mob taub hau, thiab hluav taws xob nrog rau kev sib txhuam thiab ua kom muaj kev sib txhuam du.

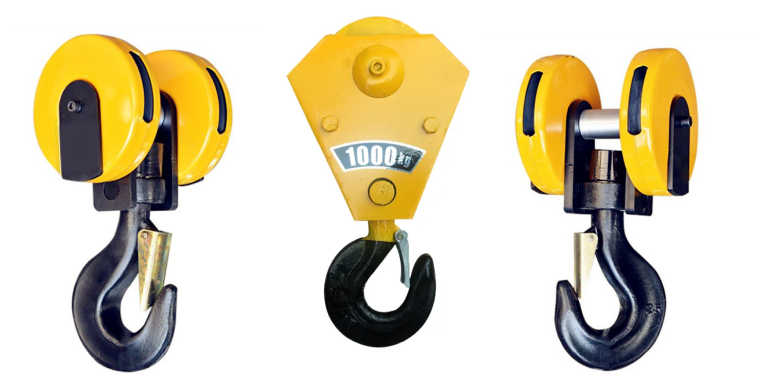

Crane Hook

Cov yam ntxwv tseem ceeb ntawm Crane Hooks Khoom: Feem ntau ua los ntawm high-zog cov ntaub ntawv xws li forged steel lossis alloy steel.DESENT los tiv thaiv cov khoom siv hnyav, cuam tshuam, thiab ua haujlwm hnyav

Tsim: ib tus hook: ib qho yooj yim, ncaj tsim siv rau dav dav thauj khoom.

Thauj khoom muaj peev xwm: sib txawv dav nyob ntawm lub crane tsim qauv thiab cov ntawv thov.Clearly cim ntawm tus nuv rau cov neeg teb xov tooj kev nyab xeeb.

Nuv Shaires: C-Hook: Siv rau kev tuav coils thiab cylindrical loads rau lub qhov muag txuas mus rau lub zog lossis climis thiab tus pin rau kev txuas sai.

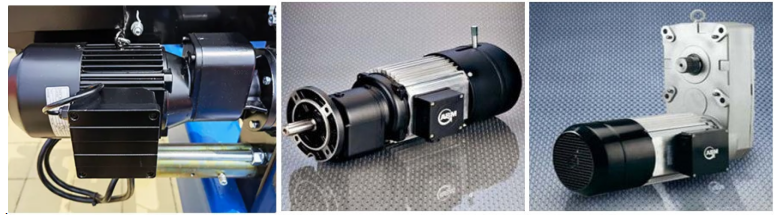

Lub cav

Cov Nta Tseem Ceeb Ntawm Crane Motors Tsav Induction Hom: Muab cov khoom siv nrawm nrawm: suav nrog kev siv hluav taws xob tsis tu ncua: suav nrog kev siv hluav taws xob tsis tu ncua: suav nrog kev siv hluav taws xob tsis tu ncua.

Kev ntsuas hluav taws xob: Ranges los ntawm ob peb kilowatts rau cov cranes me me rau ntau pua tus kilowatts rau kev siv lub zog hnyav.Qhov kev ntsuas tau nyob ntawm tus crane kev nqa khoom muaj peev xwm thiab ua haujlwm.

Tsim: Lub voj voog ua haujlwm: tsim rau cov kev sib quas ntus lossis kev ua haujlwm ua haujlwm.

Tswj cov yam ntxwv: cov motors feem ntau ua haujlwm nrog ntau zaus zaus tsav (VFD) lossis cov tswj kev ceev thiab kev siv hluav taws xob.

Suab thiab Lub Teeb Tswb Zog & txwv hloov

Cov yam ntxwv tseem ceeb ntawm lub tswb ceeb toom, suab nrov (lub suab liab) muaj cov suab nrov.

Kev tswj kev sib koom ua ke; qhib qhib ua haujlwm zoo li cov neeg saib xyuas kev nyab xeeb zoo ib yam li kev tiv thaiv kev nyab xeeb: lossis tiv thaiv kev tiv thaiv lossis sib thooj rau lwm cov cuab yeej.

Qhov xwm txheej xwm txheej ceev: teev cov ntsiab lus sib txawv, lossis lwm yam kev kub ntxhov.reeps.ensure cov xaim thiab kev sib txuas tau zoo thiab kev sib txuas tau zoo rau cov kev tswj hwm.

Kev Nyab Xeeb Khoom

Cov khoom siv kev nyab xeeb nyob rau hauv ruaj ruaj Gantry cranes, kev nyab xeeb khoom nyob rau hauv ruaj ruaj gantry cranes yog qhov tseem ceeb rau kev tiv thaiv cov neeg ua haujlwm, thiab khoom siv thaum lub sijhawm ua haujlwm. Lawv pab tiv thaiv kev sib tsoo, kom muaj kev ua haujlwm du crane, thiab ua raws li kev tswj hwm kev ua haujlwm kom nyab xeeb.

Siv rau hauv nyob ruaj khov Gantry Cranes: ntau dhau kev tiv thaiv ntaus nqi: tiv thaiv lub crane los ntawm kev tshem tawm cov thauj khoom ntau tshaj nws lub peev xwm.

Mechanism: nruab nrog cov khoom lag luam hlwb lossis cov khoom lag luam txhawb nqa cov qauv hluav taws xob.

Anti-kev sib tsoo cov cuab yeej, ua haujlwm: Ntes qhov sib thooj rau lwm cov cranes, cov qauv siv hluav taws xob zoo li ultrasonic, siv cov kev pheej hmoo ntawm cov xwm txheej thiab cov khoom siv kev puas tsuaj hauv ntau cov chaw ib puag ncig.

Nres lub cev thaum muaj xwm ceev, ua haujlwm: Tso cai rau cov khoom siv hluav taws xob, muab cov peev txheej siv tau tam sim no, muab cov kev teb chaw taws teeb sai sai.

Anti-Sway System, Muaj nuj nqi: minimizes load viav vias thaum lub zog.

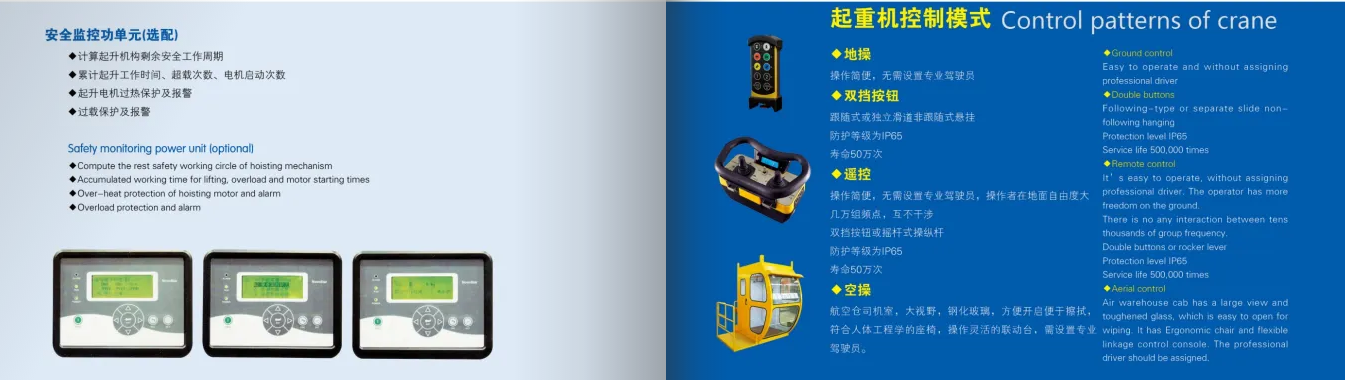

11.Control hom

1. Cov qauv tswj hwm rau chaw nyob ruaj khov Gantry Cranes, pendant tswj; piav qhia pendant tswj hwm nrog khawm lossis heelsticks rau kev tswj hwm kev txav thiab ua haujlwm.

2. Cabin tswj; cov lus piav qhia: Tus neeg teb xov tooj nres hauv cov khawm tswj hwm ntawm crane lossis ze rau cov nyees khawm ua haujlwm, thiab qee zaum touchscreens rau kev tswj hwm crane ua haujlwm.

3. Cov lus piav qhia: siv cov chaw taws teeb wireless, uas tuaj yeem hnav ntawm tus neeg teb xov tooj lub cev: zoo ib yam li kev tswj hwm pendant tab sis tsis muaj cable.

4.automatic tswj (automated tswj); Cov lus piav qhia: Xws li cov kev siv hluav taws xob (PLC), thiab tswj cov software uas tswj hwm lub zog.

Daim duab kos

Cov Tshuab Tseem Ceeb

Qhov zoo ntawm Godden Ob Chav Girder Gantry Crane nrog MD Hluav Taws Xob Hoist

Siab thauj khoom muaj peev xwm thiab ruaj khov

TusOb Chav Girder qauvMuab lub zog zoo thiab ua kom zoo tshaj plaws, ua rau lub crane kom kov cov tshuab girder ntau dua li cov tshuab giroriles lossis monoRerail.

Precision Lifting nrog MD Hluav Taws Xob Hoist

TusMD (Nruab Nrab Nruab Nrab) hluav taws xob hoistpubDual-Ceev Lifting(nrawm thiab qeeb thiab qeeb), tso cai ob qho khoom siv tau tuav thiab kev tswj xyuas zoo rau cov haujlwm muag heev lossis ncaj ncees.

Qhov zoo tshaj plaws rau kev siv nyob sab hauv tsev (Godowns & Cov Chaw Muag Khoom)

Tshwj xeeb yog tsim los rau cov chaw nyob sab hauv zoo li Godowns.

Yuav tuaj yeem kho tau kom haum cov txheej txheej uas tsis muaj uas tsis muaj kev hloov kho loj.

Qhov Chaw Ua Tau Zoo

Kev Tsim Nyiaj Ua Haujlwm thiab Trolley khiav ntawm cov Girders muab ntau tshaj plawsnuv qhov siab, tso cai rau kev nthuav dav yooj yim thiab kev ua kom zoo.

Kev Them Nqi Zoo

Yuav tsum tsis txhob siv cov kab kev khiav overhead lossis cov qauv txheej txheem, tshwj xeeb yogGantry co co ya los yog kev txav mus losyog siv.

Yooj yim thiab tsis tshua kim dua rau nruab dua li Nyiaj Siv Hluav Taws Xob Cranes.

Kev mus ncig (xaiv tau ntawm lub log)

YuavRail-mountedlossislog-mounted(Cov log tsheb roj hmab), muab kev hloov pauv tau yooj yim thoob plaws qhov chaw ua haujlwm.

Qhov zoo tagnrho rau kev hloov chaw khoom lag luam khoom siv lossis ntau qhov chaw ua haujlwm.

Tsawg txij nkawm & tsim qauv ruaj khov

Ua nrog cov hlau zoo thiab cov khoom siv rau kev siv lub sijhawm ntev hauv cov chaw sab hauv.

MD hoist yog qhov yooj yim rau kev pabcuam, txo qis thiab tu cov nqi.

Kev Nyab Xeeb Nta

Nruab nrog cov kev nyab xeeb tseem ceeb:

Txwv tsis pub hloov

Kev tiv thaiv ntau tshaj

Nres Nres

Brakes ntawm txhua qhov kev txav

Kev ua haujlwm tau zoo txawm tias tsis muaj tibneeg hu tauj coob hauv nroog.

Kev teb yooj yim

Yooj yim tswj ntawmtus pendant, nyob deb, lossislub tsev nqa khoom tswj, ua haujlwm ua haujlwm tau yooj yim raws li load loj thiab ua haujlwm.

Tsim Qauv Customizable

Ua kom haum kom phim tus vaj tswv luv luv, txhawb qhov siab, thiab ua haujlwm ua haujlwm.

Yeem add-ons liAnti-collision sensors, Teeb, thiabNtsaws Cov Ntsuastxhim kho cov khoom lag luam.

Cov ntawv thov ntawm Godden Ob Chav Girder Gantry Crane nrog MD Hluav Taws Xob Hoist

A Godden Girder Gantry Crane nrog MD Hluav Taws Xob Hoistyog tsim rau kev ntseeg siab, txuag tau zoo nyob rau hauvNyob sab hauv tsev cia thiab muaj kev lag luam ib puag ncigCov. Nws dual-ceev hoisting, muaj zog ob-girder thav duab, thiab saj zawg zog coj ua kom nws zoo tagnrho rau ntau yam kev lag luam:

🏭 1. Warehousing thiab Logistics Center

Lifting thiab teeb cov khoom hnyav lossis cov khoom ntim

Hloov cov ntaub ntawv los ntawm kev siv cov chaw tsis muaj chaw khaws cia racks

Kev siv qhov chaw nyob hauv sab hauv vajtswv

🧱 2. Kev tsim khoom thiab cov chav ua ke

Tuav lub tshuab qhov chaw, pwm, cov cuab yeej, thiab cov cuab yeej hnyav

Chaw thau khoom \/ thauj khoom sib xyaw ntawm cov chaw ua haujlwm

Txhawb cov kab ntau lawm nrog cov khoom siv tsis tu ncua

🧱 3. Prefast Qhob thiab Siv Khoom Cia

Lifting thiab txheej txheej hnyav precarting slabs, ci, lossis blocks

Nyob sab hauv tsev cia ntawm lub hnab xis mas, steel pas, lossis chaw tsim khoom

⚙️ 4. Hnyaj Cov Machinery Cia Thiab Txij Nkawm Bays

Thauj Cov Khoom Hnyav Thiab Cov Tshuab Rau Kho Los Yog Kev Pab

Muaj kev nyab xeeb thiab kev tso tawm ntawm lub tshuab

🔧 5. Engineering Kev cob qhia thiab cov khoom siv hluav taws xob

Tuav StreRic txheej hlau qauv, kav dej, daim hlau, thiab cov sib txoos

Txhawb Vuam thiab Kev Ua Haujlwm nrog cov khoom siv ruaj khov

🚚 6. Loading thiab unloading aav

Tsiv cov khoom txav ntawm cov tsheb thauj khoom thiab sab hauv tsev cia racks

Qhov zoo tagnrho rau cov vaj tswv tsis muaj kev nkag mus tsev lossis muaj kev thauj khoom hauv tsev

🔩 7. Cov Khoom Siv Hluav Taws Xob thiab Cov Pwm Siv Pwm

Precise tuav ntawm tuag, pwm, thiab cuab yeej siv dual-ceev md hoist

Ua kom muaj kev nce siab thiab txo qis ntawm cov khoom siv me me

✅ Vim li cas nws zoo tagnrho rau cov ntawv thov no:

Siab Lifting Muaj Peev Xwm Nrog Compact Design

Cov Chaw Thauj Khoom Siv Nrog MD Hluav Taws Xob Hoist (Li Qub & qeeb ceev)

Hloov kho tau rau cov chaw nyob sab hauv tsev tsis tas yuav tsum tau txhawb qab

Kev ua haujlwm du thiab muaj kev nyab xeeb rau kev rov ua haujlwm lossis rhiab ua haujlwm

1. Cov theem tsim tsim: txiav txim siab cov ntsuas ntawm lub crane, xws li cov ntsuas hluav taws xob, ncua thiab lifting qhov siab, raws li cov neeg siv khoom thiab chaw ua haujlwm. Nqa cov ncauj lus kom ntxaws tsim qauv, xws li nqaj lub ntsiab, crane, nqa cov qauv, kom paub meej tias tus qauv ua raws cov qauv kev nyab xeeb thiab kev siv tau. Xaiv cov qauv tsim nyog raws li cov qauv tsim, feem ntau yog cov khoom siv hluav taws xob siab kom ntseeg tau tias cov qauv ruaj khov thiab ruaj khov ntawm cov qauv.

2. Kev tsim khoom theem: Npaj cov ntaub ntawv raw thiab qhov chaw raws li cov qauv tsim qauv. Txiav, khoov thiab duab cov hlau los npaj cov qauv txheej txheem xws li cov nqaj tseem ceeb thiab kawg cov teeb. Weld cov ntau yam thiab sib sau ua ke rau lawv mus rau ib qho qauv tag nrho. Cov kauj ruam no yuav tau lees txais vuam zoo kom ntseeg tau lub zog thiab ruaj khov.

3. Machining: Machining cov khoom tseem ceeb xws li cov motors, zog, bearings, thiab lwm yam kom paub tseeb tias lawv qhov loj thiab qhov tseeb tau raws li qhov yuav tsum tau ua. Anti-corrosion kev kho mob ntawm cov khoom siv, xws li pleev xim thiab galvanizing, nce lub durability thiab zoo nkauj ntawm cov khoom siv.

4. Kev teeb tsa hluav taws xob: Txheej txheem hluav taws xob: Cheebtsam xws li cov tshuab raj, cov tswj hwm, hloov pauv, sensors thiab tswb thiab lub sensors thiab tswb. Txuas thiab Hlau Cables kom ntseeg tau tias txoj haujlwm ib txwm ua ntawm cov hluav taws xob.

5. Ua cov kev tshuaj xyuas cov kev sib sau ua ke ntawm cov sib sau ua ke Crane kom ntseeg tau tias txhua yam thiab cov tshuab ua haujlwm tau zoo, thiab ua kev debugging.

6. Kuaj theem: Ua cov kev sim zoo li qub ntawm lub crane los xyuas lub zog qauv thiab kev ruaj khov. Ua kev sim dynamic ntawm crane, suav nrog kev sim ntawm Lifting, txav mus los, kom ntseeg tau tias nws ua tau zoo ua tau raws li cov qauv tsim. Txheeb xyuas cov haujlwm ntawm cov haujlwm ntawm kev nyab xeeb, xws li kev txwv cov cav, sib zog tiv thaiv, thiab lwm yam, kom paub tseeb tias kev nyab xeeb ntawm cov cuab yeej siv sijhawm.

7. Kev tswj hwm zoo: Ua kom zoo tswj ntawm txhua qhov txuas hauv cov txheej txheem ntau lawm los xyuas cov qauv kev ua lag luam thiab cov neeg siv khoom. Sau cov ntaub ntawv ntau yam kev ntsuas thiab tshuaj xyuas cov txiaj ntsig hauv cov txheej txheem ntau lawm rau tom qab traceability thiab tsom xam.

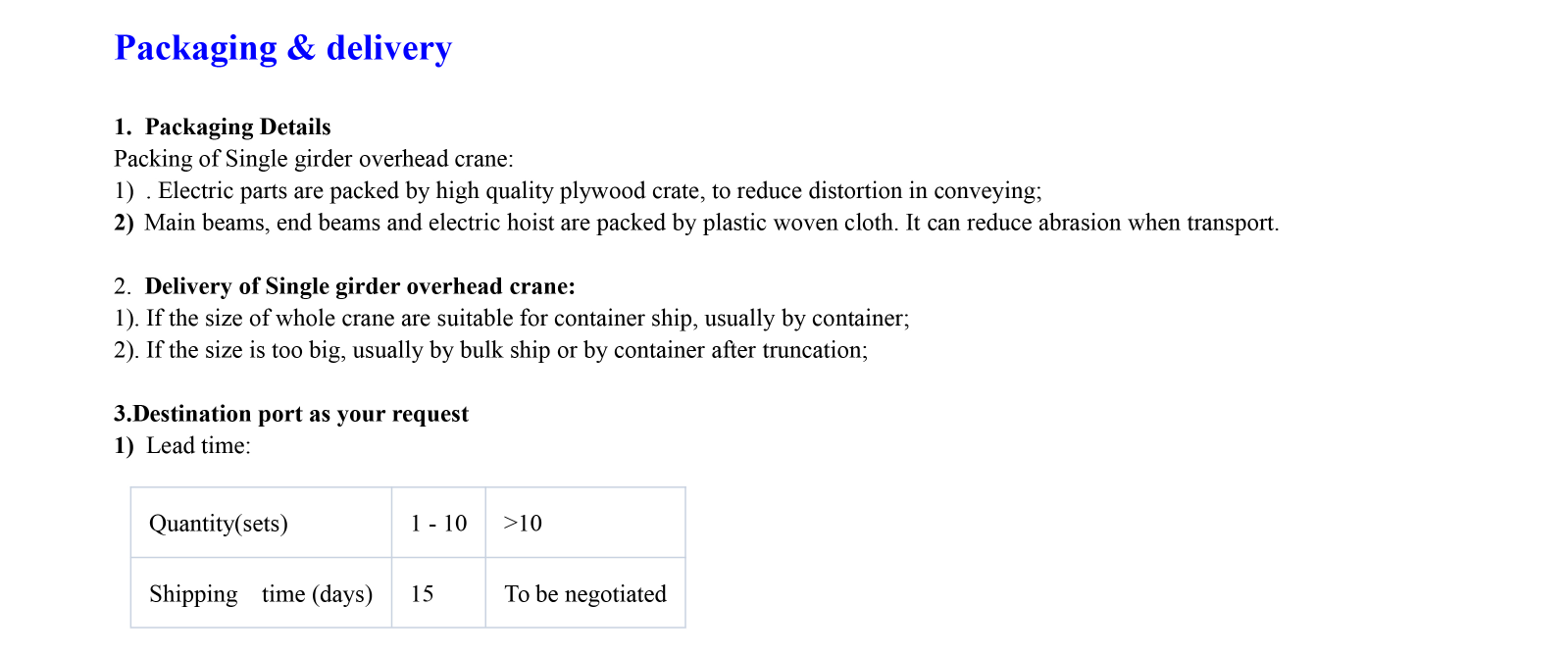

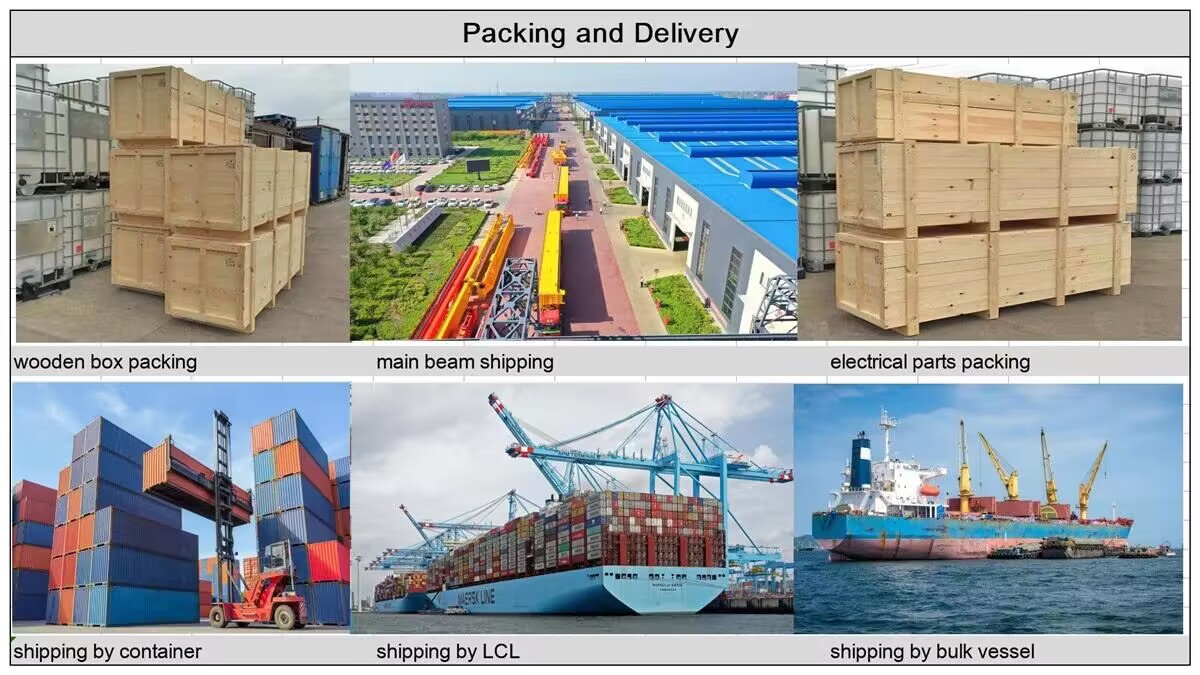

8. Kev xa tawm thiab kev teeb tsa: Pob thiab npaj kev ua tiav crane rau kev thauj mus los kom ntseeg tau tias nws tsis puas thaum lub sijhawm thauj mus los. Muab cov crane rau cov qhua tuaj noj mov rau kev teeb tsa, thiab ua cov chaw debugging thiab kev txais. Muab kev qhia ua haujlwm rau cov neeg siv khoom kom ntseeg tau tias lawv tau tshaj lij hauv kev siv thiab txij nkawm ntawm lub crane.

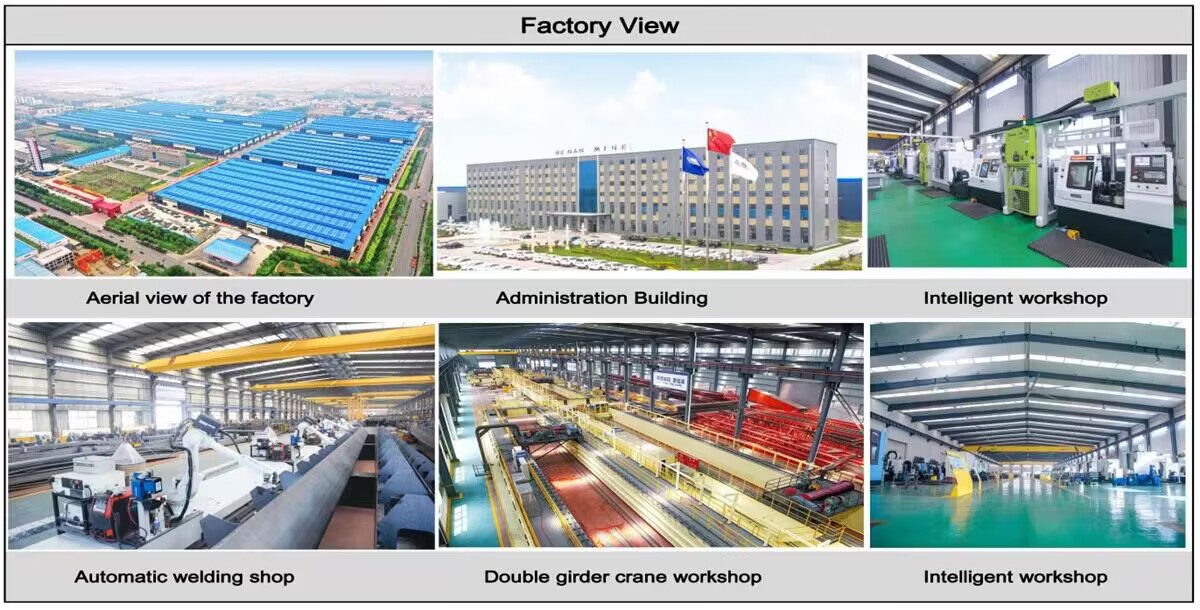

Rhiav Saib:

Lub tuam txhab tau teeb tsa cov khoom siv tswj hwm kev txawj ntse platform, thiab tau teeb tsa 310 teev (teeb tsa) ntawm kev tuav thiab vuam hlau. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teev (teeb tsa), thiab cov khoom siv sib txuas lus yuav ncav cuag 95%. 32 VUAM txoj kab tau muab tso rau hauv kev siv, 50 tau npaj yuav tsum tau nruab, thiab kev siv lub tshuab ntawm cov kab ntawv tag nrho tau mus txog 85%.
