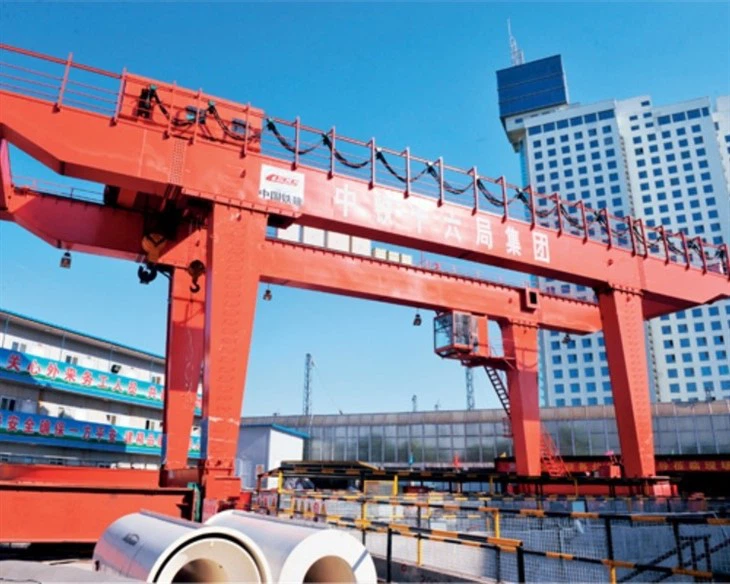

U Hom Subway Tig Slag Hook Gantry Crane

Ob chav girder gantry crane muaj xws li gantry, crane, trolley operating mechanism, cab thiab hluav taws xob tswj system. Lub gantry yog ib lub thawv-zoo li tus qauv nrog ntsia ntawm ob sab ntawm txhua kab. Ob txhais ceg tau muab faib ua hom A thiab U hom raws li cov neeg siv khoom xav tau. Kev tswj yuav ua tau hauv av, tswj chaw taws teeb, tswj cab los yog ob qho tib si. Lub tsheb tavxij yog nruab nrog lub rooj zaum kho tau, cov ntaub thaiv npog hauv pem teb, lub qhov rais tempered iav, tua hluav taws, kiv cua, thiab cov cuab yeej pabcuam xws li cua txias, tswb nrov, thiab intercoms. Yuav configured raws li tus neeg siv yuav tsum tau.

Qhov hnyav (KG): 86000 kg

Khoom npe: U hom subway tig slag nuv gantry crane

Lifting peev: 75 Tons

Ntev: 18-35m

Lifting qhov siab: lub ntsiab nuv 10m / Aux. luj 13,5m

Control Method: Cabin Control

Lub luag haujlwm: A6

Voltage: 380V / 50HZ / 3Ph AC





Gantry qauv:Lub ntsiab ncej ntawm ib tug crane, feem ntau ncua qhov dav ntawm lub subway tig cheeb tsam. Txhawb nqa lwm yam khoom thiab tso cai rau lub crane txav raws txoj kev.

Lifting Mechanism:Xws li hoist, hlau hlua thiab sib txuas sib txuas siv los nqa thiab txo qis xws li cov khoom loj thiab lwm yam khoom siv. Lub lifting mechanism feem ntau yog ntsia rau ntawm lub trolley, uas tuaj yeem txav mus rau kab rov tav raws kab gantry.

Trolley mechanism:Lub trolley mechanism tuaj yeem ua rau lub hoist txav horizontally raws lub gantry nqaj. Nws feem ntau muaj cov log lossis cov lem khiav raws lub nqaj, siv los ntawm lub cev muaj zog lossis lwm yam tsav tsheb.



Crane tswj:Qhov no nyob ntawm qhov nyuaj ntawm lub crane tab sis feem ntau suav nrog tus neeg teb xov tooj tswj kev nqa, trolley txav thiab crane txav. Niaj hnub nimno gantry cranes feem ntau siv cov chaw taws teeb tswj los yog cov khoos phis tawj cuam tshuam rau kev ua haujlwm zoo.

Hluav taws xob qhov system:suav nrog lub crane lub zog mov, lub cev muaj zog, maub los, xov hlau thiab lwm yam khoom siv hluav taws xob. Cov yam ntxwv ntawm kev nyab xeeb xws li kev txwv hloov pauv thiab kev tiv thaiv overload kuj yog ib feem ntawm cov hluav taws xob.

Rails:Cov ntsia hlau no tau nruab rau hauv av thiab muab cov kev txav mus los rau lub crane. Rau U-shaped subway viav vias gantry cranes, txoj kev taug qab tuaj yeem nkhaus kom phim cov kev hloov ntawm txoj kev tsheb ciav hlau.

Kev nyab xeeb nta:Ntau yam kev nyab xeeb nta tau tsim rau hauv crane tsim los tiv thaiv kev sib tsoo thiab ua kom muaj kev nyab xeeb. Cov no suav nrog cov nyees khawm nres thaum muaj xwm ceev, sirens, txwv cov keyboards thiab kev tiv thaiv overload.

Sketch:









Versatility:Tsim los ua haujlwm hauv subway tig qhov chaw, qhov gantry crane tuaj yeem txav slag thiab lwm yam ntaub ntawv hauv qhov chaw nruj. Nws lub peev xwm ntawm txoj hlua khi ua rau nws haum rau siv nyob rau hauv ib puag ncig uas ib txwm cranes tsis tuaj yeem ua haujlwm zoo.

Space efficiency:Lub crane's U-shaped tsim ua rau nws ua haujlwm nyob rau hauv qhov txwv tsis pub dhau ntawm lub subway qhov chaw tig tsis cuam tshuam nrog kev txav ntawm cov tsheb ciav hlau lossis lwm yam khoom siv. Yog li ntawd, nws yog qhov zoo tagnrho rau kev txav cov ntaub ntawv uas qhov chaw txwv.

Precise positioning:Gantry cranes paub txog lawv lub peev xwm los ua haujlwm cov khoom hnyav, thiab Subway U-tig nuv gantry crane tsis muaj qhov tshwj xeeb. Nws cov qauv tsim tso cai rau kev tso ncaj nraim ntawm cov khoom sib txuas, ua kom cov khoom siv tau zoo.

Siab Load Capacity:Cov cranes feem ntau yog tsim los tswj cov khoom hnyav, ua rau lawv tsim nyog rau kev xav tau ntawm cov av tuav hauv subway tig qhov chaw. Nqa thiab thauj cov ntaub ntawv ntau nrog yooj yim, ua kom cov khoom tsim tau thiab ua haujlwm tau zoo.

Kev nyab xeeb:Kev nyab xeeb ib txwm yog qhov tseem ceeb tshaj plaws thaum ua haujlwm nrog crane, tshwj xeeb tshaj yog nyob rau hauv qhov chaw nruj xws li subway tig chaw. Lub U-shaped subway tig zawv zawg nuv gantry crane yog nruab nrog ntau yam kev nyab xeeb xws li kev tiv thaiv overload, txwv cov keyboards, thiab khawm nres thaum muaj xwm ceev kom muaj kev nyab xeeb txhua lub sijhawm.

Durability:Gantry cranes tuaj yeem tiv taus qhov kev lag luam hnyav, thiab U-shaped subway nuv gantry cranes tsis muaj qhov tshwj xeeb. Tsim los ntawm cov khoom siv hnyav, cov cranes no yog tsim los rau kev siv hnyav thiab muab kev ntseeg tau ntev thiab kav ntev.

Nqi-effectiveness:Txawm hais tias lawv qhov xwm txheej tsis zoo, gantry cranes zoo li yuav raug nqi ntau dua li lwm cov kev txhawb nqa nqa, tshwj xeeb tshaj yog thaum koj xav txog lawv cov txiaj ntsig mus ntev thiab kev ua haujlwm zoo.





Slag tuav:Raws li lub npe qhia, ib qho ntawm kev siv tseem ceeb ntawm hom crane no yog slag tuav ntawm metro tig cov ntsiab lus. Slag yog ib qho khoom siv los ntawm cov txheej txheem hlau smelting thiab feem ntau yuav tsum tau muab tshem tawm los ntawm cov lem kom muaj kev nyab xeeb thiab ua haujlwm zoo. U gantry crane lub peev xwm slew thiab hnyav nqa peev xwm ua rau nws zoo tagnrho rau txoj haujlwm no.

Kev thauj khoom hauv qhov chaw me me:Lub subway muaj qhov ntse ntse thiab tuaj yeem txav tau yooj yim, tshwj xeeb tshaj yog cov khoom siv loj xws li cranes. Lub compact tsim ntawm U-shaped gantry cranes tso cai rau lawv ua haujlwm zoo hauv qhov chaw nruj thiab tsim nyog rau kev thauj khoom xws li cov khoom siv, khoom siv thiab cov khoom siv tu hauv cov chaw metro.

Kev tu thiab kho kev ua haujlwm:Metro systems xav tau kev saib xyuas thiab kho tsis tu ncua kom ntseeg tau tias kev ua haujlwm tau zoo thiab kev nyab xeeb. U-gantry cranes yog siv los nqa thiab ua haujlwm kho cov cuab yeej, cov cuab yeej thiab cov khoom hloov pauv los pab txhim kho kev ua haujlwm ntawm kev khiav, cov keyboards, cov teeb liab thiab lwm yam khoom siv hauv vaj hauv tsev.

Kev tsim kho qhov project:U-gantry cranes yog siv los nqa thiab thauj khoom siv, tshuab thiab lwm yam khoom siv thaum lub sijhawm tsim kho lossis kho dua tshiab hauv cov chaw metro. Lub crane muaj peev xwm ua haujlwm hauv qhov chaw nruj, pab txav cov ntaub ntawv ntawm cov chaw tsim kho hauv subway tig.

Txhim kho thiab dismantling cov cuab yeej:Cov chaw hauv subway feem ntau xav tau kev teeb tsa lossis tshem tawm cov khoom siv xws li escalators, elevators, daim pib tshuab thiab cov khoom siv platform. U-shaped gantry cranes pab nqa thiab tso cov khoom loj no los pab txhim kho, tu lossis hloov cov haujlwm hauv subway tig.

Kev Tswj Pov Hwm:Ntxiv rau cov av khib nyiab, cranes kuj tuaj yeem siv los tswj lwm hom khib nyiab thiab cov khib nyiab tsim nyob rau hauv metro system, xws li cov khoom pov tseg thiab cov khoom siv. Lub peev xwm ua tau zoo nqa thiab thauj cov ntim khib nyiab thiab cov khib nyiab ua kom yooj yim rau kev tswj cov khib nyiab hauv thaj chaw metro.











Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas yuav ncav cuag 95%. 32 welding kab tau muab tso rau hauv kev siv, 50 yog npaj los nruab, thiab cov automation tus nqi ntawm tag nrho cov khoom kab tau mus txog.
