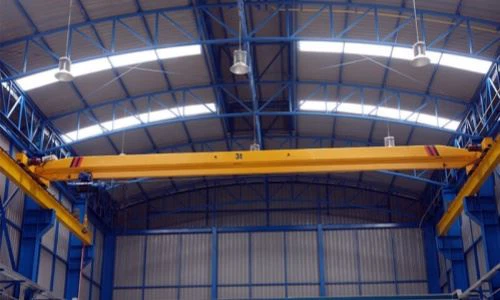

Dai ib leeg girder choj crane

Cov Cheebtsam Tseem Ceeb: Gearbox, Tsav, Iav

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 1 xyoos

Qhov hnyav (kg): 10000 kg

Video tawm-soj ntsuam: muab

Kev Ntsuas Cov Lus Qhia: muab

Muag Chav Nyob: Ib Yam Khoom

Ib pob loj: 600x300x300 cm

Ib qho nyhav tag nrho: 200. 000 kg







1.Main Beam

Lub ntsiab lub nqaj ntawm dai tib tus girder choj crane (tseem hu ua ib tus girder ib girder crane) yog thawj tus qauv kab rov tav uas:

Txhawb cov hoist thiab trolley, uas khiav raws hauv qab flange ntawm cov nqaj.

Raug tshem tawm (tsis txaus siab los ntawm hauv qab no) thiab txuas rau ntawm ob xaus rau lub tsheb thauj mus los, uas nyob rau hauv lem ntawm cov kab teeb khiav mus rau lub tsev qab nthab lossis txheej txheem ua haujlwm.



2.Lifting system

1) Hluav taws xob Hoist

Hom: Feem ntau cov hlau hlua Hoist lossis saw hluav taws xob hoist.

Muaj nuj nqi: Nqa khoom thiab lowers lub thauj khoom siv lub cev tsav tsheb-tsav lub nruas lossis cov tshuab tes.

Lifting muaj peev xwm: Ranges los ntawm 0. 5 tons txog ntawm 10 tons (lossis ntau dua nrog kev tsim qauv).

Lifting qhov siab: Feem ntau customerizable raws daim ntawv thov (piv txwv li, 6m, 9m, 12m, 12m, thiab lwm yam).

Lifting ceev: feem ntau ob-nrawm los yog sib txawv zaus zaus tsav (VFD) tswj hwm rau kev tuav tuav.

2) Trolley (Hoist Trolley)

Mounting: Txuas rau lub hoist, khiav ntawm cov log raws hauv qab flange ntawm lub nqaj loj.

Zog: lub cev muaj zog lossis phau ntawv qhia. Enables kab rov tav taug kev ntawm lub Hoist hla span ntawm crane.

Taug kev nrawm: Feem ntau tswj ntawm Inverter (VFD) rau qhov tseeb.

3) Hook & Hook Thaiv

Cov khoom sib txuas tiag uas txuas rau cov thauj khoom ntawm cov lus, cov saw, lossis nqa khoom siv.

Nruab nrog txoj kev nyab xeeb rau kev tiv thaiv thauj khoom qeeb.

4) Txwv kev hloov pauv

Ntsia kom tiv thaiv dhau mus ncig ua si hauv kev nqa (nce \/ nqis) thiab trolley txav (sab laug \/ sab xis).

Ua kom muaj kev nyab xeeb thiab tiv thaiv lub cev muaj zog los ntawm kev puas tsuaj.

5) Tswj System

Pendant Tswj: Cov chaw taws teeb tswj kev dai ntawm lub crane.

Wireless tej thaj chaw deb: Yeem rau cov neeg teb xov xwm yooj yim thiab kev nyab xeeb.

Lub Tsev Kho Khoom Tswj: Tsis tshua muaj nyob hauv qab thu dej cranes vim muaj peev xwm tsawg dua.

Pitectlub laub

Qhov kawg carriage ntawm dai tib tus girder choj crane (tseem hu ua lub tsheb loj
Nyob rau hauv ib lub dai (hauv qab) Kev teeb tsa, chav kawm kawg tau raug tshem tawm los ntawm cov kab teeb ci ntsa iab thiab khiav raws cov kab ci no.
Tus qauv & Mounting:

Ua los ntawm cov phaj hlau thiab profiles welded los yog bolted rau hauv txoj kab sib tw.

Bolted los yog welded rau ob qho kawg ntawm lub ntsiab lub ntsiab (GIRDER).

Raug tshem tawm los ntawm cov teeb liab, lub ntsiab lus nws taug kev hauv qab cov nqaj.



4.Crary Traveling Mechanism

Crane mus ncig ua si ntawm dai tib tus Girder Choj Crane (tseem hu ua cov kab hlau ntev ntev) yog ib feem ntawm cov kab teeb tsa ntev ntev mounted mus rau lub qab nthab lossis ru tsev ntawm lub tsev.

5.trolley Travelling Mechanism
Lub Trolley Mus ncig ua si ntawm dai tib tus girder choj crane yog txheej txheem uas tso cai tav toj (girder), entering sab-rau-sab (hla mus ncig) txav ntawm lub nra. Qhov no yog qhov tseem ceeb rau kev ua kom meej thiab tuav hauv Crane ua haujlwm ntev.

6.Crane log

Lub log ntawm dai tib tus girder choj crane ua rau muaj kev sib zog ntawm kev txav ntawm ob tus kheej) thiab Trolley \/ Hla Tebchaws). Vim tias nws yog dai (underhung) CRANE, lub log ua haujlwm nyob rau hauv qab flange ntawm cov rejhad rigway kab teeb (rau crane taug kev) thiab lub nqaj hlau (rau trolley mus ncig).

7.CraCane Hook

Tus nuv ntawm dai ib leeg Girder Choj Crane yog qhov kawg load-tuav lub cuab yeej uas txuas rau lub neej crane lifting lub neej (Hoist) rau cov khoom raug tshem tawm. Nws yog ib qho kev nyab xeeb kev nyab xeeb tsim los txhawb kev ntsuas tag nrho ntawm lub crane thiab kom ruaj nras koom tes lifting slings, saw, lossis lwm yam khoom siv rho tawm.

8.Moor

Lub cev muaj zog ntawm dai tib tus girder choj crane yog qhov tseem ceeb uas lub zog ntawm lub crane, suav nrog kev nqa khoom, thiab CRANE (ntev) taug kev mus ncig ua si. Cov motors no tau tsim tshwj xeeb rau kev ua haujlwm hnyav, High-torque, thiab pib pib \/ nres kev ua haujlwm.

.

9.sound thiab Lub Teeb Lub Tswb System & txwv hloov

Lub suab thiab lub teeb pom kev zoo thiab txwv cov hloov chaw yog qhov tseem ceeb kev nyab xeeb thiab tswj cov khoom hauv dai rau Girder Choj Crane. Lawv pab tiv thaiv kev sib raug zoo, tiv thaiv khoom siv, thiab ua haujlwm kom nyab xeeb ntawm lub crane.
1) suab thiab lub teeb tswb system
Lub hom phiaj:
Cov neeg ua haujlwm ceeb toom rau cov neeg ua haujlwm crane ua haujlwm, txav, lossis ua txhaum

Nce ua haujlwm kev nyab xeeb los ntawm cov neeg ceeb toom ntawm:

Crane Mus Ncig

Hoisting ua haujlwm

Thaum muaj xwm ceev lossis tshaj plaws
2) Txwv Tsis Pub Hloov
Lub hom phiaj:
Cia li tsis txhob txwv los yog txwv crane \/ trolley \/ dist cov lus tsa suab thaum lub sijhawm preset lossis nqa tsis pub dhau

Txwv tsis pub dhau mus ncig ua si, kev sib tsoo, lossis tshuab overrun

10.safety cov khoom siv

1) Txwv tsis pub hloov chaw
Tiv thaiv kev deb ntawm kev taug kev ntawm CRANE, TROLLEY, thiab Hoist.

Hom: kev txwv mus ncig ua si hloov chaw (ntev thiab hla), hoist cov kev hloov pauv \/ qis dua.

Txiav txiav tawm lub zog thaum txwv tsis pub mus txog.

2) kev tiv thaiv ntau dua
Monitors Lifting thauj ntawm kev thauj khoom ntawm tes lossis lub sensor tam sim no.

Tiv thaiv kev thauj mus los dhau kev ua voj muaj peev xwm los ntawm cheemping hoist tsav.

Zam kev puas tsuaj thiab xwm txheej tshwm sim los ntawm overloading.

3) Thaum Muaj Xwm Ceev Tseg (E-Nres)
Nyob rau Crane Pendant thiab chaw taws teeb tswj.

Tam sim ntawd txiav hluav taws xob rau tag nrho cov kev ua haujlwm thaum nias.

Muab cov ntawv qhia tam sim hauv kev kub ntxhov.

4) Kev sib tuav tes
Siv nyob rau hauv ntau-crane teeb tsa ntawm tib txoj kev khiav.

Tiv thaiv cranes los ntawm kev sib tsoo los ntawm kev kuaj pom qhov sib thooj thiab txiav tawm.

Tuaj yeem yog ultrasonic, infrared, lossis radar-raws sensors.

5) Crane taug kev thiab Trolley Traveling txwv
Cov neeg kho tshuab lossis cov khoom siv hluav taws xob kom nres cov lus pom nyob ze ntawm kev tso khiav lossis girder xaus.

Tiv thaiv kev puas tsuaj tshuab vim kev cuam tshuam.



11.Control hom

1) Pendant tswj (xaim tswj)
Cov lus piav qhia: Lub thawv tswj hwm txuas nrog lub crane los ntawm txoj cable.
2) wireless chaw taws teeb
Cov lus piav qhia: lub xov tooj cua-tswj cov tshuab ua ke sib txuas lus sib txuas lus wirelessly nrog cov neeg muag khoom crane.
3) CARIN tswj (Neeg teb chaws cab)
Cov lus piav qhia: tus neeg teb xov tooj tso rau sab hauv txee txee rau ntawm lub crane los yog nyob ze platform.
4) Semi-Automatic thiab Tsis Siv Neeg Tswj
Cov lus piav qhia: sib xyaw ua ke programmable logic tswj (plC) lossis khoos phis tawj lossis khoos phis tawj rau cov khoom lag luam crane.
5) Touchscreen lossis vaj huam sib luag tswj
Cov cranes niaj hnub yuav muab tso ua ke kongscreen panels rau kev ua haujlwm yooj yim, kuaj mob, thiab kev saib xyuas system.
Feem ntau ua ke nrog wireless lossis wired tswj.

Daim duab kos



Cov Tshuab Tseem Ceeb





1. Chaw-txuag kev tsim qauv
Tus crane raug tshem tawm los ntawm cov rawv nqaj es khiav ntawm cov ciav hlau hauv pem teb, yog li nws tsis nyob pem teb pem teb.

Qhov zoo tagnrho rau cov chaw nrog kev txwv pem teb chaw lossis qhov chaw hauv av yuav tsum tau ua kom meej meej rau lwm cov cuab yeej lossis haujlwm.

2. Lub teeb yuag
Siv ib lub girder (lub nqaj lub ntsiab), ua rau crane sib dua dua li ob hom girder.

Yooj yim thiab pheej yig dua rau nruab thiab tswj.

Tsawg dua cov txheej txheem thauj khoom ntawm lub tsev thiab cov kev khiav dej.

3. Nqi siv tau
Cov khoom siv qis dua thiab cov nqi nruab piv piv rau ob chav girder lossis tus choj khiav sab saum toj-khiav.

Txo lub hauv paus foundation thiab cov qauv sau qoob loo.

Yooj yim tsim qauv ua rau kev tsim khoom lag luam thiab txij nkawm kev txij nkawm.

4. Versatile thiab hloov tau
Haum rau me me rau nruab nrab load peev xwm (feem ntau txog li 10 tons).

Tuaj yeem kho tau rau ntau yam spans thiab ua haujlwm ib puag ncig.

Yooj yim rau retrofit los yog hloov kho dua tshiab.

5. Txhim Kho Kev Nyab Xeeb
Raug tshem tawm tsim minimizes hauv av-qib phom sij rau cov neeg ua haujlwm.

Nruab nrog cov txheej txheem kev nyab xeeb (txwv kev hloov chaw, tswb, kev tiv thaiv ntau dhau).

6. Cov khoom siv tau zoo
Tus neeg teb xov tooj lossis cov tshuab tsis zoo muaj qhov pom zoo dua thiab nkag mus rau kev siv sijhawm ua haujlwm.

Yooj yim rau maneuver thauj hauv qhov chaw nruj lossis raug kaw.



1. Kev Tsim Kho Kev Sib Tham & Cov Kab Los Ua Ke
Qhov zoo tagnrho rau kev nqa thiab txav chaw thiab sib dhos hauv kev tsim khoom.

Txhawb Machining, vuam, thiab kev ua ke ua ke.

Pab txhim kho cov haujlwm ua haujlwm los ntawm muab kev thauj ceev ceev, hloov tau thauj khoom sai.

2. Cov Chaw Ua Si & Khoom Siv Khoom Ntim
Qhov chaw thau khoom \/ thau khoom thiab cov khoom siv.

Saves pem teb chaw, tso cai rau ntau ntxiv cia khoom muaj peev xwm.

Haum rau palletized khoom, cov khoom loj, thiab cov khoom ntim khoom ntim.

3. Kev lag luam Automotive
Siv hauv me me mus rau nruab nrab ntawm cov nroj tsuag sib dhos.

Nqa pob zeb, chassis seem, thiab cov khoom siv tsis zoo thiab muaj txiaj ntsig.

4. Electronics & Cov Khoom Siv Hluav Taws Xob Chaw Tsim Tshuaj
Iltate tuav ntawm rhiab.

Haum rau cov chaw huv si ib puag ncig (nrog kev hloov kho).

5. Cov Khoom Noj Khoom Haus & Dej Haus
Tuav cov ntaub ntawv raw, ntim, thiab cov cuab yeej hnyav.

Tuaj yeem hloov kho rau cov qauv kev huv (stainless hlau Cheebtsam, txheej txheem tshwj xeeb).

6. Textile & Cov Khaub Ncaws Hluav Taws Xob
Tsiv cov ntaub thiab cov khoom siv hnyav.

Txhawb cov kab ntau lawm tsis muaj nyob hauv pem teb chaw.

7. Kev tu thiab kho kev cob qhia
Pab txhawb nqa kev siv cov tshuab hnyav lossis cuab yeej.

Siv rau hauv cov nkoj nkoj, cov khw tsheb kho lub tsheb, thiab cov chaw kho tshuab.

8. Lub teeb Kev tsim kho & Fabrication
Pab nyob rau hauv cov qauv steel tsiv steel, cov cuab yeej, thiab khoom siv.

Pab ua kom meej txoj kev muab tso rau thaum cov ntaub thaiv npog.



1. Yuav Tsum Tso & Tsim Tsim
Sau cov neeg xav tau: nqa lub peev xwm, luv, ua haujlwm ib puag ncig, tswj hom, thiab lwm yam.

Qauv Tsim Kho Mob:

Cov qauv tsim ntawm lub ntsiab nqaj (GIRDER), kawg cov ntoo.

Xaiv thiab kev sib koom ua ke.

Neeg kho tshuab thiab hluav taws xob tsim.

Ua cov kev ntxhov siab thiab cov tshev kev nyab xeeb.

Npaj cov duab kos (CAD \/ 3D qauv).

2. Cov Khoom Siv Pauv
Tau qhov twg los zoo ntov hlau daim hlau, profiles, thiab cov khoom siv kho tshuab.

Xaiv cov motors, brakes, txwv cov khoom siv hluav taws xob, txwv kev hloov pauv, thiab tswj cov khoom siv.

Txheeb xyuas cov ntawv pov thawj thiab cov qauv zoo rau cov khoom siv.

3. Fabrication ntawm Cheebtsam
Kev Txiav & Duab: Siv CNC txiav machine, Plasma Cutters, lossis shearing rau cov phiaj hlau.

Vuam: Weld lub loj Girder, kawg Flarriaes, thiab txhawb cov thav ntawv tom qab cov txheej txheem nruj.

Machining: Lub log rooj zaum, gearboxes, thiab lwm yam precision seem.

Cov kev kho deg: Tshem cov burrs thiab xeb; Siv tshuaj tiv thaiv corrosion (sandblasting, priming).

4. Sib dhos ntawm cov khoom siv kho tshuab
Sau ua ke cov log, kawg cov tsheb ciav hlau, thiab trolley ntas.

Install hoist thiab thawv rau ntawm GIRDER.

Haum lub cev muaj zog, ua rau tus nres, thiab nres.

Nruab qhov chaw khawb thiab cov khoom siv kev nyab xeeb.

5. Hluav taws xob system installation
Hlau Motors, Tswj Panels, thiab Tswb Tshuab.

Mount pendant tswj lossis wireless tau txais.

Txuas cov khoom siv hluav taws xob thiab tswj cov voj voog.

Kuaj Hluav Taws Xob Rwb Thaiv Tsev thiab kev txuas ntxiv.

6. Painting thiab xov
Thov nthuav dav.

Ua kom tiav nrog cov xim muaj cov xim ruaj khov (feem ntau ci xim rau pom).

Qhuav thiab kho cov xim pleev xim raws li cov specifications.

7. Kuaj thiab Kev Soj Ntsuam Zoo
Kev thauj khoom: sim lifting peev nrog kev ntsuas tes taw hnyav (feem ntau 125% ntawm rated load).

Ua haujlwm ntsuas: Choj hoist, trolley, thiab crane mus ncig ua si.

Cov tshev kev nyab xeeb: Tshawb xyuas cov haujlwm txwv tsis pub dhau, Tswb, Brakes, thiab nres nres tsheb thaum muaj xwm ceev.

Kev tshuaj ntsuam seem: Pom zoo ua raws li cov qauv tsim qauv.

8. Cov khoom lag luam thiab xa khoom
Tiv thaiv cov crane nrog cov khoom ntim ntim.

Npaj thauj mus los (thawv lossis tsheb thauj khoom).

Muab cov phau ntawv qhia ua haujlwm.

9. Txhim kho thiab commissioning (xaiv tau, feem ntau ua tiav ntawm-site)
Saib xyuas lossis ua cov crane installation ntawm cov neeg siv khoom.

Kev coj ua kev kuaj tawm thiab kho kom haum.

Qhia cov neeg siv khoom lag luam ntawm kev ua haujlwm tau zoo thiab txij nkawm.

Rhiav Saib:

Lub tuam txhab tau teeb tsa cov khoom siv tswj hwm kev txawj ntse platform, thiab tau teeb tsa 310 teev (teeb tsa) ntawm kev tuav thiab vuam hlau. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teev (teeb tsa), thiab cov khoom siv sib txuas lus yuav ncav cuag 95%. 32 VUAM txoj kab tau muab tso rau hauv kev siv, 50 tau npaj yuav tsum tau nruab, thiab kev siv lub tshuab ntawm cov kab ntawv tag nrho tau mus txog 85%.
