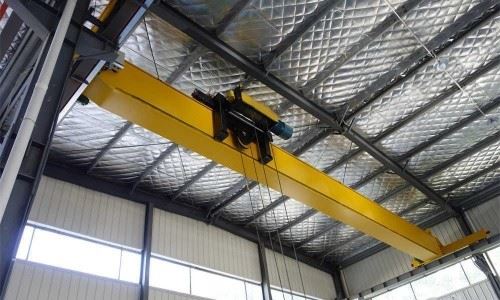

Ib Leeg Girder Hom Tshuaj Tshiab Nyiaj Siv Ua Haujlwm Crane

Cov Cheebtsam Tseem Ceeb: Gearbox, Tsav, Iav

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 1 xyoos

Qhov hnyav (kg): 10000 kg

Video tawm-soj ntsuam: muab

Kev Ntsuas Cov Lus Qhia: muab

Muag Chav Nyob: Ib Yam Khoom

Ib pob loj: 600x300x300 cm

Ib qho nyhav tag nrho: 200. 000 kg







1.Main Beam

Cov duab thiab cov khoom siv:

Lub ntsiab nqaj yog feem ntau ua los ntawm high-zog steel, kom muaj zog nws tuaj yeem ris cov thauj khoom thiab ua kom muaj kev ntxhov siab ntawm kev nqa khoom thiab txav cov khoom hnyav.

Cov duab ntawm lub ntsiab nqaj yuav txawv, tab sis nws feem ntau yog I-nqaj, lub thawv nqaj, lossis truss tsim. Qhov kev xaiv yog nyob ntawm yam zoo li Crane nrhiav lub peev xwm, ntev, thiab ib puag ncig cov xwm txheej.

I-nqaj: feem ntau siv rau lub teeb mus rau nruab nrab cov ntawv thov.

Lub thawv Beam: muaj ntau dua rigidity thiab lub zog, feem ntau siv rau cov peev xwm siab lossis cranes nrog cov vans ntev dua.

Truss nqaj: ib qho qauv ntau dua, muab ib lub teeb yuag tseem tab tom muaj cov tshuaj cranes loj cranes.



2.Lifting system

Cov hom kev nqa cov tshuab rau tib girder cranes
1) Fais Hlau Hlab Hoist System

Hom Hom: Qhov system no siv cov hlua xov hlau mob nyob ib ncig ntawm lub nruas kom nqa thiab qis zog.

Muaj peev xwm nqa tau: Feem ntau siv rau cov haujlwm nqa hluav taws xob hnyav (txog li 20 tons lossis ntau dua).

Cov ntawv thov: Haum rau cov chaw muaj kev lag luam uas muaj kev kub siab, muaj peev xwm txav, thiab ntev ntev.

2) Hluav Taws Xob Cov Pob Tawb Hoist System

Dhawb hom: siv cov saw hlau thiab sprocketchism los nqa cov khoom thauj khoom.

Lifting muaj peev xwm: haum rau kev ua haujlwm Lifting (feem ntau txog li 10 tons).

Cov ntawv thov: zoo tagnrho rau kev ua haujlwm me me, cov tsev muag khoom, thiab cov chaw nrog txwv qhov siab.

Pitectlub laub

Qhov kawg Carrder ntawm cov Girder Hom Tshuaj Tshiab Nyiaj Siv Ua Haujlwm Tshiab Ua Haujlwm Crane yog ib qho tseem ceeb uas txhawb nqa nws txoj kev txav mus los ntawm cov teeb liab. Nws yog tsim los nqa qhov hnyav ntawm lub crane, suav nrog lub loj girder, hoist, thiab trolley, thaum ua kom muaj kev mus ncig ntawm txoj kev tsheb ciav hlau.



4.Crary Traveling Mechanism

Lub Crane Mus Ncig Kho Tshuab Ntawm Ib Girder Hom Tshuaj Tshiab Nyiaj Siv Ua Haujlwm Tshiab Ua Haujlwm Crane yog lub luag haujlwm rau kev tso txoj kev khiav rov qab. Cov txheej txheem no tso cai rau crane los npog thaj chaw loj, muab txoj kev nqa lossis cov khoom ntim qis ntawm cov ntsiab lus sib txawv raws tus lej crane. Nws plays lub luag haujlwm tseem ceeb hauv kev ua kom cov crane ua haujlwm kom yooj yim, ua tau zoo, thiab muaj kev nyab xeeb thoob plaws hauv kev khiav tawm.

5.trolley Travelling Mechanism

Lub Trolley Mus ncig ua si tshuab ntawm ib girder hom tshiab siv nyiaj Crane yog ib qho tseem ceeb ntawm gobder, cia nws ua kom nws mus rau txoj hauj lwm ruaj hla tus kheej ntev. Lub Trolley tau teeb tsa ntawm Girder loj thiab yog tsim kom txav rov qab nrog Crane lub ntsiab kev mus ncig ua haujlwm, kom muab tag nrho cov haujlwm ntawm lub crane.

6.Crane log

1) Log Khoom
Hlau lossis Alloy Steel: lub log crane ua los ntawm cov hlau zoo lossis cov hlau ua kom hnyav, hnav, thiab muab cov sijhawm ntev. Cov ntaub ntawv no muaj lub zog siab thiab hardness, ua rau lawv haum rau cov chaw muaj kev lag luam uas muaj hnyav nqa thiab txuas ntxiv mus.

Kev kho cua sov: qee lub log crane yog cov cua sov-kho kom txhim kho lawv cov hardness thiab tsis kam hnav thiab hnav. Qhov kev kho mob no txhim kho lub log muaj peev xwm los tuav cov khoom hnyav thiab txo cov kev saib xyuas ntawm kev saib xyuas.

2) Log Tsim
Grooved: Ntau lub log crane muaj cov ntxaij uas muaj qhov sib xyaw ua ke uas haum rau hauv cov ciav hlau ntawm cov kev tso dej. Tus qauv no pab kom muaj kev ua kom nruj thiab du ntawm lub crane.

Cov log log: qee cov Crane suav siv cov log tiaj, qhov twg cov log ncaj qha rau cov kab nrig tiaj ntawm cov khiav. Cov qauv tsim no feem ntau siv nyob rau hauv cranes nrog qis nrawm nrawm lossis sib zog.

Log txoj kab uas hla: txoj kab uas hla ntawm lub log crane yog nyob ntawm qhov loj thiab qhov hnyav ntawm lub crane. Cov log loj feem ntau yuav tsum tau rau cranes uas kov cov khoom hnyav lossis yuav tsum tau mus ntev dua.

7.CraCane Hook

Tus nuv ntawm ib g girder hom tshiab siv nyiaj ua ntej CRANE yog ib qho tseem ceeb hauv kev nqa cov kab ke. Nws ua haujlwm raws li qhov uas loads tau txuas nrog thiab nqa los ntawm crane. Tus nuv yuav tsum muaj zog, ruaj, thiab tsim los ntsuas qhov hnyav hnyav thaum tswj kev nyab xeeb thiab ua haujlwm. Cia peb ntsaub mus rau hauv cov yam ntxwv tseem ceeb thiab kev ua haujlwm ntawm tus nuv nyob rau hauv cov kab ke no.

8.Moor

Lub cev muaj zog hauv ib girder hom tshiab overhead crane plays ib qho tseem ceeb hauv kev tsav tsheb crane cov tshuab ntau heev, trolley, thiab CRANE taug kev tshuab. Nws muab lub zog tsim nyog rau kev nqa khoom thauj, txav lub trolley, thiab ua kom lub crane los hla nws txoj kev yuav taug kev. Cia peb tshawb nrhiav cov Cheebtsam, hom, thiab cov haujlwm ntawm lub cev muaj zog crane muaj zog hauv cov ntsiab lus ntau ntxiv.

.

9.sound thiab Lub Teeb Lub Tswb System & txwv hloov

Lub suab thiab lub teeb tswb system & txwv hloov mus rau ib tus girder hom kev nyab xeeb tshiab uas tau tiv thaiv kev nyab xeeb rau kev nyab xeeb thiab kev coj ua lub sijhawm nqa thiab taug kev mus ncig ua haujlwm. Ntawm no yog kev sib tawg ntawm lawv cov haujlwm thiab qhov tseem ceeb:
1) suab thiab lub teeb tswb system
Ua Haujlwm:
Lub kaw lus no muab audible (suab) thiab pom) ceeb toom rau cov paib kev txav lossis kev ua haujlwm tsis zoo. Nws kom ntseeg tau tias cov neeg nyob hauv ib puag ncig yog paub txog crane kev ua, pab kom tsis txhob muaj kev sib tsoo thiab raug mob.
2) Txwv Tsis Pub Hloov
Ua Haujlwm:
Txwv cov pob zeb hloov chaw yog cov khoom siv kev nyab xeeb uas tiv thaiv kev sib tsoo lossis tswj cov lus tsa suab ntawm lub crane, trolley, lossis hoist ntawm cov ntsiab lus tseem ceeb.

10.safety cov khoom siv

1) Txwv tsis pub hloov chaw
Lifting txwv hloov chaw: Tiv thaiv tus nuv ntawm over-hoisting lossis dhau-qis dua.

Mus ncig txwv txwv hloov: nres crane los yog trolley los ntawm kev sib tsoo nrog qhov kawg ntawm cov buffers lossis derailment.

2) kev tiv thaiv ntau dua
Kuaj seb lub chaw nqa khoom tau tshaj lub peev txheej crane lub peev xwm.

Cia li nres hoisting lossis ua rau lub tswb ceeb toom kom tiv thaiv kev ua tsis tiav.

3) Lub pob Nres Ceev Xwm Ceev
Nyob rau ntawm Pendant, chaw taws teeb tswj, lossis tswj vaj huam sib luag.

Tam sim ntawd kaw tag nrho cov kev ua haujlwm crane thaum muaj xwm txheej ceev.

4) suab thiab lub teeb tswb system
Emits audible thiab pom cov lus ceeb toom thaum lub sijhawm crane ploj lossis hauv cov xwm txheej txaus ntshai.

Kev ceeb toom nyob ze cov neeg ua haujlwm kom nyob hauv thaj chaw ua haujlwm.

5) tiv thaiv cov khoom siv hluav taws xob
Ntsia rau ntawm lub laub kawg los tiv thaiv cov crane los ntawm derailing thaum mus ncig ua si.

6) Kev tiv thaiv tshaj plaws (lub cev muaj zog thiab hluav taws xob)
Tiv thaiv kev puas tsuaj vim lub cev muaj zog ntau dhau los yog hluav taws xob ntau dhau.

Kaw lub crane thaum overheating yog kuaj pom.



11.Control hom

1) Pendant Tswj (Wired Maub Los)
Cov lus piav qhia: tus tuav tes tswj cov cuab yeej lub cev txuas nrog crane ntawm ib qho cable.

Nta:

Xws li cov nyees khawm rau nce \/ nqis, sab laug \/ sab xis, rau pem hauv ntej \/ rov qab los, thiab nres thaum muaj xwm ceev.

Yooj yim siv thiab raug nqi.

Qhov zoo tshaj plaws rau: luv luv-spinn cranes thiab cov haujlwm yooj yim uas tus neeg teb xov tooj nyob ze.

2) wireless chaw taws teeb
Cov lus piav qhia: lub xov tooj cua-zaus cov chaw taws teeb pom kev tso cai rau tus neeg teb xov tooj los tswj lub crane los ntawm kev deb.

Nta:

Txhim kho kom muaj kev nyab xeeb los ntawm kev tso cai rau cov neeg ua haujlwm sawv ntawm lub nra.

Lub teeb yuag, portable, thiab yooj yim siv.

Dual transmitters yuav muab teeb tsa rau thaub qab.

Qhov zoo tshaj plaws rau: ib puag ncig muaj cov teeb meem, loj cranes loj cranes, lossis thaum cov nyiaj siv overhead yog xav tau.

3) CARIN tswj (tsawg kawg rau tib Girder)
Cov lus piav qhia: ib qho uas xa nrog cov neeg tsav tsheb zaum thiab ua haujlwm ntawm kev tswj hwm.

Nta:

Muab kev tag nrho pom thiab tswj rau cranes loj.

Tsis nquag siv nyob rau hauv ib leeg girder cranes vim muaj kev txwv loj.

Qhov zoo tshaj plaws rau: hnyav-dej num lossis cov ntawv thov tshwj xeeb (feem ntau yog siv ntawm ob tus girder cranes).

4) Tsis siv neeg lossis ib nrab rho nyiaj (yeem)
Cov lus piav qhia: Plc-raws lossis software-tswj cov kab ke rau cov haujlwm rho nyiaj.

Nta:

Txhawb txoj kev ua preset preset, ceev tswj, lossis synchronized cov haujlwm.

Pab tau rau cov kab ntau lawm lossis cov khoom siv wareonic.

Qhov zoo tshaj plaws rau: Advanced lossis rov ua haujlwm rov ua haujlwm xav tau kev ua haujlwm siab thiab meej.

Daim duab kos



Cov Tshuab Tseem Ceeb





1. Nqi siv
Txo kev tsim khoom, kev teeb tsa, thiab cov nqi txij nkawm piv rau ob chav girder cranes.

Tsawg cov khoom sib xyaw thiab cov qauv sib zog txo qhov peev txheej ntawm cov peev txheej.

2. Kev Tsim Hluav Taws Xob thiab Cov Khaub Ncaws Me
Yuav tsum muaj lub taub hau tsawg dua thiab qhov chaw, zoo tagnrho rau cov chaw nrog txwv qhov siab.

Yooj yim rau kev sib xyaw rau hauv cov tuam tsev uas twb muaj lawm lossis kev cob qhia.

3. Qhov yooj yim installation
Lub Rooj Sib Tham sai thiab yooj yim raws li txoj cai ncaj.

Txo lub sijhawm ua hauj lwm thiab downtime thaum teeb tsa.

4. Tsawg kawg tuag phaus=luas tau load ntawm cov qauv kev sib tw
Minimizes lub nra hloov mus rau tus qauv tsim tsev lossis Gantry kev txhawb nqa.

Tso cai rau cov kab teeb sib zog thiab cov kab yug txhawb nqa.

5. Cov haujlwm ua haujlwm tau zoo
Haum rau ntau yam kev tswj hwm dav dav.

Tuaj yeem nruab nrog kev tswj siab xws li kev ua haujlwm tej thaj chaw deb thiab VFD (sib txawv zaus tsav) rau kev du, ua kom haum.

6. Yooj yim ntawm kev saib xyuas
Tsawg dua txav chaw thiab yooj yim cov khoom siv cov khoom ua haujlwm ua kom yooj yim dua kev kuaj thiab kev pabcuam.

Cheebtsam tau txais yuav pab txo crane downtime thaum txij nkawm.

7. Mekas Kev Xaiv
Tau tshaj nrog ntau hom hoist hom, tswj cov tshuab, thiab cov khoom siv uas xaiv tau (piv txwv, tiv thaiv sab nraud, txwv).

Haum tau rau kev lag luam tshwj xeeb xav tau xws li kev tsim khoom, logistics, lossis kho kho kom sov.



1. Kev Tsim Kho Kev Sib Tham
Thauj cov ntaub ntawv nyoos, ntu, thiab cov khoom tiav ntawm cov chaw ua haujlwm.

Qhov zoo tagnrho rau kev ua haujlwm hlau, tshuab ua ke, hluav taws xob, thiab lub teeb ntawm fab.

2. Cov Chaw Ua Si & Chaw Nres Tsheb
Chaw thau khoom thiab unloading pallets, ntim, thiab ntim khoom.

Kev loj hlob sab hauv sab hauv hauv cov chaw cia nrog cov chaw cia siab.

3. Txij Nkawm thiab Kho Cov Khw
Lifting tshuab, tshuab qhov chaw, lossis cov cuab yeej hnyav thaum ua haujlwm pabcuam thiab kho cov haujlwm.

Compact loj tso cai rau siv nyob rau hauv kev kaw chaw.

4. Hlau & Hlau Ua
Tuav hlau daim hlau, coils, profiles, thiab cov qauv txheej txheem.

Feem ntau siv nrog cov hlau nplaum nqa lossis clamps rau kev nyab xeeb.

5. Kev lag luam Automotive
Tsiv qhov chaw tsheb thiab kev sib tham submies rau thaum lub sijhawm ntau lawm lossis txij nkawm.

Siv hauv cov nroj tsuag cav, cov kab sib dhos, thiab kho cov pob.

6. Khoom Siv Hluav Taws Xob
Txij Nkawm thiab kev teeb tsa cov tshuab raj ntawm cov, twj, thiab lwm cov khoom siv hnyav.

Muab cov kev qhia meej thiab kev tuav txoj kev nyab xeeb hauv kev ua haujlwm tseem ceeb.

7. Ntawv, Textile, thiab Kev Lag Luam Khoom Noj
Nqa cov cuab yeej siv, cov ntaub ntawv raw, lossis yob loj (ntawv \/ textile).

Xyaum ntxuav, muaj txiaj ntsig, thiab cov khoom puas-pub dawb tuav.

8. Cov khw muag khoom me me thiab cov khw muag khoom Fabrication
Txog kev ua kom rov qab ua haujlwm, cov pwm tuav, lossis ib feem hloov hauv cov chaw ib puag ncig.

Feem ntau siv nrog cov hlua hlau lossis hluav taws xob tshuab hoist.



1. Cov qauv tsim & engineering
Yuav tsum tau tsom xam cov: Paub meej lifting lub peev xwm, ncua, lifting qhov siab, tswj hom, thiab lwm yam.

3D CAD Tsim & Kev Xam Txheej Txheem Txheej Txheem: Ua kom cov neeg kho mob muaj zog, kev faib khoom, piv txwv li poj niam, ISO, GB).

Kev pom zoo ntawm kev kos duab: Xa rau cov neeg siv lossis pab pawg zoo rau kev pom zoo ua ntej tsim.

2. Cov Khoom Siv Khoom Ua Si
Cov Khoom Siv Barcelona Main: Feem ntau muaj zog Q235B \/ Q345B txheej txheem hlau.

Cov Qauv Qauv: Cov Motors, Cov Log, Brakes, Hluav Taws Xob Hluav Taws Xob, thiab lwm yam, los ntawm cov chaw muag khoom pom zoo.

Hoist system: hluav taws xob hlau hlua hoist los yog cov saw hoistored.

3. Cov Qauv Hlau Fabrication
Kev Txiav & Kev Kho Mob Npaj Ua Ntej: Laser \/ Ntshav Txiav ntawm daim hlau, Nto Rust Tshem Tawm.

Nquas sib dhos ua ke & Vuam: Flange thiab phab ntsa welded los ua lub girder loj.

Kawg carrchrication: welded lossis bolted qauv rau crane crane txav.

Vuam tshuaj xyuas: tsis yog-kev sim ua kev puas tsuaj (UT \/ MT) ntawm cov khoom cuav.

4. Nto Kho
Sandblasting: Tshem tawm cov nplai thiab impurities, txhim kho adchesion.

Primer & Xim Txheej: anti-xeb primer thiab Industrial-qib Topcoat thov (feem ntau 2-3 txheej).

Xim Colouring: Raws li cov neeg siv khoom tshwj xeeb lossis cov qauv kev nyab xeeb.

5. Neeg kho tshuab sib dhos
Xaus Flriaes: mounting log, bearings, buffers, thiab txuas cov khoom siv txuas.

Trolley & Hoff koom kev sib koom ua: teeb tsa ntawm lub neej tshuab, nruas, nuv, reducer.

Crane log & Axles: precision install nrog kev ua kom tsim nyog.

6. Hluav Taws Xob Hluav Taws Xob
Kev siv hluav taws xob & cable kev coj: sab hauv kev tswj hwm txee, Hoist, thiab Trolley.

Tswj Panels: mounting txwv hloov hloov, cov neeg ua kom tau, invererers, thiab cov khoom siv tiv thaiv.

Pendant lossis chaw deb system: Raws li tus neeg yuav tsum tau ua.

7. Kev kuaj ua ntej
Tsis muaj-thauj Kev Ntsuas: Kev tshem tawm hauv txhua cov lus qhia, nres ua haujlwm, ntsuas kev ntsuas.

Kev ntsuas ntsuas: Kev sim ntsuas kev thauj khoom siv uas siv qhov hnyav (feem ntau 125% ntawm rated load).

Kev Nyab Xeeb Ntaus Ntawv Tshawb Xyuas: Khij cov kev ntsuas hloov chaw, Alarms, thiab cov haujlwm nres tsheb thaum muaj xwm txheej ceev.

8. Thaum Kawg Kev Soj Ntsuam & Kev Tswj Xyuas Zoo
Kev Ntsuam Xyuas Sab Nraud: lees paub lus ntev, qhov siab, thiab sib xyaw ua ke.

Painting xyuas: Xyuas kom meej tag nrho cov kev pab them thiab tuab.

Cov ntaub ntawv tshuaj xyuas: cov ntaub ntawv cov tswv yim, phau ntawv qhia xeem.

9. Cov Khaub Ncaws & Xa Tawm
Cov khoom siv ntim: Electrials ntim rau hauv cov tsiaj ntoo; Beams thiab steel qauv hauv yas qhwv lossis tarpaulin.

Labelling & Cim: xyuas kom meej txog kev txheeb xyuas qhov tseeb thiab kev teeb tsa yooj yim rau ntawm qhov chaw.

Thauj khoom thauj: thauj khoom thiab cov khoom siv ruaj ntseg hauv cov thawv ntim khoom lossis cov tsheb sib dhos.
