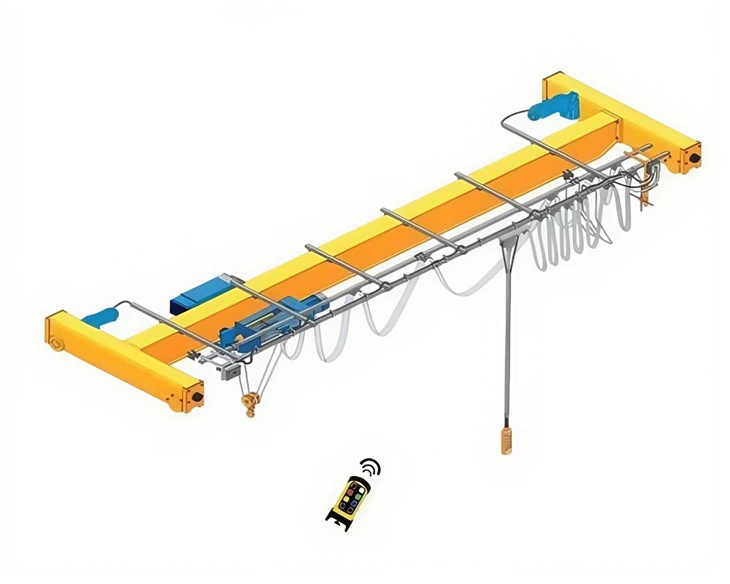

25M SPAN OVENEAD CRANE

Kev tsim qauv kev teeb tsa kev txiav txim siab
Hom Girder:
Lub thawv girder (sib xws rau cov khoom siv hnyav).
I-Beam Girder (cov khoom siv sib zog dua, tus nqi txuag).
Cov qauv txhawb nqa:
Rail-mounted rau precision txav.
Roj Hmab Loj (RTG) rau qhov tseem ceeb.
Finite elite tsom xam (fea):
Siv los ua kom zoo tshaj plaws kev faib tawm hauv 20m spans



Cov ntsiab lus tseem ceeb rau 20m spin cranes

Chaw ua uas tsis tau haus	Ib Leeg-Girder	Ob-Girder
Max. Yam ris	Tsawg dua los yog sib npaug rau 20 tons	Mus txog 800+ tons
Lifting qhov siab	3–16m	16–28m
Lifting ceev	0. 7-8 m \/ min	Kho tau (VFD)
Txoj Kev Tswj Xyuas	Pendant \/ chaw taws teeb	Alarm \/ chaw deb
Lub Luag Haujlwm Chav Kawm	A3–A5	A6-A8 (Hnyav-Luag Haujlwm



• Muaj peev xwm: {5-800} \/ 50 tuj
• SPAN ntev: 4-35 m
• Lifting qhov siab: 3-50 m
• Ua Haujlwm: A4, A5, A6, A7
• Siv voltage: 220V ~ 690v, 50-60 hz, 3 pd
• Kev ua haujlwm ib puag ncig: {-25 degree -+50 degree, txheeb ze cov av noo tsawg dua lossis sib npaug rau 85%
• Crane Control hom: Hauv av tswj \/ chaw taws teeb tswj \/ Alarm



Cheebtsam ntawm 20m SPAN OVENEAD CRANE
Ib qho 20m spance overhead crane muaj ntau yam kev sib xyaw ua kom muaj kev nyab xeeb thiab ua haujlwm tau zoo. Hauv qab no yog cov ncauj lus kom ntxaws tawg ntawm nws qhov tseem ceeb, nrog rau lawv cov haujlwm thiab kev siv kev lag luam.

1. Choj \/ Girder (cov qauv hluav taws xob tseem ceeb)
Muaj nuj nqi: txhawb cov trolley thiab ho txhawb, ncua sijhawm 20m chaw ua haujlwm.
Hom:
Ib Leeg-Girder: Cov nra hnyav (txog ~ 20 tons), raug nqi.
Ob-Girder: Hnyav-Luag Haujlwm (txog rau 500+ tons), loj dua.
Cov Khoom Siv: Cov Khoom Siv Loj lossis Aluminium (rau Corrosion tsis kam nyob rau hauv ib puag ncig hnyav).





2. Trolley & Hoist sib dhos
Trolley: Tsoos Ua Ntej Raws Girder, nqa cov hoist.
Tuaj yeem yog phau ntawv lossis tsav-uas tsav.
Hoist: lub litrting tshuab (hluav taws xob saw lossis cov hlua xaim).
Qhib Winch: Siv rau cov ntawv thov hnyav-(piv txwv li 250-500 tons).
Kev tswj kev sib xyaw: kho tau nrawm rau kev nplig cov kev tuav tuav.



3. End Trucks & Redway System
Kawg cov tsheb thauj khoom: wheeled sib dhos ntawm txhua qhov kawg ntawm Girder.
Sab saum toj-khiav: txav ntawm cov ntsia hlau ntsia rau ntawm cov teeb liab.
Underhung: Tshem tawm los ntawm cov qauv qab nthab (rau cov hau qis).
Cov Rails Rails: Qhia cov crane lub zog (tus qauv lossis nkhaus rau cov kev tshwj xeeb).



4. Tsav tsheb
Mus ncig ua si Motors: Lub Hwj chim Ntev Ntev Zog Los Ntawm Kev Tawm.
Gearboxes & Tus Brakes: Ua kom cov kev ua kom du \/ deceleration.
Hom Parmored zaus tsav (VFDs): Pab kom meej ceev tswj kev tswj.





5. Tswj System
Pendant Tswj: Handheld cov chaw taws teeb rau cov neeg teb xov tooj kev nyab xeeb.
Xov Tooj Cua Chaw Taws Teeb \/ Wireless: Kev ua haujlwm hloov tau yooj yim hauv cov chaw loj.
Cov Kev Xaiv Automation: Cov Concompor Cov Kev Tswj Xyuas Cov Ntaub Ntawv (PLCS) rau Ntse Warehousing.

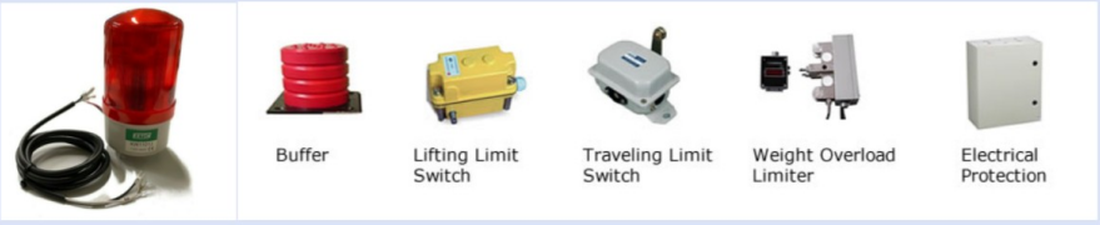

6. Cov kev nyab xeeb
Txwv kev hloov chaw: Tiv thaiv kev hla kev ntawm trolley lossis choj.
Kev tiv thaiv ntau dhau: sensors halt ua haujlwm yog tias muaj peev xwm tshaj.
Anti-sib tsoo tshuab: Qhov tseem ceeb rau ntau cov Crane teeb.



7. Hluav Taws Xob & Khoom Siv Hluav Taws Xob
Festoon Systems \/ Cable reels: tswj lub zog thiab teeb liab cables.
BUSBARS: Xa cov hwj chim tsis txaus ntseeg hauv kev ua haujlwm siab.

8. Kev xaiv txuas
Hlau hlau nplaum \/ Lub Tsev nqus tsev, rau cov nplooj ntawv hlau los yog tsis muaj zog.
Tus kab xoo ci ntsa iab: Thawv tuav hauv cov chaw nres nkoj.
Uas Tshuab: REO-lub sijhawm thauj khoom.



Daim duab kos









Cov Ntsiab Lus Tseem Ceeb:

Thaj chaw tiv thaiv loj

Lub 20m ncua no muab cov kev pab cuam ntau, zoo tagnrho rau wiverspaces dav zoo li cov chaw ua haujlwm, chaw khaws khoom, thiab cov nkoj nkoj

Tshem tawm xav tau rau ntau cranes hauv cov chaw loj

Lub peev hnyav hnyav

Ob Chav Girder version tuaj yeem lis mus rau 500+ tons

Ib Leeg Girder qauv haum rau 1-20 tuj tak loads

Kev tsim kho kom ruaj khov kom ruaj khov thaum lub sijhawm hnyav

Chaw Zoo

Clears pem teb chaw los ntawm kev ua haujlwm ua haujlwm

Underhung version maximize ntsug chaw hauv cov chaw tsis muaj peev xwm

Precision tuav

Kuj tsis paub meej cov tsav tsheb siv zog kom ceev nrawm \/ deceleration

Cov kev xaiv zoo ntawm kev tswj xyuas kom zoo nkauj

Customizable kev teeb tsa

Muaj nyob rau hauv sab saum toj-khiav lossis underhung tsim

Cov kev xaiv rau kev tawg-ntawv pov thawj, qhov siab-kub, lossis corrosion-resistant qauv

Tus Nqi Muaj Zog

Txo cov nqi qis dua piv rau ntau cov cranes me me

Txo cov haujlwm ua haujlwm rau cov khoom siv tuav





Thawj cov ntawv thov:

1. Hnyav Raug Raug

Automotive Nroj Tsuag: Tsiv Tsav Nkoj Chassis Thiab Cov Khoom Loj Loj

STEEL MILLS: Kev Tuav Coils, Daim Hlau, Thiab Cov Qauv Txheej Txheem

Machinery lawm: Muab tso rau cov khoom siv hnyav

2. Logistics & Warehousing

Cov Chaw Tshaj Tawm Loj: Pallet thiab Thawv Tuav

Chaw nres nkoj Cov Chaw: Thawv Stacking thiab txav (Siv RTG Variants)

3. Kev tsim kho & infrastructure

Precast Qhob Nroj Nroj Tsuag: Tsiv Loj Ua Vaj Tse

Choj tsim kev tsim: txoj haujlwm ua ke

4. Lub zog hluav taws xob

Fais fab nroj tsuag: Turbine thiab kev tu hluav taws xob

Hnub No Dua Zog: Cua Turbine Cheebtsam Kev Tswj

5. Txhaum Cai & Kho

Qhuav Docks: Tsiv nkoj cov ntu thiab cov khoom hnyav

Cov Cheeb Tsam Los Ua Si: Muab tso rau cov ntu loj loj

6. AERPACACE kev lag luam

Lub Koom Haum Hlau Ua Si: Tsiv Fusel Tshooj thiab Tis

Kev tu lub cav: Kev tuav cov tshuab hnyav



Cov Kev Siv Tshwj Xeeb:

Poundries:Tshwj Xeeb Kub-Kub Qauv rau Molten Hlau

Tsuas:Hnyav-cov haujlwm zoo rau cov khoom siv ua haujlwm

Lub chaw nuclear:Hluav taws xob-resistant tsim rau cov chaw muaj





1. Tsim & Engineering
Yuav tsum tau tsom xam cov tshuaj tiv thaiv: txiav txim siab load muaj peev xwm, ncua, rub qhov siab, thiab ib puag ncig ua haujlwm.

Cad qauv: Tsim 3D tsim thiab cov qauv tsim qauv (tsom xam kev nyuaj siab, deflection, thiab lwm yam).

Xaiv cov khoom siv: Xaiv cov khoom siv caming (feem ntau nrum hlau lossis hlau nplaum) rau cov tsiaj tseem ceeb, cov neeg ua haujlwm kawg, thiab hooks.

Kev cai tswjfwm kev ua raws: kom ntseeg tau tias tsim qauv raws cov qauv (ISO, DIN, pojniam, lossis ASME).

2. Qauv Ua & Pwm Npaj
Qauv Tsim: ntoo lossis hlau qauv yog tsim rau cas rau casting cov pwm.

Sandber npaj:

Siv cov ntawv cog xuab zeb lossis cov xuab zeb ntsuab rau cov khoom noj kab noj hniav.

Cores (rau cov ntu hollow) tau npaj cais.

3. Cov txheej txheem ua cas
Melting & Pouringing:

Hlau (piv txwv li, cov hlau steel, alloy hlau) tau melted nyob rau hauv lub cub tawg.

Molten hlau tau nchuav rau hauv cov pwm nyob rau hauv kev tswj hwm.

Txias & solidification: cia lub caming kom txias maj mam kom tsis txhob muaj kev tsis xws luag.

Shakout & ntxuav: tshem tawm cov xuab zeb, thiab ntxuav cov voos khaub ncaws (kev txhaj tshuaj blasting, sib tsoo).

4. Machining & Xov
Kev ntxhib machining: tshem tawm cov khoom siv ntau dhau (rooj voom, risers).

Precision Machining: CNC Machining rau qhov tseem ceeb ntev (cov kabmob cov kabmob, ntsia liaj qhov rooj).

Cov kev kho deg: Painting, GALVANIZING, lossis cov tshuaj tiv thaiv corrosion.

5. Fabrication ntawm Choj Girder & Xaus Cov Vev Xaib
Vuam \/ Sib Dhos:

Fabricate box girders lossis i-nqaj (yog hybrid tsim).

Weld \/ Bolt kawg Fladryges (nrog log rau kev txav).

Kev Tshawb Fawb Kub Kub Kub Kub (yog tias xav tau) los txo cov kev ntxhov siab uas muaj kev ntxhov siab.

6. Sib dhos ntawm Crane Cheebtsam
Hoist & Trolley Txhim Kho: Mount Hluav Taws Xob Hoist los Hlau Hlaws.

Rail & Rase SETUP: Kev nruabts CANE txuas rau cov qauv kev txhawb nqa.

Kev sib xyaw ua ke hluav taws xob: Hlau Motors, tswj hwm, txwv qhov chaw khawb av, thiab cov khoom siv nyab xeeb.

7. Kuaj & Tswjhwm Zoo
Kev tshuaj xyuas seem: xyuas kom paub tseeb rau ib qho kev tsim tawm.

Tsis yog-ua kev sim siab (NDT):

Ultrasonic, sib nqus partlele, lossis zas contetrant sim rau cov kab nrib pleb.

Kev Tshawb Xyuas:

Qhov ntsuas zoo li qub li qub: 125% ntawm lub peev xwm ntsuas.

Dynamic load Kev Xeem: 110% ntawm lub peev xwm ntsuas nrog kev txav.

Kev Ntsuas Ntsuas: Tshawb xyuas braking, nqa, thiab kev ua haujlwm taug kev.

8. Painting & Corrosion tiv thaiv
Thov phau ntawv qhia thiab corrosion-resistant xim.

Cov cim (peev xwm, muaj pes tsawg tus lej, lus ceeb toom) raws li tus qauv.

9. Ntim & Xa Tawm
Disassemble (yog tias xav tau) rau kev xa khoom.

Tiv thaiv cov khoom tseem ceeb hauv kev hloov pauv.

10. Txhim kho & commissioning (ntawm thaj chaw)
Rov ua dua rau cov neeg siv khoom.

Kev sib ncag zaum kawg thiab kev ntsuas hluav taws xob.

Tus neeg teb xov tooj kev cob qhia thiab twv.
