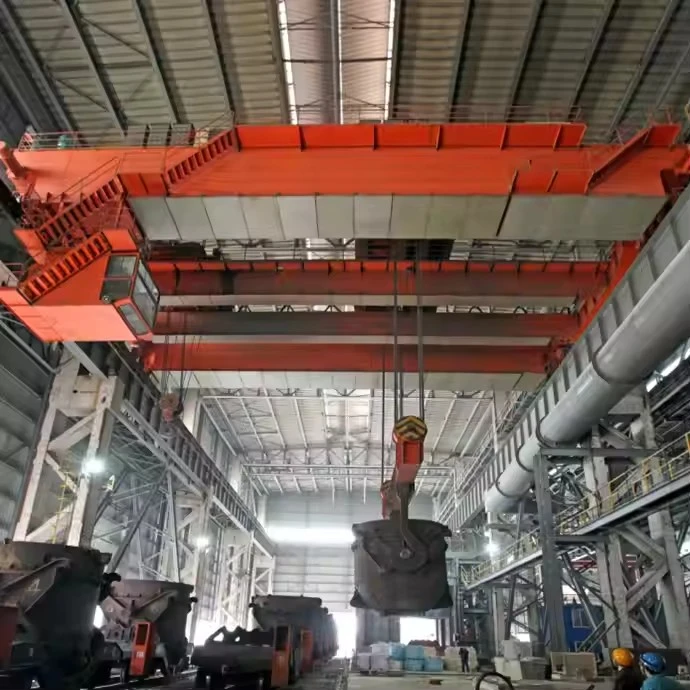

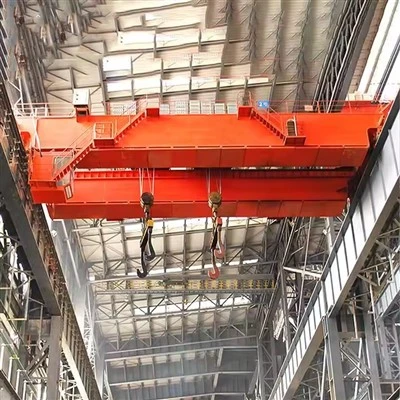

Qb tawg- pov thawj Ob Chav Girder Nyiaj Siv Ua Haujlwm Crane

Cov yam ntxwv tseem ceeb thiab tsim kev xav

Lub hauv paus ntsiab lus yogkev tiv thaiv ntawm ignition. Qhov no yog ua tiav los ntawm kev hloov kho lossis kaw tag nrho cov khoom uas tuaj yeem tsim muaj lub txim hluav taws xob, arc, lossis kub kub txaus ntshai.

Ob chav Girder Design:Muab cov txheej txheem lub zog xav tau rau cov peev txheej hnyav thiab qhov chaw rau cov khoom tiv thaiv hauv tsev.

Explosion-proof Construction:Txhua yam khoom siv hluav taws xob thiab khoom siv kho mob tshwj xeeb yog tsim los yog hloov kho kom tau raws li kev tawg nruj heev- cov qauv pov thawj.

Kev ntsuas qhov chaw muaj phom sij:Cov cranes no tau tsim los ua raws li cov qauv thoob ntiaj teb rau cov chaw tshwj xeeb uas muaj kev phom sij (qhib) xws li:

Chav Kawm I, Division 1 & 2:Ib puag ncig nrog cov pa taws los yog vapors (xws li cov nroj tsuag petrochemical, refineries).

Chav Kawm II, Division 1 & 2:Ib puag ncig nrog cov hmoov av combustible (xws li, nplej elevators, hmoov mills, thee tuav).

Chav Kawm III, Division 1 & 2:Ib puag ncig nrog ignitable fibers los yog ya (xws li, textile mills, woodshops).

Core Cheebtsam: Bearing, Gearbox, Tsav, Twj

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 1 Xyoo

Qhov hnyav (KG): 2000 kg

Video tawm -kev tshuaj xyuas: Muab

Machinery Test Report: Muab

Design: Ob chav beam

Efficiency: high efficiency

Kev khiav hauj lwm ceev: kev khiav hauj lwm ceev

Kev ruaj ntseg: Kev tiv thaiv - ua haujlwm viav vias

Xim: xaiv tau

Lub Zog: 110V / 220V / 230V / 380V / 440V, customized

Ntev: 7.5-31.5m

Qhov no yog ib qho tshwj xeeb crane uas txhua qhov ib feem tsim, hloov kho, los yog kaw nrog ib lub hom phiaj tseem ceeb: los tiv thaiv ignition nyob rau hauv ib puag ncig uas flammable gases, vapors, plua plav, los yog fibers.

Cov khoom tuaj yeem raug cais los ntawm lawv qhov kev tawg tseem ceeb - pov thawj kev hloov kho:

1. Cov Qauv & Mechanical Cheebtsam (Tsis yog-Kev hloov pauv)

Cov khoom siv no raug hloov kho kom tsis txhob muaj hluav taws xob los ntawm kev sib txhuam lossis kev cuam tshuam.

Lub Npe Lub Npe (2):Standard ob lub thawv girders. Txawm hais tias tsis muaj kev pheej hmoo hluav taws xob ncaj qha, lawv muab cov ncej muaj zog uas txhawb nqa tag nrho cov khoom tiv thaiv.

Hook & Hook Block:Ua los ntawm cov hlau uas tsis yog-tshuaj hlau xws li tooj liab, beryllium tooj liab, lossis txhuas-bronze alloys. Qhov no tiv thaiv sparks yog hais tias tus nuv yuam kev ntaus lwm yam khoom hlau.

Log (Trolley & Choj Ncig Tebchaws):

Kev xaiv 1:Log nrogtsis yog-sparking rims(piv txwv li, bronze rims) nias rau ntawm lub hub steel.

Kev xaiv 2:Tag nrho cov log ua los ntawm cov khoom tsis yog -twb.

Brake Systems:

Nres Discs / Nruas:Ua los ntawmtsis yog-cov hlau nplaum.

Nres Nres / Khau:Ua los ntawm cov khoom tshwj xeeb uas tsis yog{0}} cov ntaub ntawv sib txhuam.

Rails & Runway:Lub crane khiav ntawm tus qauv steel rails. Kev tiv thaiv lub txim yog ua haujlwm los ntawm crane lub log, tsis yog txoj kev khiav ruaj khov.

Anti-Static Hlau Rope:Lub hoist hlau hlua feem ntau kho los yog tsim los raudissipate hluav taws xob staticthiab tiv thaiv nws txoj kev tsim-, uas tuaj yeem tsim lub txim.

2. Cov Cheebtsam Hluav Taws Xob (Kev tawg-Cov ntaub ntawv pov thawj & Cov khoom pov thawj)

Qhov no yog qhov tseem ceeb ntawm QB crane tus tsim. Txhua yam khoom siv hluav taws xob raug cais tawm ntawm qhov chaw muaj kev phom sij.

Explosion-Cov ntaub ntawv pov thawj:

Tsev nyob:Tag nrho cov khoom siv hluav taws xob yog nyob rau hauv hnyav- lub luag haujlwm, nrumstainless hlau los yog aluminium alloycov ntaub thaiv npog.

Flame Path Design:Cov ntaub ntawv no muaj cov tshuab flanges precisely. Yog muaj kev tawg tshwm simsab hauvthe box, the flames are cooled as they escape through the narrow gaps (flame paths), preventing them from igniting the external atmosphere.

Cheebtsam hauv:Cov enclosures no lub tsevtswj vaj huam sib luag, contactors, overload relays, transformers, thiab terminal blocks.

Certified Motors (Hoist, Trolley, Choj):

Kev tsim kho:Cov motors tshwj xeeb yog tsim los nrog cov khoom siv ntxiv kom muaj qhov tawg sab hauv.

Kev ntsuas kub (T-Code):Cov motors tau ntawv pov thawj kom muaj qhov siab tshaj plaws ntawm qhov kub thiab txias uas yuav tsis cuam tshuam cov roj tshwj xeeb lossis cov plua plav hauv qhov chaw ua haujlwm (xws li, T4 ntsuas rau qhov ntsuas qhov siab tshaj plaws ntawm 135℃).

Tsis yog-Ntxuam Txias:Ntxuam hniav yog tsim los ntawm cov khoom uas tsis yog -twb.

Explosion-Proof Festoon System / Tus neeg xyuas pib:

Lub zog xa hluav taws xob raws txoj kev khiav yog tag nrho nyob rau hauv ib qho kev tiv thaiv vaj tse kom tsis txhob muaj hluav taws xob los ntawm zawv zawg tiv tauj lossis cable txav.

Explosion-Cov pov thawj txwv txwv hloov pauv & Sensors:

Txhua txoj hauj lwm sensors (rau hoist limit, kawg - ntawm-travel) yog nyob rau hauv lawv tus kheej certified, kaw enclosures.

3. Tswj & tus neeg teb xov tooj Interface Cheebtsam

Explosion-Proof Pendant Control Station:

Lub laub- khawm pendant yog hnyav, kaw lub thawv nrog lub iav tuab lossis polycarbonate qhov rai. Cov nyees khawm muaj zog thiab tsim los tiv thaiv arcing sab hauv.

Certified Radio Remote Control System:

Lub xov tooj ntawm tes yuav tsum muaj kev nyab xeeb los yog tawg - pov thawj pov thawj rau qhov tshwj xeeb qhov chaw muaj kev puas tsuaj.

Lub receiver unit nyob rau hauv lub crane yog nyob rau hauv ib tug tawg - pov thawj enclosure.

Operator's Cab (yog siv):Lub cab nws tus kheej yuav raug purged nrog huab cua huv los tsim kom muaj kev nyab xeeb zoo, tiv thaiv kom tsis txhob muaj cua nkag mus.

4. Kev Nyab Xeeb & Kev Tiv Thaiv

Earthing / Grounding System:

Ib qho kev ua kom zoo thiab qis -kev tiv thaiv hauv av yog ntsia rau tag nrho cov qauv crane. Qhov no yog ib qho tseem ceeb kom muaj kev nyab xeeb dissipate ib qho hluav taws xob zoo li qub tsim- thiab tiv thaiv qhov hluav taws xob zoo li qub.

Cov xim tshwj xeeb:

Tag nrho cov crane yog coated nroganti- xim zoo li qublos tiv thaiv kev tsim- ntawm cov nqi zoo li qub ntawm cov xim pleev xim. Nws kuj tseem muaj corrosion heev - tiv taus cov cheeb tsam hnyav.

Overload Limiter:Cov cuab yeej kev nyab xeeb tseem ceeb no tseem nyob hauv qhov tawg -cov ntaub ntawv pov thawj.

Sketch

Main technical

Qhov zoo ntawm QB Explosion- pov thawj Ob Chav Girder Overhead Crane

Cov txiaj ntsig zoo yog qhov tseem ceeb tshaj plaws ntawm kev pheej hmoo txo ​​qis, kev nyab xeeb, thiab kev ua haujlwm ncaj ncees nyob rau hauv qhov nyuaj tshaj plaws kev lag luam.

1. Qhov kawg kev nyab xeeb thiab kev tiv thaiv kev phom sij

Tshem tawm Ignition Sources:Qhov no yog lub ntsiab kom zoo dua. Txhua yam khoom yog tsim los tiv thaiv sparks, arcs, thiab kub qhov chaw uas yuav ignite cov nplaim taws, tiv thaiv cov neeg ua haujlwm, infrastructure, thiab ib puag ncig los ntawm cov xwm txheej puas tsuaj.

Comprehensive Protection:Kev nyab xeeb tsis yog ib qho ntxiv -rau tab sis yog tsim rau hauv tag nrho cov qauv, los ntawm tsis yog - cov khoom siv hluav taws xob rau cov tshuab hluav taws xob kaw.

2. Kev Tswj Xyuas Kev Ua Raws Cai thiab Kev Txom Nyem

Ua tau raws li cov qauv nruj:Nws yog tsim thiab ntawv pov thawj kom ua raws li cov txheej txheem thoob ntiaj teb nruj rau cov chaw muaj kev phom sij (xws li ATEX hauv Europe, NEC / NEMA hauv North America, IECEx thoob ntiaj teb). Qhov no tso cai rau cov lag luam ua haujlwm raug cai hauv cov lag luam muaj kev pheej hmoo siab -.

Txo Liability:Kev siv cov cuab yeej siv tau ntawv pov thawj txo qis lub tuam txhab txoj cai thiab kev lav phib xaub nyiaj txiag thaum muaj xwm txheej.

3. Kev ua haujlwm tsis cuam tshuam hauv cov txheej txheem tseem ceeb

Enables Production:Ntau cov txheej txheem hauv tshuaj, tshuaj, lossis cov nroj tsuag pleev xim tsis tuaj yeem ua haujlwm yam tsis muaj kev txhawb nqa. QB crane ua rau nws muaj kev nyab xeeb los txuas ntxiv cov haujlwm no yam tsis muaj kev kaw haujlwm los ntawm cov khoom siv tsis zoo.

Kev ntseeg siab:Cov khoom siv hauv kev tawg- cov qauv pov thawj yog qhov muaj zog dua, ruaj khov, thiab feem ntau muab kev tiv thaiv ntau dua (IP kev ntsuas) tiv thaiv plua plav thiab ya raws, ua rau muaj kev ua haujlwm ntau dua thiab txo qis qis.

4. Ntev-Cov Nqi Them Nqi Zog

Tiv thaiv kev puas tsuaj loj:Tus nqi ntawm ib qho kev tawg dwarfs qhov pib nqis peev ntau dua hauv kev tawg - pov thawj crane. Nws yog ib qho kev nqis peev hauv kev tiv thaiv cov cuab yeej cuab tam.

Durability:Ua nrog corrosion-cov ntaub ntawv tiv taus thiab cov khoom siv zoo tshaj, cov cranes no muaj lub neej ua haujlwm ntev txawm tias nyob rau hauv qhov hnyav, corrosive ib puag ncig uas muaj kev ua tshuaj lom neeg.

5. Kev tiv thaiv ib puag ncig

Tiv thaiv kom tsis txhob muaj cov tshuaj lom lossis cov khoom tawg yooj yim rau hauv ib puag ncig uas tuaj yeem tshwm sim los ntawm qhov tshwm sim ignition.

Daim ntawv thov ntawm QB Explosion- pov thawj Ob Chav Girder Overhead Crane

Lub crane no yuav tsum tau ua nyob rau hauv txhua qhov kev lag luam uas muaj cov huab cua tawg, cais raws li Chav Kawm I (Gases / Vapors), Chav Kawm II (Dust), lossis Chav Kawm III (Fibers).

1. Roj & Roj thiab Petrochemical Industries

Siv Case: Refineries, offshore platforms, thiabpetrochemical cov nroj tsuag. Siv cov khoom siv, cov kav dej, thiab cov hlab ntsha hauv thaj chaw uas muaj cov pa taws thiab cov vapors zoo li methane, propane, benzene, lossis hydrogen.

2. Kev tsim tshuaj thiab tshuaj

Siv Case:Ua cov nroj tsuag qhov twgflammable kuab tshuaj(piv txwv li, cawv, ether, acetone) yog siv, lossis qhov twgcombustible chemical hmoovyog tov, ua, los yog tuav.

3. Xim thiab Coatings Manufacturing

Siv Case:Cov chaw tsim cov xim, number case, los yog nplaum. Cov cheeb tsam no saturated nrogflammable hnyav vaporslos ntawm kev sib tov, txhaws, thiab ntxuav cov txheej txheem.

4. Kev ua qoob loo thiab zaub mov

Siv Case: Grain elevators, hmoov nplej, qab zib silos, thiabtxuj lom ua cov nroj tsuag. Cov plua plav hauv huab cua los ntawm cov ntaub ntawv no yog cov combustible heev thiab tuaj yeem tsim cov huab cua tawg.

5. Kev kho cov dej khib nyiab thiab cov khoom siv biogas

Siv Case:Cov cheeb tsam nyob qhov twgmethane (CH4)thiabHydrogen sulfide (H2S)gases raug tsim thiab tuaj yeem sib sau ua ke, tsim kom muaj kev phom sij loj heev.

6. Aerospace thiab Tub Rog

Siv Case: Cov chaw siv roj, hangars, thiab kev tuav pov hwmfoob ​​pob hluav taws propellantslos yog lwm yam volatile.

7. Plastics thiab Woodworking

Siv Case:Cov chaw nyob qhov twgyas hmoovlos yogntoo plua plavtsim kom muaj plua plav combustible.

Kev tsim cov txheej txheem ntawm aQDY metallurgical casting choj cranekoom nrog kev tswj xyuas kev ua tau zoo thiab kev tsim kho tshwj xeeb los xyuas kom muaj kev ruaj khov, tiv taus cua sov, thiab kev nyab xeeb. Hauv qab no yog ib kauj ruam -los ntawm - kauj ruam ntawm kev tsim khoom:

1. Tsim & Engineering

Load & Environment Analysis- Kev suav raulifting peev (5–500+ tons), ncua, thiab kub tsis kam.

CAD / 3D qauv- Cov qauv tsim, kev simulation kev nyuaj siab (FEA), thiab ua raws liISO, FEM, lossis GB qauv.

Kev kho kom haum- Cov yam ntxwv xaiv tau (kev tawg- pov thawj, thaiv hoists, automation) yog kev koom ua ke.

2. Kev Xaiv & Kev Npaj

Main Girders & End Carriages- Siab- lub zog steel (Q345B, Q460C) los yog kub-resistant alloy steel.

Hlau Ropes & Hooks- Tshwj xeebheat-kho alloy steel(rau molten hlau tuav).

Hluav taws xob Cheebtsam- Siab-kub- cov kab hluav taws xob tiv taus, lub cev muaj zog, thiab cov khoom siv rwb thaiv tsev.

3. Fabrication ntawm cov khoom tseem ceeb

A. Choj Girder Kev Tsim Kho

Txiav & Vuam- CNC plasma / laser txiav rau precision;Submerged arc vuam (SAW)rau siab -cov pob qij txha.

Kev kho cua sov- Kev ntxhov siab -relieving annealing los tiv thaiv deformation.

Tshuab dhos- Drilling, milling, thiab nto sib tsoo rau kev sib dhos raug.

B. Hoist & Trolley Assembly

Hoist Nruas & Gearbox- Machined rau kev ua haujlwm du; kuaj hauv qab1.25x rated load.

Thaum tshav kub kub-Resistant Brakes- Dual-disc lossis electromagnetic brakes rau kev ua tsis tiav- tuav ruaj ntseg.

Ladle Hook & Safety Latch- Forged thiab ultrasonically kuaj rau cov kab nrib pleb.

C. End Trucks & Runway System

Log & Rail Machining- Hardened steel log rau lub neej ntev.

Tsav Motors & Reducers- Nruab nrogtiv thaiv -skid mechanismsrau hnyav loads.

4. Hluav taws xob & tswj kev sib koom ua ke

Festoon/Conductor Bar System- Rau cov khoom siv hluav taws xob raws txoj kev khiav.

Variable Frequency Drives (VFDs)- Rau smooth ceev tswj thiab lub zog efficiency.

Kev nyab xeeb Circuits- Ntau dhau sensors, txwv cov keyboards, thiab nres thaum muaj xwm ceev.

Tus neeg khiav dej num tswj- Pendant, cabin, los yogtej thaj chaw deb/automated systems.

5. Kev kho deg & tiv thaiv corrosion

Sandblasting (SA 2.5 Qib)- Tshem tawm xeb thiab txhim kho xim adhesion.

High -Tsev Xim / Txheej- Zinc-nplua nuj primer + tshav kub-resistant topcoat (txog800 degree).

Critical Component rwb thaiv tsev- Ceramic fiber lossis refractory txheej ntawm hooks thiab hlua.

6. Kev sib dhos & Kev Xeem

A. Ua ntej-Kev Tshawb Xyuas Sib Tham

Dimensional soj ntsuam ntawm girders, trolley, thiab kawg carriages.

Kev sib xyaw ntawm cov tsheb ciav hlau khiav thiab crane lem.

B. Load Test (Raws li ISO 4310 / GB Standards)

Tsis muaj -Load Test- Txheeb xyuas lub cev muaj zog, nres, thiab mus ncig ua haujlwm.

Static Load Test – 1.25x rated peevrau 10+ feeb.

Dynamic Load Test – 1.1x rated peevnrog rov ua dua.

Emergency Brake Test- Txheeb xyuas qhov ua tsis tiav-txoj kev nyab xeeb.

C. Heat Resistance Validation (Rau Foundry Cranes)

Simulated siab -kub raug (yog xav tau).

7. Ntim & Xa khoom

Disassembly (yog tias xav tau)- Rau cov cranes loj, cov khoom raug xa tawm nyias.

Anti-Kev ntim khoom- VCI zaj duab xis lossis desiccant rau kev thauj mus los txawv teb chaws.

Cov ntaub ntawv- Cov ntawv qhia, cov ntawv xeem, thiab ntawv pov thawj (CE, ISO, GOST, thiab lwm yam).

8. Installation & Commissioning (Nyob ntawm -Site)

Kev sib tw khiav thiab crane reassembly.

Kev kuaj zaum kawg thiab kev cob qhia neeg ua haujlwm.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas sib txuas yuav ncav cuag 95% . 32 cov kab vuam tau muab tso rau hauv kev siv, 50 tau npaj los nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
