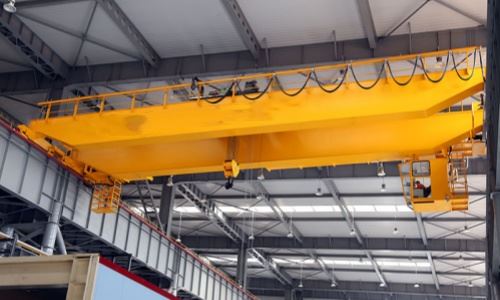

50T Ob Chav Beam Choj Mus Ncig Crane

50T ob chav nqaj choj mus ncig ua si crane yog ib hom ob chav girder nyiaj siv ua haujlwm crane siv rau hnyav- lub luag haujlwm nqa hauv kev lag luam ib puag ncig xws li warehouses, factories, fais fab nroj tsuag, steel mills, thiab shipyards. Nws yog tsim los nqa loads mus txog 50 tons yam xyuam xim thiab zoo.



Core Cheebtsam: Bearing, Gearbox, Tsav, Twj

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 1 Xyoo

Qhov hnyav (KG): 2000 kg

Video tawm -kev tshuaj xyuas: Muab

Machinery Test Report: Muab

Design: Ob chav beam

Efficiency: high efficiency

Kev khiav hauj lwm ceev: kev khiav hauj lwm ceev

Kev ruaj ntseg: Kev tiv thaiv - ua haujlwm viav vias

Xim: xaiv tau

Lub Zog: 110V / 220V / 230V / 380V / 440V, customized

Ntev: 7.5-31.5m





1.Main beam

1) Lub thawv - hom Welded Structure
High - lub zog tsim los txo qhov deflection thiab txhim kho kev ruaj ntseg.
Welded los ntawm steel daim hlau siv tsis siv neeg submerged arc vuam (SAW).
Internal reinforcement phaj rau ntxiv txhav.
2) Camber (Upward Arch)
Ua tau -nyob rau hauv camber feem ntau ntawm 1/1000 thiab 1/800 ntawm lub ncua los them rau elastic deflection nyob rau hauv tag nrho load.
3) Trolley Rail Installation
Ib lub square steel rail los yog tiaj tus rail yog tsau rau saum toj ntawm txhua kab rau trolley txav.
Precisely ua raws li kom ntseeg tau tias du trolley mus txawv tebchaws.



2. Lifting System

Lub tshuab nqa yog lub luag haujlwm tseem ceeb ntawm lub crane, lub luag haujlwm rau kev nqa thiab txo cov khoom hnyav. Nws muaj ntau qhov sib xyaw ua ke thiab cov khoom siv hluav taws xob txuas rau ntawm lub trolley uas taug kev ntawm ob tus choj girders.

3.Endlub tsheb

Manufacturing & Assembly
Precision machining rau lub log sib dhos kom tsis txhob muaj tsheb ciav hlau.
Ultrasonic kuaj ntawm welds thiab qhov tseem ceeb.
Txhaj tshuaj tua kab mob rau kev tiv thaiv - xeb nto npaj.
Coated nrog cov tshuaj tiv thaiv- corrosive xim (epoxy/polyurethane).
Sib dhos thiab sim ua ntej xa khoom kom paub meej.





4.Crane mus ncig teb chaws mechanism

Txoj Cai Kev Ua Haujlwm
1) Tsav motors tig los ntawm iav reducers kom hloov torque mus rau lub log tsav.

2) Crane txav raws cov ntsia hlau ntsia ntawm txoj kab khiav ntawm lub rooj cob qhia.

3) Trolley thiab hoisting system txav nrog lub crane thaum tuav tag nrho kev ruaj ntseg.

4) Brakes cia li koom nrog thaum mus ncig ua si nres lossis lub zog tsis ua haujlwm.

5.Trolley mus ncig teb chaws mechanism

Lub trolley mus txawv tebchaws yog mounted rau ntawm tus choj girders thiab ua rau lub trolley (uas yog lub tsev hoisting system) txav tom qab (hla -travel) raws lub crane ncua. Qhov no mechanism yog lub luag hauj lwm rau positioning lub hoist precisely tshaj lub load los yog poob qhov chaw.

7.Crane Hook

Lub crane nuv yog qhov kawg load-lifting Cheebtsam ntawm crane lub lifting system. Nws ncaj qha koom nrog kev thauj khoom los ntawm cov hlua khi, cov hlua khi, lossis cov khoom nqa nqa thiab yog qhov tseem ceeb rau kev nyab xeeb, sib npaug, thiab ua haujlwm zoo. Rau 50-tuj crane, nws feem ntau yog ib feem ntawm qhov sib txuas nrog rubeys.

8. Tsav

Lub cev muaj zog hauv 50T choj crane yog ib qho tseem ceeb tshaj plaws ntawm lub zog hluav taws xob thiab siv ntau yam cranes, suav nrog:

Lifting (hli)

Trolley taug kev (hloov mus los)

Crane Taug Kev (ntev mus ntev)

Txhua lub tshuab no feem ntau siv lub cev muaj zog, tsim los rau hnyav-lub luag haujlwm, siab- lub zog, thiab nquag pib / nres ua haujlwm.

.

9.Sound thiab lub teeb tswb system & txwv hloov

Txhawm rau kom muaj kev nyab xeeb thiab ua haujlwm crane ua haujlwm tau zoo, 50T choj crane yog nruab nrog lub tswb nrov thiab ntau qhov kev txwv hloov. Cov Cheebtsam no muab cov lus ceeb toom uas hnov ​​/ pom pom thiab cuam tshuam txog kev nyab xeeb ntawm lub tshuab / hluav taws xob los tiv thaiv kev hla dhau -kev mus los, kev sib tsoo, thiab kev sib tsoo.
1) Suab thiab teeb tswb System
Muaj nuj nqi
Ceeb toom cov neeg ua haujlwm rau crane txav, nqa nqa, lossis xwm txheej ceev ntawm lub teeb nyem thiab lub tswb nrov.
2) Limit Switches
Muaj nuj nqi
Tiv thaiv cov neeg kho tshuab dhau- mus los lossis kev puas tsuaj los ntawm kev nres kev txav mus los thaum kev txav mus txog nws lub cev lossis kev txwv ua ntej.

10. Cov khoom siv ruaj ntseg

Vim lub peev xwm thauj khoom siab thiab kev ua haujlwm ntawm 50T crane, tag nrho cov khoom siv hluav taws xob, hluav taws xob, thiab hluav taws xob kev nyab xeeb yog qhov tseem ceeb los tiv thaiv:

Cov neeg ua haujlwm thiab cov neeg ua haujlwm

Crane qauv

Khoom siv thiab loads

Cov cuab yeej no tiv thaiv kev raug xwm txheej, txuas ntxiv lub neej ntawm crane, thiab xyuas kom muaj kev tswj hwm kev cai (xws li ISO, FEM, OSHA).

11.Control hom

1) Txhim kho kev khiav hauj lwm precision thiab smoothness

2) Txhim kho kev nyab xeeb los ntawm kev nres thaum muaj xwm ceev thiab kev cuam tshuam

3) Ntau tus neeg teb xov tooj kev nplij siab thiab kev txav mus los

4) Txo cov neeg kho tshuab hnav los ntawm cov pib muag muag / nres ntawm lub cev muaj zog

5) Muaj peev xwm ua haujlwm nyob deb rau qhov chaw muaj kev phom sij

6) Kev sib koom ua ke yooj yim nrog kev saib xyuas thiab kev saib xyuas



12. Daim duab

Main technical





1. Siab Load Capacity & Stability
Tsim kom muaj kev nyab xeeb nqa thiab thauj khoom hnyav txog li 50 tons.

Ob chav beam tsim muab superior zog thiab rigidity.

Tsawg beam deflection nyob rau hauv hnyav loads, kom ntseeg tau meej lifting.

2. Kev Tshaj Tawm thiab Kev Pabcuam
Haum rau kev cob qhia dav dav, tso cai kom muaj txiaj ntsig zoo ntawm thaj chaw ua haujlwm loj.

Pab kom ntev trolley taug kev mus rau qhov hloov pauv hloov chaw.

3. Ua haujlwm zoo thiab ua haujlwm zoo
Nruab nrog cov qib siab hoisting thiab mus ncig teb chaws motors (feem ntau nrog VFD tswj) rau kev pib / nres thiab kev ceev ceev.

Txo cov neeg kho tshuab poob siab thiab ua kom cov khoom siv lub neej ntev.

4. Txhim khu kev ruaj ntseg nta
Kev koom ua ke nrog ntau yam khoom siv kev nyab xeeb xws li overload limiters, txwv kev hloov pauv, nres thaum muaj xwm ceev, tiv thaiv- cov khoom siv derailment.

Lub suab thiab lub teeb ceeb toom ceeb toom cov neeg ua haujlwm, txo qis kev pheej hmoo raug mob.

5. Versatility thiab Application Range
Tau customized nrog ntau yam lifting attachments (hooks, grabs, hlau nplaum) los lis ntau yam loads.

Dav siv nyob rau hauv kev tsim, warehouses, shipyards, steel mills, thiab hnyav kev lag luam.

6. Durability thiab tsis tshua muaj txij nkawm
Cov qauv muaj zog nrog corrosion- tiv taus txheej.

High -cov motors zoo thiab cov khoom ua kom muaj kev pabcuam ntev.

Modular tsim tso cai yooj yim tshuaj xyuas thiab hloov ib feem.

7. Tus neeg teb xov tooj xis thiab tswj
Ntau hom kev tswj hwm (pendant, cabin, chaw taws teeb) muab kev ua haujlwm yooj yim.

Smooth tswj txhim kho tus neeg teb xov tooj raug thiab txo qhov qaug zog.



1. Heavy Manufacturing Plants
Tuav cov khoom loj xws li cav, turbines, presses, thiab cov tshuab hnyav.

Kev sib dhos kab thauj khoom hnyav.

2. Steel Mills thiab Foundries
Lifting hnyav steel coils, slabs, thiab castings.

Tsiv molten hlau ntim thiab pwm loj yam xyuam xim.

3. Shipyards thiab chaw nres nkoj
Loading/unloading heavy ship parts, containers, and equipment.

Pab hauv nkoj tsim thiab kho los ntawm kev txav cov khoom loj loj.

4. Kev tsim kho qhov chaw
Kev thauj cov khoom siv hauv tsev hnyav xws li steel beams, pob zeb modules, thiab prefabricated qauv.

Pab txhim kho cov txheej txheem loj.

5. Warehouses thiab Logistics Centers
Txav cov khoom loj thiab hnyav hauv cov chaw cia khoom loj.

Chaw thau khoom thiab tshem tawm cov tsheb thauj khoom lossis tsheb ciav hlau.

6. Lub zog cog
Kev tuav cov turbines, generators, transformers, thiab lwm yam khoom siv hluav taws xob hnyav.

Kev tu thiab kev teeb tsa kev ua haujlwm yuav tsum tau nqa hnyav hnyav.

7. Automotive thiab Aerospace Industries
Tsiv cov tsheb hnyav, cav, thiab cov khoom sib dhos thaum tsim khoom.

Thauj cov khoom siv dav hlau hauv cov chaw tsim khoom.






1. Tsim thiab Engineering
Paub meej cov kev qhia tshwj xeeb (load muaj peev xwm, ncua, nqa qhov siab).

Kev tsim qauv ntawm cov kab teeb ci tseem ceeb, cov tsheb thauj khoom kawg, lub tsheb thauj khoom, thiab lub tshuab hoisting siv CAD thiab FEA software.

Hluav taws xob thiab tswj qhov system layout tsim.

Kev kuaj xyuas raws li cov qauv tsim nyog (ISO, FEM, OSHA).

2. Kev yuav khoom
Tau qhov twg los siab - zoo steel daim hlau, cov qauv steel seem, lub cev muaj zog, cov khoom siv hluav taws xob, txwv cov keyboards, thiab cov khoom siv kev nyab xeeb.

Txheeb xyuas cov ntaub ntawv pov thawj thiab cov qauv zoo.

3. Fabrication ntawm Main Cheebtsam
Txiav & Shaping: Siv CNC plasma txiav los yog laser txiav rau steel daim hlau.

Vuam: Sib sau cov kab teeb tseem ceeb, cov tsheb thauj khoom kawg, cov trolley thav duab siv cov txheej txheem vuam zoo.

Kev kho cua sov: Kev ntxhov siab nyem vuam distortion los ntawm kev kho cua sov yog tias xav tau.

Machining: Lub rooj zaum lub cav, lub rooj zaum bearing, ncej qhov, thiab lub cev muaj zog mounting cov ntsiab lus.

Kev Kho Hniav: Sandblasting thiab siv cov primer, tom qab ntawd txheej nrog cov tshuaj tiv thaiv -corrosion xim.

4. Sib dhos ntawm Mechanical Parts
Sib sau cov kab teeb tseem ceeb nrog cov tsheb thauj neeg kawg.

Nruab wheelsets thiab qag sib dhos.

Mount trolley ncej thiab hoisting mechanism (nruas, hlau hlua, nuv thaiv).

Nruab brakes thiab gearbox ntawm motors.

5. Kev teeb tsa hluav taws xob
Nruab cov motors (hoist, trolley, choj mus ncig).

Mount hluav taws xob panels, tswj txee.

Hlau tag nrho cov sensors, txwv keyboards, tswb, thiab tswj cov khoom siv.

Txuas cov fais fab cables thiab tswj cov cables.

6. Kev Tswj Xyuas Zoo & Kev Xeem
Tsis yog -kev kuaj kev puas tsuaj (NDT): Weld kev tshuaj xyuas los ntawm ultrasonic lossis magnetic particle txoj kev.

Dimensional soj ntsuam: Tshawb xyuas qhov loj me thiab qhov kam rau ua.

Kev ntsuam xyuas hluav taws xob: rwb thaiv tsev tiv thaiv, txuas ntxiv, thiab kev ntsuas kev ntsuas hluav taws xob.

Load testing: Ua qhov kev ntsuam xyuas static thiab dynamic load ntawm 100% thiab 125% rated load.

Kev sim ua haujlwm: Kuaj tag nrho cov crane txav, lub tswb, cov cuab yeej kev nyab xeeb, thiab cov tshuab tswj.

7. Kev pleev xim thiab ua tiav
Thaum kawg painting rau corrosion kuj thiab zoo nkauj.

Siv cov cim kev nyab xeeb thiab daim ntawv lo.

8. Ntim thiab xa khoom
Disassemble cov khoom yog tias xav tau rau kev thauj mus los.

Kev ntim khoom ruaj ntseg kom tsis txhob muaj kev puas tsuaj thaum xa khoom.

Npaj phau ntawv, daim ntawv pov thawj, thiab cov ntawv xeem.

9. Kev teeb tsa thiab Kev Ua Haujlwm (Ntawm -site)
Sib sau cov khoom siv crane ntawm -site.

Teem cov rails thiab kho qhov kawg nres.

Txuas fais fab mov thiab tswj qhov system.

Ua haujlwm ntawm -qhov chaw kuaj thiab kev cob qhia tus neeg ua haujlwm.

Kev lees txais zaum kawg thiab kev xa mus.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas yuav ncav cuag 95% . 32 cov kab vuam tau muab tso rau hauv kev siv, 50 tau npaj los nruab, thiab cov khoom siv hluav taws xob ntawm tag nrho cov khoom kab tau mus txog 85%.
