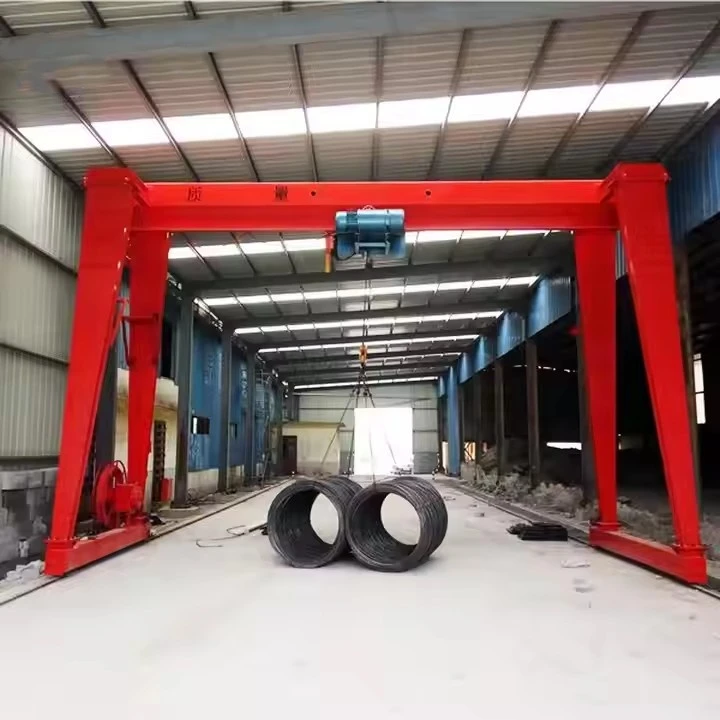

Rhiav Gantry Crane

Hom Rhiav Gantry Crane

1. Adjustable Qhov siab Gantry Crane

Nta:

Ob txhais ceg tuaj yeem txuas ntxiv lossis thim rov qab kom haum rau qhov chaw ua haujlwm sib txawv.

Zoo tagnrho rau kev cob qhia nrog qhov sib txawv qab nthab qhov siab lossis siv sab nraum zoov / sab hauv tsev.

Load Capacity: 1 ton rau 20+ tons.

2. Tsau Qhov siab Gantry Crane

Nta:

Sturdy, tsis yog - hloov thav duab rau kev nqa mus tas li.

Qhov zoo tshaj plaws rau kev cob qhia nrog lub qab nthab qhov siab.

Load Capacity: 0.5 tons rau 50+ tons.

3. Mobile Gantry Crane (Wheeled)

Nta:

Nruab nrog swivel casters (phau ntawv los yog motorized) kom yooj yim repositioning.

Tsis muaj lub hauv paus yuav tsum tau-zoo rau kev ua haujlwm yooj yim layouts.

Load Capacity: 1 tuj mus rau 10 tons (muaj peev xwm ntau dua yuav xav tau kev tsheb nqaj hlau).

4. Modular Gantry Crane

Nta:

Yuav tau disassembled thiab reconfigured rau txawv workspaces.

Siv hauv ntau- chaw cob qhia lossis chaw ua haujlwm ib ntus.

Load Capacity: 1 ton rau 30+ tons.

5. Lub teeb-Lub luag haujlwm Aluminium Gantry Crane

Nta:

Lub teeb, corrosion-resistant, thiab portable.

Qhov zoo tshaj plaws rau kev cob qhia me me, chaw nres tsheb, lossis kho tsheb.

Load Capacity0.25 tons rau 2 tons.



Lifting peev: 5 tons (5,000 kg)
Ntev: 3m-10m (adjustable)
Lifting Qhov siab: 3m-6m (customizable)
Hom Hoist: Hluav taws xob hlau hlua hoist (CD / MD hom) lossis saw hoist
Travel System: Phau ntawv thawb lossis tsav tsheb mus ncig (yeem)
Log Hom: Nylon / PU (sab hauv tsev) lossis steel (rail{0}}coj)
Khoom siv: High-qib steel (Q235B/Q345B)
Control: Pendant tswj (wired / wireless)
Fais fab mov: 380V / 50Hz (3-theem) lossis 220V (ib theem)



A rhiav gantry cranemuaj ntau yam tseem ceeb uas ua haujlwm ua ke kom muaj kev nyab xeeb thiab ua haujlwm nqa tau zoo. Hauv qab no yog cov ncauj lus kom ntxaws ntxaws ntawm txhua lub ntsiab lus:



1. Cov Txheej Txheem Tseem Ceeb

A. Gantry Ncej

Vertical ceg (Uprights)

Muab kev ruaj ntseg thiab txhawb nqa tag nrho cov qauv.

Ua tautsau -qhov siablos yogkho tau(telescopic rau yooj).

Hla Beam (Girder)

Kab rov tav kab uas nqa lub hoist thiab trolley.

Hom:

Tib Girder- Sib dua, tus nqi - zoo (tsim tsawg dua lossis sib npaug li 20 tons).

Ob chav Girder – More robust, used for heavy-duty lifting (>20 tons).

Bracing & Reinforcements

Diagonal txhawb kom tsis txhob swaying nyob rau hauv load.

B. Base Ncej & Txhawb

Tsau Base- Bolted rau hauv pem teb rau kev teeb tsa mus tas li.

Mobile Base (Wheeled)- Nruab nrog casters kom yooj yim txav.

Swivel Casters- Tso cai 360℃kev sib hloov (kev tuav tuav).

Xauv lub log- Rau kev ruaj ntseg thaum nqa.

2. Lifting Mechanism (Hoist)

A. Fais Hoist (Feem ntau hauv Rhiav)

Hom:

Chain Hoist(xws li CM Lodestar, Yale) – Compact, economical.

Hlau hlua Hoist(piv txwv li, Demag, ABUS) - Smoother, siab dua.

Yam tseem ceeb:

Lub cev muaj zog- Lub zog nqa / txo qis (3-theem AC raug).

Gearbox- Txo ceev, nce torque.

Nres- Tiv thaiv load slippage.

Hook Block- Swivel nuv rau txuas loads.

B. Kev Taw Qhia Hoist (yeem rau lub teeb-Kev siv lub luag haujlwm)

Qib- ua haujlwm lossis tes- saw hoists (piv txwv li,Tirfor, Kito).



3. Trolley System (tsav Hoist Raws Girder)

Phau ntawv Trolley- Pushed los ntawm tes (lub teeb loads).

Hluav taws xob Trolley- Lub cev muaj zog-tsav kom tsis muaj zog txav (hnyav loads).

Cheebtsam:

Log / Rails- Coj lub trolley raws kab teeb.

Festoon System- Tswj cov kab hluav taws xob (rau cov hluav taws xob trolleys).

4. Txoj Kev Mus Los (Mobility)

Tsau- Nyob ruaj ruaj (bolted rau hauv pem teb).

Txawb- Nruab nrog:

Swivel Casters(rau phau ntawv txav).

Motorized Travel Drives(rau lub zog muaj zog).

Track/Rail (Yeem)- Rau kev taw qhia txav hauv kev cob qhia loj.

5. Tswj & Hluav Taws Xob System

Pendant Tswj- Handheld tej thaj chaw deb rau kev khiav hauj lwm lub hoist / trolley.

Xov tooj cua chaw taws teeb tswj(Yeem) - Kev ua haujlwm wireless.

Limit Switches- Tiv thaiv dhau-kev mus los ntawm lub hoist/trolley.

Overload tiv thaiv- Txiav hluav taws xob yog tias muaj peev xwm ntau dua.

Emergency Stop (E-Nres)- Tam sim no nres tag nrho cov haujlwm.

6. Kev ruaj ntseg Cheebtsam

Anti-Kev Sib tsoo Sensors(rau ntau- kev teeb tsa crane).

Load Cell/Weigh Indicator- Qhia qhov tseeb - lub sijhawm thauj khoom hnyav.

Hook Safety Latch- Tiv thaiv cov hlua los ntawm kev swb.

Cov pob- Tiv thaiv crane thiab ib puag ncig los ntawm kev cuam tshuam.

.

7. Cov khoom siv yeem

Ua haujlwm Platform- Rau kev saib xyuas.

Crane Teeb & Tswb- Txhim khu kev pom thiab kev nyab xeeb.

Cabin/Operator Rooj- Rau kev tswj zaum (tsis tshua muaj hauv kev cob qhia).

Rhiav Gantry Crane Xaiv Phau Ntawv Qhia

Cheebtsam	Kev xaiv	Kev pom zoo rau kev cob qhia
Hom Hoist	Chain / Hlau Rope	saw hoist(pob nyiaj) /Hlau hlua(hnyav-duty)
Hom Girder	Ib leeg / Ob	Ib leeg girder(tsawg dua lossis sib npaug li 20 tons) /Ob chav girder (>20 tons)
Mobility	Tsau / Txawb	Txawb(flexibility) /Tsau(kev xav tau tas mus li)
Tswj	Pendant / Chaw Taws Teeb	Pendant(standard) /Xov tooj cua chaw taws teeb(kev yooj yim)

Sketch

Main technical



Rhiav gantry cranes muaj ntau yam txiaj ntsig rau kev lag luam thiab chaw tsim khoom. Nov yog cov txiaj ntsig tseem ceeb:

1. Qhov chaw ua haujlwm tau zoo

Ua litsis xav tau kev txhim kho mus tas lizoo li choj cranes.

Cov qauv txawbtuaj yeem txav tau raws li qhov xav tau, optimizing qhov chaw hauv pem teb.

2. Muaj peev xwm thauj khoom siab

Yuav ua li cas loads los ntawm0.5 rau 50+ tons, ua rau lawv zoo tagnrho rau kev nqa hnyav.

Ob -girder designstxhawb nqa hnyav dua nrog kev ruaj ntseg zoo dua.

3. Mobility & Flexibility

Log puagcia yooj yim repositioning (phau ntawv los yog motorized).

Adjustable qhov siab & ncuacov qauv hloov mus rau qhov sib txawv rhiav layouts.

4. Nqis -Nyob zoo

Tsawg tus nqi installationpiv rau cov nyiaj siv ua haujlwm cranes (tsis muaj cov kab hluav taws xob xav tau).

Kev saib xyuas tsawg kawg nkaus(hluav taws xob hoists yuav tsum tau kho tsawg dua li hydraulic systems).

5. Txhim kho kev nyab xeeb

Kev tiv thaiv overloadtiv thaiv lifting tshaj lub peev xwm.

Txwv cov keyboards & nres thaum muaj xwm ceevtxo cov xwm txheej txaus ntshai.

ruaj khov liftingtxo cov neeg ua haujlwm nyuaj thiab raug mob.

6. Yooj yim installation

Tsis muaj haujlwm engineeringxav tau (tsis zoo li nyiaj siv ua haujlwm cranes).

Bolt- ua ke tsimtso cai sai los ua ke / disassembly.

7. Ntau yam kev xaiv fais fab

Hluav taws xob hoists(Smooth, meej lifting).

Phau ntawv hoists(pob nyiaj-zoo rau lub teeb- siv lub luag haujlwm).

8. Ua haujlwm ntsiag to & huv si

Tsis muaj pa taws lossis nrov nrov, ua rau lawv zoo tagnrho raukev cob qhia sab hauv tsev.



Rhiav gantry cranes yog dav siv nyob rau hauv ntau yam kev lag luam rau nqa thiab nqa khoom.

1. Kev tsim khoom & kev sib dhos

Hloov cov tshuab hnyav hnyav(engines, presses, pwm).

Muab tso rau hauv qhov chawnyob rau hauv automotive / aerospace los ua ke kab.

2. Hlau Fabrication & Vuam

Kev tuav steel beams, phaj, thiab kav dej.

Pab hauv kev ua haujlwm vuamlos ntawm kev tuav cov khoom loj.

3. Automotive & Machinery Kho

Lifting cav, kis tau tus mob, thiab cov khoom hnyavrau kev pabcuam.

Txhawb kev tu tshebhauv garages thiab rhiav.

4. Warehouse & Logistics

Loading / unloading hnyav pallets thiab ntim.

Organizing cov khoom muaghauv cov chaw cia khoom.

5. Kev tsim kho & khoom siv

Txav cov pob zeb ua vaj tse, rebars, thiab cov khoom siv scaffolding.

Pab hauv kev tsim kho prefabkev sib dhos.

6. Fais fab nroj tsuag & Heavy Industries

Turbines, generators, thiab transformers.

Kev tu cov khoom siv loj loj.

7. Kev cob qhia me me & chaw nres tsheb

Lub teeb - lub luag haujlwm nqa (0.5-2 tons)rau DIY tej yaam num.

Portable aluminium gantry craneskom yooj yim cia.

1. Tsim & Engineering
Tsim kom ntxaws technical drawings thiab 3D qauv.

Ua cov qauv kev txheeb xyuas thiab ntsuas kev ntxhov siab.

Xaiv cov khoom siv thiab cov khoom tsim nyog.

Npaj cov txheej txheem ntau lawm thiab cov ntsiab lus tswj kom zoo.

2. Kev yuav khoom
Tau qhov twg los siab - zoo steel daim hlau, profiles, motors, hluav taws xob qhov chaw, thiab accessories.

Tshawb xyuas cov ntaub ntawv pov thawj thiab ua raws li cov qauv.

3. Txiav & Kev Npaj
Txiav steel phaj thiab profiles rau lub ntsiab nqaj, ob txhais ceg, kawg carriages, thiab trolley qhov chaw siv CNC txiav los yog plasma txiav.

Npaj cov khoom los ntawm kev ntxuav, tshem tawm, thiab ua ntej - haum.

4. Vuam & Sib dhos
Weld lub ntsiab girder, A- ncej ncej, thiab kawg carriages raws li cov txheej txheem vuam.

Siv fixtures thiab jigs los xyuas kom meej qhov tseeb thiab sib dhos.

Tshawb xyuas qhov zoo ntawm qhov muag pom thiab tsis yog -kev kuaj kev puas tsuaj (NDT) txoj hauv kev zoo li kev tshuaj xyuas ultrasonic lossis magnetic particle.

5. Machining
Tshuab qhov tseem ceeb xws li lub rooj zaum log, lub cev muaj zog, thiab lub qhov taub.

Xyuas kom meej haum thiab ua haujlwm du.

6. Kev kho deg
Ntxuav thiab sandblast steel nto kom tshem tawm xeb thiab nplai.

Siv primer thiab anti-corrosion xim coatings raws li specifications.

Yeem: Siv cov txheej txheem ntxiv xws li polyurethane lossis epoxy xim rau siv sab nraum zoov.

7. Cov khoom sib dhos
Nruab lub log, motors, hoisting mechanism, hluav taws xob thaiv, txwv cov keyboards, thiab cov khoom siv kev nyab xeeb.

Sib sau lub trolley thiab nuv thaiv.

8. Kev teeb tsa hluav taws xob
Hlau motors, tswj vaj huam sib luag, tswb systems, thiab txwv switches.

Nruab cov tswj hom khoom siv (pendant, xov tooj cua tej thaj chaw deb, cabin controls).

Ua cov kev ntsuas rwb thaiv tsev thiab txuas ntxiv.

9. Kev kuaj & tshuaj xyuas
Ua tsis muaj -Load functional tests for hoisting, trolley, and crane travel.

Ua cov kev ntsuas load nrog maj mam nce qhov hnyav mus txog 125% ntawm cov peev txheej ntsuas.

Tshawb xyuas txhua yam khoom siv kev nyab xeeb, tswb, thiab txwv cov keyboards kom ua haujlwm kom raug.

Sau cov ntaub ntawv xeem thiab lees paub ua raws li cov qauv tsim nyog.

10. Kev hloov kho zaum kawg & ntim
Ua txhua yam tsim nyog hloov kho rau cov khoom siv tshuab thiab hluav taws xob.

Ntxuav thiab npaj lub crane rau kev xa khoom.

Ntim cov khoom kom ruaj ntseg los tiv thaiv kev puas tsuaj thaum thauj.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas sib txuas yuav ncav cuag 95% . 32 cov kab vuam tau muab tso rau hauv kev siv, 50 tau npaj los nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
