Hluav taws xob hoist Girder Gantry Crane



Hluav taws xob hoist girder gantry crane yog cov cuab yeej nqa nqa uas sib txuas hluav taws xob hoist thiab gantry qauv, uas yog siv dav hauv kev tuav cov khoom, warehousing, logistics thiab lwm yam. Nws paub txog kev nqa thiab txo qis ntawm cov khoom thauj los ntawm hluav taws xob hoist, thaum lub gantry qauv muab kev txhawb nqa ruaj khov thiab lub platform txawb. Cov hauv qab no yog cov khoom qhia txog hluav taws xob hoist gantry crane, suav nrog nws cov yam ntxwv tseem ceeb, cov qauv tsim, kev ua haujlwm hauv paus ntsiab lus thiab daim ntawv thov teb.

Hluav taws xob hoist girder gantry crane muaj tsawg tsim thiab installation nqi, thiab muab ib tug nqi-zoo lifting tov piv nrog rau lwm hom crane. Lub lifting mechanism yog tsav los ntawm hluav taws xob hoist lub cev muaj zog kom ua tiav lub lifting thiab txo cov load. Lub tshuab hluav taws xob hoist hloov hluav taws xob rau hauv lub zog siv hluav taws xob los ntawm lub cev muaj zog, reducer thiab nruas.

Hluav taws xob hoist girder gantry crane yog dav siv nyob rau hauv ntau yam kev lag luam thiab kev thauj mus los ib puag ncig vim nws cov yam ntxwv ntawm kev lag luam thiab cov tswv yim, ruaj khov gantry qauv thiab cov khoom siv hluav taws xob zoo. Nws cov qauv hloov tau yooj yim thiab kev ua haujlwm hom ua rau nws yog ib qho khoom siv tseem ceeb rau kev tuav cov khoom siv hauv ntau qhov chaw ua haujlwm.This crane tau dhau los ua ib qho tseem ceeb thiab cov khoom siv tseem ceeb hauv kev tsim khoom niaj hnub nrog nws cov kev ua haujlwm siab, kev ntseeg siab thiab kev lag luam.

Max. Lifting qhov siab: 35M

Warranty: 1 Xyoo

Qhov hnyav (KG): 4000 kg

Rated Lifting Moment: 20000kg

Max. Lifting Load: 20TON

Ntev: 35M

Lub luag haujlwm ua haujlwm: M3-M6

Lifting ceev: 5/0.83 M/min

Fais fab mov; 110V / 220V / 230V / 380V / 440V

Ua haujlwm kub: 20 ~ 40

1.Main beam

1.Lub ntsiab beam ntawm hluav taws xob hoist gantry crane yog nws lub ntsiab load-bearing tivthaiv, uas plays lub luag hauj lwm ntawm kev txhawb nqa hluav taws xob hoist thiab lwm yam structural Cheebtsam. Kev tsim thiab tsim khoom ntawm lub ntsiab nqaj ncaj qha cuam tshuam rau kev ruaj ntseg, lub peev xwm thauj khoom thiab kev ua haujlwm tag nrho ntawm crane.

2.Lub ntsiab beam bears lub luj ntawm tag nrho cov crane, nrog rau cov hluav taws xob hoist, trolley, load, thiab lwm yam., thiab nyob rau tib lub sij hawm shares thiab hloov lub load mus rau lub kawg beam thiab txhawb cov qauv. Muab lub hauv paus rau kev txhim kho thiab txhawb nqa hluav taws xob hoist, trolley thiab lwm yam khoom siv los xyuas kom meej tias cov khoom no ruaj khov thaum lub sijhawm ua haujlwm. Lub trolley ntawm lub nqaj loj txav ntawm lub nqaj loj kom ua tiav cov kab rov tav tuav ntawm lub nra. Lub ntsiab nqaj feem ntau siv cov hlau muaj zog, xws li Q235, Q345, thiab lwm yam, kom ntseeg tau tias nws muaj peev xwm thauj khoom thiab ua haujlwm ntev.

3.Lub ntsiab nqaj ntawm lub tshuab hluav taws xob hoist gantry crane yog lub luag haujlwm tseem ceeb ntawm cov crane tag nrho. Nws tsim thiab tsim khoom muaj qhov cuam tshuam tseem ceeb rau kev ua haujlwm, kev ruaj ntseg thiab kev nyab xeeb ntawm crane. Cov qauv tsim, xaiv cov khoom siv, cov txheej txheem tsim khoom thiab kev saib xyuas ntawm lub ntsiab nqaj yuav tsum tau ua nruj me ntsis raws li cov qauv tsim kom ntseeg tau tias lub sijhawm ua haujlwm ruaj khov ntawm crane.

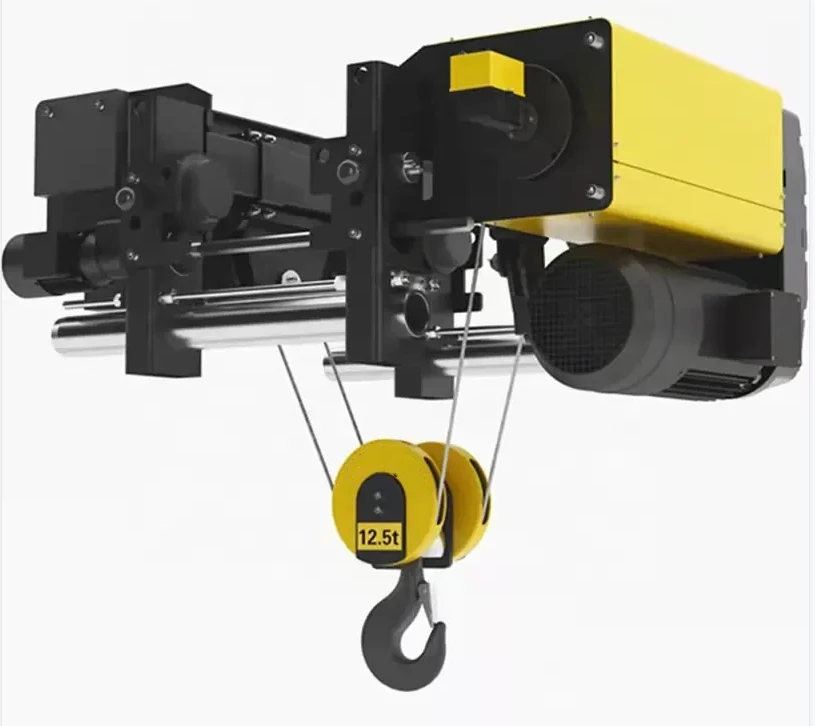

Lifting System

1.The lifting system ntawm hluav taws xob hoist gantry crane yog nws qhov tseem ceeb, lub luag hauj lwm rau lifting thiab txo lub load. Lub kaw lus feem ntau yog tsim los ntawm lub tshuab hluav taws xob, lub nruas, cov hlua hlau lossis cov saw hlau, sib txuas, thiab lwm yam. Cov khoom siv ntawm lub tshuab nqa yog hluav taws xob hoist, nruas, hlau hlua los yog saw, saw, nuv, thiab nres system.

2. Kev ua haujlwm nqa: Tus neeg teb xov tooj pib lub tshuab hluav taws xob los ntawm kev tswj vaj huam sib luag lossis cov chaw taws teeb tswj, thiab lub cev muaj zog tsav lub reducer tsav lub nruas kom tig.

Cov hlua hlau los yog cov saw ntawm lub nruas raug mob los yog tso tawm thaum lub sij hawm sib hloov, ua rau tus nuv kom nce, yog li nqa lub load.

Kev ua haujlwm qis: Tus neeg teb xov tooj pib ua haujlwm qis dua, lub tshuab hluav taws xob hoist tswj cov kev taw qhia ntawm kev sib hloov ntawm lub nruas, thiab cov hlua hlau los yog cov saw yog maj mam tso tawm, ua rau tus nuv poob, yog li txo cov load.

Braking tswj: Thaum lub sij hawm nqa thiab txo qis, lub braking system ua kom cov khoom ruaj khov kom tsis txhob muaj kev sib tsoo lossis kev tswj tsis tau.

3.The lifting system ntawm hluav taws xob hoist gantry crane yog nws cov khoom tseem ceeb, lub luag hauj lwm rau lifting thiab txo lub load. Lub kaw lus tsuas yog muaj hluav taws xob hoist, nruas, hlau hlua lossis saw, nuv thiab nres system. Kev tsim thiab kev saib xyuas ntawm txhua yam yog qhov tseem ceeb rau kev ua haujlwm thiab kev nyab xeeb ntawm crane. Kev tshuaj xyuas thiab kev saib xyuas tsis tu ncua tuaj yeem ua kom lub sijhawm ruaj khov ntawm lub tshuab nqa nqa.







Xaus Beam



1.Qhov kawg beam ntawm hluav taws xob hoist gantry crane yog ib qho tseem ceeb ntawm nws cov qauv. Nws lub luag haujlwm tseem ceeb yog txhawm rau txuas lub ntsiab nqaj thiab txhawb nqa cov qauv gantry, thaum nqa thiab xa cov quab yuam tsim los ntawm lub ntsiab nqaj thiab lub nra. Qhov kawg beam plays lub luag haujlwm tseem ceeb hauv kev ruaj ntseg thiab kev nyab xeeb ntawm tag nrho cov crane.

2.Function thiab tsim ntawm qhov kawg beam

Muaj nuj nqi Txhawb nqa lub ntsiab nqaj: Lub nqaj kawg txuas rau ob qhov kawg ntawm lub ntsiab nqaj, txhawb nqa tag nrho cov qauv ntawm lub ntsiab nqaj, thiab xa cov load thiab quab yuam ntawm lub ntsiab nqaj mus rau sab txhawb nqa lossis hauv av. Muab kev ruaj ntseg: Los ntawm kev sib txuas nrog lub ntsiab beam, qhov kawg beam nce lub zuag qhia tag nrho stability ntawm lub gantry crane thiab tiv thaiv lub ntsiab beam ntawm deforming los yog tilting nyob rau hauv load. Txhim kho lub log: Cov log feem ntau yog ntsia rau ntawm qhov kawg nqaj los txhawb kev txav mus los ntawm tag nrho cov qauv gantry.

3.Ua hauj lwm hauv paus ntsiab lus ntawm qhov kawg beam

Load hloov: Qhov kawg beam hloov lub load ntawm lub ntsiab nqaj mus rau cov qauv txhawb nqa los yog hauv av los ntawm kev sib txuas nrog lub ntsiab nqaj, ua kom muaj kev ruaj ntseg ntawm tag nrho cov crane. Kev them nyiaj yug lub log: Cov log nyob hauv qab ntawm qhov kawg beam khiav ntawm txoj kev kom paub txog kev txav mus los ntawm lub gantry crane. Kev tsim thiab kev teeb tsa ntawm lub log kom ntseeg tau qhov smoothness ntawm kev txav.

4.Summary Qhov kawg beam ntawm hluav taws xob hoist gantry crane yog ib qho tseem ceeb ntawm cov khoom siv lub luag hauj lwm rau kev txuas lub ntsiab beam thiab txhawb cov qauv gantry. Nws tsim, xaiv cov khoom siv thiab cov txheej txheem tsim khoom yog qhov tseem ceeb rau kev ruaj ntseg thiab kev nyab xeeb ntawm crane. Kev saib xyuas tsis tu ncua thiab kev saib xyuas tuaj yeem ua kom muaj kev ua tau zoo thiab kev ntseeg siab ntawm qhov kawg beam hauv kev siv mus ntev.



















Crane mus ncig teb chaws mechanism

Lub crane mus ncig ua haujlwm ntawm lub tshuab hluav taws xob hoist gantry crane feem ntau yog siv los ua kom lub gantry crane txav kab rov tav ntawm nws txoj kev.

Kev tsim thiab kev ua haujlwm ntawm lub tshuab no suav nrog ntau qhov tseem ceeb:

Lub cev muaj zog: Muab lub zog los ua kom lub crane txav mus rau ntawm txoj kev. Feem ntau siv AC lub cev muaj zog lossis DC lub cev muaj zog, thiab kev xaiv ntawm lub cev muaj zog nyob ntawm qhov xav tau lub zog thiab ceev.

Reducer: Hloov cov kev sib hloov ceev ntawm lub cev muaj zog mus rau qhov tsim nyog qis-ceev thiab siab-torque tso tawm kom tsav lub crane kom txav mus los.

Tsav log: ntsia rau ntawm lub crane, nyob rau hauv kev sib cuag nrog txoj kev, thiab lub crane txav raws txoj kev los ntawm kev sib hloov ntawm lub log.

Khiav: Nruab rau ntawm tus qauv txhawb nqa ntawm lub gantry crane, muab ib txoj kev rau lub crane khiav.

Braking system: Siv los tswj kev txav thiab chaw nres tsheb ntawm lub trolley. Cov txheej txheem braking muaj xws li electromagnetic braking thiab mechanical braking.

Kev tswj hwm kev ua haujlwm: suav nrog lub vaj huam sib luag ua haujlwm thiab kev tswj hwm kev ua haujlwm thiab saib xyuas cov xwm txheej txav ntawm crane, uas yuav suav nrog cov chaw taws teeb tswj lossis lwm yam khoom siv tswj.

Kev sib kis: Ib qho kev sib txuas ntawm lub cev muaj zog thiab lub log tsav, feem ntau suav nrog cov khoom xws li chains, gears lossis siv.

3.Cov khoom no ua haujlwm ua ke los xyuas kom meej tias lub gantry crane lub crane tuaj yeem txav tau yooj yim thiab ua haujlwm tau zoo ntawm txoj kev khiav kom tiav cov haujlwm nqa.

Trolley mus ncig teb chaws mechanism

Lub trolley mus txawv tebchaws mechanism ntawm hluav taws xob hoist gantry crane yog lub luag haujlwm rau kev txav lub trolley horizontally ntawm txoj kev ntawm lub trolley. Lub trolley yog ib feem uas nqa hluav taws xob hoist, thaum lub trolley txav ntawm lub ntsiab qauv ntawm lub gantry crane.

Cov khoom tseem ceeb ntawm lub trolley khiav mechanism muaj xws li:

Lub cev muaj zog: Muab lub zog rau kev txav ntawm lub trolley. Lub cev muaj zog feem ntau yog AC lossis DC lub cev muaj zog uas tsim nyog thiab ceev kom ua tau raws li qhov xav tau ntawm lub trolley.

Reducer: Hloov cov kev sib hloov ceev ntawm lub cev muaj zog mus rau qhov qis dua thiab ntau dua torque kom tsav lub tsheb thauj mus los kom khiav zoo.

Trolley tsav lub log: Hu rau txoj kev khiav thiab txav lub trolley ntawm txoj kev los ntawm kev sib hloov ntawm lub log. Lub log tsav tsheb feem ntau yog siv cov khoom sib kis xws li cov saw, iav lossis siv.

Khiav: Nruab rau ntawm lub trolley, muab txoj hauv kev rau lub trolley khiav, feem ntau yog kab rov tav.

Braking system: Siv los tswj kev txav thiab chaw nres tsheb ntawm lub trolley. Lub braking system tuaj yeem yog electromagnetic braking, mechanical braking lossis hydraulic braking.

Kev tswj hwm kev ua haujlwm: suav nrog lub vaj huam sib luag ua haujlwm thiab cov cuab yeej tswj hwm los tswj thiab saib xyuas kev txav ntawm lub trolley. Lub kaw lus tswj feem ntau tuaj yeem ua haujlwm hauv kev sib koom tes nrog kev tswj hwm ntawm lub trolley.

Kev sib kis: Cov khoom sib txuas uas txuas lub cev muaj zog thiab lub log tsav, uas tej zaum yuav yog cov saw, iav, siv, thiab lwm yam, siv los xa lub zog ntawm lub cev muaj zog mus rau lub log tsav.

3.Cov khoom no ua haujlwm ua ke los pab kom lub trolley txav tau yooj yim ntawm kev khiav ntawm lub tsheb loj, yog li ua tiav kev ua haujlwm ntawm crane.

Crane log

Lub log ntawm hluav taws xob hoist gantry cranes yog cov khoom tseem ceeb uas txhawb nqa thiab coj lub zog ntawm lub crane.

Kev tsim thiab kev ua haujlwm ntawm lub log muaj cov ntsiab lus tseem ceeb hauv qab no:

Khoom siv: Cov log feem ntau yog ua los ntawm cov hlau muaj zog kom tiv taus cov khoom hnyav. Lub nplhaib sab nraud ntawm lub log tuaj yeem ua kom tawv tawv los txhim kho hnav tsis kam thiab kev pabcuam lub neej.

Structure: Cov log tau muab faib ua lub log tsav thiab coj lub log. Lub log tsav yog siv los ntawm lub tshuab hluav taws xob thiab kev sib kis, thaum lub log qhia tau siv los xyuas kom meej tias cov log khiav ruaj khov ntawm txoj kev.

Bearings: Cov kabmob zoo feem ntau yog nruab nrab ntawm lub log thiab qag kom txo qis kev sib txhuam thiab hnav kom lub log tuaj yeem tig tau zoo. Qhov zoo ntawm cov bearings yog qhov tseem ceeb rau kev khiav haujlwm ntawm lub log.

Kev sib tw khiav: Cov qauv tsim ntawm lub log yuav tsum sib phim qhov loj thiab cov duab ntawm txoj kev taug qab kom ntseeg tau tias lub log tuaj yeem khiav tau zoo raws txoj kev. Qhov profile ntawm lub log feem ntau yog qhov sib txawv ntawm qhov sib txawv ntawm txoj kev khiav kom ruaj khov.

Lubrication: Lub log thiab bearings yuav tsum tau lubricated tsis tu ncua kom txo tau hnav thiab ua haujlwm du. Lub tshuab lubrication tuaj yeem ua haujlwm tsis siv neeg lossis phau ntawv, nyob ntawm qhov tsim ntawm cov khoom siv.

Kev teeb tsa: Cov log feem ntau yog ntsia rau ntawm tus ncej thiab txuas nrog rau lwm yam kev khiav haujlwm los ntawm cov axles. Kev teeb tsa thiab kev hloov kho ntawm lub log yuav tsum yog qhov tseeb kom ua haujlwm ruaj khov.

Load-carrying peev: Tus tsim ntawm lub log yuav tsum tau coj mus rau hauv tus account lub siab tshaj plaws load peev xwm ntawm lub crane los xyuas kom meej kev nyab xeeb kev khiav hauj lwm txawm nyob rau hauv high load.

3.Qhov zoo thiab kev saib xyuas ntawm lub log ncaj qha cuam tshuam rau kev ua haujlwm ntawm kev ua haujlwm thiab kev nyab xeeb ntawm lub crane, yog li nws tseem ceeb heev uas yuav tsum tsis tu ncua xyuas thiab tswj lub log.





Crane nuv

Kev sib txuas ntawm hluav taws xob hoist gantry crane yog ib qho ntawm cov khoom tseem ceeb ntawm crane, siv los dai thiab nqa cov khoom thauj.

Kev tsim thiab kev ua haujlwm ntawm tus nuv feem ntau suav nrog cov hauv qab no:

2.Structure: Hook lub cev: Feem ntau yog ua los ntawm high-strength steel los xyuas kom meej tias nws muaj peev xwm tiv taus lub siab tshaj plaws load ntawm lub crane. Tus qauv tsim ntawm tus nuv lub cev yuav tsum ua kom tau raws li tus qauv los pab kom muaj kev ruaj ntseg dai thiab tso tawm ntawm lub nra.

Hook lub qhov ncauj: Qhov qhib ntawm tus nuv yog siv los dai slings, chains lossis lwm yam khoom nqa. Qhov loj thiab cov duab ntawm tus nuv lub qhov ncauj yuav tsum tau ua kom haum rau cov khoom nqa nqa.

Kev nyab xeeb tus pin: Tus nuv yuav tau nruab nrog tus pin kev nyab xeeb lossis cov cuab yeej xauv los tiv thaiv lub nra ntawm kev poob thaum lub sijhawm nqa. Tus pin kev nyab xeeb tuaj yeem yog hom caij nplooj ntoos hlav, bolt-hom lossis lwm yam khoom siv xauv.

3.Material: Tus nuv feem ntau yog ua los ntawm alloy steel los yog high-strength steel los xyuas kom meej nws lub zog thiab durability nyob rau hauv hnyav load tej yam kev mob. Cov khoom siv sib txuas yuav tsum tau kho cua sov lossis lwm yam txheej txheem los txhim kho nws lub peev xwm thauj khoom thiab qaug zog.

4.Qhov specifications thiab load-bearing muaj peev xwm ntawm tus nuv yuav tsum tau txiav txim raws li tus tsim yuav tsum tau ntawm lub crane. Qhov ntsuas load ntawm tus nuv yuav tsum siab tshaj qhov siab tshaj plaws ua hauj lwm load ntawm lub crane kom muaj kev ruaj ntseg.

Kev tu:

5.Qhov saum npoo ntawm tus nuv yuav tsum tau kuaj xyuas tsis tu ncua thiab tswj xyuas cov cim ntawm kev hnav, tawg lossis lwm yam kev puas tsuaj. Cov hooks puas yuav tsum tau hloov nyob rau hauv lub sij hawm kom tsis txhob muaj kev nyab xeeb.Qhov txav thiab kev ruaj ntseg pins ntawm tus nuv yuav tsum tau lubricated thiab tshuaj xyuas tsis tu ncua los xyuas kom meej lawv cov hauj lwm zoo.

6.Kev siv tus nuv yuav tsum tau ua raws li cov txheej txheem kev ua haujlwm zoo kom paub meej tias cov khoom thauj khoom sib npaug thiab tsis txhob overloading.

Thaum lub sij hawm lifting txheej txheem, tus nuv yuav tsum tau muab cia ntsug thiab tsis txhob tilting los yog offset kom txo tau kev nyuaj siab thiab hnav ntawm tus nuv.

Tus nuv yog ib feem uas ncaj qha mus cuag lub load thaum lub sij hawm ua hauj lwm crane. Nws cov qauv tsim thiab kev saib xyuas yog qhov tseem ceeb los xyuas kom muaj kev nyab xeeb thiab ua haujlwm zoo.



Lub cev muaj zog

1.Lub cev muaj zog ntawm lub tshuab hluav taws xob hoist gantry crane yog lub hauv paus tseem ceeb uas tsav ntau yam kev ua haujlwm ntawm lub crane (xws li trolleys, trolleys, lifting mechanisms, thiab lwm yam). Kev xaiv thiab teeb tsa ntawm lub cev muaj zog ncaj qha cuam tshuam rau kev ua haujlwm thiab kev ua haujlwm ntawm crane.

2.Cov motors ntawm hluav taws xob hoist gantry cranes muaj xws li AC motors (AC motors): feem ntau pom nyob rau hauv feem ntau hluav taws xob hoist gantry cranes, vim lawv cov qauv yooj yim, tsis tshua muaj nqi, thiab kuj yooj yim txij nkawm.DC motors (DC motors): haum rau lub sijhawm qhov twg yuav tsum tswj kom ceev ceev thiab torque, thiab feem ntau yog siv nyob rau hauv ib co kev siv tshwj xeeb.

3.Qhov kev ua haujlwm ntawm lub cev muaj zog feem ntau yog tswj hwm los ntawm kev tswj hwm, suav nrog lub vaj huam sib luag ua haujlwm, lub chaw taws teeb tswj, lossis PLC (programmable logic controller). Cov kev tswj hwm tuaj yeem ua tiav kev tswj hwm ntawm lub cev muaj zog, xws li kev hloov ceev, pib thiab nres. Kev tiv thaiv qib ntawm lub cev muaj zog yuav tsum raug xaiv raws li qhov yuav tsum tau ua ntawm qhov chaw ua haujlwm. Piv txwv li, nyob rau hauv ib qho chaw ntub dej los yog plua plav, lub cev muaj zog yuav xav tau lub tsev nrog kev tiv thaiv siab dua.

4.Qhov kev ua tau zoo thiab kev ntseeg siab ntawm lub cev muaj zog yog qhov tseem ceeb rau kev ua haujlwm tag nrho thiab kev nyab xeeb ntawm crane, yog li kev saib xyuas tshwj xeeb yuav tsum tau them thaum xaiv thiab tswj lub cev muaj zog.

.



Suab thiab lub teeb tswb system& txwv hloov

1.Lub suab thiab lub teeb ceeb toom thiab txwv kev hloov ntawm hluav taws xob hoist gantry crane yog cov khoom tseem ceeb los xyuas kom muaj kev nyab xeeb ntawm lub crane. Lawv ua lub luag haujlwm tseem ceeb hauv kev tiv thaiv kev sib tsoo, tiv thaiv cov cuab yeej siv thiab txhim kho kev ua haujlwm nyab xeeb.

2.Sound tswb: Feem ntau yog ib lub buzzer lossis horn, nws emits lub suab nrov. Lub ntim thiab zaus ntawm lub suab tuaj yeem hloov kho raws li qhov xav tau los xyuas kom meej tias nws nyiam txaus nyiam.

Lub tswb nrov: Feem ntau lub teeb nyem lossis lub teeb ceeb toom, nws tawm lub teeb ci ntsa iab. Cov xim ntawm lub teeb ceeb toom feem ntau yog xim liab lossis daj kom pom tseeb hauv qhov chaw qis qis.

Kev ceeb toom ua haujlwm: Lub suab thiab lub teeb ceeb toom feem ntau yog siv los ceeb toom cov neeg ua haujlwm thiab cov neeg ua haujlwm nyob ib puag ncig tias crane khiav lossis muaj qhov xwm txheej txawv txav. Piv txwv li, lub suab nrov thiab lub teeb ceeb toom tuaj yeem ua suab nrov thaum lub crane pib khiav, thaum lub load hnyav, lossis thaum lub kaw lus tsis ua haujlwm.

Txhim kho kev nyab xeeb: Los ntawm emitting lub suab thiab flashing teeb, cov neeg ua haujlwm raug ceeb toom kom ua tib zoo saib, yog li zam kev sib tsoo los ntawm kev tsis pom qhov ua haujlwm lossis kev phom sij ntawm crane.

3.Limit keyboards yog siv los tiv thaiv qhov txav ntawm lub crane (xws li lifting mechanisms, trolleys, trolleys, thiab lwm yam) los ntawm ntau tshaj qhov kev khiav hauj lwm predetermined, yog li tsis txhob muaj kev puas tsuaj rau cov khoom siv los yog kev nyab xeeb xwm txheej.

Kev tswj tsis siv neeg: Thaum qhov txav mus txog qhov chaw txwv qhov txwv, qhov hloov pauv yuav txiav tawm lub zog hluav taws xob rau lub cev muaj zog thiab nres lub zog kom ntseeg tau tias cov cuab yeej tsis txav mus ntxiv. Kev teeb tsa txoj haujlwm ntawm qhov txwv hloov yuav tsum tau txiav txim siab raws li cov qauv thiab kev ua haujlwm ntawm crane los xyuas kom meej tias nws tuaj yeem txheeb xyuas qhov kawg ntawm txoj haujlwm txav.

4.Ob lub suab thiab lub teeb ceeb toom thiab qhov txwv hloov yog qhov tseem ceeb ntawm kev nyab xeeb khoom siv hauv hluav taws xob hoist gantry cranes. Lub suab thiab lub teeb ceeb toom lub zog txhim kho kev ceeb toom ua haujlwm thaum lub sijhawm ua haujlwm, thaum lub sijhawm hloov pauv txwv tsis pub muaj teeb meem overtravel ntawm cov khoom siv. Kev ua haujlwm zoo ntawm ob lub tshuab no yog qhov tseem ceeb los xyuas kom muaj kev nyab xeeb thiab kev ntseeg siab ntawm crane.

Cov cuab yeej kev nyab xeeb

1.Cov khoom siv kev nyab xeeb ntawm hluav taws xob hoist gantry crane yog tus yuam sij kom muaj kev nyab xeeb ntawm kev ua haujlwm thiab kev ua haujlwm zoo ntawm cov khoom siv. Cov hauv qab no yog qee yam khoom siv kev nyab xeeb thiab lawv txoj haujlwm:

Braking system

Muaj nuj nqi: Xyuas kom meej tias lub load tuaj yeem nyob nyab xeeb hauv txoj haujlwm tau teem tseg thaum lub crane nres lossis ua tsis tiav. Hom: suav nrog electromagnetic brakes thiab mechanical brakes.

Tsis siv neeg

Muaj nuj nqi: Txo qhov cuam tshuam ntawm kev txav ntawm qhov kawg ntawm kev ua haujlwm thiab tiv thaiv cov qauv crane thiab thauj khoom. Hom: Xws li lub caij nplooj ntoos hlav buffers thiab roj hmab buffers.

Kev nyab xeeb siv thiab nqa khoom siv

Kev Ua Haujlwm: Ua kom muaj kev nyab xeeb ntawm cov neeg ua haujlwm thaum ua haujlwm ntawm qhov siab. Hom: Xws li txoj siv sia, ko taw buckles thiab nqa txoj siv sia.

Kev cob qhia kev ua haujlwm crane thiab cov txheej txheem ua haujlwm nyab xeeb

Kev Ua Haujlwm: Xyuas kom cov neeg ua haujlwm nkag siab txog cov txheej txheem ua haujlwm nyab xeeb thiab siv cranes kom raug. Cov ntsiab lus: suav nrog phau ntawv qhia kev khiav haujlwm, kev cob qhia kev cob qhia thiab kev ua haujlwm nyab xeeb.

Teeb pom kev zoo

Muaj nuj nqi: Ua kom muaj kev nyab xeeb ntawm kev ua haujlwm hauv lub teeb qis. Hom: suav nrog cov teeb pom kev zoo thiab qhov taw qhia teeb nyob rau hauv qhov chaw ua haujlwm crane.

2.Cov khoom siv kev nyab xeeb no ua lub luag haujlwm tseem ceeb hauv kev ua haujlwm niaj hnub ntawm hluav taws xob hoist gantry cranes. Lawv pab tiv thaiv kev sib tsoo, tiv thaiv cov khoom siv thiab ua kom muaj kev nyab xeeb ntawm cov neeg ua haujlwm. Kev tshuaj xyuas tsis tu ncua thiab kev saib xyuas ntawm cov cuab yeej kev nyab xeeb no yog cov kev ntsuas tseem ceeb los xyuas kom lub sijhawm ntev thiab txhim khu kev qha ntawm crane.

Tswj hom

1.Txoj kev tswj ntawm lub tshuab hluav taws xob hoist gantry crane txiav txim siab yuav ua li cas khiav lag luam thiab kho ntau yam kev ua haujlwm ntawm lub crane. Cov kev tswj sib txawv yog tsim rau cov kev khiav hauj lwm sib txawv thiab ib puag ncig. Cov hauv qab no yog qee yam kev tswj hwm thiab lawv cov yam ntxwv:

PLC tswj kev ua haujlwm hom:Tsis siv neeg tswj thiab saib xyuas los ntawm programmable logic controller (PLC). Lub kaw lus PLC tuaj yeem raug tsim los siv cov txheej txheem tswj kev tswj hwm thiab kev ua haujlwm automation.

Lub zog muaj zog: Nws tuaj yeem paub ntau yam haujlwm xws li kev tswj tsis siv neeg, nrhiav cov ntaub ntawv, kuaj xyuas qhov txhaum, thiab lwm yam.

Daim ntawv thov scenarios: Haum rau loj-scale, complex crane systems thiab lub sij hawm nrog siab automation yuav tsum tau.

Tswj zaus

Kev khiav hauj lwm hom: Qhov ceev thiab lub zog ntawm lub cev muaj zog tau hloov kho los ntawm kev hloov pauv zaus kom ua tiav kev tswj hwm ntawm lub crane txav. Kev txuag hluav taws xob thiab kev ua haujlwm siab: Nws tuaj yeem kho qhov kev ua haujlwm ntawm lub cev muaj zog raws li kev hloov pauv kom ua tiav lub zog txuag thiab txhim kho kev ua haujlwm. Daim ntawv thov scenarios: Haum rau lub sijhawm uas xav tau kev tswj ceev ceev thiab ua haujlwm siab.

Tsis siv neeg tswj

Kev ua haujlwm hom: Lub crane cia li ua cov haujlwm los ntawm cov kev pabcuam preset, xws li kev ua haujlwm tsis siv neeg, sijhawm ua haujlwm, tsis siv neeg docking, thiab lwm yam. Ua haujlwm zoo thiab ruaj khov: Txo kev siv phau ntawv thiab txhim kho kev ruaj ntseg thiab kev ua haujlwm zoo. Daim ntawv thov scenarios: Haum rau kev ua haujlwm ib puag ncig nrog siab rov ua dua thiab ruaj khov.

Hybrid tswj

Kev ua haujlwm hom: Kev sib txuas ntawm phau ntawv tswj thiab tswj tsis siv neeg los muab kev ua haujlwm hloov tau yooj yim.

Cov txiaj ntsig zoo: Kev ceev, tsis siv neeg lossis chaw taws teeb tswj hom tuaj yeem xaiv raws li cov kev xav tau tshwj xeeb.

Daim ntawv thov scenario: Tsim nyog rau qhov chaw ua haujlwm nyuaj uas xav tau kev sib txuas ntawm ntau hom kev tswj.

2.Cov hom kev tswj no tuaj yeem siv ib leeg lossis ua ke kom haum rau kev ua haujlwm sib txawv thiab ib puag ncig. Xaiv hom kev tswj kom tsim nyog pab txhim kho kev ua haujlwm ntawm kev ua haujlwm, kev nyab xeeb thiab yoog raws ntawm crane.



Sketch







1. Kev ua haujlwm siab

Kev nqa ceev ceev thiab txav mus los: Lub tshuab hluav taws xob hoist gantry crane siv cov kev ua haujlwm siab ntawm lub tshuab hluav taws xob kom ua tiav kev nqa thiab txav ceev thiab txhim kho kev ua haujlwm.

Precise control: Lub kaw lus tswj ntawm lub tshuab hluav taws xob hoist tso cai rau kev hloov pauv ntawm kev txav ceev thiab txoj hauj lwm ntawm lub load, ua rau kev ua haujlwm zoo dua.

2. Kev ua haujlwm yooj yim

Yooj yim rau kev khiav lag luam: Los ntawm kev tswj hluav taws xob thiab cov chaw taws teeb tswj, tus neeg teb xov tooj tuaj yeem yooj yim tswj ntau yam haujlwm ntawm crane yam tsis muaj tedious phau ntawv ua haujlwm.

Txo kev siv zog: Lub zog tsav hluav taws xob txo cov kev xav tau ntawm tus neeg teb xov tooj thiab txhim kho kev nplij siab ua haujlwm.

3. Kev nyab xeeb

Kev tiv thaiv ntau yam kev nyab xeeb: suav nrog kev txwv kev hloov pauv, cov khoom siv tiv thaiv overload, suab thiab lub teeb ceeb toom, thiab lwm yam, tuaj yeem tiv thaiv cov khoom siv ntau dhau thiab lwm yam xwm txheej kev nyab xeeb.

Stability: Lub gantry qauv tsim ua rau lub crane ruaj khov thiab txo qhov kev pheej hmoo ntawm kev co thiab tilting.

4. Muaj zog adaptability

Daim ntawv thov dav dav: Hluav taws xob hoist gantry cranes tuaj yeem siv rau ntau qhov chaw, xws li cov chaw tsim khoom, tsev khaws khoom, chaw tsim kho, thiab lwm yam, kom tau raws li ntau yam kev xav tau ntawm kev nqa.

Customizable: Cov specifications thiab configurations ntawm lub crane tuaj yeem kho raws li cov ntawv thov tshwj xeeb kom ua tau raws li kev ua haujlwm sib txawv.

5. Muaj peev xwm thauj khoom siab

Lub peev xwm muaj zog: Hluav taws xob hoist gantry crane tuaj yeem tsim los nqa cov khoom hnyav thiab tsim nyog rau cov haujlwm loj-tonnage lifting.

Kev ruaj ntseg ruaj khov: Cov qauv gantry tuaj yeem cuam tshuam cov khoom lag luam zoo thiab ua kom muaj kev ruaj ntseg thiab muaj peev xwm thauj khoom ntawm cov khoom siv.

6. Kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig

Hluav taws xob tsav: Piv nrog cov tsoos diesel-tsav cranes, hluav taws xob hoist gantry cranes muaj suab nrov thiab qis qis thaum ua haujlwm, uas ua tau raws li kev tiv thaiv ib puag ncig.

Kev tswj hwm zaus: Qhov ceev ntawm lub cev muaj zog tau hloov kho los ntawm kev hloov pauv zaus kom ua tiav kev txuag hluav taws xob thiab txo kev siv hluav taws xob. Fais fab nroj tsuag: Hauv cov nroj tsuag fais fab, ib leeg-girder choj cranes yog siv los txhim kho thiab tswj cov khoom siv hluav taws xob, transformers thiab lwm yam. hnyav Cheebtsam. Lawv xyuas kom muaj kev ruaj ntseg installation thiab tu cov cuab yeej.

Cov khoom siv hluav taws xob: Siv rau cov khoom siv tuav, sib dhos thiab kev saib xyuas hauv cov chaw siv hluav taws xob los txhawb kev ruaj ntseg ntawm kev tsim hluav taws xob thiab kev xa khoom.





1. Kev tsim khoom

Kev tuav cov khoom siv: siv los txav thiab nqa cov khoom hnyav, cov khoom siv thiab cov khoom tiav, tshwj xeeb tshaj yog nyob rau hauv lub Hoobkas kev cob qhia, cov kab ntau lawm thiab cov kab sib dhos.

Kev tu cov cuab yeej: pab txhim kho thiab kho cov cuab yeej loj thiab cov tshuab, thiab pab txhawb kev ua haujlwm siab thiab hloov khoom siv.

2. Kev tsim kho kev lag luam

Kev tsim kho qhov chaw: Ntawm qhov chaw tsim kho, nws yog siv los nqa cov khoom siv hauv tsev, steel qauv, precast qhob qhov chaw, thiab lwm yam, los txhawb kev ua haujlwm siab thiab kev tsim kho loj.

Cov tsev siab siab: Thaum lub sij hawm tsim cov tsev siab siab, hluav taws xob hoist gantry cranes tuaj yeem siv los txav thiab nruab cov khoom hnyav thiab cov khoom siv.

3. Warehouse thiab logistics

Cargo loading thiab unloading: Nyob rau hauv warehouses thiab logistics centre, hluav taws xob hoist gantry cranes yog siv los thauj khoom thiab tshem tawm thiab txav ntau ntawm cov khoom los txhim kho warehousing thiab faib efficiency.

Kev tswj cov khoom lag luam: pab nqa thiab txav cov khoom lag luam, txhim kho qhov chaw siv khoom thiab kev faib khoom thauj khoom.

4. Chaw nres nkoj thiab terminals

Thawv tuav: Hauv cov chaw nres nkoj thiab cov chaw nres nkoj, hluav taws xob hoist gantry cranes yog siv los nqa cov thawv thiab lwm yam khoom, txhawb nqa kev thauj khoom thiab thauj khoom thiab thauj khoom.

Kev kho nkoj: siv los nqa thiab txav nkoj cov khoom thiab cov khoom siv, txhawb nqa kev kho nkoj thiab tu.

5. Hlau thiab Metallurgical Kev Lag Luam

Raw Material Handling: Siv los nqa thiab nqa cov khoom siv raw xws li ore, cov nqi hluav taws xob, thiab lwm yam uas yuav tsum tau ua hauv cov txheej txheem steel smelting.

Kev tuav cov khoom tiav: Pab tswj thiab thauj cov khoom tiav thiab ib nrab tiav steel tom qab smelting.

6. Kev lag luam hluav taws xob thiab hluav taws xob

Cov Khoom Siv Txhim Kho: Siv los txhim kho thiab tswj cov khoom siv hluav taws xob, cov khoom siv hluav taws xob thiab cov chaw siv hluav taws xob.

Kev Ua Haujlwm Saib Xyuas: Txhawb kev kho thiab tu cov cuab yeej siv hluav taws xob loj, tshwj xeeb tshaj yog nyob rau hauv cov chaw xws li cov chaw tsim hluav taws xob thiab cov chaw nres tsheb.

7. Kev thauj mus los

Kev Ua Haujlwm Rhiav: Hauv kev cob qhia kev lag luam tsheb thauj mus los, hluav taws xob hoist gantry cranes yog siv los nqa thiab txav cov khoom loj thiab tsheb.

Kho thiab Kho: Pab kho thiab tswj cov tsheb, tshwj xeeb tshaj yog cov tsheb thauj mus los loj xws li tsheb ciav hlau, nkoj, thiab lwm yam.

8. Mining

Ore Handling: Siv los nqa thiab nqa ore thiab lwm yam khoom siv mining los txhawb kev ua haujlwm zoo ntawm kev ua haujlwm mining.

Cov Khoom Siv Kho: Pab txhim kho thiab kho cov cuab yeej mining los txhawb kev ua haujlwm txuas ntxiv ntawm cov mines.





1. Tsim theem

Kev soj ntsuam kev thov: Txiav txim siab qhov tshwj xeeb, lub peev xwm thauj khoom, kev ua haujlwm ntau thiab lwm yam kev xav tau ntawm crane raws li cov neeg siv khoom xav tau thiab cov xwm txheej siv. Tus tsim qauv tsim cov kev ua haujlwm tsis zoo ntawm lub crane, suav nrog kev nqa qhov siab, txav ntau ntawm lub trolley thiab lub tsheb, thiab lwm yam. Tsim cov qauv kev kos duab ntawm cov qauv gantry, hluav taws xob hoist, lub log thiab lwm yam khoom tseem ceeb. Tsim cov kev tswj hluav taws xob, lub zog hluav taws xob, cov khoom siv sib kis, thiab lwm yam. Kev tsim qauv kev nyab xeeb: Tsim cov tshuab kev nyab xeeb nrog rau kev txwv cov keyboards, kev tiv thaiv overload, suab nrov thiab lub teeb ceeb toom, thiab lwm yam. Simulation test: Siv computer-aided design (CAD) software los ua simulation kev sim rau txheeb xyuas qhov ua tau thiab kev ua tau zoo ntawm kev tsim. Ua kom zoo rau kev tsim qauv raws li cov txiaj ntsig simulation kom paub meej tias kev ua tau zoo thiab kev nyab xeeb yuav tsum tau ua.

2. Kev yuav khoom

Cov khoom siv raw: Yuav cov hlau muaj zog, hlau alloy, thiab lwm yam.

Accessories thiab Cheebtsam: Yuav cov khoom siv thiab cov khoom siv xws li hluav taws xob hoists, motors, reducers, controllers, bearings, thiab lwm yam. Ua kom muaj kev soj ntsuam zoo ntawm cov khoom siv raw thiab cov khoom siv los xyuas kom meej tias lawv ua tau raws li cov qauv thiab cov qauv tsim.

3. Kev tsim khoom theem

Txiav, vuam thiab txheej txheem hlau los tsim cov khoom tseem ceeb xws li gantry thiab kev txhawb nqa qauv. Drilling, tig, milling thiab lwm yam khoom siv ua haujlwm yog ua los ntawm cov qauv tsim kom ntseeg tau tias qhov loj thiab qhov tseeb raws li qhov yuav tsum tau ua.

Sib sau ua ke ntau yam ntawm cov hluav taws xob hoist (xws li lub cev muaj zog, nruas, nqa saw).

Lub log thiab taug qab kev teeb tsa: Nruab lub log thiab taug qab qhov system kom ntseeg tau tias kev ua haujlwm du ntawm lub tshuab txawb.

Txhim kho cov kev tswj hluav taws xob, suav nrog lub thawv xa khoom, tswj vaj huam sib luag, cables, thiab lwm yam. Ua ke tag nrho cov khoom, nruab rau ntawm lub gantry, thiab ua haujlwm ua ntej. Txuas lub tshuab hluav taws xob thiab tshuab hluav taws xob, thiab ua qhov system commissioning kom ntseeg tau tias kev ua haujlwm zoo ntawm txhua txoj haujlwm.

4. Kev kuaj thiab tshuaj xyuas

Ua ib qho kev sim khiav hauv qhov tsis muaj kev thauj khoom los xyuas seb qhov kev txav thiab kev ua haujlwm ntawm crane puas zoo li qub.

Load test: Kuaj nyob rau hauv rated load los xyuas qhov stability, load-bearing muaj peev xwm thiab kev nyab xeeb kev ua tau zoo ntawm cov khoom. Kuaj kev nyab xeeb ua haujlwm xws li txwv kev hloov pauv, kev tiv thaiv overload, nres thaum muaj xwm txheej ceev, thiab lwm yam kom ntseeg tau tias lawv ua haujlwm li qub. Ua ib qho kev soj ntsuam zoo ntawm cov cuab yeej, suav nrog vuam zoo, machining raug, hluav taws xob ua haujlwm, thiab lwm yam.

5. Kev xa khoom thiab kev teeb tsa

Kev ntim khoom thiab kev thauj mus los: Kev kuaj thiab tshuaj xyuas crane yog ntim thiab npaj rau kev thauj mus los rau cov neeg siv khoom. Muab cov ntawv qhia ua haujlwm, phau ntawv qhia kev saib xyuas, daim npav tiv thaiv thiab lwm yam ntaub ntawv cuam tshuam. Tom qab tuaj txog ntawm tus neeg siv khoom qhov chaw, nruab thiab debug lub crane, suav nrog kev sib dhos, kev hloov kho thiab kev sim.Training: Cov neeg tsav tsheb ciav hlau, piav qhia txog kev ua haujlwm thiab kev saib xyuas, thiab xyuas kom meej tias cov neeg siv khoom tuaj yeem siv cov cuab yeej raug.

6. Kev pab cuam tom qab muag

Muab kev saib xyuas tsis tu ncua thiab kev soj ntsuam xyuas kom ntseeg tau tias lub sijhawm ua haujlwm ruaj khov ntawm cov khoom siv.

Kev daws teeb meem: Muab kev txhawb nqa thiab kho cov kev pabcuam thaum cov khoom siv tsis ua haujlwm. Sau cov lus tawm tswv yim los ntawm cov neeg siv khoom tom qab siv kom nkag siab txog cov khoom siv ua haujlwm thiab cov neeg siv khoom txaus siab. Txhim kho cov khoom raws li kev tawm tswv yim thiab txhim kho cov txheej txheem tsim thiab tsim khoom.





Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas yuav ncav cuag 95%. 32 welding kab tau muab tso rau hauv kev siv, 50 yog npaj los nruab, thiab cov automation tus nqi ntawm tag nrho cov khoom kab tau mus txog.
