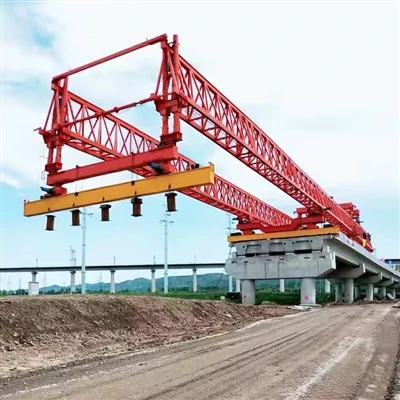

Counterweight Choj Lancher Tshuab
Lub "counterweight" yog qhov tseem ceeb feature uas ua rau txoj kev no ua tau rau ntev spans. Nws sib npaug cov tub rog loj cantilever tsim thaum lub tshuab tso ib ntu tshiab nyob deb ua ntej ntawm tus choj pier.
Specification
Technical Specification rau Counterweight Choj Launching Tshuab
Cov ntaub ntawv Version: 1.0
Hnub tim:Lub Kaum Hli 26, 2023
1.0 Kev Taw Qhia & Lub Hom Phiaj
Lub Counterweight Choj Launching Tshuab (CBLM), tseem hu ua Launching Nose lossis Launching Gantry, yog ib qho kev tsim kho tshwj xeeb uas siv rau kev nthuav dav ntxiv ntawm choj superstructures (decks / girders). Txoj kev no suav nrog kev tsim cov ntu txuas ntxiv ntawm tus choj hauv thaj chaw nyob ruaj khov tom qab lub abutment thiab tom qab ntawd "launching" lawv horizontally hla lub ncua.
Lub hom phiaj tseem ceeb ntawm qhov ntsuas qhov hnyav yog kom txo qis lub sijhawm cantilever hauv lub superstructure thaum lub sijhawm tso tawm, yog li txo cov khoom siv zog uas yuav tsum tau ua thiab tso cai rau lub sijhawm ntev dua.
2.0 System Overview
CBLM system feem ntau muaj cov khoom tseem ceeb hauv qab no:
Launching Nose:Lub teeb yuag steel truss lossis thav duab txuas rau pem hauv ntej ntawm thawj choj ntu.
Chav ntsuas Counterweight:Ib tug configurable system nyob rau tom qab ntawm tus choj, muab qhov tsim nyog downward quab yuam.
Launching Jacks / Hydraulic Push-Pull System:Thawj propulsion mechanism.
Sliding Bearings / PTFE Pads:Tsawg- kev sib txhuam qhov chaw uas tus choj swb.
Kev them nyiaj yug ib ntus / Piers:Kev txhawb nruab nrab nruab nrog cov cuab yeej taw qhia.
Central Control System:Rau synchronized thiab automated ua haujlwm.
3.0 Cov lus qhia ntxaws ntxaws
3.1 General Performance Parameters
Maximum Launching Capacity (Bridge Deck Nyhav):500 txog 12,000 Metric Tons (Customizable per project)
Maximum Launching Length:50 mus rau 500 meters (Customizable ib qhov project)
Hom Launching Cycle Speed:5 mus rau 20 meters ib teev
Maximum Incline / Gradient rau Launching: ±5%
Yam tsawg kawg Kab rov tav Curve Radius:500 meters (tuaj yeem tsim kom nruj dua radii)
3.2 Counterweight System
Hom:Modular, adjustable qhob blocks los yog hydraulic - tswj ballast system.
Counterweight Peev Xwm:Kho tau los ntawm 20% mus rau 60% ntawm tag nrho cov tsim choj hnyav, nyob ntawm theem ntawm kev tsim thiab tsim engineering.
Tswj:Cov nyhuv counterweight tuaj yeem hloov kho dynamically los ntawm kev ntxiv / tshem tawm modules lossis los ntawm kev tswj hydraulic siab kom tswj tau qhov zoo ntawm qhov sib npaug thiab khoov lub sijhawm.
3.3 Launching Nose
Qauv:Siab -lub zog steel truss lossis lub thawv girder tsim.
Ntev:Feem ntau 55% mus rau 65% ntawm tus choj tseem ceeb tau pib.
Kev sib txuas:Pin- txuas mus rau pem hauv ntej ntawm tus choj lawj kom yooj yim tshem tawm tom qab tso tawm.
Qhov hnyav:Tsim kom muaj lub teeb yuag li sai tau thaum tswj kev nruj, feem ntau 10-15% ntawm tus choj ntu qhov hnyav.
3.4 Propulsion System
Hom:Khoos phis tawj- tswj, synchronized hydraulic jacking system.
Txoj Cai Kev Ua Haujlwm:"Push-Pull" lossis "Incremental Launch" siv cyclic tuav thiab thawb.
Number of Jacking Stations:1 lub chaw nres tsheb tseem ceeb ntawm qhov chaw tso tawm, nrog rau cov chaw nres tsheb thib ob rau cov choj ntev heev.
Total Thrust Force:2,000 kN txog 20,000 kN (Customizable).
Stroke per Cycle:200mm txog 1000mm.
Hydraulic siab:350 Bar (tus qauv), mus txog 700 Bar (siab-siab tshuab).
3.5 Kev taw qhia thiab zawv zawg System
Sliding Bearings:Stainless hlau daim hlau nrog Polytetrafluoroethylene (PTFE) pads. Coefficient ntawm kev sib txhuam: ~ 1-2%.
Lateral Guide Rollers:Adjustable ntsug rollers mounted rau ib ntus piers los tswj lateral alignment (± 10 mm kam rau ua).
Vertical Alignment Jacks:Hydraulic jacks ntawm kev txhawb nqa ib ntus rau kev nplua - kho lub lawj qhov siab thaum tso tawm.
3.6 Tswj thiab saib xyuas qhov system
Tswj hom:Tag nrho automated, programmable logic maub los (PLC) nrog phau ntawv hla dhau.
Synchronization:Tag nrho cov hydraulic jacks yog synchronized rau hauv ± 2 hli ntawm stroke.
Saib xyuas Parameter:
Tiag -lub sij hawm hydraulic siab thiab thrust force.
Stroke ntev thiab nce mus rau ib lub voj voog.
Lub lawj alignment (laser taw qhia lossis GPS).
Kev ntxhov siab thiab kev nyuaj siab nyob rau hauv cov tswv cuab tseem ceeb ntawm lub qhov ntswg qhib thiab choj lawj.
Counterweight load.
Kev ruaj ntseg Interlocks:Tsis siv neeg kaw nyob rau hauv cov ntaub ntawv ntawm overload, misalignment, los yog system tsis ua hauj lwm.
3.7 Cov Khoom Siv Hlau Hlau
Tsim Codes:Ua raws li AISC, EN 1993, lossis sib npaug.
Steel Qib:Siab-lub zog, qis- hlau alloy (piv txwv li, S355, S460, A572 Gr. 50).
Yam Tseem Ceeb ntawm Kev Nyab Xeeb:Yam tsawg kawg ntawm 2.0 rau cov khoom muaj zog thiab 3.0 rau qhov kawg ntawm lub zog nyob rau hauv qhov siab tshaj plaws tsim load.
3.8 Fais fab mov
Lub zog tseem ceeb:380V / 50Hz / 3-Phase lossis 480V / 60Hz / 3-Phase.
Tag Nrho Cov Hluav Taws Xob:150 kVA rau 500 kVA (nyob ntawm qhov system loj).
Thaub qab:Diesel generator thaub qab rau cov haujlwm tseem ceeb.
4.0 Tsim Loads & Kev txiav txim siab
Tuag Load:Tus kheej - nyhav ntawm lub tshuab thiab lub choj lawj.
Nyob Load:Kev tsim kho loads, cuam tshuam thaum pib.
Cua Load:Tsim los tiv thaiv cua ceev txog 65 km / h thaum ua haujlwm thiab 120 km / h nyob rau hauv stowed condition.
Dynamic Loads:Accounted rau thaum pib / nres ntawm launching cycles.
Seismic Loads:Raws li ib qhov project - tshwj xeeb qhov yuav tsum tau muaj.
5.0 Kev nyab xeeb nta
Thaum muaj xwm ceev nres khawm ntawm ntau qhov chaw.
Kev thauj khoom tsis tu ncua- tuav li qub ntawm txhua lub tog raj kheej hydraulic tseem ceeb.
Tshaj - lub siab nyem li qub hauv hydraulic system.
Kev tiv thaiv - cov platforms plam, guardrails, thiab cov ntaiv nkag.
Tsis siv neeg nres system thaum lub hwj chim tsis ua hauj lwm.
6.0 Kev teeb tsa, ua haujlwm, thiab rhuav tshem
Kev teeb tsa:Kev txhim kho yuav tsum tau ua los ntawm cov neeg ua haujlwm tshwj xeeb uas siv mobile cranes. Lub sij hawm zoo: 2-4 lub lis piam.
Kev ua haujlwm:Yuav tsum muaj ib pab neeg ntawm 5-8 tus neeg kawm tiav (tus saib xyuas, tus neeg ua haujlwm, tshuab, hluav taws xob).
Dismantling:Methodical thim rov qab txheej txheem erection. Tag nrho cov khoom tseem ceeb yog tsim los yooj yim disassembly thiab thauj.
7.0 Qhov project-Txhim kho tshwj xeeb
Qhov kev qhia tshwj xeeb no yog cov lus qhia dav dav. Qhov kawg tsim ntawm Counterweight Choj Launching Tshuab yuav raug kho raws li:
Choj geometry (span lengths, curvature, gradient).
Superstructure hom (Precast Segmental, Cast-hauv-Qhov Chaw, Steel Box Girder, thiab lwm yam).
Tag nrho lub cev hnyav thiab qhov ntev.
Qhov chaw txwv thiab nkag mus.
Key Design Parameters & Performance Specifications
| Parameter | Specification |
|---|---|
| Lifting Capacity (ib girder) | 120 Metric Tons |
| Maximum Span (Pier rau Pier) | 50 meters (Hom), customizable mus txog 60m |
| Yam tsawg kawg Curve Radius | 2,000 meters (tuaj yeem tsim kom nruj dua radii) |
| Qib siab kawg txhawb nqa | ±4% |
| Lifting Hoists | 2 x Main Hoists (feem ntau 120-tuj muaj peev xwm txhua) |
| Hoist Lifting Ceev | 0-5 m / min (kuj hloov ceev tswj) |
| Trolley Traversing Ceev | 0-10m / min (kuj hloov ceev tswj) |
| Main Beam Launching Ceev | 0-5 m / min (kuj hloov ceev tswj) |
| Tshuab Tus Kheej -Propelling Ceev | 0-5 m / min (kuj hloov ceev tswj) |
| Tswj System | Centralized PLC nrog zaus tswj rau txhua qhov kev taw qhia. Kev tswj chaw taws teeb. |
| Fais fab mov | 380V / 50Hz / 3 Phase (los yog raws li qhov project yuav tsum tau) |
Duab & Cheebtsam
1. Launching Noob
Lub qhov ntswg yog ib ntus, hnav steel truss lossis thav duab txuas rau pem hauv ntej ntawm thawj choj ntu.
Muaj nuj nqi:Txhawm rau txo lub sijhawm cantilever (khoov rog) uas tshwm sim thaum tus choj lawj txuas ntxiv los ntawm ib lub pier mus rau tom ntej. Yog tsis muaj nws, pem hauv ntej ntawm tus choj yuav sag los yog tawg.
Cov yam ntxwv tseem ceeb:
Lub teeb yuag steel qauv:Tsim kom muaj teeb pom kev zoo li sai tau thaum muab qhov tsim nyog nruj.
Variable Length & Stiffness:Qhov ntev yog feem ntau 60-70% ntawm lub ntsiab span. Qee zaum nws qhov tawv nqaij tuaj yeem hloov kho.
Txuas rau Bridge Deck:Nws yog securely bolted los yog pinned mus rau tus thawj ntu ntawm tus choj.
2. Kev them nyiaj yug ib ntus / Piers
Cov no yog cov qauv coj thiab txhawb nqa tus choj thaum nws tau pib.
Intermediate Temporary Piers (los yog Props):Siv thaum lub sijhawm nruab nrab ntawm cov piers mus tas li ntev. Lawv yog cov hlau ib ntus lossis pob zeb ua vaj tse uas tiv thaiv ntau dhau deflection.
Launching Girder / Nose Support Truss:Hauv qee lub tshuab, ib qho kev txhawb nqa loj loj txuas los ntawm lub abutment, nqa qhov hnyav ntawm tus choj thiab cov khoom siv nws tus kheej. Qhov no tshwm sim rau ntev heev los yog hnyav launches.
Cov Qauv Qhia:Ib ntus bracing lossis rollers nyob rau sab saum toj ntawm cov piers kom ntseeg tau tias tus choj lawj nyob twj ywm nyob rau sab xis thaum lub sijhawm tso tawm.
3. Launching Jacks/Drive System (Lub "Machine" Heart)
Qhov no yog cov tub ntxhais mechanical system uas muab lub zog txav mus rau tus choj loj heev.
Muaj nuj nqi:Txhawm rau nce ntxiv los yog rub tus choj lawj rau pem hauv ntej nrog kev tswj kom meej.
Cov ntsiab lus tseem ceeb:
Hydraulic Jacks (Cyclic Launching):Qhov feem ntau qhov system. Nws siv "ob- kauj ruam- rau pem hauv ntej, ib qho - kauj ruam- rov qab" voj voog:
Lifting Jacks (los yog Vertical Jacks):Nqa tus choj lawj me ntsis ntawm cov bearings.
Launching Jacks (los yog Kab rov tav / Pushing Jacks):Thawb tag nrho lub lawj rau pem hauv ntej ib leeg (xws li, 500-1000 mm).
Lifting Jacks Retract:Lub lawj yog qis rov qab rau ntawm cov bearings.
Launching Jacks Retract:Cov jacks rov qab mus rau lawv txoj haujlwm pib los tuav lub lawj rau kev thawb tom ntej.
Climbing Jacks / Tus Kheej-Locking Jacks (Nruam Motion):Ib tug niaj hnub system uas siv ib tug "taug kev" mechanism.
Cov jacks no muaj ob lub puab tsaig (kab laug sab lossis clamps): ib qho ruaj khov, ib qho zawv zawg.
Lawv tuav qhov tshwj xeeb tsimLaunching Rodslos yog muaj zog steel strand.
Los ntawm alternating tuav thiab stroke ntawm zawv zawg puab tsaig, lawv tsim ib tug du, nruam rub cov lus tsa suab.
Launching Rods / Strands:Siab - lub zog steel tuav lossis cov kab uas khiav los ntawm cov jacks. Cov jacks tuav cov pas nrig no kom rub tus choj rau pem hauv ntej. Lawv nyob rau pem hauv ntej ntawm tus choj los yog nyob rau hauv lub lawj.
Central Control Unit & Hydraulic Fais Fab Pob:Lub hlwb thiab cov leeg ntawm kev ua haujlwm. Nws synchronizes tag nrho cov jacks los xyuas kom meej ib theem zoo kawg nkaus thiab tswj kev tso tawm, tiv thaiv kev sib tw los yog jamming.
4. Bearings thiab zawv zawg nto
Cov Cheebtsam no tswj cov kev sib txhuam loj heev thiab hloov cov loads ntawm tus choj txav thiab cov kev txhawb nqa ruaj khov.
Temporary Sliding Bearings:
PTFE (Teflon) Pads:Cov no swb tawm tsamStainless hlau (SS) phaj. PTFE muaj qhov coefficient tsis tshua muaj kev sib txhuam, ua rau zawv zawg tau.
Elastomer Pads nrog PTFE:Ua ke cov khoom xa tawm ntawm cov roj hmab nrog kev sib txhuam qis ntawm PTFE.
Permanent Bearings:Thaum tus choj nyob hauv nws txoj haujlwm kawg, cov zawv zawg cov kabmob ib ntus raug hloov lossis rov kho dua rau hauv cov kabmob ruaj khov (xws li lub lauj kaub bearings, kheej kheej bearings) uas tso cai rau thermal expansion thiab contraction.
Sketch
Qhov zoo
1. Technical thiab Engineering Advantages
Enables Construction in accessible terrain:Qhov no yog nws ib qho txiaj ntsig zoo tshaj plaws. Nws tuaj yeem tsim cov choj hla hav tob, cov dej ntws dav, txoj kev loj loj, cov kab tsheb ciav hlau ua haujlwm, thiab thaj chaw rhiab heev.yam tsis tas yuav tsum muaj hauv av-raws li scaffolding lossis ua haujlwm cuav.Qhov no tshem tawm kev cuam tshuam loj heev thiab muaj kev pheej hmoo siab cuam tshuam nrog kev tsim kev txhawb nqa ib ntus hauv cov chaw no.
Superior rau Long Spans thiab High Elevations:Lub tshuab yog tsim tshwj xeeb rau kev tso tawm loj, hnyav ua ntej- ntu ntu ntu ntawm qhov ntev thiab qhov siab loj, qhov twg cov cranes los yog txoj hauv kev yuav siv tsis tau, tsis zoo, lossis kim kim.
Tswj thiab Precise Launching Txheej Txheem:Tag nrho cov kev khiav hauj lwm yog heev mechanized thiab tswj. Hydraulic jacks muab kev sib tw, nce kev txav mus los, tso cai rau kev sib haum xeeb ntawm tus choj ntu. Lub counterweight system ua kom muaj kev ruaj ntseg thoob plaws hauv cov txheej txheem.
Khiav Complex Geometry:Advanced versions ntawm cov tshuab no tuaj yeem tsim cov txuas hniav nrog kab rov tav nkhaus (kho kom haum) thiab cov gradients tseem ceeb, muab kev yooj yim hauv kev tsim choj kom tau raws li qhov xav tau ntawm thaj av.
2. Economic thiab Project Management Advantages
Txhim kho kev ceev:Thaum lub tshuab tau teeb tsa thiab ntu ntu prefabrication yard tab tom khiav, cov txheej txheem xa tawm sai heev piv rau cov txheej txheem hauv -situ. Qhov no ua rau lub sijhawm luv luv ntawm qhov project tag nrho.
Tus nqi -Kev ua tau zoo rau qhov rov ua dua:Ntawm cov haujlwm uas muaj ntau qhov ntev ntawm qhov zoo sib xws thiab kev tsim qauv (xws li viaducts rau txoj kev loj lossis kev tsheb ciav hlau), txoj kev ua tau zoo heev. Qhov rov ua dua ntawm cov txheej txheem tso cai rau kev ua haujlwm kom zoo, siv cov khoom siv, thiab kev yuav khoom.
Txo Cov Nqi Ua Haujlwm:Cov txheej txheem no hnyav heev thiab xav tau cov neeg ua haujlwm me me ntawm -qhov chaw piv rau kev ua haujlwm ntau thiab kev ua haujlwm casting. Kev ua haujlwm yog tsom rau ntu kev tsim khoom, kev ua haujlwm ntawm lub tshuab, thiab kev txheeb xyuas qhov tseeb.
3. Kev nyab xeeb thiab ib puag ncig zoo
Txhim khu kev ruaj ntseg:Los ntawm kev txo qis lossis tshem tawm kev ua haujlwm dhau qhov qhib qhov siab thiab qhov tob tob, thiab los ntawm kev txo qhov xav tau ntawm cov neeg ua haujlwm nyob hauv qab cov qauv ib ntus, qhov kev pheej hmoo ntawm kev nyab xeeb tag nrho yog txo qis heev. Lub platform ua haujlwm feem ntau yog nyob rau ntawm qhov uas twb muaj lawm - tsim lawj thiab lub tshuab tso tawm nws tus kheej.
Yam tsawg kawg nkaus Environmental Impact:Txij li tsis tas yuav tsum muaj kev tshem tawm hauv av, kev nkag mus, lossis cov hauv paus loj rau kev ua tsis ncaj ncees hauv cheeb tsam hauv qab tus choj, ib puag ncig hneev taw me dua. Qhov no yog qhov tseem ceeb hauv thaj chaw ecologically rhiab heev xws li cov av ntub dej, hav zoov, lossis cov tsiaj qus txoj hauv kev.
Kev cuam tshuam tsawg kawg nkaus rau cov khoom siv uas twb muaj lawm:Kev tsim kho ntawm txoj kev nquag, kev tsheb ciav hlau, lossis txoj kev dej tuaj yeem ua haujlwm me ntsis kom tsis txhob cuam tshuam rau cov tsheb hauv qab no. Qhov no yog ib qho txiaj ntsig loj rau hauv nroog thiab thaj chaw muaj kev lag luam, zam kev taug kev kim thiab kev tswj xyuas tsheb.
4. Zoo thiab cov qauv zoo
High-Quality, Hoobkas- Ua Segments:Cov ntu choj feem ntau yog ua ntej - nrum nyob rau hauv ib puag ncig tswj vaj. Qhov no tso cai rau kev tswj xyuas qhov zoo ntawm cov pob zeb, qhov chaw rebar, thiab kev kho mob ntau dua li feem ntau ua tau nrog cam khwb cia- hauv - qhov chaw pob zeb siab saum av.
Kev siv cov ntaub ntawv zoo:Cov txheej txheem feem ntau siv ua ntej- ntu ntu ntu, uas ua tau zoo heev hauv kev siv cov ntaub ntawv, ua rau lub teeb pom kev zoo dua qub.
Daim ntawv thov
Cov kev siv zoo tshaj plaws thiab cov piv txwv
Txoj kev no yog xaiv rau cov xwm txheej nyuaj:
Valleys thiab Gorges:Qhov twg hauv av nkag tsis tau lossis tob dhau rau kev ua tsis raug (piv txwv li, txuas hniav nyob rau thaj tsam roob).
Kev Hla Dej:Tshaj cov dej ntws dav dav, txoj kab kev thauj mus los, lossis cov estuaries uas tsim kev txhawb nqa ib ntus ntawm lub txaj yog kim lossis cuam tshuam rau kev taug kev.
Muaj Infrastructure:Thaum tsim tus choj hla txoj kev loj lossis kev tsheb ciav hlau tsis muaj kev cuam tshuam cov tsheb hauv qab no.
High Bridges:Qhov twg qhov siab ua rau cov pa scaffolding impractical thiab txaus ntshai.
Cov piv txwv nto moontawm cov choj tsim siv lub hauv paus ntsiab lus no suav nrog:
Rio-Niterói Choj (Brazil):Ib qho ntawm cov npe nrov tshaj plaws.
Skyway Choj (Florida, USA):Nws cov ntu precast tau tsim los siv txoj kev sib npaug zoo sib xws.
Muaj ntau cov viaducts niaj hnubrau txoj kev loj hauv Europe thiab Asia.
Cov txheej txheem ntau lawm
Cov txheej txheem ntau lawm rau Counterweight Choj Launching Tshuab (BLM)
Cov Ntaub Ntawv Tswj:
Tus txheej txheem ID:PP -BLM-001
Hloov kho: 1.0
Hnub tim:[Date of Issue]
1.0 Lub Hom Phiaj thiab Scope
1.1 Lub Hom Phiaj:
Txhawm rau txheeb xyuas cov txheej txheem tsim nyog rau kev tsim khoom, sib dhos, kev sim, thiab kev npaj rau kev xa khoom ntawm Counterweight Choj Launching Machine. Qhov no ua kom cov khoom kawg ua tau raws li tag nrho cov qauv tsim, cov qauv zoo, thiab kev nyab xeeb yuav tsum tau ua rau kev tshaj tawm ntawm cov choj precast ntu.
1.2 Scope:
Cov txheej txheem no suav tag nrho cov haujlwm los ntawm kev txais cov ntaub ntawv raw mus rau qhov kawg ntawm BLM. Nws suav nrog:
Kev tswj cov khoom siv
Hlau Fabrication
Machining ntawm cov khoom tseem ceeb
Sub-kev sib dhos thiab General Assembly
Installation ntawm Mechanical thiab Hydraulic Systems
Hluav taws xob thiab tswj kev sib koom ua ke
Factory Txais Kev Xeem (FAT)
Kev kho deg thiab pleev xim
Dismantling, ntim, thiab Shipping
2.0 Cov Cheebtsam tseem ceeb ntawm Counterweight BLM
Kev nkag siab txog cov khoom kawg yog qhov tseem ceeb rau kev tsim khoom. Lub ntsiab subsystems yog:
Main Truss / Girder:Thawj qhov kev thauj khoom-cov qauv kabmob uas nthuav dav qhov sib txawv thiab txhawb nqa cov ntu.
Kev them nyiaj yug pem hauv ntej (Nce):Lub cantilevered seem nyob rau pem hauv ntej ntawm lub truss.
Tsheb Support & Counterweight Ncej:Tus qauv ntawm lub rear uas tuav lub counterweight blocks.
Launching Gantry / Trolley:Qhov chaw txav uas thauj cov ntu raws qhov saum toj ntawm lub truss.
Hydraulic System:Muab lub zog rau nqa, tso tawm, thiab kho lub tshuab (lub tog raj kheej, twj tso kua mis, li qub, hoses).
Hluav taws xob & Tswj System:Xws li lub cev muaj zog, sensors, PLCs, thiab tus neeg teb xov tooj lub tsev rau kev tswj kom meej.
Kev txhawb nqa Systems:Txoj kev taug kev, ntaiv, kev ruaj ntseg rail, thiab teeb pom kev zoo.
3.0 Cov txheej txheem ntau lawm
Theem 1: Engineering thiab Planning
Design Finalization:Cov duab kos duab ntxaws ntxaws, Daim Ntawv Pov Thawj Cov Khoom Siv (BOM), thiab hydraulic / hluav taws xob schematics tau ua tiav thiab pom zoo.
Kev npaj yuav khoom:Tag nrho cov ntaub ntawv xav tau (steel daim hlau, ntu, bearings, hydraulic Cheebtsam, hluav taws xob Cheebtsam) raug txheeb xyuas thiab kev yuav khoom yog pib.
Kev Npaj Ua Haujlwm:Kev tsim ua ntu zus, cov txheej txheem vuam, thiab cov phiaj xwm tshuaj xyuas zoo raug tsim.
Theem 2: Kev Muag Khoom thiab Kev Tshawb Fawb
Cov ntaub ntawv tau txais:Cov khoom siv raw (cov qauv hlau, daim hlau, thiab lwm yam) tau txais thiab nkag mus.
Kev tshuaj xyuas tuaj:Cov ntaub ntawv raug tshuaj xyuas rau qib, qhov ntev, thiab qhov chaw tsis zoo tiv thaiv daim ntawv pov thawj zeb thiab xaj xaj. Cov ntaub ntawv tsis raug - raug cais tawm.
Theem 3: Steel Fabrication
Marking thiab txiav:
Cov phaj hlau thiab cov seem raug cim raws li cov duab kos los ua kom zoo dua cov khoom siv.
Kev txiav yog ua los ntawm CNC plasma/oxy- cov roj cutters los yog saws rau siab precision.
Forging thiab Bending:
Cov phaj uas yuav tsum tau curvature (xws li, rau gussets, kev cai brackets) yog tsim los ntawm cov xovxwm brakes los yog dov cav tov.
Vuam thiab Sub-Assembly:
Cheebtsam yog haum- siv jigs thiab fixtures kom paub meej qhov tseeb.
Vuam yog ua los ntawm cov welder ntawv pov thawj siv cov txheej txheem pom zoo (SMAW, GMAW, SAW). Cov welds tseem ceeb yog 100% pom pom.
Sub- cov khoom sib dhos xws li truss chords, kab pheeb ces kaum, thiab gantry thav duab raug tsim.
Kev ntxhov siab (yog tias xav tau):
Rau qhov tseem ceeb, tuab- cov khoom siv phab ntsa, tom qab-weld heat treatment (PWHT) tuaj yeem siv los txo cov kev ntxhov siab.
Theem 4: Machining ntawm cov khoom tseem ceeb
Cheebtsam:Pivot pins, bearing seats, thiab kev sib txuas interfaces ntawm lub ntsiab truss thiab gantry.
Txheej txheem:Machining yog ua tiav ntawm CNC lathes thiab milling tshuab kom ua tiav nruj tolerances thiab nplua nto tiav raws li tus qauv tsim.
Theem 5: General Assembly (hauv Hoobkas)
Kev teeb tsa cheeb tsam sib dhos:Qhov chaw huv, theem, thiab dav sib dhos yog npaj.
Truss Assembly:Sub-sembled truss seem yog aligned thiab bolted / welded ua ke los tsim tag nrho - ntev lub ntsiab truss. Alignment yog soj ntsuam nrog cov qib laser thiab theodolite.
Support Structure Assembly:Lub qhov ntswg pem hauv ntej thiab nram qab counterweight ncej yog sib sau ua ke thiab txuas nrog lub ntsiab truss.
Mechanical System Installation:
Lub launching gantry / trolley yog sib sau ua ke, thiab nws cov log / lem raug ntsia.
Lifting beams thiab winches yog mounted rau ntawm lub gantry.
Hydraulic System Installation:
Hydraulic thooj voos kheej kheej (rau lifting, launching, thiab ntsuas) yog ntsia.
Hydraulic hwj chim unit (HPU), li qub, manifolds, thiab piping / hosing yog ntsia. Lub kaw lus tau sau nrog cov kua dej tshwj xeeb hydraulic.
Theem 6: Hluav taws xob thiab tswj kev sib koom ua ke
Txee Installation:Kev tswj vaj huam sib luag, PLC txee, thiab qhov sib txawv zaus tsav (VFDs) tau teeb tsa.
Kev xaim:Tag nrho cov sensors (tso txwv keyboards, LVDTs, siab transducers), motors, thiab actuators yog xaim rov qab mus rau lub txee tswj raws li schematics.
Operator Cabin:Lub alarm yog nruab thiab tag nrho cov kev tswj interfaces (joysticks, HMI touchscreen, nres thaum muaj xwm ceev) txuas thiab sim.
Theem 7: Factory Txais Kev Xeem (FAT)
Qhov no yog ib theem tseem ceeb los xyuas qhov ua tau zoo ua ntej disassembly rau shipping.
Visual thiab Dimensional Inspection:Xyuas kom tseeb tias tag nrho cov khoom tau teeb tsa kom raug thiab qhov ntev sib phim raws li - tsim cov duab kos.
Hydraulic System Test:
Tshawb xyuas qhov xau ntawm txhua qhov kev sib txuas.
Kuaj tag nrho cov thooj voos kheej kheej rau kev txuas ntxiv / thim rov qab.
Xyuas qhov system siab teeb tsa thiab nyem valve ua haujlwm.
Functional Test (Tsis muaj Load):
Ua haujlwm lub launching gantry: hla nws tag nrho ntev ntawm lub truss.
Kuaj tag nrho cov winches thiab lifting mechanisms.
Ntsuam xyuas tag nrho cov kev txwv kev nyab xeeb thiab cov chaw nres tsheb thaum muaj xwm ceev.
Load Test (Simulated):
Siv lub simulated load (feem ntau yog 125% ntawm qhov ntsuas ua haujlwm load) rau lub tshuab nqa siv calibrated load hlwb lossis ntsuas qhov hnyav.
Ntsuas deflections ntawm lub ntsiab truss thiab muab piv nrog rau qhov tseem ceeb theoretical.
Tswj System Test:
Txheeb xyuas tag nrho cov haujlwm ntawm tus neeg teb xov tooj lub cabin.
Kev ntsuas kev cuam tshuam thiab kev nyab xeeb raws tu qauv (xws li, gantry tsis tuaj yeem txav mus yog tias tsis muaj kev txhawb nqa).
Theem 8: Kev kho deg thiab pleev xim
Kev npaj nto:Tom qab FAT, tag nrho cov qauv yog ntxuav los ntawm xeb, zeb nplai, thiab cov kab mob uas siv cov abrasive blasting (piv txwv li, txhaj tshuaj blasting) mus rau cov qauv teev tseg (xws li Sa 2.5).
Kev kos duab:Ib txheej txheej xim txheej ntau ({0}} primer, intermediate coat, topcoat) yog siv raws li cov kev qhia tshwj xeeb, kom ntseeg tau tias cov zaj duab xis qhuav txaus (DFT).
Theem 9: Dismantling, Marking, thiab ntim
Systematic Dismantling:Lub BLM yog ua tib zoo dismantled nyob rau hauv qhov kev txiav txim rov qab ntawm qhov chaw erection. Qhov sib lawv liag yog npaj los txo qhov chaw rov ua dua lub sijhawm.
Component Marking:Txhua feem raug cim nrog tus lej cim cim sib raug rau kev teeb tsa dav dav thiab erection kos duab.
Ntim:
Hydraulic Cheebtsam thiab hluav taws xob vaj huam sib luag yog kaw los ntawm ya raws thiab hmoov av.
Machined nto thiab threads yog greased thiab tiv thaiv.
Cov tswv cuab ntawm cov qauv tau ntim thiab ruaj ntseg rau hiav txwv- tsim nyog / txoj kev- tsim nyog thauj.
Theem 10: Cov ntaub ntawv thiab xa tawm
Cov ntaub ntawv zaum kawg:Ib daim ntawv ua tiav tau npaj, suav nrog:
Raws li - ua cov duab kos
Vuam daim ntawv pov thawj
Cov ntaub ntawv pov thawj
Hydraulic Circuit Diagrams
Hluav taws xob schematics thiab PLC cov kev pab cuam
FAT Report
Phau Ntawv Qhia Kev Ua Haujlwm thiab Kev Kho
Kev xa:Cov khoom ntim tau ntim rau hauv cov tsheb thauj khoom lossis cov thawv thauj khoom thiab xa mus rau qhov project site.
4.0 Kev Tswj Xyuas Zoo thiab Kev Nyab Xeeb
Kev Tswj Xyuas Zoo:Kev tshuaj ntsuam xyuas thiab kuaj cov phiaj xwm (ITP) yuav ua raws txhua theem. Txhua qhov kev tshuaj xyuas yuav raug sau tseg.
Kev nyab xeeb:Txhua qhov kev tsim khoom thiab kev sib dhos yuav ua raws li cov txheej txheem kev nyab xeeb ntawm lub rooj cob qhia, suav nrog kev tso cai rau kev ua haujlwm kub, siv PPE, thiab LOTO (Lockout-Tagout) cov txheej txheem thaum kuaj hluav taws xob thiab hydraulic.
5.0 Cov ntsiab lus
Cov txheej txheem no ua kom ntseeg tau tias Counterweight Choj Launching Tshuab yog tsim los rau cov qauv siab tshaj plaws ntawm kev ua tau zoo, kev nyab xeeb, thiab kev ua tau zoo, muab kev txhim khu kev qha thiab kev daws teeb meem rau kev tsim kho choj.
Rhiav saib
Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas sib txuas yuav ncav cuag 95% . 32 cov kab vuam tau muab tso rau hauv kev siv, 50 tau npaj los nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
Cim npe nrov: Tuam Tshoj counterweight choj lancher tshuab manufacturers, lwm tus neeg, Hoobkas
Koj Tseem Yuav Zoo Li
Xa kev nug
