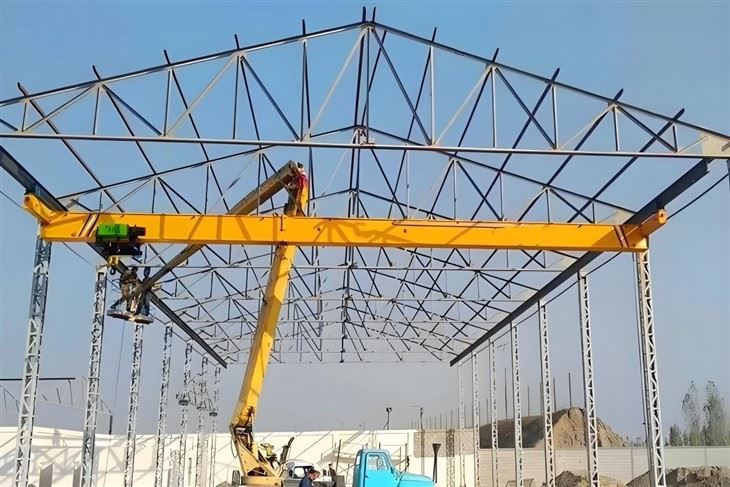

Mus Ncig Ib Leeg Girder Nyiaj Siv Ua Haujlwm Crane

Cov Cheebtsam Tseem Ceeb: Gearbox, Tsav, Iav

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 1 xyoos

Qhov hnyav (kg): 10000 kg

Video tawm-soj ntsuam: muab

Kev Ntsuas Cov Lus Qhia: muab

Muag Chav Nyob: Ib Yam Khoom

Ib pob loj: 600x300x300 cm

Ib qho nyhav tag nrho: 200. 000 kg







1.Main Beam

🔧 Dab tsi yog lub nqaj loj?
Nws yog tus nqaj kab rov tav uas nthuav dav qhov dav ntawm cov haujlwm ua haujlwm crane ua haujlwm.

Nyob rau hauv ib tus girder crane, muaj tsuas yog ib lub ntsiab lub nqaj, tsis zoo li ob chav girder cranes uas muaj ob.

Cov haujlwm tseem ceeb:
Txhawb cov hoist thiab trolley uas txav raws cov nqaj.

Hloov chaw ntawm lub nra rau qhov kawg cov tsheb thauj khoom, uas tom qab ntawd hloov nws mus rau kab teeb khiav lossis cov qauv kev txhawb nqa.

Cov lus qhia tshwj xeeb:
Cov Khoom Siv: Feem ntau ua los ntawm Q235B \/ Q345B \/ Q345B hlau, lossis qee zaum lub thawv welded qauv rau lub zog thiab lub teeb.

Hla-ntu: tuaj yeem yog kuv-nqaj (dov hlau) lossis thawv-hom (welded steel daim hlau).

Ntev: nyob ntawm cov kev xav tau (ntau zaus 5m txog 30m lossis ntau dua).

Camber: Tsim nrog ib tug me nyuam me me (camber) rau kev cuam tshuam dab tsi hauv kev thauj khoom.

🧰 Instrumic nta:
Khiav Rail nyob rau sab saum toj ntawm lub nqaj rau lub hoist \/ trolley.

Hluav taws xob cable txhawb nqa hluav taws xob (Cable Festoon system lossis tus tw kab ke).



2.Lifting system

Ib qho kev mus ncig ua si Girder Nyiaj Siv Ua Haujlwm Crane yog ib hom kev lag luam nqa khoom siv hauv cov khoom siv roj teeb, chaw khaws khoom, thiab kev cob qhia. Ntawm no yog qhov kev puas tsuaj ntawm nws cov khoom thiab muaj nuj nqi:

🔧 Nws yog dab tsi:
Ib qho kev ua haujlwm Girder ua haujlwm Crane muaj ib qho nqaj hlau tav kev sib cav sib ceg Tag nrho cov girder sib txuas ua ke raws cov kev sib tw mounted ntawm tus qauv tsim tsev, tso cai pab them tag nrho ntawm thaj chaw ua haujlwm.

Cheebtsam tseem ceeb:
Tib Girder - Ib qho tseem ceeb nqaj kev ncua hla ntawm cov chaw ua haujlwm.

End Flriages - nyob ntawm ob qho kawg ntawm Girder; muaj log uas txav raws txoj kev sib tw.

Hoist thiab trolley - nqa lub tshuab nqa uas mus raws girder; tuaj yeem yog hluav taws xob lossis phau ntawv qhia.

Cov kab teeb \/ ntsia - mounted ntawm cov qauv lossis txhua rau crane mus.

Tswj system - yog pendant tswj, wireless chaw taws teeb tswj, lossis ib lub txee.

Resial yuam sij:
Hoist Durution (nce \/ Down)

Trolley Mus Ncig (sab laug \/ sab xis raws girder)

Crane taug kev (rau pem hauv ntej \/ rov qab raws txoj kev khiav)

Pitectlub laub

Ib qho kev mus ncig ua si girder overhead crane kawg Carriage yog ib qho tseem ceeb ntawm ib tus girder siv nyiaj ua ntej craneead. Ntawm no yog kev tawg ntawm nws yog dab tsi thiab nws ua li cas:

🔧 Lub laub zaum kawg yog dab tsi?
Qhov kawg carriage yog lub log log ntawm ob sab ntawm cov nyiaj siv ua haujlwm uas tso cai rau tag nrho cov nqaj (cov kab rov tav) txav mus raws cov teeb sib tw. Cov kev khiav ntawm cov ciav hlau tsau rau lub tsev tus qauv.

⚙️ Cov Nta Tseem Ceeb:
Taug kev mus ncig ua tshuab: nruab nrog lub cev muaj log lossis cov motors kom txav lub crane raws lub tsev lossis rooj cob qhia.

Kev them nyiaj yug rau choj nqaj: Tuav cov girder (lub nqaj loj) thiab tso cai rau nws ntev nyob hauv thaj chaw ua haujlwm.

Tsav chav nyob: feem ntau tuaj nrog ua cov motors thiab cov thawv thauj khoom rau cov lus tsa suab du, synchronized.

Log hom log: tuaj yeem ua qauv lossis tiv thaiv kev sib txhuam lub log nyob ntawm ntawm cov thauj khoom thiab kab hlau.

Paub cov lus tshwj xeeb:
Load muaj peev xwm: nyob ntawm cov crane system, tab sis feem ntau txhawb lub teeb rau nruab nrab loads (txog ~ 20 tons).

Mus ncig ceev: sib txawv (piv txwv li, 10-20 m \/ min) nyob ntawm daim ntawv thov thiab lub cev muaj zog.

Lub cev muaj zog hom: feem ntau yog peb-theem induction lub tshuab raj nrog cov chaw nres.

Cov ntaub ntawv: High-lub zog hlau, nrog lub cim ntsuas-machined.

Aption Xaiv cov yam ntxwv:
Cov Invertences inverters rau cov nrawm dua \/ deceleration.

Anti-collision sensors rau kev nyab xeeb.

Encoder lossis txwv hloov rau txoj haujlwm tswj.



4.Crary Traveling Mechanism

Lub tsev neeg taug kev ntawm ib leeg Girder Nyiaj Siv Ua Haujlwm Crane yog ib qho tseem ceeb tshaj plaws uas ua rau lub crane txav rov qab ntawm cov ciav hlau khiav ntawm ob sab ntawm lub crane bay. Ntawm no yog kev tawg ntawm lub ntsiab Cheebtsam thiab yuav ua li cas lub system ua haujlwm:

🔧 Cov ntsiab lus tseem ceeb ntawm cov txheej txheem kev lag luam
Crane kawg cov neeg thauj khoom (xaus truck):

Nyob rau ntawm qhov kawg ntawm girder.

Txhua tus muaj lub log uas khiav ntawm txoj kev sib tw.

Feem ntau suav nrog cov motors, pob, thiab lub log sib dhos.

Mus ncig tsav tsheb Motors:

Cov tshuab hluav taws xob motors hluav taws xob mounted rau ntawm lub caij nplooj zeeg kawg.

Tsav lub log ncaj ncaj lossis ntawm cov neeg txo qis.

Tej zaum yuav yog ib leeg-nrawm, dual-nrawm, lossis ntau zaus zaus tsav (VFDs) rau kev tswj smoother.

Yuav Tsav:

Feem ntau ua los ntawm forged steel.

Yuav tuaj yeem muab ob npaug rau ya los yog coj los ntawm cov menyuam yaus sab.

Tsim rau lub neej ntev thiab kev ua kom du ntawm kev tsheb nqaj hlau.

Gearboxes:

Txuas nrog ntawm cov motors thiab lub log.

Muab cov nyiaj tsim nyog thiab hloov dua siab tshiab.

Brakes:

Electromagnetic lossis hydraulic.

Xyuas kom cov crane txiav kom nyab xeeb thiab ruaj ntseg thaum xav tau.

Couplings:

Txuas cov motors thiab pob khoom thauj mus rau lub log shafts.

Nqus cov khoom poob siab thiab misalignments.

Tswj system:

Tus neeg teb xov tooj siv lub pendant, xov tooj cua chaw taws teeb tswj, lossis kev tswj txee.

Xa cov lus txib rau lub cev muaj zog tswj hwm kom tswj kev txav.

Ua haujlwm ua haujlwm
Thaum tus neeg teb tsav lub tshuab ua kom lub crane txav ntawm txoj kev ua haujlwm:

Hluav taws xob teeb hluav taws xob tau xa mus rau cov neeg tsav tsheb mus ncig.

Cov motors tsav lub tshuab, uas tig lub log.

Crane khiav ib ncig ntawm lub sijhawm ntawm Bay hauv cov kev taw qhia ib leeg (ntev mus ncig).

Braking tshuab qeeb thiab nres tus crane du thaum xav tau.





5.trolley Travelling Mechanism

Lub tshuab taug kev ntawm ib leeg Girder Nyiaj Txiag Crane Trolley yog qhov tseem ceeb ntawm Trolley (uas nqa tau lub siab tawv) kom txav mus rau tus choj girder. Cov txheej txheem no yog qhov tseem ceeb rau kev muab cov khoom thauj khoom raug nyob thoob plaws thaj chaw ua haujlwm. Ntawm no yog kev tawg ntawm nws Cheebtsam thiab ua haujlwm:

🔧 Txheej txheem ntawm cov txheej txheem taug kev
Mus Ncig Log

Txuas nrog trolley ncej.

Khiav raws saum toj lossis hauv qab flange ntawm ib girder (nyob ntawm cov qauv tsim).

Feem ntau ua los ntawm forged steel.

Tsav tsheb

Lub hwj chim lub zog ntawm Trolley.

Feem ntau yog lub cev muaj zog hluav taws xob, qee zaum ua ke nrog lub thawv (keared tsav).

Gearbox \/ Spination System

Txo qhov nrawm nrawm thiab nce lub zog.

Kev hloov tsheb thauj khoom ntawm lub cev muaj zog rau cov log tsav.

Couplings

Txuas lub cev muaj zog \/ Gearbox kom tsav lub log.

Tso cai rau me me misalignment thiab torque kis tau.

Tus nres

Feem ntau electromagnetic.

Cia li siv tau thaum lub hwj chim tawm, ua kom pom kev nyab xeeb.

Tswjhwm system

Tswj lub sijhawm pib, nres, kev taw qhia, thiab nrawm.

Ua haujlwm ntawm pendant tswj, xov tooj cua chaw taws teeb, lossis alarin.

⚙️ Ua li cas nws ua haujlwm
Thaum tus neeg tsav tsheb ua haujlwm ua kom muaj nuj nqi ua haujlwm, lub cev muaj zog hloov lub log tsav.

Cov log hloov lub trolley (thiab hoist) raws qhov ntev ntawm tus girder.

Lub zog tso cai rau lub nra kom tau muab tso rau sab laug lossis sab xis (raws qhov x-acis ua haujlwm).

7.CraCane Hook

Tus nuv yog txoj kev them nyiaj txuas nrog lub hoist (uas tau teeb tsa ntawm Girder). Nws:

Koom nrog cov thauj khoom ntawm cov lus txiav, cov saw, lossis nqa khoom siv.

Yog feem ntau forged los ntawm high-zog steel.

Tej zaum yuav tuaj sib txawv tsim: ib tus hook, ob chav nuv, C-hom nuv, thiab lwm yam.

Cov yam ntxwv tseem ceeb ntawm cov crane nuv ntawm ib tus Girder Crane:

Cov Lus Qhia Tshwj Xeeb
Load muaj peev xwm sib txawv (feem ntau 1-20 tons rau ib girder cranes)
Swiveling ib co hooks tig 360 degree los ua kom haum nrog lub nra
Latch kev nyab xeeb lub lag luam tiv thaiv lub nra tawm ntawm cov nplais tawm
Mounting txuas rau ib lub hlua hlau Hoist lossis saw hoist
Txheem feem ntau ntsib ISO, DIN, lossis pojniam cov qauv

8.Moor

Aro eltric siv
Nooj Ywg Cab Induction Motors (Feem Ntau)

Laus thiab yooj yim

Tsawg txij nkawm

Lub nplhaib Motors

Siv rau cov ntawv siv hnyav ua haujlwm uas xav tau high pib lub zog

Nres Motors

Kev sib xyaw ua ke los tuav txoj haujlwm thaum tsis muaj zog

Cov lus qhia tseem ceeb
Thaum xaiv lossis hloov lub cev muaj zog rau ib tus girder crane, cov tsis muaj teeb meem no:

Kev Qhia Tawm
Lub Hwj Chim (KW \/ HP) nyob ntawm crane muaj peev xwm thiab nrawm nrawm (feem ntau 0. 75-15 kw)
Voltage nquag: 380V \/ 415V \/ 440V ac, 3- theem
Kev ceev ceev (RPM) feem ntau yog cov tshuaj tua hluav taws xob tsawg (nyob ib ncig ntawm 900-1500 rpm)
Duty chav S3 rau S4 (sib quas ntus lossis lub sijhawm luv luv)
Nres hom electromagnetic disc lossis khau brakes
ENDITA hom TEFC (uas muaj lub ntsej muag sib txuam nrog cov plua plav

.

9.sound thiab Lub Teeb Lub Tswb System & txwv hloov

Ib qho kev mus ncig ua si girder siv nyiaj ua ntej crane feem ntau sib xyaw ua ke suab thiab txwv lub tswb thiab txwv kev hloov kev nyab xeeb thiab kev tswj hwm. Ntawm no yog qhov kev sib tawg sai ntawm ob lub nruab nrab:

Suab thiab Lub Teeb Tswb Zog
Lub Hom Phiaj: Los ceeb toom cov neeg ua haujlwm ntawm crane lub zog lossis muaj kev phom sij.

Nta:

Audible tswb (buzzers lossis sizel): ceeb toom cov neeg ua haujlwm thaum lub crane ua haujlwm lossis txav chaw.

Lub tswb ceeb toom pom (nyem teeb): feem ntau mounted rau crane rau teeb liab kev txav lossis lub xeev xwm txheej ceev.

Tsis siv neeg ua kom: feem ntau txuas nrog Crane txav (piv txwv li thaum hoisting, lossis mus ncig).

Los ntawm txhais tes tsis muaj kev ntseeg (yeem): rau cov lus ceeb toom xwm ceev.

Cov txiaj ntsig:

Txhim kho kev nyab xeeb kev nyab xeeb.

Txo kev pheej hmoo ntawm kev huam yuaj los ntawm kev paub ntxiv.

Txwv Tsis Txhob Hloov
Lub Hom Phiaj: Txhawm rau tiv thaiv lub crane lossis hoist los ntawm kev tsiv mus dhau ntawm kev ua haujlwm muaj kev nyab xeeb.

Hom:

Mus ncig teb chaws hloov chaw: Tiv thaiv cov crane los ntawm taug kev dhau qhov kawg ntawm kev tso mam li ntawm txoj kev.

Kev Txwv Hoiste: Nres tus nuv ntawm ntau dua-hoisting (mus ntau dua) lossis dhau-qis dua (mus qis dua).

Searing \/ Trolley Txwv txoj kev hloov pauv (yog tias tsim nyog): txwv txoj kev txav ntawm trolley lossis kev sib hloov ntawm lub crane.

Ua haujlwm:

Thaum cov tshuab ua ntej mus txog qhov taw tes taw tes, tus hloov pauv yog txhais.

Nws txiav hwj chim rau lub cev muaj kev cuam tshuam, siv ceev xwmphping tam sim ntawd.

Cov txiaj ntsig:

Tiv thaiv kev puas tsuaj puas.

Zam kev sib tsoo lossis cov khoom lag luam.

10.safety cov khoom siv

Ib qho kev mus ncig ua si Girder Nyiaj Siv Ua Haujlwm Crane yuav tsum tau nruab nrog ntau cov khoom siv kev nyab xeeb kom ntseeg tau tias kev nyab xeeb thiab tiv thaiv kev nyab xeeb. Ntawm no yog cov npe ntawm cov muaj kev ruaj ntseg tseem ceeb uas siv:

🔧 Cov Khoom Siv Kho Mob
Txwv tsis pub hloov

Hoisting txwv hloov: tiv thaiv dhau-nqa thiab dhau-qis ntawm tus nuv.

Mus ncig teb chaws hloov chaw: Tiv thaiv cov crane lossis trolley los ntawm kev sib tsoo nrog lub sijhawm nres.

Kawg nres & buffers

Mounted thaum kawg ntawm Crane khiav kom nqus cov kev cuam tshuam thiab tiv thaiv kev ua haujlwm derailment.

Overload limter (thauj khoom)

Tiv thaiv cov crane los ntawm kev nqa khoom nyob saum toj nws lub peev xwm.

Tiv Thaiv Li Khoom

Khaws cov crane ruaj ntseg ntawm nws cov ciav hlau thaum lub sijhawm txav.

Cav Nres

Tsis siv neeg Brakes koom tes thaum lub zog tawm los yog thaum tus neeg teb khoom nres lub crane.

⚡ Hluav Taws Xob Cov Khoom Siv Hluav Taws Xob
Nres Nres Nres

Siv zog tam sim ntawd tawm ntawm lub zog thiab nres txhua CANRAN CANCE.

Ntu Kev Tiv Thaiv Ua Haujlwm

Tiv thaiv kev ua haujlwm crane ua haujlwm thaum ib theem ntawm hluav taws xob yog ploj lossis thim rov qab.

Overcurrent thiab overvoltage tiv thaiv

Tiv thaiv cov motors thiab hluav taws xob sib xyaw los ntawm kev puas tsuaj.

Kev Tiv Thaiv Kev Tiv Thaiv Kev Tiv Thaiv Kev Tiv Thaiv Ntiaj Teb

Xyaum ua rau neeg tsav tsheb ceev ceev thaum muaj kev tsis ua tiav.

Kev ua haujlwm thiab kev nyab xeeb ntxiv kev nyab xeeb
LUS NOOG LOJ NIAM

Audible thiab pom pom lub tswb (tshuab raj, nyem teeb) thaum lub crane yog txav lossis tshem.

Tus neeg teb xov tooj tus cab lossis pendant tswj nrog kev nyab xeeb nta

Nres thaum muaj xwm ceev, tswj xauv, thiab rwb thaiv tsev rwb thaiv tsev.

Load ntsuas lossis cov zaub (xaiv tau tab sis pom zoo)

Qhia qhov tseeb-lub sijhawm thauj tau tshem tawm.

Anti-Collision cov cuab yeej (rau ntau cranes ntawm tib txoj kev khiav)

Txwv tsis pub cranes los ntawm kev sib tsoo.

Cov hlua hlau kev nyab xeeb

Kev siv cov hlua hlau zoo thiab nruas nrog kev tiv thaiv kev nyab xeeb; Yuav tsum muaj kev kuaj xyuas tsis tu ncua.

Txij Nkawm Platforms thiab Cov Lob Diav (yog tias muaj)

Txog kev kho kom zoo ntawm crane Cheebtsam.



11.Control hom

Cov kev tswj hwm hom ntawm kev mus ncig ua si girder siv nyiaj txiag crane hais txog li cas cov crane kev sib cav sib ceg), thiab ntev mus ncig ua si (crane mus ncig ua si (CRANE kev mus ncig) -are tswj los ntawm tus neeg teb xov tooj. Muaj ob peb hom kev tswj hwm, nyob ntawm tus qauv tsim thiab kev thov ntawm cov crane. Ntawm no yog cov hom tseem ceeb:

🔹 1. Pendant Tswj (Wired)
Cov lus piav qhia: Lub tsev tswj tuav tau zoo yog lub cev txuas rau lub crane ntawm ib qho cable.

Pros:

Yooj yim thiab raug nqi.

Kev tswj ncaj qha thiab kev tswj hwm ncaj qha.

Cons:

Cov neeg tsav tsheb tsawg tsawg.

Kev pheej hmoo ntawm cable coj los yog entanglement.

🔹 2. Wireless chaw taws teeb
Cov lus piav qhia: tus neeg teb xov tooj siv cov chaw taws teeb wireless los tswj lub crane los ntawm kev deb.

Pros:

Kev nyab xeeb thiab kev mus ncig.

Tus neeg teb xov tooj yuav sawv hauv qhov chaw zoo tshaj plaws rau kev pom thiab muaj kev nyab xeeb.

Cons:

Yuav tsum tau roj teeb zog.

Tus nqi me ntsis.

Muaj peev xwm rau kev cuam tshuam rau cov teeb liab (tab sis cov kev hloov pauv niaj hnub yog qhov muaj zog heev).

🔹 3. Cabin tswj (tsawg kawg rau tib Girder)
Cov lus piav qhia: tus neeg teb xov tooj tso rau hauv txee rau lub crane.

Pros:

Haum rau loj los yog hnyav-ua haujlwm cranes nrog kev siv nquag.

Pom kev zoo tshaj li thaj chaw ua haujlwm.

Cons:

Tsis tshua muaj menyuam yaus rau ib leeg girder cranes vim muaj chaw thiab nqi.

Ntau txoj kev teeb tsa thiab kev ua haujlwm.

🔹 4. Tsis siv neeg \/ Plc-tswj kev ua haujlwm
Cov lus piav qhia: Crane ua haujlwm yog ib nrab lossis tag nrho cov neeg siv hluav taws xob siv cov tswj kev tswjfwm programmable (PLCS).

Pros:

Meej thiab rov ua dua.

Tuaj yeem sib xyaw rau hauv cov kab ntau lawm.

Cons:

Tus nqi ua nqi loj thiab cov nyom.

Yuav tsum muaj kev teeb tsa siab thiab txij nkawm.

Daim duab kos



Cov Tshuab Tseem Ceeb





Ib qho kev mus ncig ua si Girder Nyiaj Siv Ua Haujlwm Crane muaj ob peb qhov zoo uas ua rau nws xaiv cov khoom lag luam muaj ntau yam thiab ua lag luam. Qee qhov tseem ceeb ntawm cov txiaj ntsig tseem ceeb suav nrog:

Nqi siv txiaj ntsig: Tib tus girder cranes feem ntau muaj nqis ntau dua lawv cov roj girder thiab cov khoom siv tsawg dua thiab nruab nrab.

Qhov chaw ua hauj lwm ua tau: Cov cranes yog qhov zoo tagnrho rau thaj chaw uas muaj qhov chaw tsis muaj kev siv nyiaj ntau dua, raws li lawv muaj me me, tsim me dua. Qhov qhov siab txo ntawm Girder System tso cai ntxiv kev tshem tawm hauv qab crane.

Lub teeb yuag: tus girder tsim txo cov qhov hnyav tag nrho ntawm lub tsev ua haujlwm thiab kev txo cov kev ua haujlwm thiab kua muag.

Kev tsim kho yooj yim thiab kev txij nkawm: nrog cov khoom siv tsawg dua piv rau cov menyuam girder yog yooj yim dua los tswj, nrog tsawg dua qhov uas yuav xav tau kev kho lossis hloov sijhawm.

Versatility: Lawv haum rau ntau qhov teeb meem ntawm Lifting daim ntawv thov, hauv kev lag luam xws li warehouses, kev cob qhia, thiab cov chaw ua haujlwm.

Txhim kho visibility: qhov qis dua profile ntawm crane muab qhov pom tau zoo dua rau cov neeg ua haujlwm, txo qis kev pheej hmoo ntawm kev nyab xeeb.

Txo cov nqi ua hauj lwm txo qis: Vim tias tsim kev sib zog dua thiab cov cranes ntau dua los txo qis zog siv zog thiab cov nqi tswj hwm tau piv rau cov tshuab ntau.

Customizable xaiv: Mus ncig teb chaws ib leeg girder cranes tuaj yeem kho nrog ntau yam ntawm cov nta, tswj kev teeb tsa, kom tau raws li cov kev xav tau.

Kev teeb tsa sai dua: Txij li cov qauv tsim yog tsawg dua complex, cov cranes no ib txwm nrawm dua rau nruab, uas tuaj yeem txo qis downtimes rau cov lag luam thaum teeb tsa.

Feem ntau, taug kev ib leeg Girder Nyiaj Siv Ua Haujlwm Crane yog qhov zoo rau cov xwm txheej uas nqa cov kev xav tau muaj mob me ntsis thiab kev ua haujlwm tau yog qhov tseem ceeb.





Ib qho kev mus ncig ua si Girder Nyiaj Siv Ua Haujlwm Crane yog ib hom crane uas muaj ib qho kev txhawb nqa ib zaug (lub tsheb loj uas tso cai rau crane txav mus raws txoj kev sib tw. Cov cranes no tau siv dav hauv kev lag luam ntau yam thiab cov ntawv thov vim lawv qhov kev siv ntawm qhov chaw thiab muaj peev xwm nqa cov khoom hnyav. Ntawm no yog qee cov ntawv thov raug:

1. Kev tsim khoom thiab sib dhos
Siv rau hauv cov teeb meem rau kev nqa thiab txav cov khoom siv hnyav, xws li qhov chaw hauv cov kab sib dhos hauv tsheb, thiab cov khoom siv hauv cov cuab yeej sib dhos.

2. Cov Khoom Muag thiab Chaw Tso Khoom
Pab nyob rau hauv cov khoom txav lossis cov khoom raws txoj kev xaiv, chaw thau khoom \/ thau khoom ntawm cov khoom muag los ntawm cov khoom ntim, lossis cov khoom lag luam nruab nrog.

3. Kev tsim kho
Ua haujlwm hauv cov chaw tsim khoom rau kev nqa cov ntaub ntawv hauv tsev, cov cuab yeej siv hnyav thiab cov cuab yeej siv hauv kev tsim kho kom muaj kev nce siab lossis cov phiaj xwm loj.

4. Khoom siv tuav
Siv los thauj cov khoom siv hnyav xws li cov hlau, kav dej, thiab cov khoom siv raw hauv cov hlau qub, chaw tsim khoom, lossis cov chaw ua haujlwm, lossis chaw ua haujlwm. Cov cranes pab nyob rau hauv cov khoom sib txuas thiab tsis khov kho kom zoo.

5. Cov nkoj xa khoom thiab chaw nres nkoj
Siv rau cov chaw thau khoom thiab tshem tawm cov khoom thauj hnyav lossis ntim khoom ntawm cov nkoj, tshwj xeeb tshaj yog nyob rau hauv cov chaw nres nkoj qhuav lossis nkoj.

6. Tsuas yog thiab hnyav
Siv rau hauv mines lossis hnyav kev lag luam nroj tsuag rau kev nqa thiab txav cov khoom siv mining, cov khoom siv raw, lossis cov khoom lag luam hauv cov chaw nrog txwv chaw.

7. Fais Fab
Hauv cov nroj tsuag fais fab, lawv pab kev saib xyuas lossis tuav cov khoom loj, zoo li cov tshuab hluav taws xob lossis cov tshuab raj, thaum nruab kev nruab nrog cev lossis kho haujlwm.



Cov txheej txheem ntau lawm rau ib tus girder overhead crane suav nrog ntau cov kauj ruam tseem ceeb ua kom muaj kev nyab xeeb kawg nkaus, ua tau zoo, thiab cov qauv zoo thiab ua haujlwm zoo. Ntawm no yog cov qauv qhia dav dav ntawm cov txheej txheem:

1. Tsim thiab engineering
Cov neeg siv khoom yuav tsum tau: Sau cov tshwj xeeb raws li kev txhawb nqa lub peev xwm, ncua, qhov siab ntawm nqa, thiab kev ua haujlwm.

Tsim Tsim Txheej Txheem: Tsim cov ntawv qhia ntxaws ntxiv, suav nrog cov crane cov qauv sib xyaw (girder, haub), thiab ua raws li kev nyab xeeb thoob ntiaj teb thiab cov qauv kev ua tau zoo.

Kev ntxhov siab thiab kev ntsuas kev ntsuas: engineers ua kev suav kom txiav txim siab cov khoom ntim ntawm txhua tus neeg yuav dais rau lub sijhawm ua haujlwm.

Cov duab kos thiab kev pom zoo: tsim cov duab kos rau CAD thiab tau txais kev pom zoo rau cov neeg siv khoom rau cov qauv kawg.

2. Cov khoom siv xaiv thiab ua tiav
Cov Khoom Siv Khoom Siv: Raws li kev tsim qauv, xaiv cov ntaub ntawv tsim nyog (piv txwv li cov hlau rau girder thiab cov ntaub ntawv tshwj xeeb, cov ntaub ntawv tshwj xeeb rau kev xav).

Ua kom tiav: Kev txiav txim thiab tau txais cov ntaub ntawv raws li cov specifications (piv txwv li, cov kab teeb, motors, cov hluav taws xob sib xyaw ua ke).

3. Fabrication
Kev txiav thiab kev sau: hlau daim hlau thiab cov kab teeb tau txiav rau qhov ntau thiab tsawg cov duab thiab cov qauv rau cov qauv (Girder, txhawb txhais ceg, thiab lwm yam).

Vuam thiab Ringlemly: Cheebtsam yog welded ua ke los tsim tus qauv crane tus qauv, suav nrog girder thiab txhawb qhov chaw.

Machining: qee qhov, xws li bearings, log, lossis nkhaus, tej zaum yuav xav tau cov machining kom tau raws li kev thev taus.

4. Hoist thiab Trolley Raug
Hoist ua ke: lub hoist chav, uas suav nrog lub cev muaj zog, cov thawv ntawd, nruas, thiab cable system, tau sib dhos.

Trolley siv: Lub trolley, uas nqa lub hoist, yog tsim kom haum rau lub crane tus girder thiab taug kev raws nws du.

Tsav thiab tswj lub tshuab: Cov Motors thiab Tswj Panels yog ntsia tau, kom ntseeg tau tias Trolley thiab Hoist tuaj yeem ua haujlwm nyab xeeb thiab muaj txiaj ntsig.

5. Kev Kho Mob thiab Kev Kho Mob
Kev npaj saum npoo: Tom qab cov ntaub thaiv npog, tag nrho cov hlau sib xyaw ua ke yog ntxuav (piv txwv li, npuaj teg) kom tshem tawm cov xeb, thiab cov paug.

Painting: cov txheej tiv thaiv lossis cov xim pleev xim yog siv los tiv thaiv corrosion thiab txhim kho lub neej crane. Cov xim yuav ua xim xim rau kev pom qhov tseeb lossis kom phim cov neeg siv khoom nyiam.

Kom qhuav: Cia cov xim pleev xim rau kev kho thiab qhuav tag nrho ua ntej tsiv mus rau cov kauj ruam tom ntej.

6. Los ua ke thiab kev sib koom ua ke
Lub Rooj Sib Tham Loj: Cov Crane Cov Txheej Txheem (Girder, Trolley, Hoist, Tswj Lub Tshuab) tau sib sau ua ke hauv lub hoobkas. Qhov no suav nrog txhim kho lub trolley ntawm girder, ua raws li lub hoist, thiab txuas cov khoom siv hluav taws xob.

Cov Hluav Taws Xob Hluav Taws Xob: Kev tswj hwm hluav taws xob, cov khoom siv kev nyab xeeb (txwv kev hloov chaw, nres tsheb thaum muaj xwm ceev), thiab cov tshuab hluav taws xob muaj xwm txheej yog ntsia tau.

Kev Kuaj: Kev sim ua ntej ua haujlwm tau ua kom ntseeg tau tias txhua qhov chaw ua haujlwm kom raug.

7. Tswjhwm thiab kuaj
Soj ntsuam: kom dawb huv soj ntsuam ntawm Welds, cov qauv txheej txheem, thiab txav chaw. Txheeb xyuas cov kev ua kom nruj thiab ua tiav.

Kev ntsuas kev kuaj: Ua cov khoom siv zoo li qub thiab kev thauj khoom zoo nkauj los xyuas kom cov crane tuaj yeem daws nws lub peev xwm. Kauj ruam no simulates tiag tiag ua haujlwm.

Kev Nyab Xeeb Nta Xyuas: Ua kom cov kev nyab xeeb, xws li kev txwv tsis pub dhau, kev tiv thaiv kev tiv thaiv thaum muaj xwm ceev, thiab lub tswb, ua haujlwm.

8. Ntim thiab xa khoom
Kev kuaj xyuas zaum kawg: Ua ib puag ncig kawg ntawm kev tshuaj xyuas kom txheeb xyuas txhua lub tshuab thiab cov khoom siv.

Packing: Cheebtsam yog ua tib zoo ntim rau kev thauj mus los tiv thaiv kev puas tsuaj thaum xa khoom. Qee ntu yuav raug rho tawm rau kev xa khoom yooj yim.

Shipping: Tus crane yog xa mus rau cov qhua tuaj noj mov, kom ua raws li kev ua raws li kev xa khoom thiab cov ntaub ntawv tsim nyog.

9. Txhim kho thiab commissioning
Qhov chaw npaj: Tus neeg muas zaub npaj npaj lub chaw ua haujlwm, kom saib thaj chaw muaj kev nyab xeeb thiab npaj rau Crane installation.

Kev teeb tsa: Tus crane yog ntsia rau ntawm tus neeg siv khoom lub xaib, suav nrog cov rooj sib txoos zaum kawg yog tias tsim nyog.

Kev sim ua: CANS raug sim dua rau ntawm qhov chaw kom paub meej tias txhua lub tshuab ua haujlwm raws li qhov xav tau thiab ua haujlwm crane ua haujlwm kom nyab xeeb.

10. Kev kawm thiab kev sib tw
Kev Cob Qhia: Cov neeg ua haujlwm thiab cov neeg ua haujlwm saib xyuas tau kawm txog kev siv thiab tswj lub crane kom raug.

Handover: tus crane yog ua haujlwm rau cov neeg siv khoom tom qab tshev kawg thiab cov neeg siv kev txaus siab pom zoo.

Los ntawm ua raws li cov kauj ruam no, tib tus girder nyiaj txiag crane yog qhov ua tiav thiab xa nws cov qauv kev nyab xeeb.

Rhiav Saib:

Lub tuam txhab tau teeb tsa cov khoom siv tswj hwm kev txawj ntse platform, thiab tau teeb tsa 310 teev (teeb tsa) ntawm kev tuav thiab vuam hlau. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teev (teeb tsa), thiab cov khoom siv sib txuas lus yuav ncav cuag 95%. 32 VUAM txoj kab tau muab tso rau hauv kev siv, 50 tau npaj yuav tsum tau nruab, thiab kev siv lub tshuab ntawm cov kab ntawv tag nrho tau mus txog 85%.
