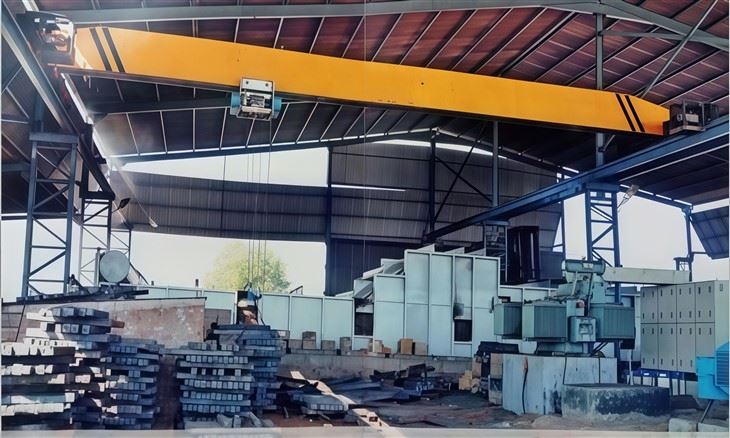

5 Tuj Electric Ib Leeg Nyiaj Siv Ua Haujlwm Crane

1. Tus qauv choj

Qhov no yog lub ntsiab taug kev thav duab ntawm lub crane uas spans qhov dav ntawm lub bay.

Single Girder (Main Beam):Ib leeg, fabricated steel thawv beam uas txhawb nqa lub hoist thiab trolley. Rau lub peev xwm 12-tuj, cov nqaj no tau tsim thiab loj los tswj cov khoom thauj nrog qhov tseem ceeb ntawm kev nyab xeeb, tiv thaiv ntau dhau deflection.

End Trucks:Cov hlau tsis nruj nyob ntawm txhua qhov kawg ntawm tus choj girder. Lawv muaj lub log, bearings, thiab axles uas tso cai rau tag nrho cov crane taug kev raws txoj kev khiav.

Choj Log:Cov log mounted rau ntawm cov tsheb thauj khoom kawg uas txhawb nqa tag nrho cov crane thiab thauj khoom. Ib tug ib leeg girder crane feem ntau muaj plaub lub log tsheb (ob lub tsheb kawg).

Bridge Drive Unit:Lub cev muaj zog, nres, thiab gearbox sib dhos ua kom lub zog ntawm tus choj log. Rau ib tug 12-tuj crane, qhov no feem ntau yog ib tug dual-tsav system, txhais tau tias muaj ib tug tsav unit nyob rau hauvob leegkawg tsheb thauj khoom rau synchronized thiab zoo zog.

Choj Conductor System:Yuav ua li cas lub crane tau txais lub zog rau kev mus ncig. Cov hom muaj xws li:

Festoon System:Ib qho ntawm cov cables thiab cov nqa khoom uas quav thiab nthuav tawm thaum lub crane txav.

Tus neeg xyuas pib Bar (Bus Bar):Ib tug nruj, insulated bar system nrog tooj liab conductors uas ib tug collector system swb nrog. Feem ntau nyiam rau qhov hnyav dua - daim ntawv thov haujlwm thiab ncua sij hawm ntev.

2. Hoist thiab Trolley Unit

Qhov no yog lub tshuab uas tsa, txo qis, thiab txav lub nra tom qab hla qhov ntev ntawm tus choj girder.

Hoist Tsav:Lub tshuab hluav taws xob uas muab lub zog nqa thiab txo cov load. Nws yog tsim los rau hnyav- lub luag haujlwm, ua haujlwm tsis sib xws.

Hoist Gearbox:Txo cov kev kub ceev ntawm lub cev muaj zog mus rau qhov siv tau, muaj zog ceev kom nqa cov khoom hnyav.

Braking System:Ntau tus brakes yog qhov tseem ceeb rau kev nyab xeeb.

Primary Holding Brake:Tsis siv neeg, caij nplooj ntoos hlav-set, hluav taws xob tso tawm nres nyob rau ntawm lub cev muaj zog ncej. Nws koom tam sim ntawd yog tias lub zog poob, tuav lub nra.

Secondary (Emergency) Nres:Ib tug neeg kho tshuab load nres feem ntau nyob rau hauv lub gearbox kom ntxiv kev ruaj ntseg.

Regenerative Lowering Nres:Lub tshuab hluav taws xob tswj nws tus kheej muab braking los ntawm kev tswj qhov ceev thaum txo qis.

Drum los yog Sheave Assembly:Rau hlau hlua hoists, qhov no yog ib tug grooved nruas nyob ib ncig ntawm uas cov hlau hlua cua. Rau saw hoists, qhov no yog ib txheej ntawm sheaves (pulleys) uas coj cov saw hlau.

Hlau hlua / Load Chain:Lub caij hloov tau yooj yim uas txuas rau lub nra.

Hlau hlua:Ntau dua rau lub peev xwm ntawm 12 tons. Nws yog reeved los ntawm ib txheej ntawm sheaves ntawm lub hoist thiab nuv thaiv kom muab txhua yam kom zoo dua.

Load Chain:(tsawg dua rau 12-tuj ib girder, tab sis ua tau). Ib qho welded alloy saw siv los nqa.

Hook Block:Lub rooj sib txoos uas tuav tus nuv thiab sheaves. Tus naj npawb ntawm sheaves (reeving) txiav txim siab qhov zoo ntawm cov khoom siv (piv txwv li, 4 feem ntawm txoj kab nqa 12 tons nrog 3-tuj kab rub hoist).

Lifting Hook:Lub forged steel nuv uas tuav lub load. Nws yog txawm peem rau nrog ib tug kev ruaj ntseg latch los tiv thaiv lub sling los ntawm txhob txwm disengaging.

3. Trolley Ncej

Lub thav duab uas nyob hauv lub hoist thiab tso cai rau nws mus rau hauv qab flange ntawm tus choj girder.

Trolley Tsav Tsav:Lub cev muaj zog me me uas ua rau lub log trolley rau hla- mus txawv tebchaws.

Trolley Log:Cov log uas khiav raws lub flange hauv qab ntawm tus choj girder.

4. Hluav taws xob tswj qhov system

Lub "nervous system" ntawm crane.

Tus neeg khiav dej num tswj:Yuav ua li cas lub crane raug txib.

Pendant Control:Txoj kev tshaj plaws. Tus neeg teb xov tooj siv lub laub tshem tawm - khawm chaw nres tsheb (pendant) ntawm lub cable los tswj tag nrho cov haujlwm crane (Hoist Up / Down, Choj sab laug / sab xis, Trolley Forward / Back).

Xov tooj cua tswj chaw taws teeb:Ib qho kev xaiv nrov zuj zus uas tus neeg teb xov tooj siv lub wireless transmitter, tso cai rau kev txav mus los ntau dua thiab kev nyab xeeb.

Cab Control:Tsawg dua rau ib leeg girder cranes; tus neeg teb xov tooj tswj los ntawm lub tsheb tavxij rau ntawm lub crane.

Control Vaj Huam Sib Luag / Vaj Huam Sib Luag Box:Muaj cov contactors, overload relays, variable zaus drives (VFDs), thiab cov khoom siv fais fab uas tswj cov hluav taws xob rau cov motors.

Variable Frequency Drives (VFDs):Feem ntau siv rau niaj hnub 12-tuj cranes rau kev tswj xyuas qhov nrawm thiab nrawm rau ob qho tib si hoisting thiab mus ncig. Qhov no tiv thaiv lub viav vias load thiab muab kev ua haujlwm zoo dua, kev nyab xeeb dua.

Limit Switches:Cov cuab yeej kev nyab xeeb tseem ceeb uas txiav txim siab txiav lub zog los tiv thaiv kev hla dhau.

Hoist Upper Limit Hloov:Tiv thaiv overwinding thiab tus nuv los ntawm tsoo lub hoist nws tus kheej.

Hoist Lower Limit Hloov:Tiv thaiv txoj hlua los ntawm kev slack kiag li los yog tus nuv thaiv los ntawm kev sib tsoo.

End Limit Switches:Nres tus choj thiab trolley ua ntej lawv mus txog qhov kawg ntawm lawv txoj kev khiav.

5. Khiav System

Qhov no yog qhov chaw ruaj khov uas lub crane taug kev. Nws tsis yog ib feem ntawm crane nws tus kheej tab sis yog qhov tseem ceeb rau nws txoj haujlwm.

Runway Beams:Feem ntau dav -flange (I-beams) los yog fabricated box beams uas ruaj ntseg mounted rau lub tsev qauv.

Txoj Kev Rails:Cov hlau ntsia hlau (feem ntau ASCE rail lossis crane rail) mounted rau sab saum toj ntawm cov kab hluav taws xob uas tus choj log khiav. Lawv muab lub ntsej muag du, tawv tawv.

Rail Clips / Anchors:Ruaj ntseg cov rails rau cov kab hluav taws xob khiav.

Runway Conductors:Qhov txuas txuas hluav taws xob uas khiav qhov ntev ntawm lub bay, uas tus choj tus neeg xyuas pib txuas.

.

Hluav taws xob & Tswj Cheebtsam

Cov khoom no muab lub zog thiab hais kom lub crane ua haujlwm.

Fais fab xa khoom System:

Festoon System:Txoj kev tshaj plaws. Ib tug series ntawm cables (rau lub hwj chim thiab tswj) yog nqa nyob rau hauv ib tug saj zawg zog tais uas txuas thiab retracts nrog lub crane txav.

Tus neeg xyuas pib Bar System (Enclosed Track):Ib tug nruj, insulated bar system mounted raws txoj kev khiav. Cov khau khiab ntawm lub crane swb raws li qhov bar los kos lub zog. Txaus siab rau kev ncua ntev, kev ua haujlwm siab dua, lossis ib puag ncig hnyav.

6. Cov khoom siv kev nyab xeeb

Bumpers:Roj hmab los yog caij nplooj ntoos hlav- loaded buffers ntawm lub tsheb kawg thiab trolley kom nqus tau lub zog thaum muaj kev sib tsoo me me nrog qhov kawg nres.

Anemometer (yeem):Rau cov cranes ntsia sab nraum zoov, lub ntsuas cua ceev yuav lov tes taw ua haujlwm crane yog tias cua nrawm ua kom txaus ntshai.

Cov cuab yeej ceeb toom:Lub horn lossis beacon ceeb toom cov neeg ua haujlwm tias lub crane nyob hauv kev txav.

Sketch

Main technical

1. Tus nqi -Kev ua tau zoo

Kev nqis peev qis dua:Qhov no yog ib qho ntawm qhov zoo tshaj plaws. Tus qauv tsim yuav tsum muaj cov khoom siv tsawg dua (ib lub girder es tsis yog ob) thiab cov qauv yooj yim, ua rau nws tsis tshua muaj nqi los yuav thiab nruab dua li ob lub girder crane ntawm tib lub peev xwm.

Txo Cov Nqi Txhawb Cov Qauv:Vim hais tias lub crane nws tus kheej yog sib dua, cov qauv kev txhawb nqa lub tsev (khiav kab thiab kab) feem ntau yuav tsis muaj zog, ua rau kev txuag nyiaj ntxiv hauv kev tsim kho lossis hloov cov nqi.

2. Zoo tagnrho rau Cov Khoom Siv Hauv Tsev Hauv Tsev

Lub hoist yog mounted ncaj qha rau hauv qab flange ntawm lub girder, tsis nyob nruab nrab ntawm ob girders. Qhov no tsim ibqis hook mus kom ze- qhov kev ncua deb ntawm txoj kab ciav hlau mus rau tus nuv yog txo kom tsawg. Qhov no yog qhov txiaj ntsig tseem ceeb hauv cov tsev uas tsis muaj qhov chaw ntsug, tso cai rau koj ua kom siab tshaj qhov siab.

3. Lub teeb yuag thiab siv tau zoo

Tus qauv tsim ib leeg ua rau tag nrho crane choj sib dua. Qhov no txo ​​cov load ntawm lub tsev cov qauv thiab tuaj yeem ua rau kev txuag hluav taws xob raws li tus choj tsav lub cev muaj zog yuav tsum muaj lub zog tsawg dua los hloov lub crane.

4. Simplicity thiab Reliability

Nrog rau cov qauv siv tshuab yooj yim (ib lub girder, ib lub hoist), muaj cov khoom tsawg dua uas tuaj yeem ua tsis tau. Qhov no txhais tau rau kev saib xyuas yooj yim dua, txo qis qis, thiab feem ntau muaj kev ntseeg siab rau cov qauv nqa cov ntawv thov.

5. Yooj yim rau nruab thiab hloov chaw

Cov khoom siv sib dua thiab feem ntau yooj yim sib sau ua ke dua li cov ntawm ob chav girder crane. Qhov no tuaj yeem txo lub sijhawm teeb tsa thiab txo cov nqi zog. Yog tias koj xav tau txav lub crane mus rau qhov chaw tshiab yav tom ntej, cov txheej txheem feem ntau yooj yim dua.

6. Zoo meej rau lub luag haujlwm nruab nrab thiab nrawm

Lub 12-tuj ib leeg girder crane yog qhov zoo heev rau cov ntawv thov uas xav taunquag tab sis tsis hnyav -lub luag haujlwmnqa. Lawv yog cov zoo tagnrho rau:

Rhiav thiab fabrication khw

Manufacturing los ua ke kab

Warehouses thiab chaw cia khoom

Chaw thau khoom bays

Maintenance bays

Lawv ua haujlwm tau zoo ntawm tus qauv hoisting thiab kev mus ncig ceev, uas yog qhov tsim nyog rau feem ntau cov haujlwm ua haujlwm.

7. Customization thiab Flexibility

Cov cranes no yog qhov hloov tau zoo heev. Lawv tuaj yeem raug teeb tsa hauv ntau txoj hauv kev:

Sab saum toj -Khiav:Lub crane caij rau ntawm txoj hlua mounted rau saum cov kab hluav taws xob khiav. Qhov no yog qhov feem ntau configuration thiab muab qhov zoo tshaj plaws nuv qhov siab.

Hauv qab -Khiav (Underhung):Lub log cranes caij rau hauv qab flange ntawm cov kab hluav taws xob khiav, uas feem ntau txhawb nqa los ntawm lub ru tsev qauv. Qhov no tso cai rau lub kaw lus uas ntau lub cranes tuaj yeem ua haujlwm ntawm tib txoj kev khiav thiab sib hloov.

Cov ntawv thov tseem ceeb thiab siv rooj plaub

Cov crane no yog cov neeg ua haujlwm hauv kev lag luam uas txhim khu kev qha, rov nqa cov khoom hnyav yog qhov tseem ceeb ntawm kev ua haujlwm.

1. Chaw tsim khoom & sib dhos cog:

Cov khw muag khoom:Tsiv cov khoom siv raw (steel daim hlau, tuav), muab qhov hnyav ntawm CNC tshuab, tshuab dhos, thiab mills, thiab tuav cov khoom tiav.

Automotive Manufacturing:Tuav lub cav thaiv, kev sib kis, tsheb thav duab, thiab cov khoom loj loj - sib dhos raws cov kab ntau lawm.

Heavy Equipment Manufacturing:Sib sau ua ke thiab txav cov ntu loj ntawm kev ua liaj ua teb, kev tsim kho, thiab cov tshuab mining.

Kev tsim khoom siv:Tsiv thiab tso cov khoom siv hnyav xws li cov tub yees ua lag luam, cov tshuab ntxhua khaub ncaws, thiab cov hlau stampings loj.

2. Warehouse & Logistics:

Cov khoom hnyav cia:Chaw thau khoom thiab tshem tawm cov khoom hnyav palletized, cov tshuab muaj, thiab cov thawv loj los ntawm cov tsheb thauj khoom thiab muab tso rau hauv qhov chaw cia khoom. Qhov zoo tshaj plaws rau warehouses khaws cov khoom hlau, tshuab, lossis cov khoom siv hauv tsev hnyav.

Distribution Centers:Rau cov chaw uas tuav cov khoom loj, tuab tshaj qhov muaj peev xwm ntawm cov qauv forklifts.

3. Metalworking & Fabrication:

Steel Service Centers:Kev tuav cov coils ntawm steel, nplooj ntawv, thiab daim hlau. Feem ntau siv ua ke nrog hauv qab no-cov - nuv txuas xws li coil grabs lossis ntawv lifters.

Fabrication Shops:Tsiv welded lug, I- kab teeb, thiab loj fabricated qhov chaw ntawm workstations (txiav, vuam, sib tsoo, painting).

Foundries:Tuav pwm, cores, thiab castings tom qab lawv txias.

4. Kev tsim khoom siv:

Lumber Yards:Tuav cov khoom siv ntoo loj thiab cov khoom siv ntoo.

Cov Khoom Siv Hauv Tsev:Txav cov hnab hnyav ntawm cov cement, pallets ntawm cib, blocks, thiab cov pob zeb loj loj.

Ua ntej-cast Concrete Facilities:Lifting thiab tig loj ua ntej- nrum vaj huam sib luag, kab teeb, thiab septic tanks.

5. Kev Kho, Kho, & Kev Kho Hniav (MRO) Cov Khoom Siv:

Kev tsim hluav taws xob:Nqa cov twj loj, lub cev muaj zog, turbines, thiab transformers rau kev saib xyuas.

Aviation MRO:Tshem tawm thiab txhim kho cov tshuab dav hlau thiab lwm yam tseem ceeb.

General Industrial Maintenance:Qhov tseem ceeb rau kev nyab xeeb tshem tawm cov tshuab hnyav rau kev kho, ua kom yooj yim rau kev cog qoob loo, thiab ua cov khoom siv ua haujlwm.

6. Cov Khoom Siv Siv Rov Siv thiab Siv Pov Tseg:

Scrap Yards:Kev tuav cov khoom loj ntawm cov khoom siv hlau thiab cov khoom tsis yog -ferrous.

Chaw Nres Tsheb Thauj Khoom khib nyiab:Txav cov thawv loj thiab compactors.

Theem 1: Tsim, Engineering, thiab Planning

Kev Ntsuam Xyuas Cov Neeg Siv Khoom:

Txheeb xyuas cov kev qhia tshwj xeeb: Muaj peev xwm (12-tuj), ncua, nqa qhov siab, chav ua haujlwm (piv txwv li, FEM 1Am, ISO M4), qhov chaw ua haujlwm, qhov hluav taws xob, thiab kev tswj hwm.

Paub meej cov ntsiab lus ntawm txoj kev khiav (uas muaj lossis tshiab) suav nrog hom kev tsheb ciav hlau, ntsuas, thiab qhov kawg nres.

Technical Design & Kev xam:

Tus Qauv Tsim:Cov kws tsim qauv tsim lub ntsiab ib leeg girder (feem ntau yog dov lossis welded I-beam lossis lub thawv girder) siv CAD software. Finite Element Analysis (FEA) yog ua los xyuas kom meej rigidity thiab deflection nyob rau hauv cov qauv (xws li, CMAA, FEM).

Load & Stress xam xam:Xam qhov siab tshaj plaws, deflection (feem ntau txwv rau Span / 500 rau ib leeg girder), thiab qaug zog lub neej.

Mechanical Design:Xaiv thiab tsim cov tsheb thauj khoom kawg (tsheb thauj mus los) nrog lub log, tsav tsheb, thiab cov pob. Tsim lub hoist trolley mus txawv tebchaws.

Hluav taws xob tsim:Tsim schematics rau lub hwj chim mov (xws li, festoon los yog conductor bar system), tswj circuits, thiab kev ruaj ntseg cov cuab yeej.

Daim Ntawv Pov Thawj (BOM):Tsim ib daim ntawv teev tag nrho cov ntaub ntawv raw, yuav khoom (hoist, lub cev muaj zog, gearbox, brakes, log, hluav taws xob Cheebtsam), thiab cov qauv txheem.

Kev yuav khoom:

Order raw khoom (steel plates, beams, etc.) as per BOM.

Qhov chaw thiab yuav cov khoom pov thawj:

Electric Hlau hlua Hoist:12-tuj muaj peev xwm nrog qhov tsim nyog lifting ceev thiab nuv mus kom ze.

End Carriage Drive Units:Motors, gearboxes, brakes, thiab log.

Hluav taws xob Cheebtsam:Tswj vaj huam sib luag, pendant chaw nres tsheb (los yog xov tooj cua tswj), txwv keyboards, festoon system, motors, thiab cables.

Theem 2: Kev tsim khoom thiab kev sib dhos
4. Fabrication ntawm Main Cheebtsam:
* Main Girder Fabrication:
* Txiav:Hlau daim hlau raug txiav kom loj siv CNC plasma lossis laser txiav tshuab.
* Vuam:Cheebtsam yog jigged thiab welded los ntawm welded certified siv Submerged Arc Vuam (SAW) los yog Gas Metal Arc Vuam (GMAW/MIG) rau siab - zog, distortion- tswj welds.
* Machining:Drilling thiab machining ntawm cov ntsiab lus sib txuas rau cov tsheb thauj khoom kawg thiab cov tsheb thauj khoom thauj khoom kom paub meej.
* End Carriage Fabrication:Fabrication ntawm ob lub tsheb kawg uas yuav txhawb nqa lub girder thiab tsev lub log thiab tsav.

Kev npaj thiab pleev xim rau saum npoo:

Kev tawg:Txhua yam khoom siv tau raug tua blasted rau SA 2.5 tus qauv kom tshem tawm xeb, zeb nplai, thiab tsim kom muaj qhov profile rau xim adhesion.

Priming:Kev siv lub siab -zoo tiv thaiv-corrosion primer.

Kev kos duab:Kev siv cov xim pleev xim rau hauv cov xim tshwj xeeb thiab tuab. Qhov no feem ntau ua tiav hauv lub rooj muag tshuaj pleev xim.

Mechanical Assembly:

End Carriage Assembly:Mount lub log, tsav units (motor thiab gearboxes), thiab nres rau ntawm cov khoom siv kawg.

Girder thiab End Carriage Marriage:Nqa lub ntsiab girder thiab ruaj ntseg ntsia liaj qhov rooj rau ob lub tsheb kawg. Txoj kev sib dhos yog qhov tseem ceeb los tiv thaiv kev sib tsoo log.

Trolley Rail Installation:Txhim kho lub tsheb ciav hlau khiav rau lub hoist trolley nyob rau hauv qab flange ntawm lub ntsiab girder.

Hoist Trolley Assembly:Sib sau lub trolley thav duab thiab mount nws ntawm lub girder rail.Xwb, qhov ua tiav ua ntej- sib dhos hoist feem ntau txuas ncaj qha mus rau lub trolley ncej.

Hluav taws xob sib dhos:

Cable Festoon / Conductor Bar System:Nruab raws qhov ntev ntawm tus choj girder.

Kev xaim:Khiav thiab ruaj ntseg tag nrho cov cables rau choj kev mus los, trolley mus ncig teb chaws (yog tias tsim nyog), thiab hoist zog los ntawm cable tais thiab conduits.

Tswj Vaj Huam Sib Luag:Mount thiab xaim lub ntsiab tswj vaj huam sib luag, nrog rau cov contactors, overload protectors, thiab programmable logic controller (PLC) yog siv.

Limit Switches thiab Safety Devices:Txhim kho thiab teeb tsa qhov kawg txwv kev hloov pauv rau choj mus ncig, kev txwv sab saud rau lub hoist, thiab khawm nres thaum muaj xwm ceev.

Pendant chaw nres tsheb:Xaim lub pendant tswj chaw nres tsheb nrog cov ntawv cim kom meej rau Up / Down, East / West, thiab nres thaum muaj xwm ceev.

Theem 3: Kev Ntsuas, Kev Ntsuas, thiab Kev Tswj Xyuas Zoo
8. Factory Txais Kev Xeem (FAT):
* Kev tshuaj xyuas qhov muag:Xyuas tag nrho cov welds, bolts, mechanical parts, thiab paintwork kom zoo.
* Tsis muaj -Load Test:Khiav lub crane nyob rau hauv tag nrho cov lus qhia (choj ntev mus ncig, hoist up / down) los xyuas kom meej kev khiav hauj lwm zoo, tsis muaj suab nrov, thiab kev sib raug zoo.
* Load Test (The Most Critical Step):
* Static Load Test:Nqa ib qho kev sim load ntawm15 ton(125% ntawm lub peev xwm ntsuas) thiab tuav nws ntawm qhov siab nyab xeeb. Tshawb xyuas qhov deformations, tawg, lossis ib qho kev deflection mus tas li.
* Dynamic Load Test:Nqa ib qho kev sim load ntawm12 ton(100% ntawm lub peev xwm ntsuas) thiab khiav lub crane los ntawm tag nrho nws cov haujlwm -kev mus ncig, nqa, thiab txo qis. Txheeb xyuas qhov ua tau zoo, nres nres, thiab kev nyab xeeb ua haujlwm hauv qab thauj khoom.
* Kev Xeem Ua Haujlwm:Tshawb xyuas txhua qhov kev txwv txwv, nres thaum muaj xwm txheej ceev, thiab tswj cov haujlwm ua haujlwm kom raug.
* Kev kuaj hluav taws xob:Txheeb xyuas cov rwb thaiv tsev tiv thaiv, lub ntiaj teb txuas ntxiv, thiab qhov hluav taws xob.

Dismantling & Npaj rau Kev Xa Khoom:

Thaum kuaj tau dhau lawm, lub crane yog ib nrab disassembled rau kev nyab xeeb thiab ua haujlwm tau zoo.

Tus choj feem ntau yog sib cais los ntawm cov tsheb thauj neeg kawg.

Tag nrho cov khoom yog ua tib zoo ntim, crated, thiab tiv thaiv kev puas tsuaj thaum caij tsheb npav.

Cov ntaub ntawv pobyog npaj, suav nrog: Daim Ntawv Pov Thawj Xeem, Load Test Report, Assembly Drawings, Electrical Diagrams, Parts List, and Operation & Maintenance Manuals.

Theem 4: Kev teeb tsa thiab Kev Ua Haujlwm (Ntawm -Site)
10. Site Installation:
* Kev xa khoom ntawm cov khoom mus rau cov neeg siv khoom qhov chaw.
* Kev sib dhos ntawm cov tsheb thauj neeg kawg thiab lub ntsiab girder ntawm txoj kev khiav.
* Kev sib txuas hluav taws xob rau lub zog loj thiab cov xaim kawg.
* Kev teeb tsa ntawm qhov chaw nres tsheb pendant.

Thaum kawg ntawm -Site Test & Commissioning:

Rov ua duaTsis muaj -LoadthiabLoad Testntawm txoj kev khiav tiag tiag kom ntseeg tau tias txhua yam ua tau zoo hauv nws qhov chaw kawg.

Qhia cov neeg siv khoom cov neeg ua haujlwm thiab cov neeg ua haujlwm saib xyuas kev nyab xeeb thiab kev daws teeb meem yooj yim.

Muab tag nrho cov ntaub ntawv thiab tau txais cov neeg siv khoom kos npe - tawm.
