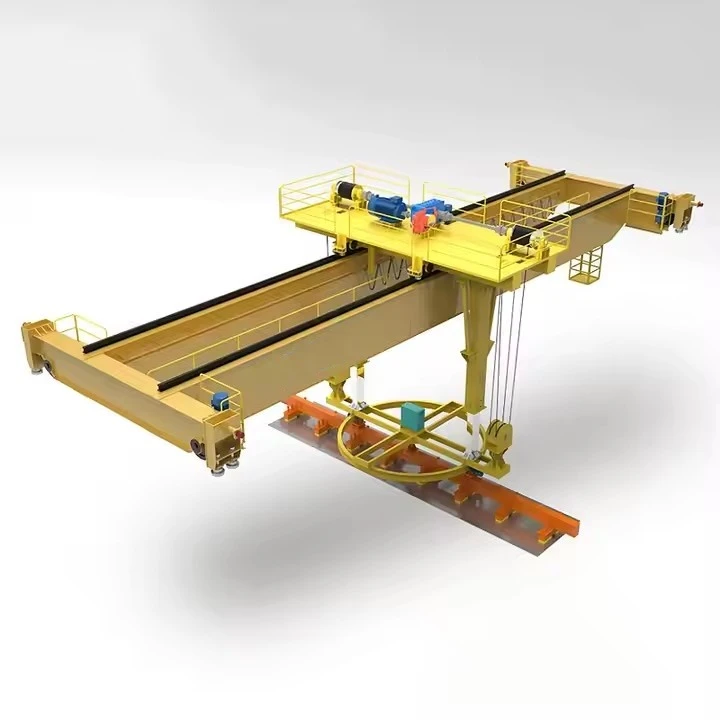

Sib Nqus Ob Chav Girder Nyiaj Siv Ua Haujlwm Crane

Dab tsi yog Magnetic Ob Chav Girder Nyiaj Siv Ua Haujlwm Crane?

Qhov sib nqus ob chav girder nyiaj siv ua haujlwm crane yog hnyav- lub luag haujlwm muaj crane tsim tshwj xeeb los tuav cov ntaub ntawv ferromagnetic (xws li hlau thiab hlau) siv lub zog hluav taws xob lifter. Nws ua ke nrog cov txheej txheem lub zog ntawm ob chav girder choj nrog kev ua haujlwm ntawm lub tshuab nqa hluav taws xob, hloov cov tsoos nuv thiab sling.

Qhov kev sib xyaw ua ke no yog qhov zoo tshaj plaws rau kev ua haujlwm siab - nrawm, siab - ntim cov khoom ntim cov khoom xws li cov phaj steel, coils, seem, thiab cov kav dej.



Kev txiav txim siab tseem ceeb thiab cov yam ntxwv ntawm kev nyab xeeb

Load Safety yog qhov tseem ceeb:Lub kaw lus yog nyob ntawm lub zog hluav taws xob nkaus xwb. CovRoj teeb Backup Unit (BBU)tsis yog ib qho kev xaiv ntxiv; nws yog qhov yuav tsum tau ua lub neej -txuag ntaus ntawv. Yuav tsum tau kuaj BBU tsis tu ncua.

Khoom Thickness thiab Cov Txheej Txheem:Cov hlau nplaum qhov ua tau zoo nyob ntawm cov khoom tuab, qhov chaw ntawm qhov chaw (xeb, xim, av tuaj yeem txo tuav lub zog), thiab qhov kub thiab txias (kub tsis muaj zog hlau nplaum).

Residual Magnetism:Qee cov ntaub ntawv tuaj yeem khaws cov nqi sib nqus me ntsis tom qab tso tawm, uas tuaj yeem ua rau muaj kev phom sij me me.

Kev cob qhia:Cov neeg ua haujlwm xav tau kev cob qhia tshwj xeeb kom nkag siab txog cov hlau nplaum lub peev xwm, kev txwv, thiab cov txheej txheem kev nyab xeeb, tshwj xeeb tshaj yog hais txog cov txheej txheem tsis ua haujlwm.



Sib piv: Electromagnet vs. Permanent Magnet

Nws tsim nyog sau cia tias thaum electromagnets muaj ntau,ruaj khov hlau nplaum lifterskuj yog ib qho kev xaiv. Cov no siv cov hlau nplaum tas mus li thiab cov cuab yeej siv tshuab los koom / tshem tawm cov hlau nplaum tsis tas yuav muaj zog. Lawv muaj kev nyab xeeb dua los ntawm lub hwj chim tsis ua hauj lwm tab sis feem ntau zoo dua rau cov khoom me me, cov qauv tsim nyog thiab tsis muaj lub zog hloov tau yooj yim ntawm electromagnet.

Hauv cov ntsiab lus, aSib nqus ob chav girder nyiaj siv ua haujlwm craneyog ib qho kev ua tau zoo -kev daws teeb meem rau cov kev lag luam tshwj xeeb, tab sis nws txoj haujlwm xav tau kev tsom mus rau kev nyab xeeb thiab kev cob qhia tus neeg ua haujlwm vim muaj kev pheej hmoo ntawm kev poob qis los ntawm lub zog poob.



Core Cheebtsam: Bearing, Gearbox, Tsav, Twj

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 1 Xyoo

Qhov hnyav (KG): 2000 kg

Video tawm -kev tshuaj xyuas: Muab

Machinery Test Report: Muab

Design: Ob chav beam

Efficiency: high efficiency

Kev khiav hauj lwm ceev: kev khiav hauj lwm ceev

Kev ruaj ntseg: Kev tiv thaiv - ua haujlwm viav vias

Xim: xaiv tau

Lub Zog: 110V / 220V / 230V / 380V / 440V, customized

Ntev: 7.5-31.5m

Ntawm no yog cov ncauj lus kom ntxaws txog cov khoom ntawm Magnetic Ob Chav Girder Nyiaj Siv Ua Haujlwm Crane, categorized los ntawm qhov system kom pom tseeb.



1. Choj thiab cov khoom siv ua ke

Cov no tsim cov qauv tseem ceeb ntawm lub crane, tso cai rau nws txav mus raws lub bay.

Choj Girder (s):Ob lub ntsiab, kab rov tav kab rov tav (feem ntau lub thawv girders los yog kuv-beams) uas tsim cov thawj load-cov kabmob qauv. Lawv txhawb nqa lub trolley, cov hlau nplaum, thiab cov khoom thauj.

End Trucks:Cov rooj sib txoos nyob ntawm txhua qhov kawg ntawm tus choj girders. Lawv nyob hauv lub log, bearings, qag, thiab tsav lub cev muaj zog rau txav tag nrho cov crane raws txoj kev khiav.

Bridge Tsav Motors:Cov motors uas lub zog lub log nyob rau hauv lub kawg tsheb thauj khoom txav lub crane rau pem hauv ntej thiab rov qab (ntev mus txawv tebchaws) raws txoj kev khiav.

Txoj kev thiab Rails:Txoj kev ruaj khov (feem ntau txuas nrog cov kab hauv tsev) uas lub crane mus. Lub crane lub log khiav ntawm cov ntsia hlau no.



2. Trolley thiab Hla mus ncig ua si

Qhov system no txav cov hlau nplaum ntawm sab mus rau sab hla qhov dav ntawm tus choj crane.

Trolley Ncej:Cov qauv uas nqa lub hoist mechanism thiab cov hlau nplaum. Nws txav mus tom qab ntawm cov ntsia hlau ntsia rau saum tus choj girders.

Trolley Tsav Tsav:Lub cev muaj zog uas txhawb nqa lub log tsheb kom txav lub trolley thiab hlau nplaum sab mus rau sab (hla mus ncig).

Trolley Log:Cov log uas koom nrog cov ntsia hlau ntawm tus choj girders.

3. Lifting thiab Magnetic Handling Cheebtsam

Qhov no yog cov tub ntxhais tshwj xeeb ntawm lub crane, lub luag haujlwm rau kev nqa thiab tuav ntawm lub load.

Electromagnet (Lifter):Cov ntsiab lus tseem ceeb. Ib chav tsev loj, ncig los yog duab plaub uas muaj cov tooj liab. Thaum energized nrog DC lub zog, nws tsim muaj zog magnetic teb los nqa cov ntaub ntawv ferromagnetic.

Lift Mechanism (Hoist Unit):Cov tshuab uas tsa thiab txo cov hlau nplaum. Nws muaj xws li:

Hoist Tsav:Muab lub zog rau kev nqa thiab txo qis.

Hoist Nruas los yog Sprocket:Lub nruas uas cua lub cable (rau hlau hlua hoists) los yog lub sprocket uas tsav cov saw hlau (rau saw hoists).

Nres:Tsis siv neeg, tsis ua haujlwm- nres nres uas muaj kev nyab xeeb yog tias lub zog poob.



Cable Reel System:Lub nruas tsav tsheb uas tau them nyiaj tawm thiab thim rov qab qhov hnyav - lub luag haujlwm hloov pauv fais fab txuas txuas lub crane lub DC mov rau cov hlau nplaum. Qhov no yog qhov tseem ceeb rau kev tiv thaiv kab mob kev puas tsuaj thaum hoisting.

Rigging:

Lifting Beam / Spreader Bar:Ib tug nruj bar los ntawm cov hlau nplaum raug tshem tawm. Nws pab faib quab yuam sib npaug thiab tiv thaiv kev sib tw cable.

Hlau Ropes lossis Chains:Txuas lub hoist mechanism rau lub nqa nqaj / hlau nplaum.

4. Fais fab thiab Tswj Systems

Cov khoom no muab thiab tswj cov hluav taws xob hluav taws xob rau ob qho tib si crane txav thiab cov hlau nplaum, nrog rau kev tswj xyuas tus neeg teb xov tooj.

Main AC Power Supply:Lub zog cog qoob loo uas energizes tag nrho crane.

DC Power Supply (Magnet Controller / Rectifier Vaj Huam Sib Luag):Ib qho tseem ceeb tivthaiv uas hloov lub zog AC rau hauv kev tswj hwm tam sim no (DC) rau electromagnet. Nws feem ntau siv thyristors tso cai rau kev tswj xyuas meej ntawm lub zog sib nqus.

Roj teeb Backup Unit (BBU): A tseem ceeb kev ruaj ntseg system. Nws cia li muab lub zog rau cov hlau nplaum nyob rau hauv qhov xwm txheej ntawm lub zog loj tsis ua haujlwm, tiv thaiv qhov kev puas tsuaj loj poob qis thiab tso cai rau tus neeg teb xov tooj kom muaj kev nyab xeeb qis dua.

Tus neeg khiav dej num tswj:

Pendant chaw nres tsheb:Lub tes tuav lossis hauv pem teb -mounted tswj chav tsev raug tshem tawm ntawm lub crane, tso cai rau tus neeg teb xov tooj tswj txhua txoj haujlwm (txoj kev mus ncig, trolley mus ncig, hoist, hlau nplaum rau / tawm) los ntawm hauv pem teb.

Operator Cab:Ib lub cab cab uas muaj nyob rau ntawm lub crane rau tus neeg teb xov tooj zaum hauv, muab kev pom zoo dua rau kev nqa nqa.

Collector System (Festoon lossis Conductor Bar):Lub kaw lus uas xa hluav taws xob los ntawm lub tsev ruaj khov mus rau lub crane txav. Nws muaj cov zawv zawg sib sau ua ke uas khiav raws cov kab hluav taws xob lossis cov kab hluav taws xob festooned.

Sketch

Main technical





Qhov zoo ntawm Magnetic Ob Chav Girder Nyiaj Siv Ua Haujlwm Cranes

Qhov kev sib xyaw ua ke ntawm cov qauv ob chav girder muaj zog nrog lub tshuab hluav taws xob hluav taws xob tsim kom muaj txiaj ntsig zoo thiab muaj zog nrog cov txiaj ntsig sib txawv.

1. Superior Efficiency thiab Productivity

Kev ceev ceev:Qhov zoo tshaj plaws yog ceev. Cov khoom thauj tuaj yeem tuaj yeem khaws thiab tso tawm tam sim ntawd nrog kev hloov pauv, tshem tawm lub sijhawm- siv cov txheej txheem ntawm kev txuas cov hlua, chains, lossis hooks. Qhov no ua rau lub sijhawm voj voog nrawm nrawm heev.

Kev ua haujlwm tsis tu ncua:Qhov zoo tshaj plaws rau siab - ntim, rov ua haujlwm xws li thauj khoom / tshem tawm cov tsheb thauj khoom lossis cov kab ntau lawm, vim tsis muaj kev cuam tshuam los ntawm phau ntawv yuav tsum tau ua rau txhua lub nqa.

2. Txhim khu kev ruaj ntseg thiab kev ncaj ncees

Tsis muaj kev puas tsuaj saum npoo:Cov hlau nplaum lub tiaj tus, tiv tauj-raws li kev nqa tawm kom tsis txhob khawb, dents, thiab deformations uas hooks thiab chains tuaj yeem ua rau ntawm qhov chaw tiav (xws li, cov ntawv polished, pleev xim rau coils).

Ruaj ntseg tuav ntawm Nyuaj Loads:Cov khoom siv hluav taws xob tuaj yeem ua tau zoo tsis sib xws, nkhaus, lossis tsis zoo li cov khoom xws li cov khoom seem hlau, cov khoom siv, lossis cov khoom siv hauv cov kav dej, uas nyuaj thiab tsis muaj kev nyab xeeb rau kev ruaj ntseg nrog cov tsoos rigging.

3. Txhim kho kev ua haujlwm nyab xeeb

Txo Cov Neeg Ua Haujlwm Risk:Cov neeg ua haujlwm tsis tas yuav tsum nyob ze ntawm lub thauj khoom los txuas lossis tshem tawm, txo qis kom raug ntaus -los ntawm thiab tsoo cov phom sij.

Kev ruaj ntseg:Qhov tsim ob chav girder muab kev ruaj ntseg tshwj xeeb thaum lub sij hawm nqa thiab mus ncig, tiv thaiv kev thauj khoom viav vias thiab xyuas kom meej qhov chaw.

4. Tus nqi -Kev ua tau zoo

Kev txuag nyiaj ua haujlwm:Yuav tsum muaj tsawg tus neeg ua haujlwm rau kev tuav cov khoom siv.

Txo kev puas tsuaj:Kev khaws cov khoom zoo (xws li steel coils) txo cov nyiaj txiag los ntawm cov khoom puas.

Versatility:Ib lub hlau nplaum tuaj yeem tswj tau ntau yam ntawm cov khoom loj thiab cov duab yam tsis tas yuav hloov cov ntawv txuas, tsis zoo li tus nuv uas yuav xav tau cov hlua sib txawv lossis cov khoom sib txawv.

5. Kev siv qhov chaw zoo

High Hook Lift:Kev tsim ob chav girder tso cai rau lub hoist nyob nruab nrab ntawm lub girder, muab qhov siab tshaj plaws nqa qhov siab hauv ib lub tsev. Qhov no yog qhov tseem ceeb rau stacking cov ntaub ntawv siab.

Pem Teb Tag Nrho:Lub crane tuaj yeem tso cov khoom thauj txhua qhov chaw hauv nws qhov kev ncua, mus ze rau ntawm phab ntsa thiab ua kom muaj kev siv ntau tshaj plaws ntawm qhov chaw hauv pem teb.



Kev siv ntawm Magnetic Ob Chav Girder Nyiaj Siv Ua Haujlwm Cranes

Cov cranes no yog qhov tseem ceeb hauv kev lag luam uas tuav cov khoom siv ferrous loj. Lawv daim ntawv thov yog txhais los ntawm kev xav tau ceev, kev nyab xeeb, thiab tuav cov khoom tshwj xeeb.

1. Steel Service Centers thiab Warehouses

Qhov no yog daim ntawv thov feem ntau. Cov cranes yog siv rau:

Moving Steel Coils:Kev thauj cov coils hnyav los ntawm kev cia rau cov kab ua haujlwm (xws li slitting, blanking).

Hlau Sheet / Phaj:Stacking, loading, thiab unloading loj daim hlau thiab nplooj ntawv yam tsis muaj kev puas tsuaj rau saum npoo.

Tswj Cov Qauv Hlau:Tuav kuv- kab teeb, kab, thiab rebar.

2. Cov khoom siv hlau rov ua dua tshiab

Qhov zoo tshaj plaws rau chaotic xwm ntawm cov khoom siv:

Loading/Unloading:Txav deb ntawm cov tsheb thauj khoom thiab tsheb ciav hlau.

sorting thiab ua:Separating thiab piling fragmented ferrous seem. Cov hlau nplaum tuaj yeem tuaj yeem khaws cov khoom tsis zoo li qub.

3. Foundries thiab Metalcasting Facilities

Siv los tuav raw khoom thiab cov khoom tiav:

Raw Khoom:Tsiv npua hlau, cam khwb cia hlau, thiab lwm yam ferrous tsub rau lub cub tawg.

Ua tiav Castings:Thauj loj, tiav hlau castings.

4. Chaw nres nkoj, Terminals, thiab Rail Yards

Rau kev hloov ceev ceev ntawm cov khoom hnyav steel:

Nkoj Loading / Unloading:Ua haujlwm zoo txav cov khoom hlau xws li coils, daim hlau, thiab cov kav dej mus rau thiab los ntawm cov nkoj thauj khoom.

Railcar thiab Truck Loading:Hloov cov ntaub ntawv ntawm kev thauj mus los sib txawv.

5. Hnyav Fabrication thiab Shipbuilding

Shipbuilding:Kev thauj cov hlau loj loj rau kev tsim lub nkoj mus rau qhov chaw txiav thiab vuam.

Heavy Machinery Manufacturing:Tsiv loj fabrications, xws li thav duab thiab booms.

6. Forging thiab Stamping Cog

Kev pub mis ntau lawm:Tsiv steel blanks lossis billets rau hauv forging presses lossis stamping machines.



Kev tsim khoom ntawm QD Model Ob Chav Girder Choj Nyiaj Siv Ua Haujlwm Crane yog txheej txheem txheej txheem uas sib xyaw ua cov hlau hnyav, kev ua haujlwm zoo, kev sib dhos hluav taws xob, thiab kev tswj xyuas kom zoo.



Theem 1: Tsim & Engineering (Pre-Production)

Order Review & Technical Clarification:Cov kws tshaj lij tshuaj xyuas cov neeg siv khoom tshwj xeeb (muaj peev xwm, ncua, nqa qhov siab, chav ua haujlwm, hom tswj, thiab lwm yam).

Cov Qauv Tsim Nyog & Xam Xaj:

Tus Qauv Tsim:Siv CAD software (piv txwv li, AutoCAD, SolidWorks), engineers tsim cov duab kos kom ntxaws rau txhua yam (girders, kawg tsheb thauj khoom, trolley ncej). Lub girder tsim yog qhov ntsuas ntsuas rau deflection, lub zog, thiab qaug zog lub neej.

Hluav taws xob tsim:Schematics rau lub hwj chim thiab tswj systems yog tsim, nrog rau cov nqi ntawm cov ntaub ntawv rau motors, panels, cables, thiab pendants.

Load Calculation & FEM Analysis:Niaj hnub nimno factories siv Finite Element Method (FEM) software los simulate kev ntxhov siab, lim, thiab deflection nyob rau hauv load, optimizing tus tsim ua ntej tej hlau txiav.



Theem 2: Raw Material Preparation & Processing

Khoom siv:Cov hlau phaj (feem ntau Q235B lossis Q345B rau cov qauv tseem ceeb), cov kab hluav taws xob (kab teeb, cov kab), cov ntsia hlau, thiab cov khoom yuav khoom (lub cev muaj zog, gearboxes, log, cov khoom siv hluav taws xob) yog los ntawm cov neeg muab ntawv pov thawj.

Cov khoom siv kuaj:Cov ntawv hlau xa tuaj feem ntau raug kuaj kom ua raws li qib kev qhia tshwj xeeb (kev kuaj ultrasonic yog ib txwm muaj).

Txiav & sib sau:

CNC txiav:Hlau daim hlau rau lub ntsiab girders raug txiav kom meej qhov ntev siv Computer Numerical Control (CNC) plasma lossis nplaim taws txiav tshuab. Qhov no ua kom cov neeg raug siab.

Drilling & Machining:Lub qhov rau kev sib txuas yog drilled siv hlau nplaum hauv paus xyaum los yog CNC machining chaw. Qhov kawg ntawm lub ntsiab girders yog machined los xyuas kom meej ib tug zoo meej, square haum nrog lub kawg tsheb.



Theem 3: Main Girder Fabrication (Cov Txheej Txheem Txheej Txheem)

Qhov no yog cov txheej txheem vuam tseem ceeb tshaj plaws.

Sib dhos & Jigging:Cov ntawv txiav (lub vev xaib thiab flange) tau muab tso rau hauv ib qho loj, nruj sib dhos jig. Qhov no jig tuav txhua yam nyob rau hauv zoo meej kev sib raug zoo thaum lub sij hawm vuam los tiv thaiv distortion thiab xyuas kom meej lub girder yog ncaj thiab cambered kom raug.

Vuam:Lub ntsiab girder welding yog ua los ntawm cov neeg siv tau ntawv pov thawj siv Submerged Arc Vuam (SAW) ntev, lub ntsiab seams (uas muab kev nkag mus tob thiab siab - zoo welds) thiab Kev Taw Qhia Hlau Arc Vuam (MMA) lossis Gas Hlau Arc Vuam (GMAW / MIG) rau cov khoom me me.

Cambering:Ib qho ua ntej - txhais tau hais tias nce toj camber (curvature) yog tsim rau hauv lub girder los tiv thaiv deflection nyob rau hauv lub load qhov hnyav. Qhov no yog ua tiav los ntawm jig tsim thiab vuam ib ntus.

NDT (Tsis yog -Kev kuaj kev puas tsuaj):Cov welds tseem ceeb raug tshuaj xyuas los ntawm cov neeg soj ntsuam zoo. Cov txheej txheem suav nrog:

Kev kuaj Ulasonic (UT):Txhawm rau kuaj xyuas qhov tsis zoo hauv cov welds.

Magnetic Particle Test (MT):Txhawm rau kuaj xyuas qhov tawg.

Fitting Attachment:Tom qab vuam, cov ntsia hlau rau lub trolley yog meticulously ua raws thiab welded los yog bolted mus rau sab saum toj ntawm cov tiav girders.



Theem 4: Xaus Tsheb & Trolley Ncej Fabrication

Fabrication:Cov tsheb thauj khoom kawg thiab trolley thav duab yog tsim los ntawm steel phaj, ua raws li cov txheej txheem zoo sib xws ntawm kev txiav, drilling, thiab vuam.

Machining:Cov cheeb tsam tseem ceeb, xws li cov kabmob vaj tse rau lub log thiab cov ncej tsav, yog machined rau siab kam rau ua kom muaj kev sib raug zoo thiab kev ua haujlwm zoo.

Kev sib dhos:Log, bearings, qag, tsav motors, thiab gearboxes tau sib sau ua ke rau hauv cov tsheb thauj khoom kawg. Tib yam yog ua rau lub trolley ncej.



Kauj Ruam 5: Kev Kho Hniav & Painting

Txhaj tshuaj Blasting:Txhua yam khoom siv tau muab tso rau hauv lub tshuab txhaj tshuaj blasting qhov siab - ceev steel abrasives ntxuav qhov chaw ntawm xeb, zeb nplai, thiab av. Qhov no tsim ib tug ntxhib, huv si saum npoo zoo tagnrho rau xim adhesion.

Priming:Tam sim ntawd tom qab blasting, high -zoo anti- xeb primer yog siv los tiv thaiv oxidation.

Kev kos duab:Lub topcoat yog siv, feem ntau raws li cov neeg siv khoom -cov xim thiab thickness yuav tsum tau. Qhov no feem ntau yog ua los ntawm kev siv tshuaj tsuag pleev xim rau kev ua tiav.



Theem 6: General Assembly & Hluav Taws Xob Installation

Ua ntej-Assembly:Lub ntsiab girders txuas nrog rau cov tsheb thauj khoom kawg los ua tus choj tiav. Lub trolley yog muab tso rau ntawm tus choj rails. Tag nrho cov qauv raug kuaj xyuas rau squareness thiab qhov tseeb.

Mechanical Installation:Lub hoist unit (QD-hom hoist) yog ntsia rau ntawm lub trolley ncej. Tag nrho cov tsav tsheb txuas nrog.

Kev teeb tsa hluav taws xob:Electricians xaim tag nrho cov crane:

Nruab lub ntsiab vaj huam sib luag thiab lub thawv tiv thaiv ntawm tus choj.

Khiav cables raws tus choj mus rau lub trolley thiab cov tsheb thauj khoom kawg.

Nruab lub festoon system los yog tus neeg xyuas pib bar rau lub hwj chim sau.

Nruab cov kev txwv txwv, cov khoom siv kev nyab xeeb, thiab teeb ceeb toom.

Txuas lub pendant tswj lossis ntsuas lub xov tooj cua chaw taws teeb tswj.



Theem 7: Kev Xeem & Kev Tshuaj Xyuas (Lub Hoobkas Txais Kev Xeem - FAT)

Qhov no yog ib kauj ruam yuav tsum tau ua ntej dismantling rau cov khoom xa tuaj.

Tsis muaj -Load Test:Lub crane yog ua haujlwm yam tsis muaj load. Tag nrho cov haujlwm raug kuaj: choj mus ncig, trolley mus ncig, hoisting nce thiab nqis. Kev txwv, nres, thiab tswj tau raug kuaj xyuas.

Static Load Test:Kev ntsuas ntsuas ntawm 125% ntawm lub peev xwm ntsuas yog nqa tawm hauv av (feem ntau nrog ntsuas qhov hnyav lossis cov hnab ntim dej ntsuas). Lub crane tau tuav rau 10+ feeb los xyuas seb puas muaj qhov deformation, thiab cov brakes raug kuaj xyuas kom muaj peev xwm tuav tau.

Dynamic Load Test:Ib qho kev ntsuas ntawm 110% ntawm lub peev xwm ntsuas yog nqa thiab muab tso rau hauv txhua qhov kev txav: mus ncig, trolleying, thiab hoisting. Qhov no kuaj cov kev ua haujlwm thiab kev nyab xeeb hauv kev ntxhov siab.

Dimensional soj ntsuam:Qhov loj me (span, nqa qhov siab, thiab lwm yam) raug txheeb xyuas qhov kev txiav txim.

Cov ntaub ntawv:Tag nrho cov qhabnias xeem, daim ntawv pov thawj rau cov ntaub ntawv thiab welds, thiab cov khoom siv phau ntawv tau muab tso ua ke rau hauv ib daim ntawv xa tuaj zaum kawg rau cov neeg siv khoom.



Theem 8: Dismantling, ntim & Shipping

Dismantling:Lub crane tau ua tib zoo disassembled rau hauv cov ntsiab lus, shippable Cheebtsam (xws li, ob lub ntsiab girders, ob lub tsheb kawg, trolley unit, hoist, hluav taws xob panels, runway rails).

Ntim:Cov khoom xyaw yog ntim los tiv thaiv kev puas tsuaj thaum lub sij hawm thauj dej hiav txwv lossis av. Cov khoom siv feem ntau yog ntim rau ntawm cov ntoo crates. Cov khoom siv hluav taws xob yog ntim thiab khaws cia rau hauv rooj ntoo.

Shipping:Txhua qhov chaw raug cim rau kev txheeb xyuas yooj yim thiab qhov chaw reassembly. Tom qab ntawd lawv raug xa mus rau cov neeg siv khoom qhov chaw rau kev teeb tsa los ntawm cov chaw tsim khoom cov kws tshaj lij lossis cov neeg siv khoom tus kheej.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas sib txuas yuav ncav cuag 95% . 32 cov kab vuam tau muab tso rau hauv kev siv, 50 tau npaj los nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
