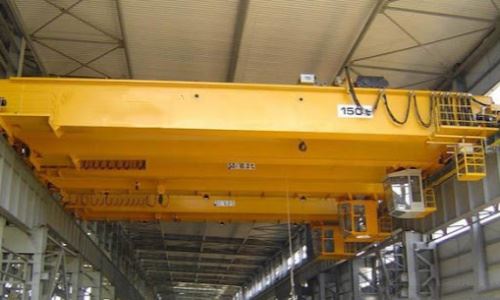

High Performance Ob Chav Girder Choj Crane

Kev Ua Tau Zoo Siab Ob Chav Girder Choj Crane yog ib qho kev lag luam lifting kev daws teeb meem uas tsim los rau hnyav - daim ntawv thov uas yuav tsum tau muaj peev xwm nqa tau tshwj xeeb, kev tswj xyuas qhov tseeb, thiab kev ua tau zoo ntawm kev ua haujlwm ntev. Nws yog tsim los tswj cov haujlwm nyuaj tshaj plaws hauv kev lag luam xws li kev tsim steel, kev tsim nkoj, lub zog, thiab kev tsim cov tshuab hnyav.



Core Cheebtsam: Bearing, Gearbox, Tsav, Twj

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 1 Xyoo

Qhov hnyav (KG): 2000 kg

Video tawm -kev tshuaj xyuas: Muab

Machinery Test Report: Muab

Design: Ob chav beam

Efficiency: high efficiency

Kev khiav hauj lwm ceev: kev khiav hauj lwm ceev

Kev ruaj ntseg: Kev tiv thaiv - ua haujlwm viav vias

Xim: xaiv tau

Lub Zog: 110V / 220V / 230V / 380V / 440V, customized

Ntev: 7.5-31.5m





1.Main beam

Lub ntsiab nqaj yog lub hauv paus txheej txheem ntawm ob chav girder choj crane. Nws muab cov kev txhawb nqa tseem ceeb rau lub trolley, hoisting mechanism, thiab lifted load. Nyob rau hauv siab -kev ua tau zoo cranes, lub ntsiab nqaj yog tsim los rau siab tshaj plaws lub zog, rigidity, thiab ntev, kom ntseeg tau ruaj khov nyob rau hauv hnyav- lub luag hauj lwm tej yam kev mob.



2. Lifting System

Lub lifting system yog lub plawv ntawm ob chav girder choj crane. Nws ua haujlwm ntsug nqa thiab txo qis ntawm cov loads thiab tsim kom muaj kev ntseeg siab tshaj plaws, kev ua haujlwm du, thiab kev tswj xyuas meej, tshwj xeeb tshaj yog nyob rau hauv siab - kev ua haujlwm zoo.

3.Endlub tsheb

Qhov kawg carriage yog ib qho tseem ceeb ntawm cov qauv thiab cov khoom siv ntawm ob chav girder choj crane. Nws txhawb nqa lub ntsiab girders thiab ua kom tag nrho cov qauv crane taug kev raws cov kab ciav hlau khiav. Hauv kev ua haujlwm siab - cranes, cov tsheb thauj khoom kawg yog tsim los rau lub zog siab, kev sib dhos meej, kev txav du, thiab kev tu qis.





4.Crane mus ncig teb chaws mechanism

Lub crane mus ncig ua haujlwm yog lub luag haujlwm rau kev txav tag nrho tus choj crane qauv kab rov tav raws txoj kab khiav hauv lub rhiav lossis vaj. Nyob rau hauv siab -kev ua tau zoo cranes, qhov system no yog tsim los kom du, raug, thiab txhim khu kev qha, txawm nyob rau hauv tag nrho -load, ntev - ncua, los yog siab - ceev ceev.

5.Trolley mus ncig teb chaws mechanism

Lub trolley mus txawv tebchaws yog lub luag haujlwm rau txoj kab rov tav txav ntawm lub trolley (uas yog lub tsev lub tshuab hoisting) nyob rau sab saum toj ntawm ob tus choj girders. Nyob rau hauv siab -kev ua tau zoo cranes, qhov system no yog engineered rau smooth, meej, thiab txhim khu kev qha kev taw qhia -txawm thaum lub sij hawm siab - khiav ceev nyob rau hauv hnyav loads.

7.Crane Hook

Tus nuv yog ib qho tseem ceeb tshaj plaws ntawm cov lifting system nyob rau hauv ib tug ob chav girder choj crane. Nws ncaj qha bears qhov hnyav ntawm lub load thiab hloov mus rau lub hoisting mechanism. Hauv kev ua haujlwm siab - cranes, qhov sib dhos sib txuas yog tsim los rau kev nyab xeeb siab tshaj plaws, kev ruaj ntseg thauj khoom, thiab lub neej ua haujlwm ntev, tshwj xeeb tshaj yog nyob rau hauv hnyav-lub luag haujlwm thiab siab- zaus ua haujlwm.

8. Lub cev muaj zog

Lub cev muaj zog yog lub zog tseem ceeb ntawm crane txoj kev txav thiab nqa tshuab. Nyob rau hauv lub siab -kev ua tau zoo ob chav girder choj crane, cov motors tshwj xeeb yog xaiv los yog kho kom haum rau kev ua haujlwm siab, hnyav- lub voj voog ua haujlwm, kev tswj kom zoo, thiab lub neej ua haujlwm ntev, muaj peev xwm ua haujlwm hauv kev xav tau ib puag ncig kev lag luam.

.

9.Sound thiab lub teeb tswb system & txwv hloov

1) Suab thiab teeb tswb System
Lub tswb nrov thiab lub teeb ceeb toom yog qhov tseem ceeb ntawm kev nyab xeeb hauv siab -kev ua tau zoo ob chav girder choj cranes. Nws ceeb toom cov neeg ua haujlwm nyob ze rau kev txav mus los, cov xwm txheej txawv txav, lossis nres thaum muaj xwm txheej ceev- ua kom muaj kev nyab xeeb dua, tshwj xeeb tshaj yog nyob rau hauv lub suab nrov lossis siab - kev tsheb khiav mus los.
2) Limit Switches
Cov kev txwv txwv yog cov cuab yeej siv tshuab lossis cov khoom sib thooj uas tiv thaiv dhau - kev mus los ntawm crane mechanisms. Hauv kev ua haujlwm siab - cranes, cov keyboards no ua kom muaj kev ruaj ntseg, kev nyab xeeb, thiab kev tiv thaiv ntawm cov khoom siv.

10. Cov khoom siv ruaj ntseg

Cov txiaj ntsig ntawm Cov Khoom Siv Kev Nyab Xeeb
Kev Tiv Thaiv Cov Neeg Ua Haujlwm: Txo kev pheej hmoo ntawm kev raug mob thiab raug mob.

Khoom Siv Kev Nyab Xeeb: Tiv thaiv kev ua haujlwm tsis zoo thiab hluav taws xob.

Kev ntseeg tau ntawm kev ua haujlwm: txo qis qis qis los ntawm kev ua txhaum lossis kev sib tsoo.

Kev Ua Raws Cai: Ua tau raws li cov qauv thoob ntiaj teb xws li FEM, OSHA, ISO, CMAA.

Txhim Kho Kev Tswj: Muab cov neeg ua haujlwm nrog cov ntaub ntawv tseem ceeb thiab kev tiv thaiv tsis siv neeg.

11.Control hom

Tswj System Cheebtsam
PLC (Programmable Logic Controller): Cov maub los tseem ceeb rau kev ua haujlwm tsis siv neeg thiab kev cuam tshuam kev nyab xeeb.

VFD (Variable Frequency Drive): Tswj ceev thiab acceleration ntawm lub cev muaj zog rau kev ua haujlwm du.

HMI (Tib neeg-Machine Interface): Touchscreen lossis zaub vaj huam sib luag rau kev saib xyuas crane xwm txheej thiab tsis.

Kev Nyab Xeeb Relays & Interlocks: Ua kom muaj kev nyab xeeb thiab muaj peev xwm kaw thaum muaj xwm txheej ceev.

Cov lus taw qhia Sensors: Encoders, thauj cov hlwb, thiab cov chaw sensors rau kev tswj xyuas qhov tseeb.



12. Daim duab

Main technical





1.High Load Capacity

Ob chav girder tsim txhawb nqa hnyav dua - feem ntau yog li ntawm 5 tons txog 500 tons lossis ntau dua.

Haum rau hnyav- cov ntawv thov kev lag luam thiab cov khoom siv loj loj.

2.Increased Span thiab qhov siab

Muaj peev xwm npog thaj chaw ua haujlwm nrog ntev dua (txog 50 meters lossis ntau dua).

Tso cai nqa qhov siab dua vim muaj ob lub girders txhawb nqa lub hoist thiab trolley.

3.Txhim kho cov qauv Rigidity thiab ruaj khov

Lub thawv-hom lossis European- qauv girders muab kev nruj nruj, txo qis deflection thiab sway.

Kev ua haujlwm ruaj khov ua kom muaj kev nyab xeeb thiab meej thaum tuav cov khoom hnyav.

4. Txhim khu kev ruaj ntseg nta

Nruab nrog cov cuab yeej kev nyab xeeb siab tshaj plaws xws li kev tiv thaiv overload, txwv kev hloov pauv, tiv thaiv- kev sib tsoo, thiab cov tshuab nres thaum muaj xwm ceev.

Lub tswb nrov thiab lub teeb pom kev zoo txhim kho kev paub txog kev ua haujlwm thiab txo cov xwm txheej hauv chaw ua haujlwm.

5.Smooth thiab meej ua haujlwm

Tsis Siv Neeg Tsav Tsav Tsheb (VFD) cov tshuab ua kom yooj yim pib, nres, thiab tswj ceev rau nqa, trolley, thiab crane mus ncig.

Anti- sway tswj tshuab txhim kho qhov chaw thau khoom raug.

6. Kev Siv Hluav Taws Xob

Niaj hnub nimno motors thiab VFD drives txo hwj chim noj thiab ua hauj lwm cov nqi.

Lub teeb yuag girder tsim txo qhov hnyav tag nrho crane, txuag lub zog thaum mus ncig.

7.Versatile Control Options

Ntau hom kev tswj hwm suav nrog pendant, wireless chaw taws teeb tswj, alarm tswj, semi- tsis siv neeg, thiab tag nrho tsis siv neeg.

Haum rau ntau yam kev nyiam ua haujlwm thiab ib puag ncig.



1.Steel & Hlau Kev lag luam: tuav hnyav steel coils, daim hlau, billets, slabs, thiab structural Cheebtsam hauv mills thiab fabrication khw.
2.Shipbuilding: Lifting thiab assembling loj nkoj seem, hnyav machinery, thiab cov ntaub ntawv nyob rau hauv shipyards.
3.Power Generation: Kev tu thiab kev teeb tsa ntawm turbines, generators, transformers, thiab cov khoom siv hluav taws xob hnyav.
4.Automotive Manufacturing: Tsiv hnyav tuag, pwm, cav, thiab cov rooj sib txoos loj ntawm cov kab ntau lawm.
5.Heavy Machinery & Equipment Manufacturing: Kov cov tshuab loj loj, castings, thiab sib dhos.
6.Construction & Infrastructure: Thauj precast qhob, steel beams, thiab siv cov ntaub ntawv ntawm qhov chaw los yog nyob rau hauv factories.
7.Aerospace Kev Lag Luam: Precise tuav ntawm aircraft Cheebtsam, cav, thiab sib dhos nyob rau hauv kev tsim thiab txij nkawm.



1. Tsim & Engineering
Kev Ntsuam Xyuas Kev Xav Tau: Nkag siab cov neeg siv khoom xav tau- muaj peev xwm, ncua, ib puag ncig ua haujlwm.

Tus Qauv Tsim: Siv CAD thiab FEM software los tsim lub ntsiab girder, kawg carriages, trolley, thiab hoist systems.

Kev xaiv cov khoom siv: Xaiv cov motors, gearboxes, cov khoom siv hluav taws xob, cov khoom siv kev nyab xeeb.

Kev pom zoo: Ua tiav cov duab kos duab thiab tau txais kev pom zoo rau cov neeg siv khoom.

2. Kev yuav khoom
Qhov chaw siab - steel zoo (Q235B, Q345B, lossis sib npaug).

Yuav cov khoom siv hluav taws xob los ntawm cov neeg muab ntawv pov thawj.

Tshawb xyuas tag nrho cov ntaub ntawv kom ua raws li cov qauv.

3. Kev tsim khoom
Txiav & Profiling: Hlau daim hlau thiab ntu txiav los ntawm CNC ntshav lossis laser txiav tshuab.

Vuam: Tag nrho -kev nkag mus rau hauv submerged arc vuam (SAW) rau lub ntsiab girders thiab thav duab sib dhos.

Machining: Precision machining ntawm cov ntsiab lus txuas, log hubs, shafts, thiab hoist qhov chaw.

Kev sib dhos: Ua ntej- kev sib dhos ntawm cov khoom xws li cov tsheb thauj khoom kawg, trolley thav duab.

4. Kev kho deg
Ntxuav: Sandblasting (Sa2.5) tshem tawm xeb thiab nplai.

Txheej: Daim ntawv thov ntawm primer, epoxy xim, thiab topcoat rau corrosion kuj.

Kev tshuaj xyuas: Txheej thickness thiab adhesion kuaj ib tus qauv.

5. Kev teeb tsa hluav taws xob
Hluav taws xob tswj vaj huam sib luag, motors, txwv keyboards, tswb.

Kev koom ua ke ntawm PLC, VFD, thiab tswj cov khoom siv.

Kev ntsuas hluav taws xob txuas ntxiv thiab kev nyab xeeb.

6. Lub Rooj Sib Tham Kawg
Installation ntawm lub ntsiab girders ntawm kawg carriages.

Mounting trolley, hoist, thiab tswj systems.

Hook thiab hlau hlua installation.

7. Kev Ntsuas & Kev Ntsuas Zoo
Tsis muaj-Load Testing: Khiav crane mechanisms yam tsis muaj kev thauj khoom los kuaj xyuas kev mus ncig, nqa, thiab tswj kev ua haujlwm.

Load Testing: Ua cov ntsuas load thiab overload tests kom paub tseeb tias nqa lub peev xwm thiab kev nyab xeeb.

Kev Ntsuas Kev Ua Haujlwm: Tshawb xyuas cov hloov pauv, lub tswb, nres, thiab nres thaum muaj xwm ceev.

Alignment thiab Calibration: Xyuas kom du mus thiab meej load positioning.

8. Ntim & Xa
Dismantle qhov chaw raws li xav tau rau kev xa khoom.

Tiv thaiv cov khoom nrog tiv thaiv- cov coatings thiab cov khoom ntim khoom.

Npaj logistics rau kev nyab xeeb xa mus rau cov neeg siv khoom.

9. Installation & Commissioning (Nyob ntawm -site)
Sib sau ua ke cranes ntawm cov kab hluav taws xob.

Txuas fais fab mov thiab tswj tshuab.

Ua qhov kawg commissioning thiab kev cob qhia neeg ua haujlwm.

10. Tom qab-Kev Pabcuam Muag
Muab cov phau ntawv saib xyuas thiab cov npe khoom seem.

Muab kev pab txhawb nqa thiab kev pab tu ncua sij hawm.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas sib txuas yuav ncav cuag 95% . 32 cov kab vuam tau muab tso rau hauv kev siv, 50 tau npaj los nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
