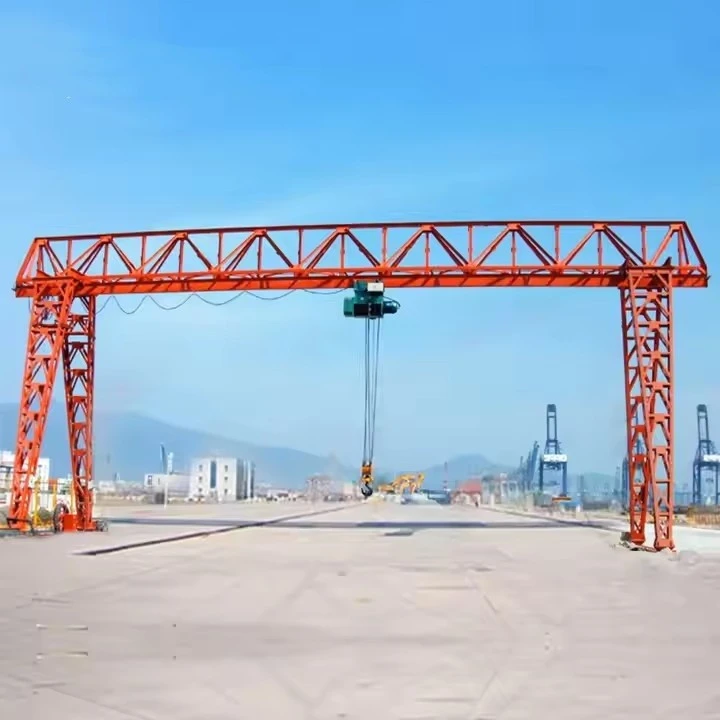

Trussed Mh Hom Ib Girder Gantry Cranes

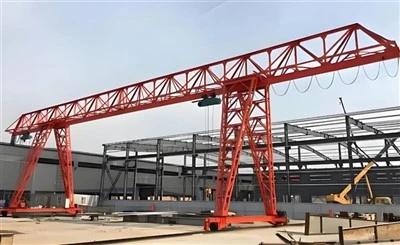

Dab tsi yog Trussed MH- Hom Ib Leeg Girder Gantry Crane?

Cia peb tawg lub npe:

Trusted:Hais txog tus tsim ntawm lub ntsiab girder. Hloov chaw ntawm lub vev xaib (xws li lub thawv girder), nws yog tsim los ua ib qho qhib latticework lossis truss qauv, feem ntau yog ua los ntawm cov kaum sab xis los yog dov steel. Qhov no yog ib lub teeb yuag tsis tau muaj zog tsim.

MH-Type:Qhov no yog ib qho kev lag luam tsim, feem ntau sawv rau "Manual Hoist" lossis "Medium Heavy" lub luag haujlwm. Nws feem ntau qhia txog lub crane tsim los rau qis dua thiab lub luag haujlwm sib dua, feem ntau siv cov saw hoist raws li lub tshuab nqa.

Tib Girder:Tus choj muaj ib lub ntsiab beam (lub trussed girder), nrog rau lub hoist thiab trolley raug tshem tawm los ntawm thiab khiav raws qab flange ntawm no girder.

Gantry Crane:Lub freestanding crane txhawb nqa los ntawm ob txhais ceg uas khiav hauv pem teb - theem rails lossis lub log.

Hauv qhov tseem ceeb, nws yog lub teeb yuag, kev lag luam gantry crane tsim los rau nruab nrab nqa cov haujlwm, feem ntau hauv tsev lossis hauv cov chaw nyob.

Qhov zoo

Tus nqi -Kev ua tau zoo:Qhov no yog qhov zoo tshaj plaws. Lub truss tsim siv cov hlau tsawg dua li lub thawv girder, thiab kev siv cov khoom siv hauv phau ntawv (hoist, trolley, mus ncig) txo qis kev tsim khoom thiab kev yuav khoom.

Lightweight thiab Portable:Lub teeb hnyav ua rau nws yooj yim rau kev sib sau, disassemble, thiab hloov chaw. Qee cov qauv me me txawm nyob ntawm casters kom yooj yim txav mus los ntawm ib qho kev cob qhia los ntawm ib tus neeg.

Yooj yim ntawm installation:Yuav tsum tsis muaj txoj kab hluav taws xob lossis cov khoom siv hluav taws xob. Nws tuaj yeem teeb tsa sai nrog cov cuab yeej yooj yim.

Kev kho qis:Tsis muaj lub cev muaj zog, brakes, lossis cov tshuab hluav taws xob, muaj tsawg heev uas tuaj yeem hnav lossis xav tau kev saib xyuas dhau lub sijhawm lubrication thiab tshuaj xyuas.

Txaus rau Lub Luag Haujlwm:Zoo kawg nkaus haum rau qhov rov ua dua ntawm kev nqa cov khoom sib zog (xws li, thauj cov tshuab, tuav cov ntaub ntawv hauv lub tsev rau khoom, kev saib xyuas kev ua haujlwm), qhov twg kev nqis peev hauv lub cev muaj zog crane yog qhov tsis tsim nyog.

Qhov tsis zoo thiab kev txwv

Tsawg Peev Xwm thiab Ceev:Tsim los rau lub teeb ua haujlwm, feem ntau muaj peev xwm ntawm 0.5 tons txog 10 tons. Kev nqa thiab txav mus yog qeeb thiab ua haujlwm hnyav- siv zog vim lawv vam khom tib neeg lub zog.

Tsis yog rau Lub Luag Haujlwm Loj:Tus qauv tsim tsis haum rau hnyav - lub voj voog ua haujlwm, qhov chaw ua haujlwm tsis zoo, lossis nqa qhov tseem ceeb / siab- tus nqi thauj khoom uas xav tau kev tswj xyuas meej.

Limited Span thiab qhov siab:Thaum muaj nyob rau hauv ntau qhov ntau thiab tsawg, lub trussed girder tuaj yeem ua deflective (khoov) nyob rau hauv nws tus kheej qhov hnyav tshaj qhov ntev ntev, txwv qhov ua tau zoo tshaj qhov ntev piv rau ob chav girder tsim.

Tus neeg ua haujlwm Fatigue:Kev tuav tes ua haujlwm tuaj yeem ua rau muaj zog rau cov haujlwm nquag lossis hnyav nqa, cuam tshuam cov khoom tsim tau thiab ergonomics.

Sib piv nrog lwm cov gantry cranes

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 2 xyoos

Qhov hnyav (KG): 60000 kg

Video tawm -kev tshuaj xyuas: Muab

Machinery Test Report: Muab

Daim ntawv thov: warehouses, Hoobkas thiab lwm qhov chaw

Crane hom: thawv hom gantry crane

Kev khiav ceev: 20m / min

Lifting mechanism: Hluav taws xob Hoist

Tswj txoj kev: Hauv av Control + Chaw taws teeb tswj (kev cai)

Lub luag haujlwm ua haujlwm: A5

Ua haujlwm kub: -20 ~ +40 degree

Muaj voltage: 380V50HZ3Phase los yog lwm yam

Xim: Customized

Customization: Txais

1. Choj Girder System

Qhov no yog thawj kab kab rov tav kab uas hla thaj chaw ua haujlwm.

Main Trussed Girder:Cov ntsiab lus tseem ceeb. Nws tsis yog ib qho nyuaj tab sis qhiblattice qauvfabricated los ntawm angled steel seem (xws li cov ces kaum los yog raws) welded ua ke nyob rau hauv ib tug triangular qauv. Qhov no truss tsim muab rigidity thiab lub zog thaum txo qhov hnyav thiab cov khoom siv.

Hauv qab Flange / Runway Beam:Hauv qab ntawm lub truss feem ntau yog ib qho khoom flange lossis ib qho me me -beam. Qhov no yog qhov chaw uas cov trolley log khiav.

2. Leg & Support System

Cov qauv ntsug uas txhawb nqa tus choj girder los ntawm hauv pem teb.

Cov ceg (2):Feem ntau tsim los ntawm tus qauvKuv -beamslos yogtshooj channel. Lawv yog bolted los yog pinned rau qhov kawg ntawm lub ntsiab girder.

Diagonal Braces:Cov kab me me uas txuas ob txhais ceg mus rau lub ntsiab girder. Cov no yog qhov tseem ceeb rau kev muab kev ruaj ntseg rau sab nraud, tiv thaiv tag nrho cov qauv ntawm swaying sab - mus rau - sab.

Height Adjustment Mechanism:Ib qho yooj yim tab sis tseem ceeb feature. Ntau MH- hom gantry muajadjustable ceg socketslos yogtelescoping ceg ceguas tso cai rau lub crane yuav tsum tau leveled ntawm cov plag tsev tsis sib xws. Qhov no feem ntau yog tus pin-thiab- qhov system.

Sab saum toj Cap / Plate txuas:Lub phaj los yog sib dhos nyob rau sab saum toj ntawm ceg uas txuas nws mus rau lub ntsiab girder.

3. Hoist & Trolley System

Cov khoom siv uas tswj xyuas qhov tseeb lifting thiab txav ntawm lub load raws lub girder.

Phau ntawv Trolley:Lub rooj sib txoos uas nqa lub hoist thiab txav mus rau hauv qab flange ntawm lub ntsiab girder. Nws muaj xws li:

Trolley Ncej:Lub cev uas tuav lub log.

Trolley Log:Feem ntau yog ob lossis plaub lub log uas caij rau hauv qab flange ntawm lub ntsiab girder.

Trolley Movement Chain:Ib txhais tes saws tes uas, thaum rub, koom nrog lub iav mechanism los tsav lub log thiab txav lub trolley.

Phau Ntawv Qhia Hoist:Lub lifting ntaus ntawv mounted rau lub trolley. "MH" feem ntau hais tshwj xeeb rau cov khoom no.

Load Chain:Lub siab -lub zog alloy saw uas nqa tus nuv thiab thauj khoom.

Lifting Mechanism:Lub gearbox ua haujlwm los ntawm rub ates saw(rau saw hoist) los yog alever(rau ib tug lever hoist).

Hook:Cov khoom uas tuav lub load.

Tes Chain / Lever:Tus neeg teb xov tooj interface rau nqa thiab txo qis.

4. Txoj kev khiav & kev txav chaw

Cov khoom siv uas tso cai rau tag nrho cov crane txav mus rau hauv pem teb.

End Trucks:Cov rooj sib txoos hauv qab ntawm txhua ceg. Rau ib qho yooj yim MH- hom crane, cov no yooj yim heev.

Log:Feem ntau plaub lub log hauv tag nrho (ob leeg ib ceg). Lawv tuaj yeem yog:

Fixed Log:Muab stability tab sis tsis muaj kauj.

Swivel Casters:Cia lub crane yuav tsum tau maneuvered thiab tig tau yooj yim, ua rau nws portable heev.

.

Travel Mechanism:Ntawm cov qauv yooj yim tshaj plaws, crane yogmanually thawblos ntawm tus neeg teb xov tooj. Qee cov qauv yuav muaj ageared kev tsav tshebqhov twg ib tug tes crank yog siv los tig lub log ntawm ib tug ncej thiab gearbox, ua kom nws yooj yim rau txav hnyav loads.

Runway Surface:Lub crane khiav ncaj qha ntawm aruaj, theem pob zeb pem teb. Rau kev mus tas li ntau dua lossis meej, nws tuaj yeem khiav ntawm lub teeb yuagsteel railstsau rau hauv pem teb.

Summary Table of Components

Sketch

Main technical

Qhov zoo ntawm Trussed MH-Type Ib Girder Gantry Cranes

Qhov zoo yog los ntawm nws cov hauv paus ntsiab lus tsim: lub trussed girder thiab phau ntawv ua haujlwm.

1. Exceptional Cost-Effectiveness (Lowest Initial Investment)

Simplified Design:Cov qauv truss siv cov hlau tsawg dua li cov khoom siv lub vev xaib girder, txo cov nqi khoom.

Phau ntawv Cheebtsam:Tshem tawm cov motors, hluav taws xob vaj huam sib luag, thaiv hluav taws xob, thiab VFDs ua rau txo qis tus nqi yuav khoom piv rau cov cranes. Qhov no yog nws ib qho txiaj ntsig loj tshaj plaws.

2. Lub teeb yuag thiab siab nqa tau yooj yim

Hloov chaw yooj yim:Lub teeb truss tsim thiab feem ntau modular siv (bolt- ua ke cov khoom) txhais tau tias nws tuaj yeem yooj yim disassembled thiab txav los ntawm cov neeg coob me me, feem ntau tsis tas yuav muaj lub crane.

Caster Options:Ntau tus qauv tuaj nrog cov casters swivel, tso cai rau ib tus neeg teb xov tooj kom txav tag nrho cov crane nyob ib ncig ntawm lub khw hauv pem teb kom raws nraim qhov nws xav tau.

3. Kev teeb tsa yooj yim thiab teeb tsa

Tsis xav tau Infrastructure:Tsis tas yuav tsum muaj kev ua haujlwm hluav taws xob, cov kab hluav taws xob khiav, lossis cov hauv paus tshwj xeeb. Nws tsuas yog yuav tsum muaj kev ruaj khov, theem hauv pem teb los ua haujlwm.

Kev sib dhos ceev:Nws tuaj yeem sib sau ua ke nrog cov cuab yeej yooj yim hauv ib teev, txo qis qis qis.

4. Tus nqi ua haujlwm tsis zoo thiab kev tu qis

Tsis siv hluav taws xob:Kev tuav haujlwm txhais tau tias nws tsis siv lub zog, txo cov nqi hluav taws xob tsis tu ncua.

Yooj Yim Mechanics:Tsis muaj motors, contactors, lossis brakes, muaj tsawg dua cov khoom uas tuaj yeem ua tsis tau. Kev saib xyuas yog feem ntau txwv rau lub sij hawm lubrication thiab tshuaj xyuas ntawm lub hoist, trolley, thiab lub log.

5. Flexibility thiab Versatility hauv kev siv

Adjustable Qhov siab:Ntau tus qauv muaj cov duab telescoping lossis adjustable ob txhais ceg, tso cai rau lub crane yuav tsum tau leveled ntawm me ntsis tsis sib xws hauv pem teb los yog yoog rau qhov sib txawv qab nthab qhov siab thiab qhov ntau thiab tsawg.

Zoo tagnrho rau Low Headroom:Tus qauv tsim ib leeg muab kev sib txuas zoo qhov siab yam tsis tas yuav tsum muaj lub tsev siab siab.

Daim ntawv thov ntawm Trussed MH-Type Ib Girder Gantry Cranes

Lub crane no tsis yog rau kev lag luam hnyav; nws yog cov cuab yeej siv hluav taws xob me me rau - nplai, cov haujlwm nqa tau zoo. Nws daim ntawv thov yog txhais los ntawmsiv tsis tu ncua, sib zog ua haujlwm, thiab siv nyiaj tsawg.

1. Kev cob qhia thiab chaw nres tsheb:

Siv Case:Daim ntawv thov quintessential. Zoo meej rau cov khw muag khoom tsheb kom nqa cov cav thiab xa tawm ntawm lub tsheb, lossis rau lub khw muag khoom los tuav cov chucks, vices, thiab raw khoom.

2. Cov Chaw Muag Khoom Me thiab Chaw Cia Khoom:

Siv Case:Tsiv cov khoom palletized, cov khoom siv tshuab, lossis cov khoom loj uas hnyav dhau rau kev nqa phau ntawv tab sis tsis ua raws li tag nrho - lub zog siv nyiaj siv ua haujlwm.

3. Chaw thau khoom Docks thiab chaw txais:

Siv Case:Tshem tawm cov khoom hnyav los ntawm cov tsheb thauj khoom uas tsis muaj lub crane mus tas li. Nws tuaj yeem rub tau rau hauv qhov chaw tsuas yog thaum xav tau.

4. Kev tsim kho qhov chaw (Lub Teeb Lub Luag Haujlwm):

Siv Case:Siv cov khoom siv xws li lub hnab pob zeb, cov kav dej, lossis cov khoom ua ntej me me ntawm cov chaw ua haujlwm me.

5. Kho thiab Kho Bays:

Siv Case:Qhov zoo tshaj plaws rau cov neeg ua haujlwm tu cov nroj tsuag siv los kho cov twj, lub cev muaj zog, thiab lwm yam khoom siv. Nws portability tso cai rau nws coj ncaj qha mus rau lub tshuab tawg.

6. Fabrication and Assembly Shops:

Siv Case:Lifting thiab positioning steel nplooj ntawv, raj, los yog fabricated qhov chaw thaum lub sij hawm sib dhos txheej txheem.

7. Kev ua liaj ua teb:

Siv Case:Hauv cov tsev txhab nyiaj lossis kho cov tsev kho mob rau kev tuav cov tsheb laij teb thiab lwm yam khoom siv hnyav.

Cov txheej txheem tsim khoom rau ib qho nqaj mus ncig gantry crane suav nrog ntau theem tseem ceeb, los ntawm kev tsim thiab kev yuav khoom mus rau kev sib dhos, kev sim, thiab kev xa khoom zaum kawg. Hauv qab no yog ib kauj ruam -los ntawm- cov kauj ruam qhia ntawm cov txheej txheem tsim khoom:

1. Tsim & Engineering
Kev Ntsuam Xyuas Cov Neeg Siv Khoom: Txiav txim siab nqa lub peev xwm, ncua, nqa qhov siab, lub voj voog ua haujlwm, thiab qhov chaw ua haujlwm.

Tus Qauv Tsim:

Tsim lub ntsiab girder (ib lub thawv lossis I- nqaj qauv).

Tsim cov tsheb thauj khoom kawg (ceg / log) thiab cov kab ciav hlau khiav.

Xaiv hom hoist / trolley (hluav taws xob lossis phau ntawv).

Load & Stress xam: Xyuas kom ua raws li cov qauv (ISO, FEM, DIN, lossis ASME).

Hluav taws xob & Tswj System Tsim: Xaiv cov motors, brakes, txwv cov keyboards, thiab tswj vaj huam sib luag.

2. Kev yuav khoom
Steel Phaj & Profiles: Siab- zoo Q235B/Q345B steel rau lub ntsiab girders thiab kev txhawb nqa.

Mechanical Cheebtsam: Log, qag, bearings, gears, thiab couplings.

Cov Khoom Siv Hluav Taws Xob: Cov motors, cables, tswj vaj huam sib luag, thiab cov khoom siv kev nyab xeeb.

3. Fabrication ntawm Main Cheebtsam
A. Main Girder Fabrication
Txiav: CNC plasma/oxy- roj txiav rau precision.

Vuam: Automated submerged arc vuam (SAW) rau cov seams muaj zog.

Kev Ncaj Ncees & Kev Tshuaj Xyuas: Ua kom lub camber kom zoo (ua ntej- khoov) thiab kuaj xyuas qhov tsis xws luag (UT/RT test).

B. Xaus Carriages & Legs
Frame Assembly: Welded steel siv nrog kev txhawb nqa bracing.

Log & Bearing Installation: Machined lub log rau kev mus ncig zoo.

C. Hoist & Trolley
Ua ntej- sib dhos Hoist: Hluav taws xob saw hoist lossis hlau hlua hoist.

Trolley Ncej: Fabricated kom haum rau hoist txav.

4. Kev kho deg & pleev xim
Txhaj tshuaj tiv thaiv: Tshem tawm xeb thiab txhim kho xim adhesion.

Primer & Xim: Los tiv thaiv -cov coatings (epoxy + polyurethane).

5. Kev sib dhos
Girder & End Carriage Joining: Bolt lossis weld lub ntsiab nqaj rau ob txhais ceg.

Hoist / Trolley Installation: Mounted ntawm lub girder.

Hluav taws xob thaiv: Txuas cov motors, tswj, thiab cov khoom siv kev nyab xeeb.

6. Kev Ntsuas & Kev Tswj Xyuas Zoo
Dimensional Inspection: Txheeb xyuas qhov dav, qhov siab, thiab kev sib dhos.

Load Test:

Static Load Test: 125% ntawm SWL (Safe Working Load).

Dynamic Load Test: 110% ntawm SWL nrog kev kuaj xyuas ua haujlwm.

Kev Ntsuam Xyuas Kev Ua Haujlwm: Mus ncig, nqa, nres, thiab txwv kev hloov pauv kev txheeb xyuas.

7. Disassembly & Ntim
Kev xa khoom xa tuaj: Crane tuaj yeem muab faib ua cov qauv (girder, ceg, hoist).

Kev Tiv Thaiv Ntim: Waterproof wrapping rau hiav txwv thauj.

8. Kev teeb tsa & Kev Ua Haujlwm (Ntawm -Site)
Kev Npaj Txoj Kev: Ua kom muaj kev sib tw theem lossis kev txhawb nqa hauv av.

Reassembly: Bolt Cheebtsam ua ke.

Kev Xeem Kawg: Kev kuaj xyuas ua haujlwm raws li kev thauj khoom.

9. Cov ntaub ntawv & Kev xa khoom
Phau ntawv & Daim ntawv pov thawj: suav nrog cov ntawv ceeb toom thauj khoom, daim ntawv pov thawj CE / ISO.

Kev cob qhia: Tus neeg khiav dej num thiab kev taw qhia kev saib xyuas.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas sib txuas yuav ncav cuag 95% . 32 cov kab vuam tau muab tso rau hauv kev siv, 50 tau npaj los nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
