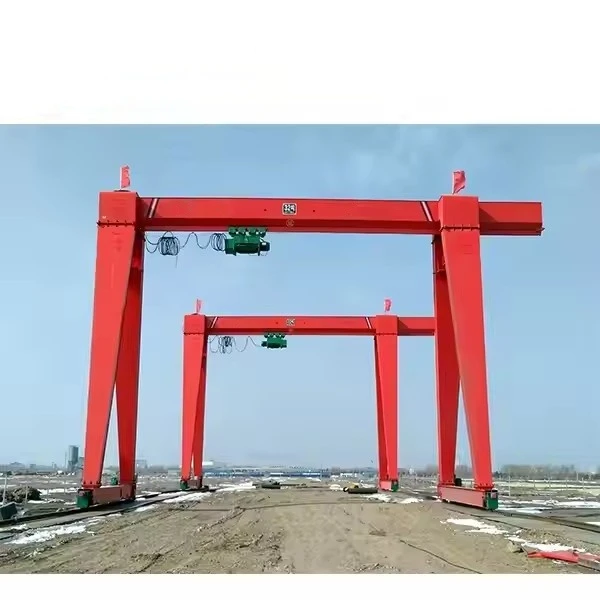

Mh Hom Tib Beam Gantry Crane

MH Hom Ib Beam Gantry Crane yog dab tsi?

IbMH Hom Tib Beam Gantry Craneyog ib qho kev faib tawm ntawm ib qho -girder gantry crane tsim raunruab nrab mus rau hnyav -lub luag haujlwmkev pabcuam. Qhov kev xaiv "MH" (raws li cov qauv xws li Suav JB/T) feem ntau yog sawv cev rau lub luag haujlwm hauv chav kawm uas muaj zog dua li lub teeb -duty (MZ) cranes tab sis tsis hnyav npaum li qhov hnyav tshaj plaws -duty (MG) ob chav girder cranes.

Nws yog ntau yam, tus nqi - siv tau gantry crane uas muab qhov sib npaug ntawm lub zog, muaj peev xwm, thiab kev pheej yig rau ntau yam kev lag luam.



Qhov zoo ntawm MH Hom Ib Leeg Beam Gantry Cranes

Tus nqi -Kev ua tau zoo:Tus qauv tsim ib leeg yuav tsum muaj cov khoom siv tsawg dua thiab lub tshuab hoist yooj yim, ua rau nws pheej yig dua li ob chav girder crane ntawm qhov sib xws.

Tus nqi zoo heev rau Lub Luag Haujlwm Cycle:Nws muaj qhov sib npaug zoo tshaj plaws ntawm tus nqi thiab kev ua tau zoo rau cov ntawv thov uas xav tau ntau dhau rau lub teeb - lub luag haujlwm crane tab sis tsis ua pov thawj tus nqi ntawm ob lub girder.

Yooj yim Installation & Hloov chaw:Yooj yim rau kev sib dhos thiab feem ntau tuaj yeem txav mus rau qhov chaw sib txawv yog tias qhov chaw xav tau hloov pauv.

Low Headroom:Qhov kev cog lus hauv qab - dai tsim ua kom muaj qhov siab nqa qhov siab nyob hauv qab kab, uas yog qhov tseem ceeb hauv cov chaw uas tsis muaj qab nthab.

Versatility:Haum rau ob qho tib si sab hauv tsev thiab sab nraum zoov siv thoob plaws ntau lub lag luam.



Kev sib piv: MH Hom Ib leeg vs. Ob Chav Girder

Feature	MH Hom Ib Girder	MH Hom Ob Chav Girder
Girder Tsim	Ib leeg	Ob npaug
Lub luag hauj lwm Cycle	Nruab nrab / hnyav (M4 / M5)	Hnyav / hnyav (M5 / M6)
Hom Muaj Peev Xwm	1 - 20 Tons	5 - 50+ Tons
Hook Height	qis (hauv qab -Khiav)	Siab dua (Sab saum toj-Khiav)
Nqi	Kev lag luam	Siab
Zoo tagnrho Rau	Nquag, nruab nrab - lub luag haujlwm nqa	Kev hnyav, siab - nqa peev xwm

Xaus:CovMH Hom Tib Beam Gantry Craneyog asiv tau zoo heev thiab raug nqi -kev daws teeb meemrau ntau yam ntawm cov khoom tuav cov haujlwm. Nws ua rau qhov sib txawv tseem ceeb ntawm lub teeb- lub luag haujlwm siv qee zaus thiab kev ua haujlwm tsis tu ncua - lub luag haujlwm hnyav, muab kev ua haujlwm ntev thiab kev ua tau zoo nyob qhov twg nws xav tau tshaj plaws yam tsis tas yuav dhau - engineering. Nws yog qhov kev xaiv ntse rau cov lag luam tab tom nrhiav los txhim kho cov khoom lag luam nrog kev txhim khu kev qha thiab txhim khu kev qha.



Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 2 xyoos

Qhov hnyav (KG): 60000 kg

Video tawm -kev tshuaj xyuas: Muab

Machinery Test Report: Muab

Daim ntawv thov: warehouses, Hoobkas thiab lwm qhov chaw

Crane hom: thawv hom gantry crane

Kev khiav ceev: 20m / min

Lifting mechanism: Hluav taws xob Hoist

Tswj txoj kev: Hauv av Control + Chaw taws teeb tswj (kev cai)

Lub luag haujlwm ua haujlwm: A5

Ua haujlwm kub: -20 ~ +40 degree

Muaj voltage: 380V50HZ3Phase los yog lwm yam

Xim: Customized

Customization: Txais



Ntawm no yog cov ncauj lus kom ntxaws txog cov khoom ntawm ib qhoMH Hom Tib Beam Gantry Crane.

1. Cov Txheej Txheem Tseem Ceeb (Lub Ntsiab Cai)

Single Main Girder:Thawj kab rov tav load-bearing beam.

Kuv -Beam:Tus qauv dov steel seem, tus nqi - zoo rau cov khoom sib dua thiab luv dua.

Welded Box Girder:Fabricated los ntawm steel phaj rau superior zog thiab rigidity. Siv rau kev muaj peev xwm ntau dua (ze rau 20-tuj MH txwv) thiab ntev dua kom txo qis deflection.

Ob txhais ceg (End Trucks):Txoj kev txhawb nqa.

Rigid ceg:Tsau - qhov siab ob txhais ceg ua los ntawm I- kab teeb los yog lub thawv.

Adjustable ceg:Feature telescopic seem los yog tus pin nqis los hloov lub crane qhov siab rau ntau daim ntawv thov.

Runway System:

Rau Rail -Mounted Cranes:Steel rails mounted ntawm lub hauv paus ruaj.

Rau Roj Hmab-Tired Crane:Ib tug du, tawv nto yog txaus.

Bracing:Diagonal steel cov tswv cuab ntawm ob txhais ceg thiab lub girder. Cov no yog qhov tseem ceeb rau kev muab kev ruaj ntseg rau sab nraud thiab tiv thaiv lub crane los ntawm racking lossis swaying.

2. Lifting & Travel System (Lub Workhorse)

Hluav taws xob Hoist Unit:Cov khoom uas ua lub lifting. Rau MH chav kawm crane, qhov no yog qhov muaj zog, muaj- qib hoist.

Hoist Tsav:Hluav taws xob lub cev muaj zog tsim rau nquag pib thiab nres.

Gearbox:Txo lub cev muaj zog ceev kom lifting torque.

Nruas los yog Sprocket:Rau winding hlau hlua los yog nqa saw.

Nres:Tsis siv neeg koom los tuav lub load thaum lub hoist tsis powered.

Trolley Assembly:Chav tsev uas nqa lub hoist raws lub girder.

Trolley Ncej:Txhawb nqa lub hoist.

Trolley Log:Khiav raws hauv qab flange ntawm lub ntsiab girder.

Trolley Tsav:Lub cev muaj zog thiab lub zog uas txhawb nqa lub trolley. Yuav ua tau hluav taws xob los yog phau ntawv.

Lifting Hook:Forged steel nuv nrog latch kev nyab xeeb los tiv thaiv slings los ntawm disengaging.

Tsav Tsheb Mus Los (Long Travel):Qhov system uas txav tag nrho cov crane.

Tsav Tsav Tsheb:Mounted ntawm cov tsheb thauj khoom kawg.

Log:Flanged rau cov ntsia hlau lossis cov roj hmab khoom siv rau hauv pem teb.

3. Fais fab & Tswj System (Nerves)

Fais fab mov:

Cable Reel:Lub caij nplooj ntoos hlav-los yog lub cev muaj zog-tsav reel uas tswj cov fais fab loj.

Festoon System:Lub trolley thiab taug qab qhov system uas nqa thiab tswj lub zog thiab tswj cov cables.

Tswj Interface:

Chaw nres tsheb Pendant:Lub laub khawm - khawm tswj lub thawv tso cai rau tus neeg teb xov tooj los tswj txhua txoj haujlwm crane.

Xov tooj cua tswj chaw taws teeb:Tso cai rau kev ua haujlwm wireless los ntawm qhov chaw nyab xeeb thiab zoo.

Tswj Vaj Huam Sib Luag:Cov khoom siv hluav taws xob hauv tsev xws li contactors, overload relays, thiab qee zaum Variable Frequency Drive (VFD) rau kev tswj kom zoo.

4. Kev Nyab Xeeb Kev Nyab Xeeb (Lub Neej)

Load Limiter / Load Moment Indicator (LMI):Tiv thaiv lub hoist los ntawm lifting ib tug load tshaj nws rated peev. Ib qho LMI yog qib siab dua thiab muab kev nyeem ntawv.

Limit Switches:

Hoist Upper/Lower Limit Switches:Tsis siv neeg txiav fais fab ntawm qhov kawg ntawm kev sib tw mus ncig.

Mus ncig teb chaws Limit Switches:Nres lub crane lossis trolley thaum kawg ntawm txoj kev khiav los yog girder.

.

Braking Systems:

Hoist Nres:Tuav lub load.

Travel Brakes:Nyob rau tsav motors rau kev tswj nres.

Bumpers & End Nres:Roj hmab lossis polymer buffers kom nqus tau lub zog thaum kawg ntawm kev mus ncig.

Ceeb toom Device:Lub horn lossis buzzer ceeb toom cov neeg ua haujlwm thaum lub crane txav.

Summary: Cov yam ntxwv tseem ceeb ntawm MH Hom

Cheebtsam	MH Hom Ib Girder Yam ntxwv
Girder	Robust I-Beam los yog Welded Box Girder(hnyav dua lub teeb- hom haujlwm MZ)
Hoist	Industrial Electric HoistRated rau M4 / M5 lub voj voog ua haujlwm
Ob txhais ceg	Txhawb zognrog bracing rau stability nyob rau hauv load
Tswj	Txhim khu kev ntseeg Pendant lossis xov tooj cua chaw taws teeb
Kev nyab xeeb	Xws li Load Limiter thiab Limit Switchesraws li tus qauv

Xaus:Txhua feem ntawm MH Hom Ib Leeg Beam Gantry Crane raug xaiv thiab tsim los ua haujlwmtsis tu ncua, nruab nrab mus rau hnyav - kev pabcuam. Nws tus qauv tsim qhov tseem ceeb ntawm qhov sib npaug ntawmlub zog, kev cia siab, thiab tus nqi -effectiveness, ua rau nws ruaj khov thiab ua tau zoo lifting tov rau suav tsis txheeb kev siv.

Sketch

Main technical



Qhov zoo ntawm MH Hom Ib Leeg Beam Gantry Crane

Lub crane no yog tsim los tsim kom muaj kev ua tau zoo rau nruab nrab mus rau hnyav- cov dej num ua haujlwm, muab cov txiaj ntsig zoo.



1. Tus nqi zoo tshaj -Kev ua tau zoo

Kev nqis peev qis dua:Kev tsim ib lub girder yuav tsum muaj cov khoom siv tsawg dua thiab lub tshuab hoist yooj yim dua li ob chav girder crane, uas ua rau tus nqi yuav qis dua.

Txo Cov Nqi Ua Haujlwm:Nws muaj qhov sib npaug zoo tshaj plaws ntawm tus nqi thiab kev ua tau zoo rau cov ntawv thov uas xav tau ntau dhau rau lub teeb - lub luag haujlwm crane tab sis tsis ua pov thawj tus nqi siab ntawm tus qauv ob chav girder.

2. Zoo heev Versatility thiab Adaptability

Wide Application Range:Haum rau kev ua haujlwm loj heev, los ntawm kev txav tshuab mus rau cov tsheb thauj khoom.

Siv sab hauv thiab sab nraum zoov:Nws tuaj yeem ntsia tau rau hauv factories, warehouses, thiab sab nraum zoov.

Adjustable nta:Ntau tus qauv muab kev ncua ntev thiab qhov siab, tso cai rau lawv los tsim kho rau ntau qhov chaw thiab ua haujlwm.

3. Space Efficiency

Tsawg Headroom Design:Lub hauv qab -khiav hoist ua kom muaj qhov siab nqa qhov siab nyob hauv qab kab, uas yog qhov tseem ceeb hauv cov chaw uas tsis muaj qab nthab.

Clear Floor Space:Zoo li tag nrho cov gantry cranes, nws ua haujlwm nyiaj siv ua haujlwm, ua kom cov chaw hauv pem teb tsis pub dawb rau lwm yam khoom siv, cia, thiab tsheb khiav.

4. Yooj yim rau nruab thiab siv

Yooj yim los ua ke:Cov qauv tsis tshua muaj ntau dua li ob chav girder crane, ua kom nrawm dua thiab yooj yim rau nruab.

Portability:Roj Hmab- cov qauv nkees tuaj yeem txav tau yooj yim mus rau ntau qhov chaw hauv ib qho chaw raws li xav tau.

Tus neeg siv - Kev Ua Haujlwm Zoo:Tej yam yooj yim ntawm pendant los yog xov tooj cua tej thaj chaw deb yuav tsum tau kev cob qhia neeg ua hauj lwm tsawg heev.

5. Txhim khu kev ruaj ntseg rau nws Chav

Ua rau siv nquag:Nrog ibM4 (Lub luag haujlwm nruab nrab)los yogM5 (Hnyav plaub ntug)kev faib tawm, nws yog tsim los ntawm cov khoom siv muaj zog tsim los tiv thaiv kev siv tsis tu ncua, nquag siv.

Lub neej ua haujlwm ntev:Kev tswj xyuas kom zoo, MH hom crane muab kev pab cuam txhim khu kev qha ntau xyoo nrog kev poob qis tsawg.



Kev siv ntawm MH Hom Ib Leeg Beam Gantry Crane

MH Ib Leeg Beam Gantry Crane yog ib qho kev ua haujlwm ntau yam uas pom muaj nyob hauv ntau qhov kev lag luam uas yuav tsum muaj kev txhawb nqa thiab nqa tau zoo.



1. Manufacturing thiab Assembly Plants

Tsiv Raw Materials:Thauj hlau, txhuas, thiab lwm yam khoom siv rau cov kab ntau lawm.

Cov khoom siv tuav:Lifting tshuab qhov chaw, weldments, thiab sub- sib dhos ntawm cov chaw ua haujlwm.

Loading cov khoom tiav:Muab cov khoom tiav rau hauv cov tsheb thauj khoom rau kev xa khoom.

2. Warehousing thiab Logistics Centers

Chaw thau khoom / Unloading Truck:Ua haujlwm zoo txav cov khoom hnyav palletized uas tshaj qhov muaj peev xwm forklift.

Stacking thiab Cia:Rearranging cov khoom hnyav hauv ib lub tsev rau khoom lossis chaw cia khoom.

3. Cov chaw tsim kho thiab sab nraum zoov yards

Cov khoom siv hauv tsev:Lifting steel rebar, kav dej, pob zeb ua, thiab scaffolding.

Yard Management:Tsiv thiab teeb tsa cov khoom xws li ntoo, steel profiles, thiab cov tshuab hauv qhov chaw cia sab nraum zoov.

4. Shipping Docks thiab Loading Bays

General Cargo Handling:Kev thauj khoom thiab kev thauj khoom uas tsis yog - cov khoom ntim khoom los ntawm cov tsheb thauj khoom thiab cov tsheb ciav hlau.

Pub Cov Kab Ntau Lawm:Hloov cov ntaub ntawv los ntawm kev txais cov docks mus rau qhov pib ntawm kev tsim khoom.

5. Kho thiab kho khw

Khoom siv:Lifting cav, kis tau tus mob, thiab cov khoom hnyav tawm ntawm lub tsheb thiab tshuab rau overhaul.

Factory Maintenance:Hloov cov cuab yeej siv tshuab hnyav, pwm, thiab cov cuab yeej xovxwm.



Cov txheej txheem tsim khoom rau ib qho nqaj mus ncig gantry crane suav nrog ntau theem tseem ceeb, los ntawm kev tsim thiab kev yuav khoom mus rau kev sib dhos, kev sim, thiab kev xa khoom zaum kawg. Hauv qab no yog ib kauj ruam -los ntawm- cov kauj ruam qhia ntawm cov txheej txheem tsim khoom:

1. Tsim & Engineering
Kev Ntsuam Xyuas Cov Neeg Siv Khoom: Txiav txim siab nqa lub peev xwm, ncua, nqa qhov siab, lub voj voog ua haujlwm, thiab qhov chaw ua haujlwm.

Tus Qauv Tsim:

Tsim lub ntsiab girder (ib lub thawv lossis I- nqaj qauv).

Tsim cov tsheb thauj khoom kawg (ceg / log) thiab cov kab ciav hlau khiav.

Xaiv hom hoist / trolley (hluav taws xob lossis phau ntawv).

Load & Stress xam: Xyuas kom ua raws li cov qauv (ISO, FEM, DIN, lossis ASME).

Hluav taws xob & Tswj System Tsim: Xaiv cov motors, brakes, txwv cov keyboards, thiab tswj vaj huam sib luag.

2. Kev yuav khoom
Steel Phaj & Profiles: Siab- zoo Q235B/Q345B steel rau lub ntsiab girders thiab kev txhawb nqa.

Mechanical Cheebtsam: Log, qag, bearings, gears, thiab couplings.

Cov Khoom Siv Hluav Taws Xob: Cov motors, cables, tswj vaj huam sib luag, thiab cov khoom siv kev nyab xeeb.

3. Fabrication ntawm Main Cheebtsam
A. Main Girder Fabrication
Txiav: CNC plasma/oxy- roj txiav rau precision.

Vuam: Automated submerged arc vuam (SAW) rau cov seams muaj zog.

Kev Ncaj Ncees & Kev Tshuaj Xyuas: Ua kom lub camber kom zoo (ua ntej- khoov) thiab kuaj xyuas qhov tsis xws luag (UT/RT test).

B. Xaus Carriages & Legs
Frame Assembly: Welded steel siv nrog kev txhawb nqa bracing.

Log & Bearing Installation: Machined lub log rau kev mus ncig zoo.

C. Hoist & Trolley
Ua ntej- sib dhos Hoist: Hluav taws xob saw hoist lossis hlau hlua hoist.

Trolley Ncej: Fabricated kom haum rau hoist txav.

4. Kev kho deg & pleev xim
Txhaj tshuaj tiv thaiv: Tshem tawm xeb thiab txhim kho xim adhesion.

Primer & Xim: Los tiv thaiv -cov coatings (epoxy + polyurethane).

5. Kev sib dhos
Girder & End Carriage Joining: Bolt lossis weld lub ntsiab nqaj rau ob txhais ceg.

Hoist / Trolley Installation: Mounted ntawm lub girder.

Hluav taws xob thaiv: Txuas cov motors, tswj, thiab cov khoom siv kev nyab xeeb.

6. Kev Ntsuas & Kev Tswj Xyuas Zoo
Dimensional Inspection: Txheeb xyuas qhov dav, qhov siab, thiab kev sib dhos.

Load Test:

Static Load Test: 125% ntawm SWL (Safe Working Load).

Dynamic Load Test: 110% ntawm SWL nrog kev kuaj xyuas ua haujlwm.

Kev Ntsuam Xyuas Kev Ua Haujlwm: Mus ncig, nqa, nres, thiab txwv kev hloov pauv kev txheeb xyuas.

7. Disassembly & Ntim
Kev xa khoom xa tuaj: Crane tuaj yeem muab faib ua cov qauv (girder, ceg, hoist).

Kev Tiv Thaiv Ntim: Waterproof wrapping rau hiav txwv thauj.

8. Kev teeb tsa & Kev Ua Haujlwm (Ntawm -Site)
Kev Npaj Txoj Kev: Ua kom muaj kev sib tw theem lossis kev txhawb nqa hauv av.

Reassembly: Bolt Cheebtsam ua ke.

Kev Xeem Kawg: Kev kuaj xyuas ua haujlwm raws li kev thauj khoom.

9. Cov ntaub ntawv & Kev xa khoom
Phau ntawv & Daim ntawv pov thawj: suav nrog cov ntawv ceeb toom thauj khoom, daim ntawv pov thawj CE / ISO.

Kev cob qhia: Tus neeg khiav dej num thiab kev taw qhia kev saib xyuas.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas sib txuas yuav ncav cuag 95% . 32 cov kab vuam tau muab tso rau hauv kev siv, 50 tau npaj los nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
