Electric Tib Beam Crane



1. Hluav taws xob ib leeg-nqaj crane yog ib hom kev nqa khoom siv dav siv hauv kev lag luam thiab kev tsim khoom, feem ntau yog siv los tuav thiab txav cov khoom hnyav. Nws muaj ib lub ntsiab beam, kawg beam, hluav taws xob trolley thiab hluav taws xob hoist thiab lwm yam tseem ceeb Cheebtsam. Kev tsim cov cuab yeej ua rau nws tsim nyog rau ntau qhov chaw ua haujlwm, xws li cov chaw ua haujlwm hauv chaw ua haujlwm, warehouses, ports, thiab lwm yam.

2. Txij li thaum hluav taws xob ib leeg-nqaj crane tsuas muaj ib lub ntsiab nqaj xwb, tus qauv yog qhov yooj yim thiab yooj yim rau nruab thiab tswj. Nws tuaj yeem txav mus rau pem hauv ntej thiab rov qab rau ntawm lub ntsiab nqaj los ntawm lub tshuab hluav taws xob, thiab lub ntsiab nqaj tuaj yeem txav mus rau sab laug thiab sab xis ntawm txoj kev khiav kom ua tiav cov khoom siv txhua yam. Nws yog feem ntau haum rau lub teeb rau nruab nrab cov khoom hnyav, thiab lub peev xwm nqa tau los ntawm ob peb tons mus rau kaum tawm tons. Piv nrog ob-beam cranes, hluav taws xob ib leeg-nqaj cranes nyob tsawg dua qhov chaw ntsug thiab tsim nyog rau cov chaw uas muaj qhov chaw tsawg. Nruab nrog ntau yam khoom siv kev nyab xeeb, xws li txwv kev hloov pauv, khawm nres thaum muaj xwm ceev, thiab lwm yam, kom muaj kev nyab xeeb thaum ua haujlwm.

3. Hluav taws xob ib leeg-nqaj cranes yog ib qho ntawm cov cuab yeej tseem ceeb rau kev lag luam automation thiab txhim kho kev tsim khoom, thiab tau txais kev pom zoo los ntawm cov lag luam rau lawv txoj kev ntseeg siab thiab ntau yam.



Max. Lifting Qhov siab: 30m

Warranty ntawm cov khoom tseem ceeb: 1 Xyoo

Core Components: Lub cev muaj zog

Qhov hnyav (KG): 2090 kg

Max. Lifting Load: 10ton

Ntev: 7.5 ~ 28.5m

Lub luag haujlwm ua haujlwm: A3

Ua haujlwm kub: -20 degree ~ +40 degree

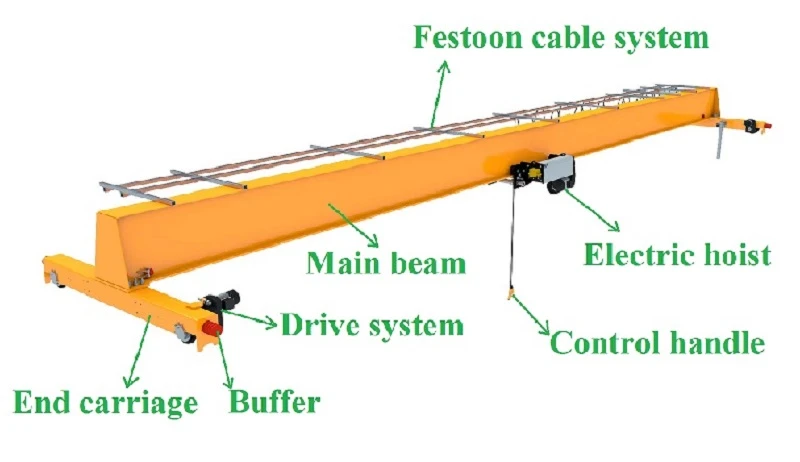

1.Main beam

1. Lub ntsiab nqaj ntawm ib qho hluav taws xob ib leeg-nqaj crane yog ib qho ntawm nws cov yam ntxwv tseem ceeb, lub luag haujlwm rau nqa thiab xa cov khoom nqa. Lub nqaj loj feem ntau yog ua los ntawm cov hlau thiab tsim rau hauv lub thawv-zoo li lossis I-shaped qauv kom muaj zog txaus thiab rigidity los txhawb cov khoom hnyav thiab tiv taus ntau yam haujlwm.

2. Lub ntsiab nqaj ntawm ib qho hluav taws xob ib leeg-nqaj crane feem ntau yog ua los ntawm cov hlau zoo, xws li Q235B lossis Q345B, los xyuas kom meej nws lub zog thiab kav ntev. Qhov hla ntu ntawm lub ntsiab nqaj yog feem ntau I-puab lossis lub thawv-puab. I-shaped lub ntsiab nqaj yog lub teeb thiab yooj yim rau kev tsim khoom, thaum lub thawv-zoo li lub ntsiab nqaj muaj zog torsion ntau dua thiab zoo dua tag nrho cov rigidity.

3. Lub ntsiab nqaj ntawm lub tshuab hluav taws xob ib leeg-nqaj crane yog lub hauv paus ntawm lub tshuab hluav taws xob ib leeg-nqaj crane, thiab nws cov qauv tsim thiab kev ua tau zoo cuam tshuam ncaj qha rau kev ua haujlwm thiab kev nyab xeeb ntawm crane. Kev ruaj ntseg thiab lub zog ntawm lub ntsiab nqaj kom ntseeg tau tias lub crane tuaj yeem ua tiav ntau yam kev nqa nqa tau zoo thiab ua haujlwm tau zoo.

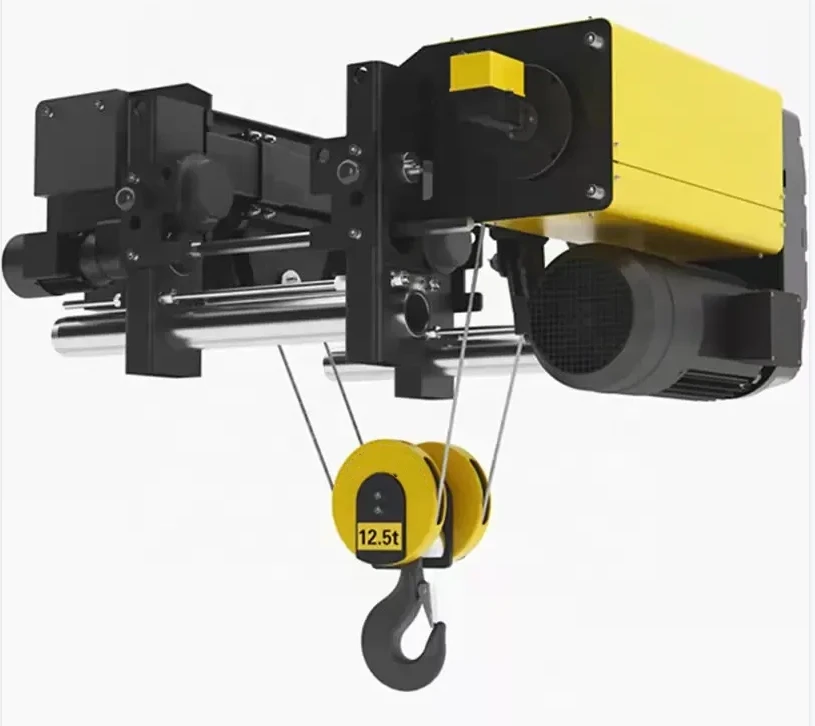

Lifting System

Lub lifting system ntawm hluav taws xob ib leeg-beam crane yog qhov tseem ceeb ntawm tag nrho cov khoom siv. Nws yog lub luag haujlwm tseem ceeb rau kev nqa thiab txo cov khoom hnyav thiab txav mus rau kab rov tav.

2.Lub lifting system yog tsim los ntawm cov nram qab no Cheebtsam: hoist (crane), hlau hlua los yog saw, lub cev muaj zog, nres system, tswj system, pulley thiab qhia ntaus ntawv.

3. Cov khoom no ua haujlwm ua ke los xyuas kom meej tias lub tshuab hluav taws xob ib leeg-nqaj crane tuaj yeem ua tiav cov haujlwm nqa ntawm cov khoom hnyav, ruaj khov thiab ua haujlwm tau zoo.





Xaus Beam

1. Qhov kawg beam ntawm hluav taws xob ib leeg-beam crane yog ib qho tseem ceeb ntawm cov qauv crane. Nws tsuas yog ua lub luag haujlwm ntawm kev txhawb nqa tus choj thiab ua kom lub luag haujlwm du ntawm crane. Kev tsim thiab kev ua haujlwm ntawm qhov kawg nqaj ncaj qha cuam tshuam rau kev ua haujlwm kev nyab xeeb thiab kev pabcuam lub neej ntawm crane.

2. Qhov kawg beam ntawm hluav taws xob ib leeg-beam crane feem ntau yog welded nrog steel daim hlau. Nws muaj lub zog siab thiab rigidity thiab tuaj yeem tiv taus ntau lub zog tsim tawm thaum lub sijhawm ua haujlwm ntawm crane. Ob qhov kawg ntawm txoj kab nruab nrab yog txuas nrog cov pab pawg neeg taug kev, uas tuaj yeem txhawb nqa thiab coj tag nrho cov crane khiav raws txoj kev.

3. Qhov kawg beam ntawm hluav taws xob ib leeg-nqaj crane txuas lub ntsiab nqaj ntawm crane thiab tau txais kev txhawb nqa ntawm kev taug kev los ntawm kev taug kev log kom ntseeg tau cov qauv kev ruaj ntseg ntawm crane. Lub nqaj kawg koom tes nrog pawg taug kev log kom paub txog kev txav mus los ntawm crane ntawm txoj kev, kom lub crane tuaj yeem ua tiav cov haujlwm nqa ntawm ntau txoj haujlwm hauv kev cob qhia. Los ntawm cov khoom siv kev nyab xeeb xws li txwv cov khoom siv thiab cov buffers, lub nqaj kawg ua kom muaj kev nyab xeeb ntawm crane thaum ua haujlwm thiab tiv thaiv kev raug mob.

4. Feem ntau, qhov kawg beam yog ib qho tseem ceeb ntawm cov hluav taws xob ib leeg-beam crane. Nws tsis tsuas yog nqa thiab coj kev txav ntawm tag nrho cov crane, tab sis kuj ua kom muaj kev nyab xeeb thiab kev ntseeg siab ntawm crane thaum siv.



















Crane mus ncig teb chaws mechanism

1. Lub Crane mus ncig teb chaws mechanism ntawm ib qho hluav taws xob ib leeg-beam crane yog ib qho tseem ceeb ntawm cov crane, lub luag hauj lwm rau kev txav lub crane horizontally raws tus khiav thoob plaws qhov chaw khiav hauj lwm. Kev tsim thiab kev ua haujlwm ntawm lub tshuab no ncaj qha cuam tshuam rau kev ua haujlwm ntawm kev ua haujlwm, kev ruaj ntseg thiab kev nyab xeeb ntawm crane.

2. Lub Crane mus ncig teb chaws mechanism ntawm ib qho hluav taws xob ib leeg-beam crane feem ntau yog tsim los ntawm lub tshuab hluav taws xob thiab lub reducer. Lub cev muaj zog muab lub zog, txo qhov ceev thiab nce lub zog ntawm lub reducer, thiab tsav lub trolley mus rau txoj kev khiav.

3. Kev tsim thiab kev ua haujlwm ntawm Crane mus ncig teb chaws mechanism ntawm ib qho hluav taws xob ib leeg-nqaj crane muaj kev cuam tshuam ncaj qha rau kev ruaj ntseg, tswj kev muaj peev xwm thiab kev nyab xeeb ntawm crane. Yog li ntawd, kev xaiv kom raug thiab kev saib xyuas ntawm cov khoom siv no yog qhov tseem ceeb los ua kom muaj kev nyab xeeb thiab ua haujlwm tau zoo ntawm hluav taws xob ib leeg-nqaj crane.









Trolley mus ncig teb chaws mechanism

1. Lub trolley mus ncig teb chaws mechanism ntawm ib qho hluav taws xob ib leeg-beam crane yog hais txog ib feem ntawm lub crane siv los txav tus nuv lossis lwm yam khoom nqa nqa horizontally, feem ntau txav nce thiab nqis raws lub ntsiab nqaj. Lub trolley khiav mechanism yog ib feem tseem ceeb ntawm lub crane thiab yog lub luag hauj lwm rau lub lateral txav ntawm lub hoisted khoom.

2. Lub trolley mus ncig teb chaws mechanism ntawm ib qho hluav taws xob ib leeg-nqaj crane feem ntau yog nruab nrog lub tshuab hluav taws xob los muab lub zog tsav kom txav lub trolley raws txoj kab loj. Lub trolley khiav ntawm kev khiav ntawm lub ntsiab nqaj. Txoj kev taug yog feem ntau yog cov kev taw qhia steel, welded los yog bolted rau lub ntsiab nqaj. Kev ua haujlwm ntawm lub trolley feem ntau yog tswj los ntawm kev khiav hauj lwm console lossis chaw taws teeb tswj. Tus neeg teb xov tooj tuaj yeem tswj lub hauv ntej, rov qab thiab khiav ceev ntawm lub trolley kom ua tiav qhov txav ntawm qhov khoom hoisted.

3. Kev tsim thiab kev saib xyuas ntawm trolley mus ncig teb chaws mechanism ntawm ib qho hluav taws xob ib leeg-nqaj crane yog qhov tseem ceeb rau tag nrho cov kev ua tau zoo thiab kev nyab xeeb ntawm hluav taws xob ib leeg-beam crane. Kev tshuaj xyuas tsis tu ncua thiab kev saib xyuas kom ntseeg tau tias kev ua haujlwm ib txwm muaj ntawm nws cov khoom siv sib txawv tuaj yeem ua kom ntev lub neej ntawm cov khoom siv thiab txhim kho kev ua haujlwm.

6.Crane log

1. Lub log ntawm lub tshuab hluav taws xob ib leeg-nqaj crane yog ib feem tseem ceeb ntawm tag nrho cov crane, lub luag haujlwm txhawb nqa qhov hnyav ntawm crane thiab trolley thiab txav mus raws txoj kev khiav. Kev tsim, khoom siv thiab kev teeb tsa zoo ntawm lub log muaj kev cuam tshuam ncaj qha rau kev nyab xeeb thiab kev ua haujlwm ntawm crane.

2. Lub log ntawm lub tshuab hluav taws xob ib leeg-nqaj crane feem ntau yog ua los ntawm cov hlau uas muaj zog heev los tuav lub luj ntawm lub crane thiab nws cov load. Cov log hlau muaj kev hnav zoo thiab lub zog thiab tsim nyog siv rau hauv qhov hnyav-load thiab nquag ua haujlwm ib puag ncig. Hauv qee daim ntawv thov tshwj xeeb, cov hlau alloy yuav siv tau rau cov log kom hnav tsis kam thiab ua rau lub neej ntev.

3. Lub log ntawm lub tshuab hluav taws xob ib leeg-nqaj crane feem ntau muaj rims kom lub log ruaj khov ntawm txoj kev khiav thiab tiv thaiv kev derailment. Qhov siab thiab cov duab ntawm cov rims yog tsim raws li hom khiav kom ntseeg tau tias kev ua haujlwm ntawm lub crane. Txoj kab uas hla ntawm lub log feem ntau yog tsim raws li qhov loj thiab lub peev xwm thauj khoom ntawm lub crane. Cov log loj tuaj yeem tawg lub nra thiab txo qhov hnav ntawm txoj kev.

4. Kev tsim thiab kev saib xyuas ntawm lub log ntawm ib qho hluav taws xob ib leeg-nqaj crane yog qhov tseem ceeb los xyuas kom meej lub sijhawm ntev thiab ruaj khov ntawm cov khoom siv. Xaiv cov khoom siv log zoo thiab tsim qauv, thiab kev tshuaj xyuas thiab kev saib xyuas tsis tu ncua tuaj yeem ua haujlwm tau zoo ntawm lub log thiab lub crane.



Crane nuv

1. Kev sib txuas ntawm lub tshuab hluav taws xob ib leeg-nqaj crane yog ib qho ntawm cov khoom tseem ceeb ntawm crane rau rub thiab nqa cov khoom thauj. Kev tsim, tsim khoom thiab kev saib xyuas ntawm tus nuv yog qhov tseem ceeb rau kev nyab xeeb thiab kev ua haujlwm ntawm kev nqa nqa.

2. Tus nuv ntawm ib qho hluav taws xob ib leeg-nqaj crane feem ntau yog ua los ntawm high-strength alloy steel nrog zoo tensile zog thiab hnav tsis kam. Cov khoom no muaj peev xwm tiv taus cov khoom hnyav thiab tuav lub zog thiab zoo tom qab siv mus ntev. Tus nuv feem ntau yog tsim los ntawm cov txheej txheem forging, uas tuaj yeem txhim kho qhov ceev thiab lub zog ntawm cov khoom, txo cov kev tsis xws luag sab hauv, thiab txhim kho lub peev xwm thauj khoom thiab kev nyab xeeb ntawm tus nuv.

3. Tus nuv ntawm ib qho hluav taws xob ib leeg-nqaj crane tuaj yeem muab faib ua ob hom: ib qho sib txuas thiab ob npaug sib txuas. Ib tug nuv muaj ib tug yooj yim qauv thiab yog haum rau sib zog loads; ob qhov sib txuas feem ntau yog siv rau kev nqa loj loj uas yuav tsum tau muaj kev sib npaug thiab tuaj yeem cuam tshuam kev ntxhov siab ntau dua.

4. Txawm hais tias tus nuv ntawm ib qho hluav taws xob ib leeg-nqaj crane muaj cov qauv yooj yim, nws cov qauv tsim thiab kev tsim khoom xav tau cov qauv nruj kom ntseeg tau tias muaj kev nyab xeeb thiab kev ntseeg siab nyob rau hauv ntau yam kev ua haujlwm. Los ntawm kev siv thiab kev saib xyuas kom zoo, kev pabcuam lub neej ntawm tus nuv tuaj yeem txuas ntxiv thiab kev nyab xeeb ntawm kev nqa haujlwm tuaj yeem ua kom ntseeg tau.





Lub cev muaj zog

1. Lub cev muaj zog ntawm lub tshuab hluav taws xob ib leeg-girder crane yog ib qho ntawm nws cov khoom siv tsav tsheb tseem ceeb, lub luag haujlwm muab lub zog xav tau rau kev ua haujlwm ntawm crane. Kev ua haujlwm ntawm lub cev muaj zog ncaj qha cuam tshuam rau kev ua haujlwm ntawm kev ua haujlwm thiab kev nyab xeeb ntawm crane.

2. Hluav taws xob ib leeg-girder cranes muaj AC motors (AC Tsav): Hauv ntau lub tshuab hluav taws xob ib leeg-girder cranes, hom siv lub cev muaj zog yog AC motors. Lawv feem ntau muaj kev ua haujlwm siab dua, kev saib xyuas qis dua thiab ua haujlwm ntev dua. Thiab DC motors (DC Tsav): DC motors yog siv nyob rau hauv qee qhov tshwj xeeb daim ntawv thov, muab siab dua pib torque thiab kev tswj ceev ceev, tab sis tej zaum yuav xav tau kev saib xyuas ntau dua.

3. Ntau lub tshuab hluav taws xob niaj hnub ib leeg-girder cranes siv cov tsav tsheb sib txawv (VFDs) los kho qhov ceev thiab khiav kev taw qhia ntawm lub cev muaj zog. Cov tsav tsheb sib txawv tuaj yeem ua tiav qhov pib thiab nres, muab kev tswj kom nrawm dua thiab txuag hluav taws xob. Qhov pib thiab nres ntawm lub cev muaj zog feem ntau yog tswj los ntawm kev hloov ntawm lub vaj huam sib luag los yog lub chaw taws teeb tswj, thiab tus neeg teb xov tooj tuaj yeem kho cov xwm txheej ua haujlwm ntawm crane raws li xav tau.

4. Lub cev muaj zog ntawm hluav taws xob ib leeg-girder crane ua lub luag haujlwm tseem ceeb hauv kev ua haujlwm tag nrho ntawm crane. Xaiv txoj cai lub cev muaj zog thiab ua kom nws txoj kev txhim kho thiab kev saib xyuas kom zoo tuaj yeem txhim kho kev ua haujlwm thiab kev ntseeg siab ntawm crane thiab ua kom muaj kev nyab xeeb thiab ua haujlwm zoo.

.



Suab thiab lub teeb tswb system& txwv hloov

Lub suab thiab lub teeb ceeb toom thiab txwv kev hloov ntawm hluav taws xob ib leeg-nqaj crane yog cov cuab yeej tseem ceeb ntawm kev nyab xeeb siv los txhim kho kev ua haujlwm kev nyab xeeb ntawm crane thiab tiv thaiv kev sib tsoo thiab kev ua tsis tiav.

Suab thiab lub teeb tswb system

1. Muaj nuj nqi

Kev ceeb toom muaj nuj nqi: Lub suab thiab lub teeb ceeb toom yog siv los tawm suab thiab lub teeb ceeb toom thaum lub sijhawm ua haujlwm ntawm crane ceeb toom rau tus neeg teb xov tooj thiab cov neeg ua haujlwm nyob ib puag ncig kom xyuam xim rau kev nyab xeeb. Cov tswb nrov xws li lub tswb nrov dhau, txwv lub tswb thiab lub tswb tsis raug.

Nco ntsoov tus neeg teb xov tooj: Thaum lub crane muaj qhov txawv txav los yog ze rau ntawm txoj haujlwm txwv, lub suab thiab lub teeb ceeb toom tuaj yeem ceeb toom tus neeg teb xov tooj kom ntsuas qhov tsim nyog los tiv thaiv kev sib tsoo.

2. Kev sib xyaw

Lub tswb nrov: Feem ntau yog lub buzzer lossis horn, nws ceeb toom tus neeg teb xov tooj los ntawm kev ua suab. Qhov kev siv thiab zaus ntawm lub suab tuaj yeem hloov kho raws li qhov xav tau.

Lub tswb nrov: Feem ntau yog lub teeb ci LED lossis lub teeb ceeb toom, siv los nyiam qhov muag pom. Lub tswb nrov tuaj yeem ua haujlwm synchronously nrog lub suab tswb txhawm rau txhim kho cov txiaj ntsig ceeb toom.

3. Daim ntawv thov

Lub tswb ceeb toom: Thaum lub crane load tshaj qhov kev txwv kev nyab xeeb, lub suab thiab lub teeb ceeb toom yuav raug qhib kom ceeb toom tus neeg teb xov tooj kom txo cov load.

Txwv lub tswb: Thaum tus nuv, trolley lossis trolley ntawm lub crane mus txog qhov txwv txoj hauj lwm ntawm kev mus los, lub suab thiab lub teeb ceeb toom yuav ceeb toom kom tsis txhob muaj cov khoom puas tsuaj lossis kev sib tsoo.

Fault alarm: Thaum lub kaw lus pom qhov ua txhaum ntawm cov khoom tseem ceeb xws li lub cev muaj zog thiab nres, lub suab thiab lub teeb ceeb toom yuav tshaj tawm lub tswb kom ceeb toom cov neeg ua haujlwm saib xyuas thiab kho lub sijhawm.

Limit hloov

1. Muaj nuj nqi

Txwv qhov ntau ntawm cov lus tsa suab: Cov kev txwv kev hloov pauv yog siv los txwv qhov ntau ntawm kev txav ntawm lub crane los tiv thaiv tus nuv, trolley lossis trolley kom dhau qhov kev nyab xeeb ntawm qhov teeb tsa, tsis txhob muaj kev sib tsoo thiab cov khoom puas.

Tiv thaiv cov khoom siv: Los ntawm kev txheeb xyuas txoj haujlwm ntawm kev txav mus los, qhov kev txwv tsis pub tuaj yeem txiav tawm lub hwj chim lossis qhib lub tswb kom tiv thaiv cov cuab yeej los ntawm kev puas tsuaj los ntawm kev txav mus los ntau dhau.

2. Hom

Mechanical limit switch: Txoj hauj lwm nrhiav kom tau tiav los ntawm kev sib cuag lub cev. Piv txwv li, thaum tus nuv los yog trolley kov lub tes hloov pauv ntawm qhov txwv hloov, qhov hloov yuav ua haujlwm thiab xa cov teeb liab.

Photoelectric txwv hloov: Siv photoelectric sensors los xyuas qhov chaw tsis muaj kev sib cuag ntawm lub cev. Photoelectric txwv keyboards txiav txim siab txoj hauj lwm los ntawm emitting thiab txais lub teeb beams, haum rau daim ntaub ntawv uas yuav tsum tau high precision.

Sib nqus txwv hloov: Siv cov khoom sib nqus los kuaj xyuas qhov chaw txav mus los, thiab txiav txim siab txoj haujlwm los ntawm kev hnov ​​​​qhov kev hloov pauv ntawm cov hlau nplaum, nrog kev ntseeg siab thiab ua haujlwm ntev.

3. Kev teeb tsa qhov chaw

Hook limit switch: Nruab rau ntawm lub tshuab nqa nqa kom txwv qhov kev nqa ntawm tus nuv.

Trolley limit switch: Nruab rau ntawm lub ntsiab beam kom txwv lub lateral txav ntau ntawm lub trolley.

Lub tsheb txwv kev hloov pauv: Nruab rau ntawm txoj kev tsheb ciav hlau kom txwv txoj kab rov tav txav ntawm lub trolley.

4. Daim ntawv thov

Kev txwv kev mus ncig: Thaum tus nuv, trolley lossis trolley ncav cuag txoj haujlwm txwv, qhov txwv hloov yuav xa cov teeb liab los tiv thaiv kev txav mus ntxiv.

Kev tiv thaiv kev nyab xeeb: Kev txwv kev hloov pauv tuaj yeem ua haujlwm nrog lub suab thiab lub teeb ceeb toom, thiab lub tswb nrov tau qhib thaum lub sijhawm txwv mus txog kom ceeb toom tus neeg teb xov tooj kom ntsuas.

Lub suab thiab lub teeb ceeb toom thiab txwv kev hloov pauv yog cov cuab yeej tseem ceeb los ua kom muaj kev nyab xeeb ntawm kev siv hluav taws xob ib leeg-nqaj crane. Los ntawm kev siv tau zoo thiab kev saib xyuas, kev nyab xeeb thiab kev ua haujlwm ntawm cov cuab yeej tuaj yeem txhim kho tau zoo.

Cov cuab yeej kev nyab xeeb

1. Cov khoom siv kev nyab xeeb ntawm hluav taws xob ib leeg-nqaj crane yog ib feem tseem ceeb ntawm kev ua kom muaj kev nyab xeeb ntawm lub crane thaum ua haujlwm. Cov cuab yeej no tuaj yeem tiv thaiv kev sib tsoo, txo kev pheej hmoo, thiab tiv thaiv cov neeg ua haujlwm thiab cov khoom siv.

Emergency stop device

Muaj nuj nqi: Ceev txiav tawm lub hwj chim thaum muaj xwm txheej ceev thiab nres tag nrho cov kev txav ntawm crane.

Kev teeb tsa qhov chaw: Feem ntau yog teem rau ntawm txoj haujlwm tseem ceeb ntawm lub vaj huam sib luag ua haujlwm thiab lub crane, kom tus neeg teb xov tooj tuaj yeem nias nws sai sai thaum muaj xwm txheej ceev.

Hluav taws xob tiv thaiv ntaus ntawv

Muaj nuj nqi: Tiv thaiv kev raug mob los ntawm hluav taws xob tsis zoo, suav nrog kev tiv thaiv overload, tiv thaiv luv luv thiab tiv thaiv to, thiab lwm yam.

Cheebtsam: suav nrog Circuit Court breakers, fuses thiab to switches, thiab lwm yam.

Braking system

Muaj nuj nqi: Xyuas kom ruaj khov ntawm lub load thaum lub crane nres ua haujlwm thiab tiv thaiv lub load los ntawm zawv zawg.

Hom: suav nrog electromagnetic brakes thiab mechanical brakes.

Kev Kho: Tsis tu ncua xyuas qhov hnav ntawm lub braking system kom ntseeg tau tias cov nyhuv braking.

Anti-kev sib tsoo ntaus ntawv

Kev Ua Haujlwm: Tiv thaiv lub crane los ntawm kev sib tsoo nrog cov chaw nyob ib puag ncig lossis cov khoom siv thaum ua haujlwm.

Hom: suav nrog kev sib tsoo sensors thiab tsis khoom siv.

Kev ruaj ntseg xauv cuab yeej

Muaj nuj nqi: Xauv qee yam tseem ceeb los tiv thaiv kev ua haujlwm tsis raug thaum lub crane tsis ua haujlwm.

Cheebtsam: suav nrog nuv xauv cov cuab yeej thiab nqa cov cuab yeej xauv cov cuab yeej, thiab lwm yam.

Kev ruaj ntseg siv thiab guardrails

Kev Ua Haujlwm: Tiv thaiv kev nyab xeeb ntawm cov neeg ua haujlwm thaum lub sijhawm ua haujlwm siab thiab tiv thaiv kev sib tsoo.

Kev teeb tsa qhov chaw: Teem rau ntawm lub platform ua haujlwm thiab thaj chaw tu ntawm crane.

Kev cob qhia tus neeg ua haujlwm

Kev Ua Haujlwm: Xyuas kom cov neeg ua haujlwm nkag siab txog cov txheej txheem ua haujlwm nyab xeeb thiab siv thiab tswj cov khoom kom raug.

Cov ntsiab lus: suav nrog cov khoom siv ua haujlwm, kev tuav xwm txheej ceev thiab kev ceev faj txog kev nyab xeeb, thiab lwm yam.

Saib xyuas qhov system

Muaj nuj nqi: Kev saib xyuas lub sijhawm tiag tiag ntawm kev ua haujlwm thiab ib puag ncig ntawm lub crane, muab cov ntaub ntawv kaw thiab kuaj xyuas qhov txhaum.

Cheebtsam: suav nrog lub koob yees duab, sensors thiab cov ntaub ntawv kaw lus.

2.Los ntawm kev siv tau zoo thiab kev saib xyuas ntawm cov cuab yeej kev nyab xeeb no, kev nyab xeeb ntawm hluav taws xob ib leeg-nqaj cranes tuaj yeem txhim kho tau zoo, cov neeg ua haujlwm thiab cov khoom siv tuaj yeem tiv thaiv, thiab kev pheej hmoo ntawm kev sib tsoo tuaj yeem raug txo.

Tswj hom

1. Kev tswj hom ntawm hluav taws xob ib leeg-nqaj crane txiav txim siab hom kev ua haujlwm thiab tswj qhov tseeb ntawm crane. Cov kev tswj sib txawv tuaj yeem ua tau raws li qhov kev ua haujlwm sib txawv thiab qhov chaw ua haujlwm.

2. Cov hauv qab no yog cov qauv hluav taws xob ib leeg-beam crane tswj thiab lawv cov yam ntxwv:

Kev tuav tswj

Kev ua haujlwm hom: Ncaj nraim tswj ntau yam haujlwm ntawm lub crane, suav nrog kev nqa, khiav thiab taug kev, los ntawm kev tuav cov khoom siv xws li tes tuav, nyees khawm lossis keyboards.

Qhov zoo:

Kev ua haujlwm yooj yim, tsim nyog rau lub sijhawm uas tsis tas yuav muaj automation siab.

Ib qho yooj yim los tswj kev khiav hauj lwm precisely.

Qhov tsis zoo:

Tus neeg teb xov tooj yuav tsum tau ua haujlwm nyob ib sab ntawm cov khoom siv, uas tej zaum yuav tsis haum rau kev ua haujlwm loj lossis qhov siab siab.

Kev tswj tuav tswj yuav ua rau tus neeg ua haujlwm qaug zog thiab cuam tshuam rau kev ua haujlwm.

Chaw taws teeb tswj

Kev ua haujlwm hom: Siv lub wireless chaw taws teeb tswj los tswj ntau yam haujlwm ntawm crane. Cov chaw taws teeb tswj feem ntau yog nruab nrog ntau lub nyees khawm thiab rockers, uas tuaj yeem paub txog kev tswj ntawm nqa, khiav, trolleys thiab lub laub.

Qhov zoo:

Tus neeg teb xov tooj tuaj yeem txav mus los ntawm lub crane los txhim kho kev ua haujlwm yooj yim.

Muaj feem xyuam rau lub sijhawm uas yuav tsum tau ua haujlwm ntawm qhov ntev lossis qhov siab siab.

Qhov tsis zoo:

Lub roj teeb thiab teeb liab kev ruaj ntseg ntawm cov chaw taws teeb tswj cov cuab yeej yuav tsum tau kuaj xyuas thiab tswj tsis tu ncua.

Nyob rau hauv ib puag ncig nyuaj, lub teeb liab tswj chaw taws teeb yuav cuam tshuam nrog.

Hluav taws xob tswj

Kev khiav hauj lwm hom: Lub crane yog ua los ntawm ib tug hluav taws xob tswj vaj huam sib luag, uas yog txawm peem rau nrog ntau yam nyees khawm, keyboards thiab taw qhia teeb los tswj ntau yam dej num ntawm lub crane.

Qhov zoo:

Precise tswj, haum rau lub sijhawm uas yuav tsum tau ua haujlwm ilv.

Ntau yam kev tiv thaiv kev nyab xeeb thiab lub tswb ua haujlwm tuaj yeem ua ke.

Qhov tsis zoo:

Tus neeg teb xov tooj yuav tsum tau ua haujlwm ze ntawm cov khoom siv, uas txwv tsis pub muaj ntau yam kev ua ub no.

Tsis siv neeg tswj

Kev ua haujlwm hom: Lub crane yog nruab nrog lub tshuab tswj tsis siv neeg, uas tuaj yeem ua haujlwm ua haujlwm los ntawm cov kev pabcuam preset thiab sensors. Lub kaw lus tswj tsis siv neeg tuaj yeem suav nrog PLC (programmable logic controller) lossis DCS (distributed control system).

Qhov zoo:

Nws txhim kho qib automation ntawm kev ua haujlwm thiab txo cov kev cuam tshuam tib neeg.

Nws tuaj yeem ua tiav qhov kev ua haujlwm siab dua thiab tsim nyog rau cov kab ntau lawm thiab cov khoom lag luam automated.

Qhov tsis zoo:

Nws yuav tsum tau complex program settings thiab system debugging.

Tib neeg yuav tsum muaj kev cuam tshuam rau kev tuav xwm txheej ceev.

Hybrid tswj

Kev ua haujlwm hom: Nws muab cov haujlwm ntawm phau ntawv qhia, tswj chaw taws teeb thiab tswj tsis siv neeg, thiab raug xaiv raws li kev ua haujlwm tshwj xeeb. Nws tuaj yeem ua haujlwm los ntawm kev tswj vaj huam sib luag, tswj chaw taws teeb lossis kev pabcuam tsis siv neeg.

Qhov zoo:

Nws muab ntau hom kev ua haujlwm kom hloov mus rau qhov chaw ua haujlwm sib txawv thiab kev ua haujlwm.

Nws txhim kho kev ua haujlwm yooj yim thiab ua haujlwm tau zoo.

Qhov tsis zoo:

Nws yog ib qho tsim nyog yuav tsum tswj hwm ntau yam khoom siv tswj hwm thiab cov tshuab, uas ua rau kom muaj kev nyuaj.

3.Txhua hom kev tswj hwm muaj nws cov xwm txheej thiab qhov zoo thiab qhov tsis zoo. Kev xaiv hom kev tswj kom tsim nyog tuaj yeem txhim kho kev ua haujlwm ntawm kev ua haujlwm thiab kev nyab xeeb ntawm lub tshuab hluav taws xob ib leeg-nqaj crane thiab ua tau raws li qhov xav tau ntawm ntau qhov chaw ua haujlwm thiab kev ua haujlwm.



Sketch







1. Kev ua haujlwm siab

Lub peev xwm nqa tau muaj zog: hluav taws xob ib leeg-nqaj cranes tuaj yeem nqa thiab txav cov khoom hnyav tau zoo thiab tsim nyog rau ntau qhov chaw ua haujlwm uas yuav tsum tau nqa.

Kev ua haujlwm siab: Lub zog tsav hluav taws xob tso cai rau lub crane pib, nres thiab kho nrawm nrawm, uas txhim kho kev ua haujlwm zoo.

2. Kev ua haujlwm yooj yim

Ib qho yooj yim los tswj: Niaj hnub nimno hluav taws xob ib leeg-nqaj cranes yog nruab nrog intuitive control panels, tej thaj chaw deb tswj los yog ntse systems, uas yog ib qho yooj yim rau kev khiav lag luam thiab txo lub sij hawm ntawm kev cob qhia cov neeg ua hauj lwm.

High degree ntawm automation: Muaj ntau lub tshuab hluav taws xob ib leeg-nqaj cranes muaj cov haujlwm tswj tsis siv neeg, uas tuaj yeem ua tiav tsis siv neeg nqa, ua haujlwm thiab nres, txo qhov xav tau ntawm kev tuav haujlwm.

3. Tsawg tus nqi tu

Lub tshuab hluav taws xob ruaj khov: Piv nrog cov tsoos combustion engine tsav tshuab, cov tshuab hluav taws xob feem ntau ruaj khov thiab muaj cov nqi kho mob qis dua.

Txo qhov ua tsis tiav: Hluav taws xob ib leeg-nqaj cranes muaj cov khoom siv tshuab tsawg dua, cov nqi qis qis, thiab kev saib xyuas yooj yim dua thiab kev pabcuam.

4. Kev tiv thaiv ib puag ncig

Tsis muaj emissions: Hluav taws xob ib leeg-nqaj cranes siv hluav taws xob tsav, tsis tsim cov pa roj thiab suab nrov, thiab ua tau raws li kev tiv thaiv ib puag ncig.

Kev siv hluav taws xob: Lub tshuab hluav taws xob muaj lub zog ua haujlwm siab, tuaj yeem siv hluav taws xob zoo thiab txo cov khoom siv hluav taws xob.

5. Kev ua haujlwm nyab xeeb

Cov cuab yeej kev nyab xeeb siab tshaj plaws: Nruab nrog ntau yam khoom siv kev nyab xeeb xws li cov khoom siv tiv thaiv overload, txwv hloov, suab thiab lub teeb ceeb toom kom muaj kev nyab xeeb thaum ua haujlwm.

Precise control: Lub tshuab hluav taws xob tswj tau tuaj yeem muab cov kev tswj xyuas kom meej, txhim kho kev ruaj ntseg thiab kev nyab xeeb ntawm kev ua haujlwm.

6. Compact qauv

Kev ua haujlwm me me: Lub tshuab hluav taws xob ib leeg-nqaj crane muaj cov qauv compact thiab tuaj yeem ua haujlwm hauv qhov chaw me me, tsim nyog rau qee qhov chaw ua haujlwm.

Strong adaptability: Haum rau ntau yam kev thov xws li lub tsev tsim khoom, viaducts thiab qhov chaw nqaim.





1. Kev tsim khoom lag luam

Cov kab ntau lawm: Nyob rau hauv cov kab ntau lawm, hluav taws xob ib leeg-nqaj cranes yog siv los nqa thiab txav cov khoom ua haujlwm, cov khoom ua tiav thiab cov khoom siv raw los txhim kho kev tsim khoom.

Kev sib dhos Rhiav: Siv los nqa thiab txav ntau yam khoom siv kho tshuab thiab khoom siv los pab txhawb kev sib dhos thiab kev ua haujlwm.

2. Warehouse thiab logistics

Warehouse operation: Nyob rau hauv lub warehouse, hluav taws xob ib leeg-beam cranes yog siv los thauj, pawg thiab txheeb cov khoom los txhim kho warehouse efficiency.

Logistics Center: Nyob rau hauv lub chaw logistics, hluav taws xob ib leeg-nqaj cranes pab tswj kev thauj khoom thiab tshem tawm thiab xa tawm ntau yam khoom los txhim kho kev lag luam kev lag luam.

3. Kev tsim kho qhov chaw

Kev tuav cov khoom siv: Siv los nqa thiab txav cov khoom siv xws li steel tuav, prefabricated qhob qhov chaw thiab cib los txhim kho kev tsim kho.

Cov khoom siv txhim kho: Pab nqa thiab txhim kho cov cuab yeej siv loj thiab cov khoom siv.

4. Kev lag luam metallurgical

Cov nroj tsuag steel: Hauv cov nroj tsuag steel, hluav taws xob ib leeg-nqaj cranes yog siv los txav steel billets, cov nqi hluav taws xob thiab lwm yam khoom hnyav, hloov mus rau qhov kub thiab txias ua haujlwm.

Foundry Rhiav: Siv los nqa thiab txav cov pwm thiab castings.

5. Kev lag luam hluav taws xob

Kev Kho Cov Khoom Siv Hluav Taws Xob: Hauv cov chaw siv hluav taws xob, nws yog siv los txav thiab nruab cov khoom siv loj xws li cov khoom siv hluav taws xob, lub cev muaj zog thiab cov khoom siv hluav taws xob.

Kev lag luam roj thiab roj: Hauv cov txheej txheem ntawm cov roj thiab roj rho tawm thiab ua tiav, hluav taws xob ib leeg- nqaj cranes yog siv los nqa thiab tswj cov khoom siv.

6. Shipbuilding kev lag luam

Hull Assembly: Hauv shipyards, hluav taws xob ib leeg-nqaj cranes yog siv los nqa thiab sib sau ua ke ntawm cov khoom siv los txhim kho kev tsim khoom.

Cov Khoom Siv Txhim Kho: Siv los txhim kho ntau yam khoom siv thiab tshuab ntawm cov nkoj.





1. Tsim theem

Kev txheeb xyuas qhov xav tau: Tsim cov kev ua tau zoo thiab cov lus qhia tshwj xeeb ntawm crane, suav nrog lub peev xwm thauj khoom, kev ua haujlwm ntau thiab kev tswj hwm, raws li cov neeg siv khoom xav tau thiab cov ntawv thov scenarios.

Kev tsim qauv ua ntej: Cov kws tsim qauv tsim qauv ua ntej raws li qhov xav tau, suav nrog cov qauv txheej txheem ntawm lub crane, qhov loj ntawm cov khoom tseem ceeb thiab xaiv cov khoom siv.

Cov qauv tsim kom ntxaws: suav nrog cov duab kos duab kos duab thiab cov kev qhia tshwj xeeb, cov qauv tsim muaj xws li kev nqa lub tshuab, lub tsheb thauj khoom khiav, lub tsheb thauj neeg khiav mechanism, lub cev muaj zog thiab tswj, thiab lwm yam.

Kev tshuaj xyuas kev tsim qauv: Ua kev tshuaj xyuas kev tsim qauv kom ntseeg tau tias tus qauv tsim ua tau raws li cov qauv kev nyab xeeb thiab kev ua haujlwm.

2. Kev yuav khoom

Kev xaiv cov khoom siv: Xaiv cov hlau zoo, lub cev muaj zog, brakes, kis kab mob thiab lwm yam khoom. Cov khoom siv feem ntau suav nrog cov qauv hlau, hlau alloy thiab cov hlau muaj zog.

Kev xaiv tus neeg muag khoom: Xaiv cov neeg muag khoom txhim khu kev qha rau kev yuav khoom los xyuas kom meej cov khoom zoo thiab ruaj khov ntawm cov khoom.

Kev tshuaj xyuas kev lees paub: Txais cov khoom yuav los xyuas kom meej tias lawv ua tau raws li cov qauv kev cai thiab cov kev xav tau zoo.

3. Kev ua haujlwm thiab kev tsim khoom

Kev tsim cov khoom siv: suav nrog kev txiav, vuam thiab sib dhos ntawm kab teeb, txhawb nqa thiab lwm yam khoom siv. Cov txheej txheem no yuav tsum tau siv cov cuab yeej siv tshuab CNC, cov khoom siv vuam, thiab lwm yam.

Mechanical Cheebtsam manufacturing: ntau lawm mechanical Cheebtsam ntawm lub lifting mechanism, trolley khiav mechanism, thiab me me tsheb khiav mechanism, nrog rau lub zog, bearings, thiab rollers.

Cov khoom siv hluav taws xob sib dhos: kev teeb tsa lub cev muaj zog, tswj vaj huam sib luag, sensors, thiab lwm yam khoom siv hluav taws xob, suav nrog cov xaim hluav taws xob thiab hluav taws xob sib txuas.

Kev sib dhos dav dav: kev sib dhos ntawm ntau yam khoom tsim, suav nrog kev sib dhos ntawm cov kab teeb loj, tsheb me, tsheb loj, nqa cov tshuab, thiab cov tshuab tswj.

4. Kev sim thiab kev debugging

Kev kuaj zoo li qub: xyuas seb cov qauv thiab kev sib txuas ntawm lub crane puas ruaj khov, thiab xyuas kom meej tias tag nrho cov khoom raug teeb tsa raug raws li cov qauv tsim.

Dynamic xeem: ua tsis muaj-load thiab load xeem los xyuas cov nqa, khiav, taug kev, thiab braking kev ua tau zoo ntawm lub crane los xyuas kom meej nws cov hauj lwm zoo.

Kev ntsuas kev nyab xeeb: ua qhov kev xeem dhau, txwv kev sim, thiab ntsuas nres kom ntseeg tau tias cov cuab yeej kev nyab xeeb thiab kev tiv thaiv ntawm crane ua haujlwm zoo.

Debugging: ua kev hloov kho raws li cov txiaj ntsig kev xeem kom ua kom zoo dua qhov kev ua haujlwm thiab kev tswj xyuas qhov tseeb ntawm crane.

5. Kev tswj kom zoo

Kev tshuaj xyuas zoo: ua qhov kev tshuaj xyuas zoo ntawm txhua theem tsim khoom, suav nrog kev tshuaj xyuas cov khoom, kev tshuaj xyuas kev ua haujlwm, kev tshuaj xyuas kev sib dhos, thiab kev tshuaj ntsuam xyuas kom ntseeg tau tias cov khoom ua tau raws li cov qauv zoo.

Cov ntaubntawv povthawj siv thiab taug qab: Sau cov ntaub ntawv zoo ntawm txhua theem ntawm kev tsim khoom, ua cov kev soj ntsuam zoo thiab kev tshuaj xyuas qhov teeb meem kom ntseeg tau tias qhov sib xws thiab kev ntseeg siab ntawm cov khoom.

6. Ntim thiab xa khoom

Ntim: Ntim cov khoom siv hluav taws xob ib leeg-nqaj crane uas tau dhau qhov kev sim los tiv thaiv cov cuab yeej los ntawm kev puas tsuaj thaum thauj. Cov khoom ntim khoom feem ntau suav nrog cov ntaub thaiv npog, cov thawv ntoo thiab cov yeeb yaj kiab yas.

Kev npaj kev xa khoom: Npaj kev thauj mus los kom ntseeg tau tias cov khoom siv nyab xeeb xa mus rau tus neeg siv khoom qhov chaw xaiv. Muab cov kev pab cuam installation thiab commissioning raws li xav tau.

7. Kev pab cuam tom qab muag

Installation thiab commissioning: Muab rau ntawm qhov chaw installation thiab commissioning cov kev pab cuam rau cov cuab yeej los xyuas kom meej tias cov cuab yeej ua hauj lwm ib txwm.

Kev cob qhia: Cov neeg tsav tsheb ciav hlau thiab piav qhia txog kev ceev faj rau kev ua haujlwm thiab kev saib xyuas cov khoom siv.

Kev tu thiab tu: Muab cov kev pabcuam tu thiab tu tsis tu ncua los xyuas kom lub sijhawm ntev thiab ruaj khov ntawm cov khoom siv.

Kev tuav tsis raug: Muab kev txhawb nqa tom qab muag kom sai sai daws cov teeb meem uas tshwm sim thaum siv cov khoom siv.





Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas yuav ncav cuag 95%. 32 welding kab tau muab tso rau hauv kev siv, 50 yog npaj los nruab, thiab cov automation tus nqi ntawm tag nrho cov khoom kab tau mus txog.

Cim npe nrov: Tuam Tshoj Electric Tib Beam Crane Manufacturers, lwm tus neeg, Hoobkas
