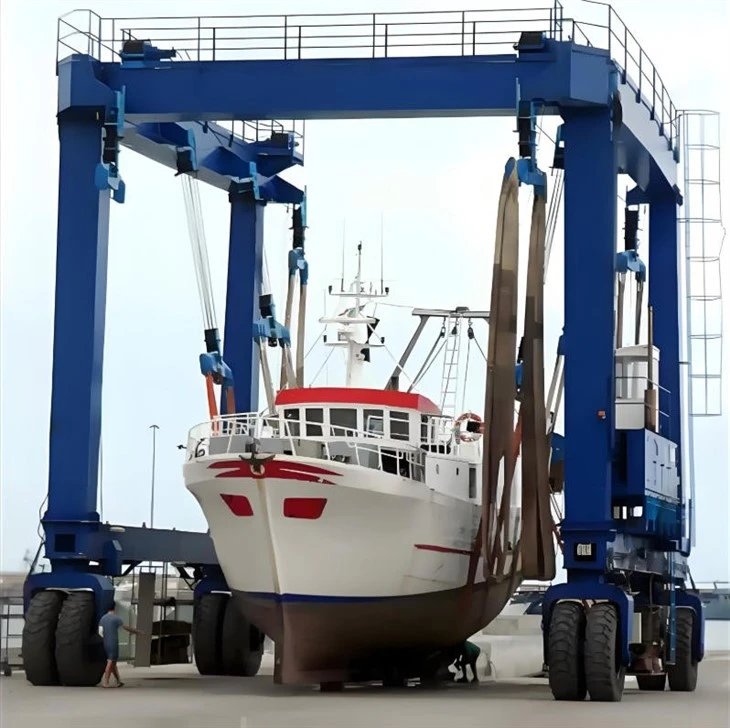

Mobile Boat Handling Hoist Yacht Marine Travel Lift Crane

A Mobile Boat tuav hoist yacht Marine Travel Lift craneyog ib qho hnyav - lub luag haujlwm nqa lub cev tsim los tswj cov nkoj, yachts, thiab lwm cov nkoj hauv hiav txwv rau kev tu, khaws cia, lossis kev thauj mus los. Cov hoists no yog qhov tseem ceeb hauv nkoj nkoj, nkoj nkoj, thiab chaw kho nkoj.

Cov yam ntxwv tseem ceeb ntawm 320-Ton Mobile Boat Hoist:

Siab Load Capacity- tuaj yeem nqa cov nkoj uas hnyav txog 320 metric tons.

Mobility- Nruab nrog lub log lossis lem kom txav tau yooj yim nyob ib puag ncig cov chaw nres nkoj qhuav lossis chaw cia khoom.

Adjustable Straps/Arms- Adaptable rau qhov sib txawv hull duab thiab qhov ntau thiab tsawg.

Hydraulic lossis hluav taws xob ua haujlwm- Smooth thiab tswj nqa / txo qis.

Kev ruaj ntseg & kev nyab xeeb- Txhim kho cov qauv nrog kev ruaj ntseg xauv thiab thauj khoom sensors.

Ntau yam- Tau txais ntau hom nkoj (fiberglass, steel, aluminium).



Sib piv: Nkoj Lifting Gantry vs. Travelift

Feature	Gantry Crane	Travelift
Mobility	Tsau lossis mobile	Ib txwm mobile (tyres)
Muaj peev xwm	Txog li 200+ tons	Feem ntau 25-100 tons
Nqi	Lower (tsis muaj qhov xav tau)	Siab dua (yuav tsum tau lub qhov)
Kev teeb tsa	Lub hauv paus tsawg heev	Xav tau kev txhawb nqa dock
Ntau yam	Kho tau rau txhua lub nkoj	Txwv rau lub nkoj loj



Xaiv Txoj Cai Nkoj Gantry Crane

Qhov xwm txheej	Kev txiav txim siab
Nkoj Nyhav	Xaiv ib lub crane nrog20-30% muaj peev xwm ntau duatshaj lub nkoj max.
Nkoj Loj	Xyuas kom covncua thiab qhov siabhaum lub nkoj qhov ntev.
Ib puag ncig	Stainless hlaurau kev tiv thaiv dej ntsev.
Mobility Xav Tau	Tsau (ntev) vs. mobile (hloov tau).
Hwj chim Source	Hluav taws xob (hauv tsev) lossis diesel / hydraulic (sab nraum zoov).



Lifting peev 320 tons
Ntev (dav) 3 - 12 meters (adjustable)
Lifting Qhov siab 3 - 10 meters
Chav Kawm Ua Haujlwm A3-A5 (lub teeb rau nruab nrab lub luag haujlwm)
Hoisting Ceev 0.5 - 8 m/min (variable)
Main Beam Hom Ib leeg / ob chav girder (lub thawv- hom)
Fais fab mov 220V / 380V 3-theem los yog phau ntawv
Tswj hom Pendant tswj / wireless chaw taws teeb
Hoist Hom Hluav taws xob saw hoist / hlau hlua hoist
Tsav Tsheb Tsav Tsheb Tsav Tsheb Tsav lossis Tsav Tsheb
Corrosion Protection Kub-dip galvanized lossis marine- qib xim
Cua Resistance Mus txog Beaufort nplai 6 (rau siv sab nraum zoov)
Kev khiav hauj lwm kub -20℃rau +50 degree





A Mobile Boat tuav hoist yacht Marine Travel Lift craneyog ib qho hnyav - lub luag haujlwm nqa lub cev tsim los tswj cov nkoj loj rau kev tu, khaws cia, lossis thauj. Hauv qab no yog tus yuam sijcov khoomfeem ntau pom nyob rau hauv xws li ib tug system:

1. Cov Khoom Siv Khoom Siv

Main Beams/Frames- Hnyav- lub luag haujlwm steel girders uas txhawb nqa qhov hnyav thiab lub nkoj.

Vertical Columns/Legs- Muab kev ruaj ntseg thiab qhov siab hloov kho.

Hla Braces- Txhim kho cov qauv kom tiv thaiv kev txav mus los.

Wheel Assemblies/Tracks- Tso cai rau kev txav mus los (kev tsheb ciav hlau-raws li lossis roj hmab- lub zog ua haujlwm).







2. Lifting Mechanism

Hydraulic Lub tog raj kheej- Muab lub zog nqa (synchronized rau txawm nqa).

Hlau Ropes & Pulleys- Siv rau hauv qee qhov qauv tsim los nqa.

Spreader Bars- Faib nqa lub zog sib npaug ntawm lub nkoj lub nkoj.

Lifting Straps/Cradles- Kho cov hlua los yog padded cradles kom ruaj lub nkoj.













3. Fais fab & Tswj System

Hydraulic Fais fab Unit (HPU)- Fais fab lub tog raj kheej hydraulic.

Tswj Vaj Huam Sib Luag- Tus neeg teb xov tooj interface rau nqa / txo qis (phau ntawv lossis automated).

Sensors & Load Cells- Saib xyuas qhov hnyav ntawm kev faib tawm thiab tiv thaiv kev thauj khoom ntau dhau.

Emergency Stop & Safety Valves- Tiv thaiv kev poob qis.





4. Mobility & Positioning System

Rail System (yog tias rail -mounted)- Qhia kev txav mus raws txoj kev ruaj khov.

Log Motors (yog tias tus kheej -propelled)- Hluav taws xob lossis hydraulic tsav tshuab.

Steering Mechanism- Rau kev tswj kev taw qhia hauv chav nyob mobile.

5. Cov yam ntxwv ntawm kev nyab xeeb

Kev tiv thaiv overload- Tiv thaiv kom tsis txhob nqa lub peev xwm.

Anti-Tip System- Ua kom muaj kev ruaj ntseg thaum txav mus los.

Xauv Pins/Brakes- Khaws lub hoist nyob rau hauv txoj hauj lwm thaum nyob ruaj ruaj.

Kev kub ceev phau ntawv txo qis- Thaub qab thaum lub zog tsis ua haujlwm.



6. Xaiv Ntxiv -Ons

Chaw taws teeb tswj- Kev ua haujlwm wireless rau kev yooj yim.

Automated Synchronization- Xyuas kom txawm tias nqa los ntawm PLC tswj.

Corrosion-Resistant Coatings- Rau ib puag ncig marine.



SKETCH



Main technical



A Mobile Boat tuav hoist yacht Marine Travel Lift craneyog ib qho hnyav - lub luag haujlwm nqa lub cev tsim los rau kev txav cov nkoj loj, yachts, thiab cov nkoj hauv nkoj hauv nkoj hauv nkoj, marinas, thiab cov chaw kho. Nov yog nws cov txiaj ntsig tseem ceeb:

1. Muaj peev xwm nqa tau

Muaj peev xwm tuav cov hlab ntsha uas hnyav txog li320t ua, ua rau nws haum rau cov yachts loj, cov nkoj ua lag luam, thiab cov nkoj me me.

Qhov zoo tshaj plaws rau kev ua kom qhuav, kev tu, thiab kev thauj mus los.

2. Mobility & Flexibility

Nruab nrogwheeled los yog taug qab -raws li systemskom yooj yim txav ib ncig ntawm shipyards.

Tsis xav tau kev txhim kho mus tas li, tso caiceev repositioningraws li xav tau.

3. Qhov chaw ua haujlwm tau zoo

Tshem tawm qhov xav tau ntawm cov cranes ruaj khov lossis swb,txuag qhov chaw dock muaj nuj nqis.

tuaj yeem ua haujlwm hauvnruj qhov chawqhov twg ib txwm lifting txoj kev yog impractical.

4. Versatility

Haum rauntau hom nkoj(fiberglass, steel, aluminium hulls).

Yuav siv tau raulaunching, thauj, thiab repositioningcov nkoj.

5. Nqis -Nyob zoo

Txo cov nqi infrastructurepiv rau cov chaw nres tsheb qhuav qhuav los yog nqa mus ncig.

Tsawg zog xav tauvim automated los yog hydraulic tswj.

6. Kev nyab xeeb & ruaj khov

Hydraulic synchronizationua kom lub cev sib npaug.

Ruaj ntseg lifting straps los yog cradlestiv thaiv lub cev puas tsuaj.

Emergency stop systemsrau kev tiv thaiv kev sib tsoo.

7. Sijhawm -Txuag

Faster dua li ib txwm ua haujlwm crane lossis railway systems.

Pab tausai sai hloov nkojrau kev tu lossis khaws cia.

8. Adaptability rau txawv ib puag ncig

Yuav siv tausab hauv lossis sab nraum zoov, ntawm pob zeb, pob zeb, lossis cov khoom siv ntxiv.

Qee cov qauv yoghuab cua -resistantrau hnyav marine tej yam kev mob.



A Mobile Boat tuav hoist yacht Marine Travel Lift craneyog ib qho hnyav - lub luag haujlwm nqa lub cev tsim los tuav cov nkoj loj, xws li yachts, nkoj ua lag luam, thiab cov nkoj me me, hauv marinas, shipyards, thiab cov chaw kho. Hauv qab no yog cov ntsiab lus tseem ceeb ntawm nws daim ntawv thov:

1. Cov ntawv thov tseem ceeb

Nkoj Lifting & Launching: Muaj kev nyab xeeb nqa thiab hloov cov nkoj hauv thiab tawm hauv dej.

Qhuav Docking: Muab cov hlab ntsha rau kev tu, kho, lossis kev cia.

Marina Kev Ua Haujlwm: Ua kom lub nkoj ua haujlwm tau zoo hauv cov marinas tsis khoom.

Shipyard & Repair Facilities: Ua kom muaj kev hloov pauv sai ntawm cov nkoj rau kev pabcuam.

Tub rog & Kev cawm dim: Siv rau kev xa tawm sai sai / rov qab cov nkoj soj ntsuam thiab cov khoom siv me me.

2. Cov yam ntxwv tseem ceeb

Siab Load Capacity: Nqa cov hlab ntsha mus txog320 metric tons.

Mobility: Nruab nrog lub log lossis lem kom yooj yim repositioning.

Adjustable Straps / Spreader Bars: Ua raws li cov duab sib txawv.

Hydraulic / Hluav taws xob ua haujlwm: Ua kom du thiab meej lifting.

Kev ruaj ntseg Systems: suav nrog kev tiv thaiv overload, nres thaum muaj xwm ceev, thiab ruaj khov.

3. Qhov zoo

Space Efficiency: Tshem tawm qhov kev xav tau ntawm cov cranes ruaj khov lossis swb.

Ntau yam: Ua haujlwm nrog ntau hom nkoj (catamarans, monohulls, thiab lwm yam).

Tus nqi -Cov: Txo cov sij hawm docking thiab kev ua haujlwm piv rau cov txheej txheem ib txwm muaj.

Kev ua haujlwm ceev: Faster dua li nqa mus los nrog lub peev xwm qis dua.

4. Hom neeg siv

Marinas & Yacht Clubs

Nkoj Manufacturers

Naval Bases & Coast Guard Facilities

Chaw nres nkoj nuv ntses lag luam

Offshore Service tuam txhab uas muag

5. Kev txiav txim siab ua ntej siv

Kev ruaj ntseg hauv av: Yuav tsum txhawb nqa cov khoom hnyav (cov pob zeb ntxiv lossis cov pob zeb compacted).

Lub nkoj Dimensions: Xyuas kom lub hoist qhov dav thiab nqa qhov siab phim lub nkoj.

Ib puag ncig tej yam kev mob: Cua thiab dej ntws tuaj yeem cuam tshuam kev ruaj ntseg thaum nqa.



Cov txheej txheem ntau lawm ntawm aMobile Boat tuav hoist yacht Marine Travel Lift craneNws suav nrog ntau theem, los ntawm kev tsim thiab kev yuav khoom mus rau fabrication, sib dhos, kuaj, thiab xa khoom. Hauv qab no yog cov ncauj lus kom ntxaws txog kev tsim khoom:

---

1. Tsim & Engineering

Yuav tsum tau Analysis:Txiav txim siab lub peev xwm thauj khoom (320 tons), nqa qhov siab, ncua, kev xav tau kev txav mus los (rail-mounted lossis roj hmab- nkees), thiab ib puag ncig (kev tiv thaiv ib puag ncig marine).

CAD qauv:Tsim 3D qauv thiab finite element tsom xam (FEA) simulations kom ntseeg tau cov qauv kev ncaj ncees.

Mechanical & Hluav taws xob tsim:Npaj lub hoisting mechanism, trolley system, tsav mechanisms, thiab tswj systems (hydraulic / hluav taws xob).

Txoj Cai Ua Raws Cai:Xyuas kom ua raws li cov qauv thoob ntiaj teb (ISO, DIN, FEM, lossis ASME).

---

2. Kev yuav khoom

Steel Qauv:High-qib steel (S355, Q345B) rau kab, kab, thiab booms.

Hydraulic Cheebtsam:Lub tog raj kheej, twj, thiab li qub rau nqa thiab txav mus los.

Hluav taws xob Systems:Motors, PLCs, sensors, thiab tswj vaj huam sib luag.

Hlau Ropes & Sheaves:Siab - tensile steel cables thiab pulleys.

Kev tiv thaiv corrosion:Marine- qib xim, galvanization, lossis stainless hlau rau dej ntsev.

---

3. Fabrication txheej txheem

A. Qauv Fabrication

Txiav:Plasma/oxy- roj los yog laser txiav cov hlau phaj.

Vuam:Submerged arc vuam (SAW) rau qhov hnyav; phau ntawv / MIG welding rau pob qij txha.

Machining:Drilling, milling, thiab tho txawv rau cov khoom haum haum.

Sib dhos ntawm Girders & Boom:Lub thawv girders los yog truss qauv rau lub ntsiab choj / boom.

B. Mechanical Systems

Hoist Mechanism:Fabrication ntawm winches, nruas, thiab braking systems.

Trolley & Travel System:Rails, log, thiab tsav motors rau kab rov tav txav.

Hydraulic System:Kev sib xyaw ntawm lub tog raj kheej thiab cov twj tso kua mis rau kev nqa / ruaj khov.

C. Hluav taws xob & Tswj Systems

Hlau & Sensors:Nruab qhov txwv hloov pauv, thauj cov hlwb, thiab tiv thaiv- kev sib tsoo tshuab.

Control Cabin:Tus neeg teb xov tooj cab nrog joystick/PLC{0}}raws li kev tswj.

---

4. Kev sib dhos & kev sib koom ua ke

Erection ntawm Main Structure:Bolt / weld tus choj, ob txhais ceg, thiab boom.

Mounting Mechanical Systems:Txhim kho hoists, trolleys, thiab tsav tsheb.

Hluav taws xob & Hydraulic txuas:Txuas lub zog thiab tswj cov tshuab.

Kev tiv thaiv corrosion:Siv cov primer, epoxy coatings, thiab tiv thaiv -kev kho xeb.

---

5. Kev Ntsuas & Kev Tswj Xyuas Zoo

Load Test:

Kev Xeem Static:125% ntawm rated load (400 tons) los xyuas deformation.

Dynamic Test:Kev sim ua haujlwm ntawm 110% load (352 tons).

Kev Xeem Ua Haujlwm:

Hoisting / txo qis, trolley txav, thiab mus ncig ua haujlwm.

Thaum muaj xwm ceev nres thiab kev kuaj xyuas kev nyab xeeb.

NDT (Tsis yog -Kev kuaj kev puas tsuaj):Ultrasonic, sib nqus particle, los yog dye penetrant xeem ntawm welds.

---

6. Painting & Deg kho

Sandblasting:Kev npaj deg rau xim adhesion.

Primer & Topcoat:Marine- qib epoxy/polyurethane xim rau corrosion kuj.

Cov Cim & Cov Ntawv Cim:Cov paib kev nyab xeeb, daim phiaj muaj peev xwm, thiab cov ntawv ceeb toom.

---

7. Kev soj ntsuam zaum kawg & ntawv pov thawj

Thib peb-Kev soj ntsuam tog:Los ntawm kev faib cov koom haum (xws li, DNV, LR, ABS) yog xav tau.

Cov ntaub ntawv:Muab cov ntawv qhia, cov ntawv xeem, thiab daim ntawv pov thawj CE / ISO.

Kev lees txais cov neeg siv khoom:Ntawm - qhov kev txheeb xyuas qhov chaw yog xav tau.

---

8. Dismantling & Shipping (yog tias modular)

Disassembly:Txiav mus rau hauv cov khoom thauj khoom (nqaj, tshuab).

Ntim:Tiv thaiv cov khoom rau hiav txwv / kev thauj khoom.

Reassembly Ntawm -Site:Saib xyuas los ntawm pab pawg technical ntawm tus neeg siv khoom qhov chaw.

---

9. Kev teeb tsa & commissioning

Kev npaj Foundation:Xyuas kom muaj kev tsheb ciav hlau lossis kev txhawb nqa hauv av rau kev txav mus los.

Crane Assembly:Re- txhim kho thiab kho cov khoom.

Kev Xeem Kawg:Kev kuaj xyuas ua haujlwm nyob rau hauv kev saib xyuas cov neeg siv khoom.

Kev cob qhia:Kev cob qhia neeg ua haujlwm thiab kev saib xyuas.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas sib txuas yuav ncav cuag 95% . 32 cov kab vuam tau muab tso rau hauv kev siv, 50 tau npaj los nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
