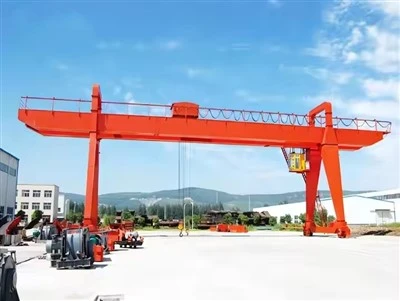

80 Tuj Ob Chav Girder Gantry Crane



Cov80-tuj ob chav girder gantry craneyog ib qho hnyav -lub luag haujlwm nqa kev daws teeb meem tsim los tuav cov khoom loj thiab hnyav nyob rau sab nraum zoov lossis ib nrab- ib puag ncig sab nraum zoov. Ua nrog lub zog ob -girder qauv, lub gantry crane no muab lub zog zoo, ruaj khov, thiab nqa kev ua tau zoo rau kev thov kev lag luam.

Nruab nrog ahoisting mechanism mounted ntawm los yog saum toj ntawm ob girders, no crane ua kom meej nqa thiab kab rov tav txav ntawm cov khoom thauj. Nws ua haujlwm rau hauv av rails thiab feem ntau siv hauvshipyards, chaw tsim kho, steel yards, precast qhob nroj tsuag, thiab thawv yards.

Cov yam ntxwv tseem ceeb:

Lifting Peev Xwm:80 ton

Span Range:Customizable (feem ntau yog 18-35 meters lossis ntau dua)

Lifting Qhov siab:Nyob ntawm qhov project xav tau (feem ntau 6-12 meters lossis siab dua)

Chav Ua Haujlwm:A5–A7 (nruab nrab mus rau hnyav- siv lub luag haujlwm)

Tswj hom:Cabin, chaw taws teeb tswj, lossis pendant tswj

Fais fab mov:Cable reel, festoon system, los yog busbar

Tsim Highlights:

Ob chav Girder Design:Muab kev txhawb nqa ntxiv - bearing muaj peev xwm thiab rigidity.

Siab Cua Resistance:Haum rau kev siv sab nraum zoov, nrog rau kev nyab xeeb nta rau cua daj cua dub xauv.

Precision Control:Smooth pib / nres thiab raug qhov chaw ntawm cov khoom thauj.

Customizable Structure:Muaj nrog cantilever caj npab, adjustable ncua, thiab tshwj xeeb hooks raws li ib qho kev xav tau kev ua haujlwm.

Safety Systems:Nruab nrog kev tiv thaiv overload, txwv cov keyboards, nres thaum muaj xwm ceev, thiab tiv thaiv- cov khoom sib tsoo.



Core Cheebtsam: Bearing, Iav, Gearbox, Tsav

Qhov chaw ntawm Keeb Kwm: Henan, Suav

Warranty: 1 Xyoo

Qhov hnyav (KG): 2000 kg

Video tawm -kev tshuaj xyuas: Muab

Machinery Test Report: Muab

Ntsiab lus: gantry crane

Xim: Customized

Loj: Customized

Tsim: computer optimization tsim

Kev nyab xeeb: Siab yoog raws ca cable zog

Daim ntawv thov: kev tsim kho kev lag luam, rhiav, warehouse

Chav ua haujlwm: A3-A8

Daim ntawv pov thawj: ISO, CE, BV, S GS, TUV

Fais fab mov: 380 ~ 480V, customized





1.Main Girders

Hom:Ob lub thawv -zoo li tus lossis truss- hom steel kab teeb

Muaj nuj nqi:Txhawb nqa lub hoist / trolley thiab faib cov khoom sib npaug thoob plaws cov qauv crane

Feature:Siab -lub zog welded tsim nrog tsawg deflection



Trolley nrog Hoisting Mechanism

Hom:Hluav taws xob lossis hydraulic trolley system nrog motorized hoist

Hoist:Hnyav- lub luag haujlwm xaim hlua hoist lossis qhib winch hoisting mechanism

Muaj nuj nqi:Txav mus raws lub girders kom nqa thiab thauj cov loads horizontally



3.End Carriages (Legs and Log Assemblies)

Qauv:Ob txhais ceg tawv (ib qho los yog ob qho tib si yuav yog A-thav duab lossis lub thawv- hom)

Muaj nuj nqi:Txhawb nqa lub ntsiab girders thiab cia lub crane txav mus rau hauv av rails

Log:Nruab nrog steel log rau rail txav; tej zaum yuav suav nrog cov log tsheb rau kev ruaj ntseg





4.Crane Mus Ncig Mechanism

Tsav System:Tsav + gearbox + nres

Tsav hom:Feem ntau dual - tsav kom zoo dua qhov sib npaug thiab traction

Tswj:Variable zaus tsav (VFD) rau du acceleration thiab deceleration



5.Trolley mus ncig teb chaws mechanism

1) Cov qauv tsim qauv

Trolley thav duab: Lub thav duab yog lub ntsiab lus txhawb nqa ntawm lub trolley, muab qhov tsim nyog rigidity thiab lub zog los nqa lub nra.

Lub log teeb: Cov log feem ntau yog ntsia rau ntawm axles, thiab cov bearings hauv cov log no yog tsim los rau kev thauj khoom siab -cov kabmob muaj peev xwm thiab kev ua haujlwm du.

Fais Tsav Tsav Tsav Tsheb: Lub trolley lub zog yog siv los ntawm lub tshuab hluav taws xob, uas tsav lub log ntawm lub gearbox thiab lub kaw lus ntawm rubeys lossis chains.Lub cev muaj zog feem ntau ntsia ntawm lub trolley thav duab thiab txuas nrog lub log los ntawm kev tsav tsheb, tso cai rau ob qho tib si rau pem hauv ntej thiab rov qab.

2) Kev ua haujlwm ntawm lub trolley kev khiav haujlwm mechanism

1. Kab rov tav txav ntawm lub Hoist

Lub trolley, uas nqa lub hoisting mechanism, txav horizontally raws lub gantry rail. Qhov kev txav ntawm kab rov tav no ua rau lub crane nqa thiab txo cov ntaub ntawv hla thaj chaw loj, xws li lub vaj, chaw nres nkoj, lossis lub tsev khaws khoom.

2. Smooth thiab Precise Positioning

Lub trolley mus ncig teb chaws mechanism yog tsim los rau kev tswj kom meej ntawm lub trolley txoj hauj lwm. Qhov no yog ib qho tseem ceeb kom ntseeg tau tias cov khoom thauj tau khaws thiab muab tso rau hauv qhov chaw xav tau.

3. Kev them nyiaj yug rau Hoisting Mechanism

Lub hoist system feem ntau yog ntsia rau ntawm lub trolley. Lub trolley mus ncig ua haujlwm tso cai rau lub hoist mus hla qhov ntev ntawm lub gantry, kom ntseeg tau tias cov khoom nqa nqa tuaj yeem npog tag nrho thaj chaw uas xav tau rau kev ua haujlwm.

4. Load Distribution thiab Stability

Lub trolley pab faib cov khoom sib npaug thoob plaws lub crane tus qauv. Thaum lub trolley txav mus, cov khoom thauj tau ruaj khov, txo qhov kev pheej hmoo ntawm kev tsis sib xws uas tuaj yeem ua rau muaj xwm txheej.

5. Ceev tswj

Lub trolley mus txawv tebchaws muaj xws li lub cev muaj zog, lub zog, thiab qee zaum hloov pauv zaus tsav (VFDs), uas muab qhov tsim nyog ceev tswj rau lub trolley lub zog. Qhov no pab ua kom haum rau cov kev xav tau ntawm kev ua haujlwm sib txawv, txawm tias txav mus qeeb rau qhov tseeb lossis sai sai rau kev ua haujlwm.

6. Kev sib koom ua ke nrog lwm yam Crane txav

Lub trolley mus txawv tebchaws yog kev koom ua ke nrog lub gantry txoj kab ntsug (hoisting) thiab longitudinal (gantry mus txawv tebchaws) txav. Nws ua haujlwm hauv kev sib koom tes nrog cov haujlwm no kom ntseeg tau tias kev ua haujlwm du thiab synchronized, ua kom yooj yim dua rau kev nqa nqa thiab hloov khoom siv.

7. Kev nyab xeeb thiab thauj khoom tuav

Lub tshuab feem ntau suav nrog cov yam ntxwv kev nyab xeeb, xws li kev txwv cov hloov pauv lossis cov ntsuas ntsuas, txhawm rau tiv thaiv lub tsheb thauj mus los ntawm kev ua haujlwm dhau ntawm nws thaj chaw ua haujlwm lossis kev sib tsoo nrog cov teeb meem, txhim kho kev nyab xeeb ntawm tag nrho cov haujlwm crane.

6.Crane log

1) Kev ua haujlwm ntawm lub log

Lub log muab kev txhawb nqa rau cov qauv crane thiab yog qhov tseem ceeb rau kev tso cai rau lub gantry crane taug kev raws nws txoj kev taug.Lawv kuj nqus cov rog tsim los ntawm crane qhov hnyav thiab kev ua haujlwm txav, faib cov rog no los tiv thaiv kev puas tsuaj rau txoj kab thiab lwm yam khoom siv crane.

Nyob ntawm lub hom phiaj ntawm crane thiab cov loads nws tuav, lub log yog engineered los lis txawv qhov hnyav. Cov cranes loj dua los yog siv rau kev nqa hnyav dua yuav muaj lub log loj dua, muaj zog dua.

2) Cov kev cai tsim

Crane log feem ntau yog ua los ntawm siab - lub zog steel los yog cov ntaub ntawv alloy kom tiv taus qhov hnyav ntawm lub crane thiab nws cov khoom thauj thaum ua haujlwm tas li thiab cov khoom hnyav.Cov log feem ntau tsim nrog flange kom ruaj khov thiab txav mus los ntawm kev sib tsoo thiab tiv thaiv lawv ntawm derailing.

7.Crane Hook

Lub crane nuv ntawm cantilever gantry crane yog ib qho tseem ceeb hauv kev nqa thiab tuav cov txheej txheem. Tus nuv no yog siv los txuas thiab txhawb nqa thaum lub sijhawm ua haujlwm hoisting.

Tus nuv feem ntau yog ua los ntawm siab - lub zog steel los tuav cov khoom hnyav. Nws muaj cov duab nkhaus, nrog lub caj pas sib sib zog nqus kom ruaj ntseg txuas rau cov hlua khi, cov hlua khi, lossis lwm yam khoom siv nqa nqa.Qhov kev sib txuas feem ntau muaj kev ruaj ntseg latch los tiv thaiv cov load los ntawm kev sib tsoo thaum lub sijhawm ua haujlwm.

Lub luag haujlwm tseem ceeb ntawm crane nuv yog txuas lub crane lub lifting mechanism (xws li lub hoist) nrog lub load. Nws txav raws lub gantry crane's beam (uas yog kev txhawb nqa los ntawm ob txhais ceg ntawm cov qauv gantry) thiab tuaj yeem tsa lossis qis dua nyob ntawm qhov yuav tsum tau nqa.

Lub cev muaj zog

Lub cev muaj zog ntawm lub cantilever gantry crane yog ib qho tseem ceeb ntawm lub luag haujlwm rau kev tsav tsheb ntau yam ntawm lub crane, xws li hoisting, trolley mus txawv tebchaws, thiab gantry txav. Nyob ntawm tus qauv tsim thiab qhov loj ntawm crane, lub cev muaj zog tuaj yeem sib txawv ntawm hom thiab specifications. Cov motors feem ntau yog tswj los ntawm PLC (Programmable Logic Controller) lossis VFDs (Variable Frequency Drives) los kho qhov nrawm thiab lub zog kom ua haujlwm tau zoo.

Hoisting Tsav: Lub Hom Phiaj: Tsav lub hoist kom nqa thiab txo qhov load.Motor Hom: feem ntau yog lub tshuab hluav taws xob, feem ntau yog AC induction motor.Power: txawv nyob ntawm qhov muaj peev xwm thauj khoom, txij li ob peb kW mus rau ntau pua kW.

Lub Cev Tsav Tsheb (Trolley Movement): Lub Hom Phiaj: Tsiv lub trolley raws li gantry rail.Motor Hom: Feem ntau yog peb -theem AC lub cev muaj zog.Power: Xaiv raws li qhov xav tau ceev thiab muaj peev xwm ntawm lub trolley.

Gantry Traveling Motor (Bridge Movement): Lub Hom Phiaj: Tsiv tag nrho cov qauv gantry raws txoj kev tsheb ciav hlau hauv av, tso cai rau nws hla dhau qhov chaw thauj khoom.Motor Hom: Lub cev muaj zog- lub cev muaj zog, feem ntau nrog lub zog sib txawv (VSD) rau kev tswj kom zoo.Power: Zoo ib yam li lub trolley lub cev muaj zog tab sis feem ntau yog siab dua, raws li nws xav tau cov qauv.

.

Suab thiab lub teeb tswb system & txwv hloov

1) Suab thiab lub teeb tswb system

Lub suab nrov thiab lub teeb ceeb toom rau Cantilever Gantry Crane yog tsim los txhim kho kev nyab xeeb los ntawm kev muab cov teeb pom kev pom thiab hnov ​​​​hauv cov xwm txheej txawv txav lossis muaj kev phom sij. Cov tswb no pab ceeb toom cov neeg ua haujlwm, cov neeg ua haujlwm, thiab cov neeg ua haujlwm nyob ib puag ncig ntawm kev pheej hmoo.

Lub tswb nrov (Horn lossis Siren): Lub hom phiaj: ceeb toom cov neeg ua haujlwm rau qhov xwm txheej kub ntxhov lossis txawv txav.Sound: Feem ntau nrov thiab mloog zoo- rub, xws li lub suab nrov lossis lub horn nrog cov qauv sib txawv (nruam, sib tshuam, los yog mem tes) kom teeb liab ntau hom kev ceeb toom.Placement: Feem ntau ntsia ntawm lub crane qhov chaw nyob ze ntawm cov neeg ua haujlwm stgan, qhov chaw nyob ze ntawm cov neeg ua haujlwm. yuav muaj nyob.

Lub Teeb Tswb (Strobe Light lossis Flashing Beacon): Lub Hom Phiaj: Muab qhov pom kev ceeb toom uas tuaj yeem pom nyob rau hauv qhov chaw uas lub suab ib leeg yuav tsis ua haujlwm zoo (xws li, nyob rau hauv qhov chaw nrov nrov lossis nyob deb). Hom Lub Teeb: Flashing lossis tig strobe teeb lossis beacons feem ntau siv, feem ntau muaj xim sib txawv los qhia txog qib sib txawv.

Liab: Lub tswb nrov (qhov xwm txheej txaus ntshai).

Yellow/Amber: Ceev faj (ceeb toom lossis tsis yog-qhov teeb meem ceev).

Xiav: Tej zaum yuav qhia txog kev ua haujlwm lossis lwm yam mob tshwj xeeb.

2) txwv hloov

Ib qho kev txwv hloov ntawm lub cantilever gantry crane yog cov cuab yeej siv kev nyab xeeb uas siv los tiv thaiv lub crane hla dhau - mus los lossis txav mus dhau nws qhov kev txwv ua ntej. Nws yog ib qho tseem ceeb rau kev ua haujlwm kom zoo thiab nyab xeeb ntawm crane. Lub cantilever gantry crane feem ntau muaj cov qauv loj nrog tus choj thiab hoisting mechanism, uas yog feem ntau siv nyob rau hauv kev lag luam ib puag ncig xws li chaw nres nkoj los yog warehouses rau lifting thiab txav hnyav loads.

Function ntawm Limit Switch:

Kev Tshawb Nrhiav Txoj Haujlwm: Qhov kev txwv tsis pub pom thaum lub crane lub hoist lossis trolley tau mus txog nws txoj haujlwm kawg (txawm tias tsa siab, txo qis, lossis txav mus raws txoj kev). Qhov no pab tiv thaiv kev puas tsuaj los ntawm kev hla dhau - mus.

Kev nyab xeeb: Nws ua haujlwm tsis ua haujlwm- nyab xeeb kom txwv tsis pub lub crane txav yog tias nws mus txog nws thaj tsam. Qhov no txo ​​qis kev pheej hmoo ntawm kev sib tsoo thiab tiv thaiv ob qho tib si crane thiab cov khoom siv nyob ib puag ncig.

Automation: txwv cov keyboards tuaj yeem txuas nrog lub crane tswj qhov system. Thaum qhov kev txwv hloov tau tshwm sim, nws xa cov teeb liab mus rau kev tswj hwm kom nres lub crane lossis thim rov qab nws cov kev taw qhia.

Hom Limit Switches rau Gantry Crane:

Mechanical Limit Switch: Hom no siv lub cev actuator qhib lossis kaw cov neeg sib cuag thaum lub crane mus txog qhov txwv. Nws yog ib qho uas nquag siv, yooj yim, thiab tus nqi - daws tau zoo.

Sib Nqus Limit Hloov: Cov no siv cov chaw sib nqus los kuaj xyuas txoj haujlwm ntawm lub hom phiaj yam tsis muaj kev sib cuag ncaj qha, muab kev ruaj khov thiab ntev dua - kev daws teeb meem.

Qhov Sib Nqus Limit Hloov: Nws pom muaj lub hom phiaj yam tsis muaj kev sib cuag, siv lub sensor, thiab feem ntau yog siv rau hauv ntau dua lossis siab dua - daim ntawv thov ceev.

10. Cov khoom siv ruaj ntseg

1) 1. Overload Protection Device

Tiv thaiv lub crane los ntawm kev nqa cov khoom ntau tshaj nws cov peev txheej.

Ua kom lub tswb nrov lossis txiav tawm lub zog rau lub tshuab nqa thaum lub nra hnyav dhau qhov txwv tsis pub muaj kev nyab xeeb.

2. Txwv Hloov Hloov

Hoisting Limit Switch: Nres lub lifting mechanism thaum tus nuv mus txog nws sab sauv lossis qis qis kom tsis txhob hla dhau -hoisting lossis dhau - qis.

Kev txwv kev mus ncig: txwv txoj kab rov tav txav ntawm lub crane lossis trolley kom tsis txhob muaj kev sib tsoo lossis derailments.

Boom Angle Limit Switch (yog tias tsim nyog): Ua kom lub boom tsis dhau qhov txwv kev nyab xeeb.

3. Nres Nres Nkoj Kub Kub

Tso cai rau cov neeg ua haujlwm tam sim nres kev ua haujlwm crane thaum muaj xwm txheej ceev.

Feem ntau ntsia tau rau hauv ntau qhov chaw nkag tau ntawm lub crane thiab cov chaw taws teeb tswj.

4. Kev tiv thaiv-Cov khoom siv sib tsoo

Siv cov sensors (qhov sib thooj sensors lossis lasers) txhawm rau txheeb xyuas cov teeb meem lossis lwm yam khoom siv hauv crane txoj kev, tiv thaiv kev sib tsoo.

Tej zaum muaj xws li audible tswb los yog tsis siv neeg braking systems.

5. Cua ceev xyuas qhov system

Saib xyuas cua ceev thiab teeb meem ceeb toom thaum nws tshaj li kev nyab xeeb rau kev ua haujlwm.

Qee lub tshuab cia li kaw lub crane lossis thauj tog rau nkoj thaum muaj cua daj cua dub.

6. Braking System

Mechanical Brakes: Xyuas kom lub load tseem nyob ruaj khov thaum tsis txav mus los.

Emergency Braking System: Ua kom lub zog tsis ua haujlwm lossis ua haujlwm tsis zoo.

7. Rail Clamp lossis cua daj cua dub

Xauv lub crane nyob rau hauv txoj hauj lwm thaum muaj cua daj cua dub los yog cua daj cua dub los tiv thaiv kev txav mus los.

8. Tsis Siv Neeg

Nruab rau qhov kawg ntawm lub crane txoj kev mus los kom nqus tau cov kev cuam tshuam thiab txo kev puas tsuaj thaum lub sij hawm sib tsoo dhau - mus txawv tebchaws.

9. Load Moment Indicator (LMI)

Saib xyuas lub sijhawm thauj khoom thiab ceeb toom tus neeg teb xov tooj yog tias lub crane mus txog nws qhov taw tes.

10. Kev ruaj ntseg Interlocks

Ua kom muaj kev ua haujlwm tshwj xeeb, xws li nqa, nqa lub tsheb thauj mus los, lossis kev hloov kho boom, tsis tuaj yeem ua tiav ib txhij hauv qhov tsis zoo.

11. Suab ceeb toom thiab pom

Tswb: ceeb toom cov neeg ua haujlwm nyob ze thaum lub sijhawm ua haujlwm crane lossis thaum muaj teeb meem.

Teeb Teeb Pom Kev: Qhia lub crane txoj haujlwm ua haujlwm.

12. Kev tshuaj xyuas cov hlua hlau thiab kev nyab xeeb

Rope Overwind Protection: Tiv thaiv txoj hlua hlau los ntawm kev raug mob tsis raug, uas tuaj yeem ua rau muaj xwm txheej.

Rope Break Detection: Pom kev tawg lossis slack hauv cov hlua hlau thiab nres qhov kev ua haujlwm.

13. Tus neeg teb xov tooj Cabin Safety nta

Ergonomically tsim kev tswj kom txo cov neeg ua haujlwm qaug zog.

Cov hluav taws tua hluav taws thiab lwm yam khoom siv thaum muaj xwm txheej ceev feem ntau muaj nyob rau hauv chav tsev.

14. Tsis Siv Neeg Crane Monitoring System (Yeem)

Saib xyuas cov tsis tseem ceeb xws li thauj khoom, ceev, thiab kub.

Sau cov ntaub ntawv ua haujlwm thiab kev ua txhaum cai rau kev saib xyuas thiab daws teeb meem.

11.Control hom

1) 1. Manual Control

Nqe lus piav qhia: Cov neeg ua haujlwm tswj hwm lub crane siv lub laub- khawm pendants, levers, lossis tswj vaj huam sib luag ncaj qha rau ntawm -site.

Nta:

Yooj yim rau siv thiab khaws cia.

Haum rau cov haujlwm nqa khoom tsawg dua.

Cov ntawv thov: Siv hauv me me - cov haujlwm ua haujlwm lossis qhov chaw uas muaj cov kev xav tau ntawm automation qis.

2. Chaw taws teeb tswj

Nqe lus piav qhia: Cov neeg ua haujlwm siv lub wireless chaw taws teeb tswj cov cuab yeej siv lub crane los ntawm qhov chaw nyab xeeb.

Nta:

Txhim kho kev nyab xeeb los ntawm kev tso cai rau tus neeg teb xov tooj kom nyob ruaj khov ntawm lub nra.

Kev ua haujlwm yooj yim dua.

Muaj peev xwm tuav ntau txoj kev txav.

Daim ntaub ntawv: Warehousing, logistics yards, thiab lwm yam kev kawm uas yuav tsum tau ntau dua precision.

3. Cabin Control

Nqe lus piav qhia: Tus neeg teb xov tooj zaum hauv ib lub tsev uas txuas nrog lub crane thiab tswj kev ua haujlwm siv cov joysticks lossis cov tswj vaj huam sib luag.

Nta:

Muab tus neeg teb xov tooj kom pom tseeb ntawm qhov chaw thau khoom thiab chaw ua haujlwm.

Haum rau hnyav-lub luag haujlwm thiab ntev- sijhawm ua haujlwm.

Cov ntawv thov: loj- thaj chaw muaj kev lag luam, xws li chaw nres nkoj, steel mills, lossis chaw tsim kho.

4. Semi- Tsis Siv Neeg Tswj

Nqe lus piav qhia: Qee qhov kev ua haujlwm (xws li kev rov ua dua tshiab) yog automated, thaum lwm tus xav tau phau ntawv nkag.

Nta:

Txo cov neeg ua haujlwm ua haujlwm.

Ua kom muaj txiaj ntsig zoo rau cov haujlwm rov ua dua.

Daim Ntawv Thov: Cov kab sib dhos, cov hubs logistics, thiab cov dej num cuam tshuam nrog kev rov nqa thiab muab tso rau.

5. Tsis siv neeg tswj tag nrho

Nqe lus piav qhia: Lub crane ua haujlwm autonomously raws li ua ntej -cov lus qhia cov lus qhia lossis cov khoom siv sensor.

Nta:

High precision thiab efficiency.

Tshem tawm tib neeg kev ua yuam kev thiab txo cov nqi zog.

Feem ntau ua ke nrog cov tshuab ntse lossis IoT rau kev saib xyuas thiab tshuaj xyuas cov ntaub ntawv.

Daim Ntawv Thov: Chaw nres nkoj, automated warehouses, thiab ib puag ncig yuav tsum tau siab -ceev, ua haujlwm meej.

6. Hybrid Control (Manual + Tsis Siv Neeg)

Nqe lus piav qhia: Muab cov kev xaiv ntawm phau ntawv thiab kev tswj tsis siv neeg, tso cai rau kev hloov pauv raws li cov haujlwm xav tau.

Nta:

Adaptable rau ntau yam kev xav tau kev ua haujlwm.

Txhim khu kev ua tau zoo yam tsis muaj kev cuam tshuam kev tswj hwm.

Daim Ntawv Thov: Cov chaw uas xav tau kev saib xyuas tib neeg thiab automation.

12. Daim duab



Main technical





1. Muaj peev xwm thauj khoom siab thiab lub zog muaj zog

Tsim los tuavmus txog 80 tonsntawm cov khoom nrog stability thiab kev nyab xeeb.

Covob chav girder tsimmuab superior load faib thiab rigidity piv rau ib hom girder.

---

2. Dav dav thiab kev pab them nqi

Txhawb nqaloj spans(feem ntau yog 18-35 meters lossis ntau dua), tso cai rau nws ua haujlwm rau thaj chaw ua haujlwm dav.

Zoo tagnrho rau kev ua haujlwm loj - xws li steel yards, shipyards, thiab cov chaw tsim kho.

---

3. Txhim kho Lifting Qhov siab

Lub hoist mus rau sab saum toj los yog nruab nrab ntawm cov girders, enablingntau dua lifting qhov siabtshaj ib leeg girder cranes, tshwj xeeb tshaj yog pab tau rau siab loads lossis cov qauv.

---

4. Kev siv yooj yim

Haum rausab hauv thiab sab nraum zoovsiv.

Yuav customized nrogcantilevers, rail systems, lifting attachments, los yog ntau lub hoists rau cov haujlwm tshwj xeeb.

---

5. Durable thiab huab cua -Resistant Design

Ua nrogsiab -lub zog steel, tiv thaiv -corrosion txheej, thiabcua- tiv thaiv mechanismsxws li rail clamps thiab cua daj cua dub xauv rau sab nraum zoov ib puag ncig.

---

6. Kev ua haujlwm du thiab kev tswj kom raug

Nruab nrogVariable zaus tsav (VFDs)kom meej zog thiab txo txhua yam kev ntxhov siab.

Muajsoft start/stopnta thiab raug load positioning.

---

7. Ntau yam kev xaiv tswj

Ua haujlwm ntawmcabin, chaw taws teeb tswj, lossis pendant, nyob ntawm qhov chaw xav tau thiab tus neeg teb xov tooj nyiam.

Txhim kho kev nyab xeeb thiab kev ua haujlwm zoo.

---

8. Advanced Safety Systems

suav nrogkev tiv thaiv overload, txwv cov keyboards, nres thaum muaj xwm ceev, thiab tiv thaiv - kev sib tsoo tshuab.

Txo qhov kev pheej hmoo ntawm kev raug xwm txheej thiab cov khoom siv puas tsuaj.

---

9. Lub neej ua haujlwm ntev

Engineered raunruab nrab mus rau hnyav- lub voj voog ua haujlwm (A5–A7 kev faib tawm), muab ntau xyoo kev pabcuam txhim khu kev qha nrog kev saib xyuas kom raug.





1. Kev lag luam kev tsim kho

Nqa cov khoom siv hnyav xws li steel beams, pob zeb blocks, thiab lwm yam khoom siv.

Kev thauj mus los thiab tso cov ntaub ntawv ntawm cov chaw tsim kho.

2. Chaw tsim khoom

Tuav cov khoom loj lossis cov tshuab hauv cov kab ntau lawm.

Tsiv cov khoom siv raw lossis cov khoom tiav hauv cov nroj tsuag.

3. Shipyards thiab chaw nres nkoj

Kev thauj khoom thiab tshem tawm cov thawv lossis cov khoom thauj los ntawm nkoj.

Kev thauj khoom hnyav nkoj lossis khoom siv tu.

4. Warehousing thiab Logistics

Stacking thiab teeb tsa cov khoom hauv qhov chaw cia khoom sab nraum zoov lossis sab hauv tsev.

Chaw thau khoom thiab tshem tawm cov tsheb thauj khoom lossis tsheb ciav hlau.

5. Aerospace thiab Aviation

Tuav cov khoom siv dav hlau loj, xws li fuselages, tis, lossis cav.

Txhawb kev txij nkawm thiab kev sib dhos ua haujlwm.

6. Rail Yards

Lifting thiab positioning railway Cheebtsam xws li lem los yog bogies.

Loading thiab unloading railway cargo.

7. Steel Mills thiab Foundries

Txav hnyav steel phaj, coils, lossis castings.

Kev tuav cov thawv molten hlau.

8. Mining thiab Heavy Industries

Kev thauj khoom hnyav thiab cov khoom siv hauv kev ua haujlwm tsuas.

Tuav cov tshuab loj rau kev sib dhos lossis kho.

9. Lub zog cog

Txhim kho lossis tswj cov turbines, lub tshuab hluav taws xob, thiab lwm yam khoom siv hluav taws xob hnyav.

Kev thauj cov roj los yog khib nyiab hauv cov nroj tsuag nuclear lossis thermal.

Cranentau lawm txheej txheem

1. Tsim thiab Engineering

Kev Ntsuam Xyuas Kev Xav Tau

Nkag siab tus neeg siv khoom tshwj xeeb (load peev xwm, ncua, qhov siab, ua haujlwm ib puag ncig, thiab lwm yam).

Txiav txim siab ua haujlwm tsis tau: nqa qhov siab, mus ncig ceev, ua haujlwm zaus, thiab lwm yam.

Kev tsim ua ntej

Tsim cov tswv yim tsim thiab 3D qauv.

Xaiv cov ntaub ntawv raws li lub zog thiab ib puag ncig.

Paub meej Engineering

Tsim kom ntxaws engineering kos duab (cov khoom siv, cov tshuab, cov tshuab hluav taws xob).

Ua kev ntsuam xyuas kev ntxhov siab thiab qaug zog kom muaj kev nyab xeeb.

2. Kev yuav khoom

Qhov chaw siab - cov ntaub ntawv zoo, suav nrog:

Hlau phaj thiab profiles rau cov khoom siv.

Motors, gearboxes, thiab lwm yam khoom siv tshuab.

Hluav taws xob cov tshuab thiab tswj cov khoom.

Tshawb xyuas cov ntaub ntawv kom ua tau raws li cov qauv zoo.

3. Kev tsim khoom

Structure Component Fabrication

Txiav, weld, thiab sib sau ua ke cov qauv hlau (lub ntsiab girder, cantilever caj npab, ceg, thiab lwm yam).

Xyuas kom meej qhov sib dhos thiab qhov ntev.

Ua kev kho deg (xws li, tua blasting, pleev xim) rau kev tiv thaiv corrosion.

Mechanical Assembly

Sib sau cov khoom siv tshuab (trolley, hoist, log, thiab lwm yam).

Nruab cov motors, gearboxes, thiab tsav tshuab.

Hluav taws xob sib dhos

Nruab cov khoom siv hluav taws xob (tswj vaj huam sib luag, cables, sensors).

Hlau thiab txuas lub system kom ntseeg tau tias kev ua haujlwm.

4. Kev soj ntsuam zoo

Kev tshuaj xyuas cov khoom

Tshawb xyuas cov ntaub ntawv pov thawj thiab ua cov kev xeem (piv txwv li, kev ntsuas tensile).

Kev tshuaj xyuas tus qauv

Tshawb xyuas qhov zoo ntawm vuam (piv txwv li, kuaj ultrasonic).

Ua kom pom tseeb qhov tseeb thiab qhov chaw tiav.

Kev tshuaj xyuas los ua ke

Tshawb xyuas kev sib raug zoo thiab kev ua haujlwm ntawm txhua qhov chaw (mechanical thiab hluav taws xob).

Load Test

Ua cov kev ntsuam xyuas zoo li qub thiab dynamic load kom ntseeg tau tias muaj kev nyab xeeb.

5. Hoobkas Txais Kev Xeem (FAT)

Ua ib qho kev sim ua tiav, suav nrog:

Tag nrho load thiab overload xeem.

Kev ua haujlwm ntawm txhua yam khoom siv kev nyab xeeb (piv txwv li, txwv cov keyboards, nres thaum muaj xwm ceev).

Kev ua haujlwm du ntawm trolley, hoist, thiab crane mus ncig.

Cov ntaub ntawv tau txais thiab tau txais kev pom zoo rau cov neeg siv khoom.

6. Disassembly thiab ntim

Disassemble lub crane rau hauv cov khoom thauj.

Ntim cov khoom kom ruaj ntseg los tiv thaiv kev puas tsuaj thaum thauj.

Sau npe thiab npaj ib daim ntawv teev npe kom ua tau zoo dua.

7. Kev thauj mus los

Xa cov khoom siv crane mus rau qhov chaw teeb tsa siv txoj kev thauj mus los tsim nyog.

8. Kev teeb tsa thiab commissioning

Ntawm -Site Assembly

Sib sau ua ke cov txheej txheem thiab cov tshuab tshuab.

Nruab cov tshuab hluav taws xob thiab tswj vaj huam sib luag.

Calibration thiab Test

Recalibrate lub crane system rau qhov chaw - tej yam kev mob tshwj xeeb.

Ua rau ntawm - qhov chaw thauj khoom kuaj xyuas kom paub tseeb tias kev ua tau zoo.

9. Kev xa

Muab kev cob qhia rau cov neeg siv khoom ntawm kev ua haujlwm nyab xeeb thiab kev saib xyuas.

Muab cov ntaub ntawv qhia txog kev siv (cov neeg siv phau ntawv, phau ntawv qhia kev saib xyuas, daim ntawv pov thawj).

Tau txais kev pom zoo zaum kawg thiab txais los ntawm tus neeg siv khoom.

10. Tom qab-Kev Pabcuam Muag

Muab cov kev pab cuam warranty thiab kev txhawb nqa.

Muab cov khoom seem thiab kev pab cuam raws li xav tau.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas sib txuas yuav ncav cuag 95% . 32 cov kab vuam tau muab tso rau hauv kev siv, 50 tau npaj los nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
