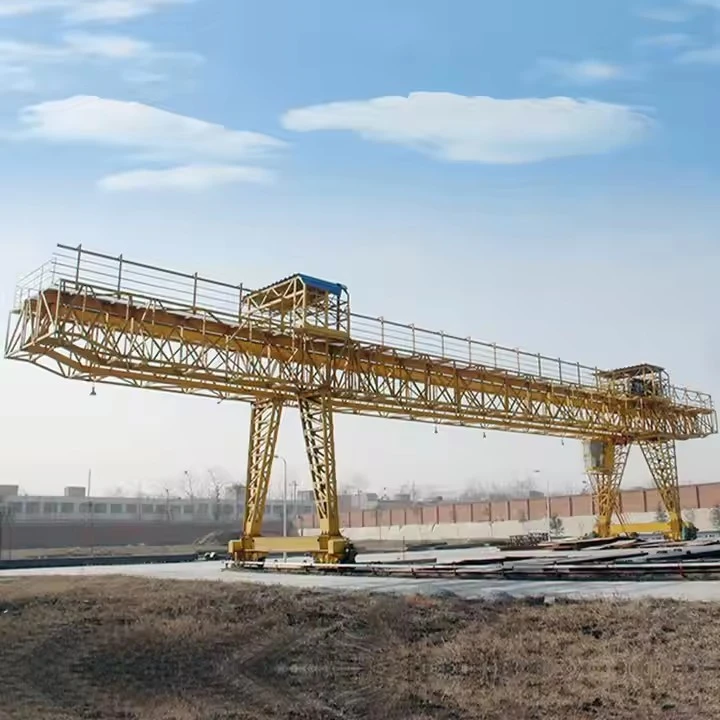

50T Ob Chav Girder Truss Gantry Crane

Ib tus Girder Truss Gantry Crane yog qhov ua tau zoo, kev xaiv nyiaj txiag rau nruab nrab-thauj khoom, ntev kev txo qis yog qhov tseem ceeb thiab kev txuag nqi yog qhov tseem ceeb. Nws cov qauv tsim qauv tso cai rau kev customization rau sab hauv tsev \/ sab nraum zoov, ua rau nws ntau yam nyob hauv kev lag luam.

Cov Nta Tseem Ceeb
Lub teeb yuag & raug nqi-ua tau zoo

Lub truss tsim kom txo cov khoom siv, txo qis cov nqi tsim khoom thaum khaws cov qauv kev ncaj ncees.

Qhov zoo tagnrho rau cov ntawv thov uas cov peev txheej siv nyiaj txiag yog kev txhawj xeeb.

Kev Ntsuas Muaj Peev Xwm

Feem ntau ua ke 1-50 tons, ua rau nws haum rau cov ntaub ntawv dav dav, sib dhos, thiab vaj cia.

Customizable span & qhov siab

Cov neeg ntev: 5-35 metres (qee cov qauv nce mus txog 60m).

Kho tau ob txhais ceg rau sib txawv ua haujlwm siab (txog 40m hauv qee qhov kev teeb tsa).

Kev Xaiv Ntau

Rail-mounted: rau cov kev ua haujlwm ruaj khov hauv cov nkoj nkoj lossis thawv mev.

Roj Hmab-Nkaus: Rau kev txav mus los hauv kev cob qhia lossis chaw tsim khoom.

Portable Qauv: Ceev sib dhos \/ Disassembly rau kev siv ib ntus.

Hoist & trolley system

Nruab nrog hluav taws xob hlau hlua khau khawm (CD \/ MD hom) lossis saw hlau hoists kom muab lifting ntsug.

Los ntawm phau ntawv lossis lub cev ua lag luam lub cev rau kab rov tav mus raws girder.

Durability & Huab Cua Kuj

Galvanized los yog pleev xim rau steel rau corrosion tsis kam nyob rau sab nraum zoov siv.

Qee cov qauv ua raws li poj niam, din, thiab ISO cov qauv rau kev nyab xeeb thiab kev ntseeg tau.

Kev sib piv: Ib leeg Girder Truss thiab Solid Web Gantry Cranes

Ntsuas Chaw thau khoom muaj peev xwm: 5 tuj, 10 tuj, 100 Tuj, Customized, 16\/5 TUJ, 32\/5 TUJ, 50\/10 TUJ, 50\/10 TUJ, 50\/10 TUJ

Max. Lifting qhov siab: 40m, Mekas

Ntsev: 35m lossis cov neeg xav tau

Warranty: 1 xyoos

Qhov hnyav (kg): 50000 kg

Cov Cheebtsam Tseem Ceeb: plc, cov kabmob, cov kabmob, thawv gearbox, lub cev muaj zog, iav siab, iav, twj tso kua mis, Twj

Kev tswj txoj kev: Cab, wireless chaw taws teeb tswj hwm lossis customized

Ib qho Girder Truss Gantry Crane yog ib hom teeb pom kev zoo li cov chaw tsim khoom zoo li cov chaw tsim khoom zoo li cov chaw tsim khoom, precast cov chaw, lossis cov chaw tsim khoom me me. Lub Truss tsim muaj cov cua tsis zoo thiab qhov hnyav dua thaum tswj lub zog ua kom muaj zog.

Cheebtsam tseem ceeb & lawv cov haujlwm
1. Trus Girder (Ib Girder)
Tus qauv: ib lub teeb yuag (truss) nqaj ua los ntawm welded steel tuav.

Muaj nuj nqi: txhawb nqa lub hoist thiab ntim thaum txo cov cua thauj khoom thiab tag nrho cov crane crane.

Hom tau zoo: Qhov zoo tagnrho rau cov chaw sab nraum zoov uas muaj cua nquag.

2. Kev txhawb nqa ob txhais ceg (Gantry ob txhais ceg)
Tsim: Ob kab ntsug uas txhawb nqa truss girder.

Ua Haujlwm: Hloov chaw thauj khoom los ntawm girder rau hauv av.

Cov variants: tuaj yeem yog tus-thav duab, lub thawv-hom, lossis hom truss raws nyob ntawm load thiab ncua.

3. End cab \/ av log
Muaj nuj nqi: Pab kom lub crane txav mus ntev raws cov ciav hlau.

Xws li: tsav lub cev roj motors, brakes, thiab cov log tsheb taug kev.

Cov Kev Xaiv Fais Fab: Hluav Taws Xob Tsav lossis Phau Ntawv Laub-Rub (Rau Cov Qauv Teeb-Disease).

4. HAB lossis TROLLECECHISM NTXIV
Feem ntau yog hluav taws xob hlau hlua Hoed lossis saw hluav taws xob hoist, mounted hauv qab truss girder.

Muaj nuj nqi: Ua cov kev khiav ntsug thiab sab-rau ib sab (hla mus ncig) txav mus raws girder.

Trolley: tej zaum yuav tsau lossis lub cev muaj zog, nyob ntawm daim ntawv thov.


5. Hluav taws xob system
Lub zog fais fab ntawm cable reel, cable festoon, lossis luag cov saw system.

Tswj vaj huam sib luag kom ua haujlwm nqa thiab mus ncig.

Txoj kev tswj:

Pendant Tswj

Wireless Chaw Taws Teeb Tswj

6. Crane rail \/ khiav
Nteg rau hauv av rau lub crane kom txav mus ntev.

Ua los ntawm cov steel khiav kos rau hauv cov pob zeb ua vaj tse lossis bolted rau hauv pem teb.

7. Kev Nyab Xeeb Khoom Siv
Txwv kev hloov pauv (Hoist surl \/ qis dua, taug kev kawg)

Kev tiv thaiv ntau tshaj

Nres Nres

Ceeb Toom Lub Tswb thiab Teeb

Windproof Anchoring (tseem ceeb rau kev siv sab nraum zoov)

.

Yeem Cheebtsam
Kho cov kem siab (rau cov nce toj siab Lifting qhov siab)

Roj Hmab Buffers lossis Mechanical Nres

Los nag npog lossis Sunshades rau Hoist

Anti-cua thauj khoom lossis tsheb ciav hlau

Daim duab kos

Cua Kuj
Qhov qhib Truss qauv txo cov cua luag, ua rau nws zoo tagnrho rau kev siv sab nraum zoov.
Lub Hnav Txom Nyem
Truss Siv siv cov khoom siv tsawg dua thaum tswj lub zog, uas txo lub hauv paus ntsaws thiab tus nqi teeb.
Nqi-Zoo
Pheej yig tshaj lub thawv Girder Cranes nyob rau hauv cov nqe lus, kev fabrication, thiab thauj.
Installation Yooj Yim Installation
Lub cev sib xyaw ua ke yog yooj yim rau sib sau thiab rho tawm ntawm thaj chaw.
Customizable span & qhov siab
Haum rau ntau yam kev ua haujlwm nrog kho qhov ntau thiab tsawg.
Zog siv tau
Yuav tsum muaj cov motors me me vim txo tus kheej hnyav.
Ruaj khov nyob rau hauv cov xwm txheej hnyav
Ua tau zoo nyob rau hauv cua hlob, plua plav, lossis tsis sib xws sab nraum zoov chaw.

Cov hom crane crane no tau siv dav hauv nruab nrab thiab lub teeb ua haujlwm nqa cov haujlwm, tshwj xeeb tshaj yog nyob hauv ib puag ncig qhib.

1. Precast yard & ua cov chaw ua si
Tsiv kom cov nqi kho kom txav, kab teeb, kab, thiab pwm.

2. Chaw tsim khoom
Lifting steel qauv, rebar, scaffolding, thiab khoom siv.

Yooj yim rau tsiv chaw raws li lub phiaj xwm nce zuj zus.

3. Kev Loj & Choj Siv
Tuav Formwork, qhob ntu, thiab choj ci.

Qhov zoo tagnrho vim muaj cua tiv thaiv thiab sab nraum zoov detability.

4. Warehouses & Yards
Cov khoom siv sab nraum zoov cia khoom uas cov qauv vaj tsev tsis muaj.

Cov neeg siv cov kav dej kav, cov kab hlau, ntoo ntoo, thiab lwm yam.

5. Cov lus qhia fabrications
Tsiv cov khoom sib zog me me zoo li cov ntawv hlau, tshuab qhov chaw, thiab cov cuab yeej sib dhos.

6. Cov neeg xa khoom me me lossis lub nkoj yaig
Thauj cov nkoj qhov chaw, nyem, lossis cov khoom siv txij nkawm.

1. Tsim thiab engineering

Cov ncauj lus kom ntxaws txog engineering: Tsim cov ncauj lus qhia ntxaws ntxaws thiab cov ntsiab lus tseem ceeb, suav nrog lub nqaj tseem ceeb, dav dav, kawg cov tsheb ciav hlau, thiab lwm yam.

Simulation thiab Qauv: Siv lub computer tsim qauv (CAD) thiab cov cuab yeej sim ua qauv rau qauv Crane kev ua tau zoo thiab ua kom zoo dua qub tsim.

2. Cov Khoom Xaiv

Cov Khoom Siv Khoom: Xaiv cov khoom siv zoo uas ua tau raws li qhov yuav tsum muaj rau lub zog, durability, thiab cua sov ua kom tsis kam. Cov ntaub ntawv uas muaj xws li cov hlau muaj zog, cov alloys, thiab cov txheej txheem tshwj xeeb.

Kev ua tiav: Cov ntaub ntawv tshaj tawm los ntawm cov neeg muag khoom pom zoo, kom ntseeg tau lawv ua tau raws li cov qauv tsim nyog thiab ntawv pov thawj zoo.

3. Kev sib koom ua kerication

Kev txiav thiab cov duab txiav: txiav thiab cov khoom raw rau hauv cov khoom siv uas xav tau, xws li kab teeb, kab, thiab nkhaus. Qhov no yuav suav nrog cov txheej txheem zoo li ntshav txiav, thiab machinesatic txiav, thiab machines.welding thiab sib dhos: weld cov khoom ua ke los ua crane cov txheej txheem. Qhov no suav nrog vuam lub ntsiab lub nqaj, kawg cov ntoo sab, thiab lwm yam khoom siv-cov kabmob.

4. Sib Dhom

Subflly: Sau ib yam li ib leeg siv, xws li cov kab ke zoo, trolley, thiab qhov kawg ntawm cov ntoo, mus rau hauv cov rooj sib tham hauv zej zog. Qhov no yuav cuam tshuam nrog cov khoom ua ke thiab ua kom sib dhos kom sib haum: sib xyaw ua ke los tsim cov qauv crane crane tsim tiav. Qhov no suav nrog kev ntsuas lub hoist thiab trolley ntawm lub nqaj tseem loj, txuas rau ntawm cov cab sab kawg, thiab txhim kho cov tshuab tswj.

5. Kev sib xyaw ntawm cov tshuab

Cov Tshuab Hluav Taws Xob: Nruab Nruab Hluav Taws Xob, suav nrog cov tshuab roj, tswj cov vaj huam sib luag, xaim, thiab cov hlau, thiab cov sensors. Xyuas kom meej tias lub tshuab hluav taws xob raug muab sib xyaw kom zoo thiab kuaj.

Tswj Lub Tshuab: Siv thiab Kho Cov Tshuab Tswj, xws li Cov Chaw Tswj Xyuas Logic (PLCS), cov chaw taws teeb tswj, thiab cov chaw taws teeb. Txheeb xyuas tias kev tswj cov tshuab ua haujlwm kom raug thiab muaj calibrated.

6. Kuaj thiab Kev Ntsuas Zoo

Kev Xeem Ua Ntej Kev Tshawb Fawb: Ua kev sim ua ntej ua haujlwm los kuaj cov crane ua haujlwm, suav nrog kev thauj khoom, kev sim ua haujlwm ntawm kev nqa thiab kev kuaj tsheb.

Kev Kuaj Kev Nyab Xeeb: Txheeb xyuas cov kev nyab xeeb, xws li kev txwv, tswb, thiab nres sijhawm thaum muaj xwm ceev, ua haujlwm raug thiab ua tiav cov qauv kev nyab xeeb.

Tshuaj Xyuas: Ua cov ncauj lus kom ntxaws tshuaj xyuas ntawm cov qauv crane qauv thiab cov khoom sib dhos kom ua kom muaj raws li cov qauv tsim qauv thiab cov qauv zoo.

7. Zaum Kawg Kev Hloov Kho thiab Ntsuas Hluav Taws Xob

Nplua: Ua ib qho kev kho kom tsim nyog los ua kom zoo rau Crane kev ua tau zoo thiab ua haujlwm kom zoo. Qhov no suav nrog ntsuas ntsuas hluav taws xob, kho cov kev tswj hwm, thiab nplua-turting system.

Cov Ntaub Ntawv: Npaj thiab tshuaj xyuas cov ntaub ntawv, suav nrog cov phau ntawv qhia kev ua haujlwm, cov lus qhia saib xyuas kev nyab xeeb.

8. Kev xa khoom thiab teeb tsa

Kev Thauj: Npaj rau kev thauj cov thauj ntawm lub crane rau lub chaw tsim khoom, kom ua kom muaj kev nyab xeeb thiab xa khoom kom tiv thaiv kev puas tsuaj.

Kev teeb tsa: saib xyuas lub installation ntawm lub tsev lag luam, suav nrog cov rooj sib tham, sib dhos, thiab kev sib txuas nrog cov khoom siv hluav taws xob thiab tswj cov tshuab.

Kev Kawm: Muab kev cob qhia rau cov neeg ua haujlwm thiab cov neeg saib xyuas txij nkawm kom lawv paub txog cov txheej txheem kev ua haujlwm crane thiab cov txheej txheem kev nyab xeeb.

9. Commissioning and shairing

Commissioning: Ua cov kev ntsuam xyuas zaum kawg los xyuas qhov tseeb tias cov crane ua haujlwm kom raug raws li cov xwm txheej tiag tiag thiab ua tau raws li kev ua haujlwm tshwj xeeb.

Tawv: Ua raws li cov crane rau cov neeg siv khoom, muab txhua cov ntawv pov thawj tsim nyog, suav nrog cov ntaub ntawv pov thawj tsim nyog, cov ntaub ntawv lav, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog txij nkawm, thiab cov caij nyoog saib xyuas.

Kev Soj Ntsuam Khoom

Kev soj ntsuam zoo: nruj zoo soj ntsuam nyob rau cov khoom siv raw kom ntseeg tau tias lawv tau raws li cov qauv tsim thiab hauv tebchaws.

Cov khoom siv cia: cov ntaub ntawv tsim nyog tau khaws cia raws li kev faib tawm los tiv thaiv corrosion lossis kev puas tsuaj.

Txiav thiab sib sau

Kev txiav: Siv ntshav txiav, txiav laser txiav lossis cov nplaim taws txiav thiab lwm cov thev naus laus zis raws li qhov loj me ntawm kev kos duab.

Kev Ua Lag Luam: Tsim cov hlau phaj los ntawm dabtsi yog khoov, dov, vuam thiab lwm cov txheej txheem los tsim cov nqaj tseem ceeb, kawg nqaj thiab lwm yam txheej txheem.

Vuam

Kev tivthaiv Vuam Vuam: Kev txiav thiab tsim cov hlau seem yog welded rau hauv cov qauv loj xws li lub nqaj tseem loj, kawg nqaj thiab trolley. Cov txheej txheem vuam yuav tsum tau nruj me ntsis tswj hwm kom ntseeg tau tias lub zog zoo nkauj thiab vuam zoo.

WELD kev tshuaj xyuas: siv cov thev naus laus zis weld (xws li ultrasonic kuaj, ntsuas hluav taws xob, ntsuam xyuas cov ntawv kom ntseeg tau tias tsis muaj cov kab nrib pleb lossis lwm yam tsis xws luag.

Ntaub

Precision machining: precision machining yog ua rau ntawm cov tseem ceeb, xws li lwm lub rooj zaum, kom paub tseeb tias lawv qhov tseeb yog thiab qhov chaw zoo.

Sib dhos ntawm tag nrho cov tshuab

General Assembly: nyob rau lub hauv paus ntawm kev sib dhos ua ntej, tag nrho cov kev sib txoos ua ntej ntawm lub ntsiab kev sib dhos ntawm lub ntsiab kawg, kawg nqaj, nqa mechanism, nqa mechanism, thiab lwm yam.

Commissioning thiab kuaj

Nyob rau hauv kev ua kom muaj kev sib raug zoo, kev ua haujlwm ua haujlwm ntawm cov CRANE yog kuaj, suav nrog kev sim ntawm kev nqa, taug kev, kauj thiab lwm yam haujlwm. Qhov loj ntawm qhov loj ntawm lub choj sib sau ua ke yog kuaj kom ntseeg tau tias txhua qhov ntev tau raws cov qauv tsim.

Txau thiab tiv thaiv kev kho mob corrosion

Cov kev kho deg deg tshem tawm: Reb tshem tawm ntawm cov npoo ntawm Crane, cov kev txau, tsuag tawm los ntawm kev kho kom tiv thaiv cov hlau oxidation thiab corrosion. Topcoat txau xim txau: tshuaj tsuag topcoat raws li cov neeg siv khoom lossis cov qauv kev lag luam kom muab cov nyhuv zoo nkauj thiab ua kom zoo nkauj. Cim Cim: Tom qab txau, cim Crane cov ntaub ntawv qhia txog cov cim qhia raws li cov qauv tshwj xeeb, xws li qauv, ntsuas nqi, thiab lwm yam.

Lub Hoobkas thiab Installation

Ntim thiab tsheb thauj mus los

Kev tiv thaiv ntim: Cov pob khoom tiv thaiv cov khoom tseem ceeb ntawm lub crane los tiv thaiv kev puas tsuaj thaum thauj mus los. Kev thauj mus los cuam tshuam: Raws li cov khoom siv loj thiab kev thauj mus los, xaiv txoj kev thauj mus los thauj cov Crane rau tus neeg siv khoom.

Txais thiab xa khoom

Cov qhua tuaj noj mov txais

Kev lees txais: Tus neeg yuav khoom ntawm kev lees paub ntawm lub crane raws li daim ntawv cog lus uas yuav tsum tau thiab cov kev qhia tshwj xeeb los tshawb xyuas qhov ua tau zoo thiab cov khoom siv zoo.

Qhov teeb meem teeb meem: Yog tias muaj teeb meem tshwm sim, cov chaw tsim khoom yuav tsum tau kho kom lawv raws li cov cuab yeej ua tiav raws li cov neeg siv khoom. Kev xa tawm thiab siv kev cob qhia kev ua haujlwm: Cov khw muag khoom lag luam feem ntau yog cob qhia cov neeg siv khoom lag luam kom ntseeg tau tias lawv tuaj yeem ua haujlwm cov crane raug thiab nyab xeeb.
