10 Tuj Ob Chav Girder Gantry Crane Nrog Hoist

Cov10 Tuj Ob Chav Girder Gantry Crane nrog Hoistyog ib qho khoom siv tau zoo thiab muaj txiaj ntsig tuav cov kev daws teeb meem tsim los rau nruab nrab mus rau hnyav - cov ntawv thov kev lag luam. Kev tsim kho kom muaj zog, qhov tseeb, thiab kev ntseeg tau, lub tshuab crane no muaj ob lub qauv -girder ua ke nrog lub siab- kev ua haujlwm hoist, ua rau nws zoo tagnrho rau kev nqa thiab txav mus txog 10 tons thoob plaws kev ua haujlwm dav.

Cov ntsiab lus tseem ceeb:

Load Capacity:10 ton

Configuration:Ob chav girder rau superior zog thiab tsawg deflection

Lifting Mechanism:Hluav taws xob hlau hlua hoist los yog winch, mounted rau ib tug taug kev trolley

Span & Qhov siab:Customizable raws li kev cob qhia lossis qhov chaw qhov ntev

Txoj kev mus ncig:Rail-mounted lossis roj hmab-tyred raws li daim ntawv thov xav tau

Zoo tagnrho rau:

Heavy khoom sib dhos

Steel qauv fabrication

Mechanical Rhiav

Warehouse thiab logistics

Kev kho vaj tse

Nta:

Nce Stability:Dual girders muab kev xa khoom zoo heev thiab crane rigidity

Kev ua haujlwm yooj yim:Trolley thiab crane txav muab tag nrho 3D load positioning (X-Y-Z axis)

Safe thiab Efficiency:Nruab nrog txwv kev hloov pauv, kev tiv thaiv overload, thiab cov chaw taws teeb tswj kom muaj kev nyab xeeb

Customizable Design:Adjustable ceg qhov siab, ncua sij hawm, hoist ceev, thiab tswj kev xaiv kom tau raws li cov kev xav tau ntawm qhov project

Cov10 Tuj Ob Chav Girder Gantry Crane nrog Hoistyog ib qho kev xaiv txhim khu kev qha rau kev lag luam ib puag ncig uas xav tau kev ua haujlwm zoo ib yam, ntev -lub sij hawm durability, thiab meej load tuav. Nws muab cov qauv kev ncaj ncees nrog kev tswj xyuas qib siab kom ua haujlwm du, nyab xeeb, thiab ua haujlwm tau zoo.

Core Cheebtsam: Gearbox, Tsav, Iav

Qhov chaw ntawm Keeb Kwm: Suav teb

Warranty: 1 Xyoo

Qhov hnyav (KG): 10000 kg

Video tawm -kev tshuaj xyuas: Muab

Machinery Test Report: Muab

Rated Loading Capacity: 50 Tuj, 30 Tuj, 40 Tuj, 5 Tuj, 20 TON, 10 TON

Max. Lifting Qhov siab: 30M

1.Double Girders (Main Beams)

Ob txoj kab hlau sib txuas ua rau cov tub ntxhais thauj khoom -cov kabmob qauv.

Muab rigidity zoo heev thiab tso cai rau ntev spans thiab ntau dua lifting heights.

Feem ntau ua los ntawm welded box girders los yog kuv -beams rau lub zog thiab tsawg deflection.

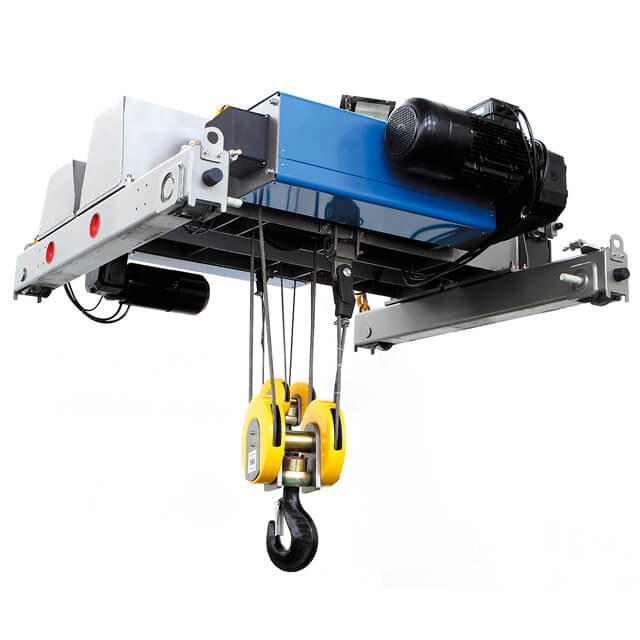

Hluav taws xob Hoist (Xim hlua los yog saw Hoist)

Lub hoisting mechanism uas nqa thiab txo cov load.

Mounted ntawm lub trolley uas khiav raws cov girders.

Xws li:

Lifting lub cev muaj zog thiab gearbox

Hlau hlua los yog saw

Nruas thiab nuv thaiv

Nres thiab txwv hloov qhov system

Hluav taws xob Hoist (Xim hlua los yog saw Hoist)

Lub hoisting mechanism uas nqa thiab txo cov load.

Mounted ntawm lub trolley uas khiav raws cov girders.

Xws li:

Lifting lub cev muaj zog thiab gearbox

Hlau hlua los yog saw

Nruas thiab nuv thaiv

Nres thiab txwv hloov qhov system

3.End Carriages (Crane End Trucks)

Nyob rau ntawm ob qho kawg ntawm cov girders thiab txuas nrog cov ceg txhawb nqa.

Lub tsev lub log thiab tsav lub cev muaj zog uas tso cai rau lub crane txav mus raws txoj kev khiav los yog hauv av rails (ntev mus ntev).

4.Crane mus ncig teb chaws mechanism

1) Lub hauv paus ntsiab lus ua haujlwm

Lub crane mus ncig ua haujlwm ntawm lub gantry crane yog lub luag haujlwm rau txoj kab rov tav txav ntawm lub crane raws txoj kev uas tau hais tseg, feem ntau ntawm kev tsheb ciav hlau lossis lem. Qhov kev txav no tso cai rau lub crane los npog thaj tsam loj los nqa thiab txav mus los.

2) Kev ua haujlwm ntawm crane khiav haujlwm mechanism

Kab rov tav txav: Cov txheej txheem mus ncig ua rau lub gantry crane txav mus raws txoj kev tsheb ciav hlau, feem ntau nyob hauv av lossis nce lem. Qhov no tso cai rau lub crane los npog thaj tsam dav, xws li lub vaj, tsev khaws khoom, lossis chaw tsim kho.

Load faib: Lub tshuab mus ncig ua haujlwm ua ke nrog lub tshuab hoisting thiab cov qauv gantry los txhawb nqa lub sijhawm nqa thiab txav mus los. Los ntawm kev hla txoj kev tsheb ciav hlau, lub crane ua haujlwm nws tus kheej los khaws thiab thauj cov khoom thauj mus rau qhov chaw tshwj xeeb.

Positioning raug: Nws pab kom meej qhov chaw ntawm lub crane rau kev tuav cov khoom raug. Lub tshuab mus ncig ua kom lub crane mus txog qhov chaw ua haujlwm, xws li chaw cia khoom, nkoj tuav, lossis cov thawv ntim khoom, rau kev khaws khoom lossis xa khoom.

5.Trolley mus ncig teb chaws mechanism

1) Cov qauv tsim qauv

Lub trolley mus ncig teb chaws mechanism nyob rau hauv lub biggest gantry cranes ua ke ib tug series ntawm siab - lub zog steel Cheebtsam rau cov qauv kev ncaj ncees, siab heev lub cev muaj zog thiab gearbox systems rau txav, thiab intricate kev ruaj ntseg systems kom paub meej thiab muaj kev ruaj ntseg.

2) Kev ua haujlwm ntawm lub trolley kev khiav haujlwm mechanism

Kab rov tav txav ntawm lub trolley: Lub trolley txav rov qab mus rau qhov ntev ntawm tus choj crane. Qhov no tso cai rau cov khoom thauj mus rau ntau qhov chaw ntawm thaj chaw ua haujlwm.Nws ua kom lub crane tuaj yeem npog qhov dav dav, ua rau kev nqa thiab kev thauj mus los ntawm cov khoom siv thoob plaws thaj chaw ua haujlwm.

Load Transport: Lub trolley yog nruab nrog lub tshuab hoisting (nqus, clamp, lossis lwm yam khoom nqa nqa), uas tuaj yeem nqa, txav, thiab tso cov khoom thauj. Kev mus ncig ua haujlwm ua rau tus neeg teb xov tooj crane kom txav mus los ntawm txoj kev tau teev tseg.

Load Transport: Lub trolley yog nruab nrog lub tshuab hoisting (nqus, clamp, lossis lwm yam khoom nqa nqa), uas tuaj yeem nqa, txav, thiab tso cov khoom thauj. Kev mus ncig ua haujlwm ua rau tus neeg teb xov tooj crane kom txav mus los ntawm txoj kev tau teev tseg.

6.Crane log

1) Kev ua haujlwm ntawm lub log

Kev them nyiaj yug txawb: Lub luag haujlwm tseem ceeb ntawm lub log yog los txhawb kev txav ntawm lub crane ntawm txoj kev khiav thiab xyuas kom meej tias kev ua haujlwm du ntawm crane.

Load faib: Cov log pab kom sib npaug ntawm cov khoom thauj ntawm crane, txo qhov siab ntawm txoj kev khiav, thiab ua kom lub neej kev pab cuam ntawm cov khoom siv.

2) Cov kev cai tsim

Lub zog thiab rigidity: Lub log yuav tsum muaj lub zog txaus thiab rigidity kom tiv taus qhov hnyav ntawm lub crane thiab ntau yam dynamic loads.

Hnav tsis kam: Vim muaj kev sib txhuam tsis tu ncua ntawm cov log thiab cov tsheb khiav, cov khoom siv log yuav tsum muaj kev hnav zoo kom ntev lub neej kev pab cuam.

Anti-skid tsim: Lub log nto yuav tsum tau tsim los tiv thaiv-skid kom tsis txhob zawv zawg lossis swb hauv qhov hnyav.

7.Crane Hook

Lub crane nuv ntawm qhov loj tshaj plaws gantry cranes feem ntau yog ib qho hnyav - lub luag haujlwm, cov khoom siv ruaj khov tsim los ua kom muaj peev xwm nqa tau siab heev. Cov cranes, siv nyob rau hauv loj - cov ntawv thov kev lag luam xws li nkoj nkoj, chaw nres nkoj, thiab chaw tsim kho, muaj cov hooks uas tuaj yeem tuav cov khoom thauj ntau tshaj li ntau pua tons.

Crane hooks feem ntau yog ua los ntawm siab - lub zog alloy steel kom tiv taus qhov kev ntxhov siab loj los ntawm cov khoom hnyav. Tus nuv yuav raug forged los xyuas kom meej toughness thiab kev ntseeg tau.Tus nuv ntawm ib tug loj heev gantry crane tuaj yeem loj heev, feem ntau hnyav ob peb tons nws tus kheej, nyob ntawm seb lub peev xwm nqa ntawm lub crane. Piv txwv li, cranes nrog lifting muaj peev xwm nyob rau hauv thaj tsam ntawm 1,000 tons los yog ntau tshaj tej zaum yuav muaj hooks uas hnyav ob peb tons ib yam nkaus.Qhov tsim yuav txawv, tab sis hom hom muaj xws li ib leeg, ob npaug, los yog triple nuv configurations, tshwj xeeb tshaj yog rau cov cranes loj. Muab ob npaug los yog triple hooks tuaj yeem pab faib cov khoom sib npaug, uas yog qhov tseem ceeb tshwj xeeb tshaj yog thaum nqa cov khoom loj los yog ua tau txawv txawv.

Loj gantry cranes tau nruab nrog cov txheej txheem kev nyab xeeb los tiv thaiv kev sib tsoo thiab kev sib tsoo. Qhov no suav nrog cov yam ntxwv xws li kev tiv thaiv tsis siv neeg dhau, tiv thaiv- sway systems, thiab nres thaum muaj xwm txheej ceev. Ntawm cov cranes loj, hooks feem ntau tuaj nrog ntau hom kev sib txuas (xws li lifting slings, spreader bars) kom yooj yim rau kev nyab xeeb thiab ua haujlwm tau zoo.

Lub cev muaj zog

1) Lub cev muaj zog ntawm xws li cov crane loj yuav koom nrog cov motors tshwj xeeb uas muaj peev xwm tuav cov khoom loj nrog qhov tseeb. Lub crane lub hoisting system yuav zoo li siv ntau lub DC motors lossis AC motors nrog kev sib txawv zaus tsav (VFDs) rau kev tswj kom zoo. Cov motors yuav txuas mus rau ib tug complex system ntawm winches, pulleys, thiab lifting mechanisms nqa thiab txav hnyav heev loads.

2) Lub crane yog siv los ntawm kev sib xyaw ntawm cov tshuab hluav taws xob rau lub tshuab nqa thiab hydraulic motors rau qee qhov ntawm lub crane, xws li lub trolley lossis slewing mechanism. Cov ntsiab lus tshwj xeeb ntawm hom thiab lub zog ntawm lub cev muaj zog feem ntau tsis muaj nyob rau hauv pej xeem, tab sis xws li crane yuav xav tau lub cev muaj zog nrog ob peb megawatts ntawm lub zog los ua nws qhov hnyav - cov dej num zoo.

3) Lub crane tseem tau nruab nrog cov yam ntxwv ntawm kev nyab xeeb thiab kev tswj xyuas kom ruaj ntseg thiab tiv thaiv overloads thaum lub sijhawm ua haujlwm.

.

Suab thiab lub teeb tswb system & txwv hloov

1) Suab thiab lub teeb tswb system

Lub tswb nrov yog siv los ceeb toom cov neeg ua haujlwm ntawm cov xwm txheej tseem ceeb, xws li kev thauj khoom ntau dhau, ua haujlwm tsis zoo, lossis kev ua haujlwm tsis zoo.Nruam Tswb feem ntau yog siv rau cov xwm txheej xwm txheej ceev xws li kev ua haujlwm tsis zoo lossis dhau qhov xwm txheej.Intermittent Beeps yuav siv tau rau cov lus ceeb toom (xws li, thaum muaj kev txwv ze, xws li lub crane ua haujlwm ze rau lub suab nrov tshaj plaws los yog lub suab nrov tshaj plaws). los yog thaum lub sij hawm siab - kev ua haujlwm txaus ntshai.Lub tswb yuav tsum nrov txaus kom hnov ​​qab lub suab nrov ntawm crane txoj haujlwm thiab los ntawm qhov deb, xav txog qhov loj ntawm crane thiab ib puag ncig ib puag ncig.

Visual Indicators (Lights): Lub teeb pom kev zoo ua haujlwm raws li kev ceeb toom thib ob, pab cov neeg ua haujlwm uas yuav nyob hauv thaj chaw uas lub suab tsis hnov ​​​​tsw ceeb toom (xws li, nyob rau hauv qhov chaw nrov, lossis thaum lawv saib xyuas cov haujlwm crane). Cov teeb ci ntsa iab tuaj yeem siv los nyiam cov xwm txheej thaum muaj xwm txheej ceev lossis qhia tias muaj kev phom sij tsis tu ncua.Cov teeb no feem ntau yog ntsia rau ntawm crane lub ntsiab qauv thiab lub gantry, pom los ntawm txhua qhov chaw uas tib neeg yuav ua haujlwm. Lub teeb kuj tseem yuav raug teeb tsa ntawm cov tswj vaj huam sib luag tseem ceeb lossis hauv av- chaw nres tsheb ua haujlwm.

Teeb liab: Qhia txog qhov tsis ua haujlwm tseem ceeb, xwm txheej ceev, lossis tsis muaj kev nyab xeeb, xws li crane overload lossis mechanical tsis ua haujlwm.

Yellow/Amber Lights: Ceeb toom ntawm tsis yog - teeb meem tseem ceeb los yog yuav muaj kev phom sij, xws li mus txog qhov txwv kev ua haujlwm.

Teeb Ntsuab: Qhia txog kev ua haujlwm ib txwm lossis tias lub crane ua haujlwm nyob rau hauv qhov tsis muaj kev nyab xeeb.

2) txwv hloov

Ib qho kev txwv hloov ntawm xws li gantry crane plays lub luag haujlwm tseem ceeb hauv kev nyab xeeb thiab kev tswj xyuas kev ua haujlwm. Nws yog cov cuab yeej siv tshuab lossis hluav taws xob siv los txheeb xyuas cov kev txwv kev mus los ntawm crane lub zog. Kev txwv kev hloov pauv feem ntau yog ntsia rau ntawm lub crane lub trolley lossis gantry qauv los tiv thaiv dhau - mus txawv tebchaws, uas tuaj yeem ua rau muaj kev puas tsuaj rau cov khoom siv lossis cov xwm txheej txaus ntshai. Lawv xyuas kom meej tias lub crane tsis txav mus dhau nws qhov kev nyab xeeb kev ua haujlwm nyob rau hauv kab rov tav, ntsug, lossis kev sib hloov cov lus qhia.

Kab rov tav (ntev) mus ncig txwv kev hloov pauv - Cov no tiv thaiv lub crane txav mus deb dhau ntawm qhov chaw nres nkoj lossis chaw tsim kho.

Vertical (hoisting) txwv kev hloov pauv - Cov no tiv thaiv tus nuv lossis nqa lub tshuab los ntawm kev mus dhau nws cov kev txwv sab saud lossis qis dua.

Lateral (trolley lossis gantry) txwv kev hloov pauv - Cov no pab tiv thaiv lub trolley lossis gantry qauv ntawm kev txav ntawm nws txoj kev los yog txoj kev.

Kev hloov pauv hloov pauv - Hauv cov xwm txheej uas lub crane muaj qhov sib hloov boom lossis caj npab, cov kev txwv kev hloov pauv yuav pab kom tsis txhob dhau - kev sib hloov.

10. Cov khoom siv ruaj ntseg

1) Overload tiv thaiv ntaus ntawv: Overload Limiters: Cov cuab yeej no saib xyuas cov khoom thauj. Yog hais tias lub crane tshaj nws lub peev xwm nqa lub peev xwm, lub kaw lus yuav cia li nres kev ua haujlwm lossis teeb tsa kev ceeb toom.Nruam xyuas cov load thiab boom lub kaum ntse ntse, kom ntseeg tau tias lub crane tsis dhau qhov kev nyab xeeb nqa.

2) Anti-Sway Systems: Txo cov kev sib tw viav vias ntawm cov khoom thauj los tiv thaiv kev sib tsoo lossis kev tswj tsis tau, tshwj xeeb tshaj yog thaum txav hnyav lossis tshem tawm cov loads.Qee lub cranes siv cov tshuab tsis siv neeg uas tswj qhov ceev ntawm crane los yog siv counterweights los tswj lub sway ntawm lub load.

3) Kev Tiv Thaiv Kev Sib Tw: Tiv thaiv kom tsis txhob lub crane txav mus dhau qhov kev txwv tsis pub dhau. Cov keyboards no nres lub crane yog tias nws mus txog qhov chaw txaus ntshai (piv txwv li, ze rau lwm lub crane lossis ib qho chaw khuam siab). Tshawb xyuas cov khoom lossis cov neeg ua haujlwm nyob ze ntawm lub crane thiab tiv thaiv kev txav mus los hauv thaj chaw muaj kev phom sij.

4) Emergency Stop Systems: Lub tswv yim nyob rau hauv qhov chaw nres tsheb thaum muaj xwm ceev tuaj yeem nres qhov kev ua haujlwm crane tam sim ntawd thaum muaj xwm txheej ceev.Qee qhov loj gantry cranes tau nruab nrog lub chaw taws teeb kaw thaum muaj xwm ceev kom cov neeg ua haujlwm nres lub crane los ntawm qhov deb yog xav tau.

5) Crane Monitoring Systems: Lub koob yees duab soj ntsuam video tau teeb tsa ntawm lub crane lossis nws tus neeg tsav tsheb lub ru tsev muab kev pom ntawm qhov muag tsis pom kev thiab ua kom muaj kev nyab xeeb ntawm kev ua haujlwm.Cov tshuab no muab cov ntaub ntawv tiag - sijhawm ntawm crane kev ua tau zoo, kuaj xyuas, thiab kev siv. Cov neeg khiav dej num thiab pab pawg saib xyuas tuaj yeem saib xyuas cov xwm txheej crane nyob deb.

6) Cua thiab huab cua Sensors: Tshawb xyuas cua ceev kom ntseeg tau tias lub crane tsis ua haujlwm hauv huab cua tsis zoo, xws li cua kub siab.Ntim cov xwm txheej tsis zoo (xws li xob laim, nag hnyav, huab cua txias) thiab tej zaum yuav txwv tsis pub crane txav yog tias pom huab cua txaus ntshai.

11.Control hom

1) Kev Tswj Xyuas Kev Tswj ntawm Joysticks lossis Consoles: Cov neeg ua haujlwm tuaj yeem siv cov txheej txheem tswj hwm kom tswj tau lub crane. Qhov no yuav koom nrog kev tswj lub ntsiab hoist, lub trolley, lub gantry lub lateral txav, thiab kev sib hloov ntawm lub crane.

2) Automated Systems: Qee qhov niaj hnub gantry cranes tau nruab nrog automation thiab AI-raws li kev tswj hwm los ua kom zoo dua qub, kev nyab xeeb, thiab txo tib neeg kev ua yuam kev. Cov tshuab no tuaj yeem pab ua cov haujlwm rov ua dua, tso cov thawv ntim khoom, lossis kho cov crane nrawm raws li cov khoom hnyav thiab ib puag ncig.

3) Chaw taws teeb tswj: Ntau lub cranes loj tshaj plaws yog nruab nrog cov chaw taws teeb tswj, tso cai rau cov neeg ua haujlwm tswj lub crane los ntawm qhov deb, feem ntau hauv tsheb tavxij lossis txawm tias los ntawm chav tswj. Qhov no ua rau lawv pom kev zoo dua ntawm txoj haujlwm thiab tso cai rau kev nyab xeeb ntawm kev ua haujlwm hauv qhov chaw nyuaj.

4) Kev Nyab Xeeb Kev Nyab Xeeb: Cov cranes no tseem muaj cov txheej txheem kev nyab xeeb zoo los tiv thaiv kev sib tsoo. Cov no yuav suav nrog cov khoom siv thauj khoom, tiv thaiv- thev naus laus zis kev sib tsoo, thiab cov txheej txheem nres thaum muaj xwm ceev.

12. Daim duab

Main technical

Qhov zoo ntawm 10 Tuj Ob Chav Girder Gantry Crane nrog Hoist

Siab Load Capacity

Tshwj xeeb tsim los nqa thiab thauj khoom mus txog 10 tons nrog yooj yim thiab meej.

Qhov zoo tshaj plaws rau nruab nrab -heavy industrial applications.

Superior Structural Strength

Ob chav girder tsim kom ntseeg tau siab rigidity, tsawg deflection, thiab zoo dua load faib.

Ua kom muaj kev nyab xeeb ntawm cov khoom loj lossis dav -span loads.

Ntau dua Lifting Qhov siab

Lub hoist yog mounted rau saum los yog nruab nrab ntawm cov girders, muab ntau ntsug clearance piv rau ib tug girder cranes.

Dav dav muaj peev xwm

Haum rau qhov dav rhiav lossis thaj chaw me me uas tsis muaj kev cuam tshuam rau kev ua haujlwm.

tuaj yeem hloov kho kom npog thaj chaw ua haujlwm loj.

Precise Load Handling

Smooth thiab ruaj khov trolley txav raws cov girders tso cai rau qhov tseeb qhov chaw ntawm cov khoom hnyav.

Txo cov khoom puas tsuaj thiab txhim kho kev nyab xeeb ntawm kev ua haujlwm.

Versatile Installation

Nws tuaj yeem ntsia tau rau hauv tsev (rhiav, factories) thiab sab nraum zoov (yards, chaw tsim kho).

Optional rail -mounted lossis roj hmab-tyred configurations ua kom yooj.

Kev Siv Khoom Siv Tau Zoo

Txo kev siv tes ua haujlwm thiab txhim kho kev tuav ceev thiab tsim khoom.

Muaj txiaj ntsig rau kev rov ua dua lossis siab -ntau zaus nqa cov haujlwm.

Advanced Control Options

Muaj ntau yam kev tswj hwm: pendant, tej thaj chaw deb, los yog cabin.

Txhim kho kev nyab xeeb thiab tus neeg teb xov tooj yooj yim.

Customizable Tsim

Adaptable nyob rau hauv cov nqe lus ntawm ncua ntev, nqa qhov siab, hoist hom, ceg qhov siab, thiab mus ncig teb chaws system kom tau raws li qhov project xav tau.

Durability thiab Low Maintenance

Ua nrog siab - cov khoom zoo thiab cov qauv hlau muaj zog.

Lub neej ua haujlwm ntev thiab qis qis qis nrog kev saib xyuas kom zoo.

A 10 Tuj Ob Chav Girder Gantry Crane nrog Hoistyog dav siv nyob rau hauv kev lag luam uas yuav tsum tau meej, hnyav -cov ntaub ntawv tuav ob sab hauv tsev thiab sab nraum zoov. Nws lub zog, ruaj khov, thiab yoog raws ua rau nws haum rau ntau qhov chaw ua haujlwm.

1. Kev tsim cov nroj tsuag

Kev nqa thiab thauj cov khoom siv tshuab loj, cov khoom siv raw, lossis ib nrab- cov khoom tiav.

Zoo tagnrho rau cov kab sib dhos thiab cov cuab yeej tsim kev cob qhia.

2. Hlau thiab Hlau Fabrication

Kov hnyav hlau daim hlau, cov kab hluav taws xob, cov coils, thiab cov khoom tsim.

Txhawb kev vuam, txiav, thiab machining cov haujlwm.

3. Cov chaw tsim kho

Tsiv cov khoom siv xws li precast qhob ntu, steel qauv, thiab cov cuab yeej.

Feem ntau siv rau kev tsim cov choj, cov tsev lag luam, thiab cov chaw nres nkoj.

4. Warehousing thiab Logistics

Kev txhim kho zoo thiab tshem tawm cov khoom hnyav lossis cov khoom siv ntau.

Yooj yim thauj khoom thiab tshem tawm cov haujlwm hauv chaw cia khoom.

5. Railway thiab Shipbuilding Yards

Lifting thiab positioning hnyav rail qhov chaw, cav, los yog nkoj Cheebtsam thaum sib dhos los yog kho.

6. Cov chaw tsim hluav taws xob thiab cov khoom siv hluav taws xob

Siv rau lifting transformers, generators, thiab lwm yam khoom hnyav thaum tu lossis installation.

7. Kev kho vaj tse thiab khoom siv hnyav

Pab tuav cov khoom siv mining loj thiab cov cuab yeej hauv kev kho bays lossis kev cob qhia.

8. Thawv thiab Freight Yards

Tuav 10-tuj cov thawv ntim khoom thiab hnyav pallets hauv cov chaw nres nkoj hauv av lossis cov chaw thauj khoom.

1. Tsim Phaj: Ib pab neeg tsim qauv tsim qauv tsim, xav txog qhov yuav tsum tau nqa lub peev xwm, qhov ntev, ib puag ncig yam (cua, seismic kev ua), thiab kev xav tau kev ua haujlwm (ceev, tswj). Qhov no suav nrog kev suav rau lub zog thiab kev ruaj ntseg, suav nrog kev ntsuas kev ntxhov siab kom muaj kev nyab xeeb.High - lub zog steel thiab alloys raug xaiv rau ntau yam cranes, xws li kab teeb, ceg, thiab cov qauv gantry. Corrosion- cov ntaub ntawv tiv taus kuj tseem raug xaiv rau qhov chaw raug rau qhov chaw hnyav.

2. Cheebtsam Fabrication: Lub gantry ncej, uas suav nrog ob txhais ceg, hla kab, thiab cov qauv saum toj kawg nkaus, yog fabricated. Qhov no suav nrog kev txiav, vuam, thiab sib dhos steel seem.Cov ceg, uas yog cov khoom tseem ceeb- cov kabmob, yog tsim los ua cov qauv ntsug loj thiab tom qab ntawd welded thiab ntxiv dag zog.Lub crane lub log lossis cov lem yog tsim, tso cai rau lub gantry txav raws txoj kab lossis hauv av. Qhov no yog qhov tseem ceeb rau kev tso lub crane rau kev ua haujlwm sib txawv.

3. Jacking thiab Assembly ntawm Main Ncej: Cov ntu loj ntawm lub gantry crane feem ntau ua rau hauv ib qho qauv, lub ntsiab lus ntau yam yog tsim nyob rau hauv ntau qhov chaw thiab ces sib sau ua ke ntawm qhov chaw.Rau qhov sib dhos ntawm cov khoom loj tshaj plaws, cov cuab yeej tshwj xeeb xws li jacks, cranes, thiab forklifts yog siv los nqa thiab ua haujlwm ib leeg. Qhov no feem ntau suav nrog kev siv laser qib siab -cov txheej txheem coj los xyuas kom meej tias txhua yam nyob hauv qhov chaw.

4. Kev txhim kho ntawm Hoisting System: Qhov no suav nrog lub ntsiab hoist, uas yog lub luag haujlwm rau kev nqa cov khoom thauj. Lub hoist tej zaum yuav muaj ib tug series ntawm pulleys, winches, thiab cables uas yuav tsum tau muab ntsia thiab sim.Lub crane yuav tsum muaj ib tug haib lub cev muaj zog nqa thiab txo cov loads hnyav. Qhov no lub cev muaj zog, feem ntau yog hluav taws xob los yog hydraulic system, yog muab tso rau hauv lub hoist los ua ke thiab txuas nrog rau cov tswj system.

5. Cov Khoom Siv Hluav Taws Xob thiab Cov Hluav Taws Xob: Cov crane lub tshuab hluav taws xob tau teeb tsa, suav nrog cov sensors, cov yam ntxwv kev nyab xeeb, thiab cov tshuab tswj. Cov no suav nrog kev tiv thaiv - kev sib tsoo tshuab, cov khoom siv thauj khoom, thiab cov software siv los ua haujlwm ntawm crane remotely.Kev sim ntau dhau yog ua kom ntseeg tau tias lub crane tuaj yeem ua haujlwm zoo, nrog rau qhov tseeb, thiab tsis muaj qhov yuam kev. Qhov no suav nrog kev sim rau kev sib npaug ntawm kev thauj khoom, tswj kev txav mus los, thiab kev kaw thaum muaj xwm txheej ceev.

6. Kev Ntsuas thiab Kev Ntsuas: Lub crane tau dhau qhov kev kuaj xyuas nruj kom ntseeg tau tias nws tuaj yeem tuav qhov hnyav tshaj plaws uas nws tau tsim rau. Qhov no suav nrog cov kev sim zoo li qub (tsis muaj kev txav mus los) thiab kev sim dynamic (tsiv nrog lub nra). Lub crane txav, nrog rau nws qhov ceev, nqa lub peev xwm, thiab ntau yam ntawm kev txav, raug sim nyob rau hauv tiag - lub ntiaj teb tej yam kev mob. Qhov no ua kom lub crane ua haujlwm raws li qhov xav tau.Kev tshuaj xyuas kev nyab xeeb ntau dhau los xyuas kom ua raws li cov qauv thoob ntiaj teb rau kev nqa hnyav thiab kev lag luam.

7. Thaum kawg Kev Sib Tham thiab Kev Ua Haujlwm: Thaum tag nrho cov tshuab raug kuaj thiab ua haujlwm tiav, lub crane tau ua tiav thiab npaj rau kev commissioning.Yog hais tias lub crane tau ua ib feem ntawm lwm qhov, kev sib dhos zaum kawg yuav tshwm sim rau ntawm - qhov chaw, qhov chaw crane tau tsiv mus rau nws qhov chaw ua haujlwm.Operators thiab tu cov neeg ua haujlwm raug cob qhia hauv kev ua haujlwm ntawm lub gantrycol crane, uas suav nrog cov txheej txheem kev nyab xeeb.

8. Kev Siv thiab Kev Kho Kom Zoo: Lub crane yuav raug soj ntsuam raws sij hawm thiab kev saib xyuas kom ntseeg tau tias nws txuas ntxiv ua haujlwm thiab kev nyab xeeb. Qhov no suav nrog kev kuaj xyuas qhov hnav thiab tsim kua muag ntawm cov khoom tseem ceeb xws li cables, motors, thiab hoists.Thaum lub sij hawm, lub crane tuaj yeem hloov kho lossis hloov kho kom zoo dua qub, kev nyab xeeb, lossis nqa lub peev xwm.

Rhiav saib:

Lub tuam txhab tau teeb tsa cov cuab yeej ntse tswj kev tswj hwm lub platform, thiab tau teeb tsa 310 teeb (teev) ntawm kev tuav thiab vuam robots. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teeb (sets), thiab cov khoom siv sib txuas sib txuas yuav ncav cuag 95% . 32 cov kab vuam tau muab tso rau hauv kev siv, 50 tau npaj los nruab, thiab automation tus nqi ntawm tag nrho cov khoom kab tau mus txog 85%.
