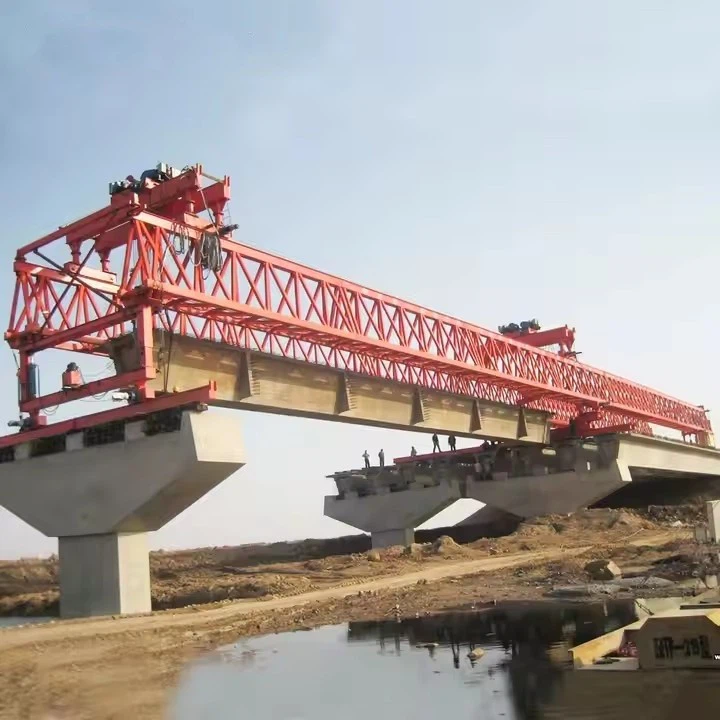

Highay Choj Girder Launcher Girder Crane

Highway Choj Girder Launter Crower Girder lossis Girder Launcher lossis Girder Launcher lossis Girder, thiab Steel Girders thaum Choj thiab txoj kev tsheb. Cov khoom siv hnyav-cov khoom siv hnyav yog qhov tseem ceeb rau kev sib sau ua ke choj.
Choj Girder Erection Cranes yog dav siv nyob rau hauv txoj kev loj, kev tsheb nqaj hlau, thiab hla kev tsim kho, thiab lawv yog qhov tseem ceeb rau cov phiaj xwm
xav tau cov kev pom zoo, kev ua tau zoo, thiab kev nyab xeeb thaum tuav cov txheej txheem loj.

Cov Nta Tseem Ceeb & Cov Kev Pab

✅ Siab Lifting Muaj Peev Xwm- Qee cov qauv coj mus txog 160 tons.
✅ Ua Tau Los Tso Rau Girder Girder- Muaj peev xwm erect 4 girders ib hnub nrog ib tug pab cranes.
✅ Kev hloov tau- Ua haujlwm ntawm nkhaus lem (R350 lub vojvoog) thiab cov kab sib tshooj.
✅ Yam ruaj khov- Tsim rau ISO, CE, thiab Suav kev nyab xeeb qauv.

1. Lifting muaj peev xwm: 160 tons (tsis suav tus loj dua qhov hnyav)

2. Kev ua tus kheej ntawm tus choj txhawb nqa: 118 tons (siab tshaj plaws ntawm ib daim: 7T)

3. Cua Kuj

Tsis muaj-thauj taug kev xeev: 8 qib

Tsis muaj-thauj Anchoring State: 12 qib

Tsa lub xeev nrog tag nrho load: Qib 7

4. Lifting ceev: tag nrho thauj: {0 ~ 1. 0}}

Tsis muaj lub nra: {0 ~ 1.5 m \/ min

5. Luffing nrawm: {{{0 ~ {0. 6 m \/ min (nrog thauj Luffing)

6. Ua haujlwm khwv: RMIN =7 m rmax =12 m

7. Lub tshuab taug kev ntawm tag nrho cov tshuab: Taug kev hom (cov roj raj (cov roj raj thawb, thiab tsis muaj kev thauj khoom thaum lub sijhawm taug kev)

8. Taug kev ceev ntawm tag nrho lub tshuab: tag nrho cov kev txav yog 15m, suav nrog lub thauj tog rau nkoj disassembly, thiab muab tso rau, tag nrho cov txheej txheem tsis muaj ntau tshaj 2 teev.

9. Tsis muaj-thauj cov peev xwm ntawm tag nrho cov tshuab: ± 3.5 degree

10. Lifting qhov siab: 65m hauv qab tus choj lawj, 1m saum toj no tus choj

11. Pem hauv ntej thiab tig rov qab rau Anchoring Deb nrug: 18m (16m, 19.5m)

12. Qhov kev ncua deb ntawm sab laug thiab txoj cai txhawb cov ntsiab lus thaum ua haujlwm: sab nraud 10.5m, sab hauv 5.7m

Kev ncua deb ntawm sab pem hauv ntej thiab tom qab txhawb cov ntsiab lus: 16.85m

13. Lifting deflection Angound: Kab rov tav Choj sib txuas 1.5 degrees, longitudinal Choj Taw Qhia 3.5 degrees

14. Tus Tshaj Tawm Txoj Haujlwm Kev Ua Tau Zoo: Nrog Kev Ua Kom Ceev thiab Kab Rov Tav Fulling

15. Lub peev xwm txhim kho ntawm tag nrho lub tshuab: 110KW

16. Stability factor of the whole machine:  meets the requirements of GB3811-83 ( various working conditions∑M>0 )

17. Cov khoom lag luam thiab qhov dav dav: Taug kev qoj ib ce, kev sib tw ntawm cov tub rog sab nraud, tuaj yeem hloov kho, thiab}} E}

Lub ntsiab Cheebtsam ntawm tus choj Girder Launcher

1. Cov qauv girder tseem ceeb

Muab ob npaug rau-girder tsim (ib txwm muaj cov khoom siv hnyav) lossis ib leeg-girder (girder (cov ntawv thov sib dua).

Ua los ntawm lub siab-zog hlau los txhawb qhov hnyav ntawm cov tsiaj muaj txiaj ntsig (nce mus txog 160 tons hauv qee cov qauv).

2. Hoisting Txheej Txheem

Hlau Hlua Hoist (rau kev nqa thiab txo qis girders).

Trolley system tsiv rov qab rau girder rau kev qhia meej meej.

3. Txhawb nqa ceg & mus ncig ua si

Rail-mounted log rau kev txav mus raws txoj kev tsim kho choj.

Kho tau ob txhais ceg kom ruaj khov rau lub crane ntawm cov av nkos tsis sib xws.

4. Tswj System

Hluav taws xob-siv hluav taws xob nrog pendant lossis chaw taws teeb tswj rau cov neeg teb xov tooj kev nyab xeeb.

Kuj tsis paub meej ceev cov motors rau cov girder girder.

5. Kev ruaj ntseg nta

Kev tiv thaiv ntau dhau los tiv thaiv crane tsis ua haujlwm.

Txwv kev hloov chaw kom tsis txhob hla kev ntawm Trolley.

Anti-tswv yim mechanisms rau kev ruaj khov ntawm cov kab.

Daim duab kos

Nta ntawm Highway Choj Girder Erection Tshuab:

Highway Choj Girder tau tshwj xeeb Gantry cranes tsim rau kev ua tau zoo thiab precise installation ntawm precast qhob girders hauv cov choj kev tsim kho. Hauv qab no yog lawv cov ntawv thov tseem ceeb, muab tau los ntawm kev lag luam siv cov kab mob thiab cov chaw tsim khoom Specifications:

1. Kev Loj & Kev Nkag Tebchaws Siv

Erecting precast qhob girders (feem ntau 20m-50m spans) rau cov viaducts thiab overpasses 68.

Kev kub ceev cov haujlwm (piv txwv li, 250-350 km \/ h kab), qhov twg ceev thiab precision yog qhov tseem ceeb.

2. Qhov Chaw & Tshuaj Kho Chaw Haujlwm

Navigating cov chaw nres tsheb nruj (piv txwv li, qhov chaw portals) nrog foldable "c" -Shaped txhawb nqa kom txo qis hneev.

Erecting girders sab hauv kev siv cov qauv kev cog lus xws li HZQDY900 qauv.

3. Nroog Infrastructure Kev Loj Hlob

Lub Tsev Txhawb Nqa Hauv Nroog Qhov chaw ib txwm cranes tsis muaj peev xwm.

Tuav cov kab nkhaus nkhaus (min. Lub vojvoog R350) nrog kho tau trolleys.

4. Cov choj loj-ntev erection

Tshaj tawm lub thawv girders (mus txog {900- tuj muaj peev xwm) rau cov choj ntev.

Ib txhij nqa thiab txhim kho, txo kev cia siab rau ntawm ib tug cranes.

5. Cov Ntxawm Ua Haujlwm Ceev

Txhim kho {{{0} mi} girders ib hnub nrog kev sib koom tes ntawm kev ua haujlwm ntawm Cranes 69.

Qhov kev sib dhos ua ke los ntawm cov qauv tsim qauv (piv txwv li honeycomb-girder qauv).

1. Tsim & Engineering
Yuav tsum tsom xam: Nkag siab cov kev qhia tshwj xeeb, choj Asmeskas, thauj khoom muaj peev xwm, thiab chaw kawm.
Tsim qauv txheej txheem: Tsim cov ncauj lus kom ntxaws thiab cov neeg siv tshuab tsim, suav nrog kev ua cov lej, kev tsom xam kev ntxhov siab, thiab cov yam ntxwv kev nyab xeeb.
Kev Pom Zoo & Kev Ntsuam Xyuas: Xa cov qauv rau cov neeg siv khoom thiab pab neeg ua haujlwm engineering, ua raws li cov kev hloov kho uas tsim nyog.
2. Cov Khoom Siv Pauv
Cov phiaj hlau hlau & Cheebtsam: Yuav Cov Phiaj Hlau Hlau Hlau, Ntu (H-Beam, Box Girder Profiles), thiab lwm cov ntaub ntawv raw.
Hydraulic & cov tshuab hluav taws xob: Ua kom tau cov kheej kheej kheej, lub tshuab hluav taws xob ua hluav taws xob zoo nkaus li qub, tswj khoom siv, tswj cov tshuab, thiab lwm qhov chaw tseem ceeb.
3. Cov Qauv Hlau Fabrication
Kev txiav: cnc ntshav \/ laser txiav ntawm cov hlau hlau thiab teeb raws li kev tsim cov duab kos.
Machining: Precision Machining ntawm cov khoom tseem ceeb li tus pin qhov, cov kabmob cov kabmob, thiab pob qij txha.
Vuam: Sib dhos thiab vuam ntawm cov qauv hlau (thooj loj girder, sab hauv ntej \/ nram qab, hla kab teeb, thiab lwm yam).
Tsis yog-kev sim ua phem (NDT): Ultrasonic los yog nqus cov kev sim tshuaj xyuas cov tshuaj xyuas Welsds.
4. Nto Kho
Blasting: Sandblasting lossis txhaj tshuaj tiv thaiv kom tshem tawm xeb thiab impurities.
Painting: Thov cov tsho tiv no, thiab cov todcoats raws li Corrosion tiv thaiv tus qauv (piv txwv li, epoxy lossis polyurethane txheej).
5. Sib dhos ntawm cov tshuab kho tshuab
Cov Txheej Txheem Hydraulic: Mount thooj voos kheej kheej, twj, hoses, thiab cov koog.
Cov Hluav Taws Xob Hluav Taws Xob Cov Hluav Taws Xob: Txhim Kho Cov Panels, Txwv cov kev hloov chaw, hlau, thiab lwm yam khoom siv tshuab.
Gearbox & Winch Installation: Ua raws li Lifting watches, gearboxes, thiab tsav cov tshuab.
6. Ua ntej ua ke & kev xeem
Kev sib ntsib ua ke: Ua ntej ua ke cov qauv tseem ceeb (piv txwv li Girder loj nrog ob txhais ceg) ntawm lub rhiav.
Kev Ntsuas Xyuas Haujlwm: Kuaj Hydraulic thiab cov tshuab hluav taws xob, paub tseeb txog kev nqa \/ txo cov txheej txheem, thiab ua kom cov khoom lag luam.
7. Disassembly & Ntim
Disassembly: Txhaum cov launcher rau hauv kev thauj khoom.
Packing: Siv kev kho mob corrosion thiab pob ntim rau cov khoom xa tuaj (piv txwv li ntoo ntoo, cov thav duab steel).
8. Tsheb thauj mus rau qhov chaw
Npaj Npaj Ua Si: Koom tes thauj khoom ntawm Launcher modules rau tus choj tsim kho.
9. Nyob rau ntawm lub xaib los ua ke & commissioning
Kawg ua ke ua ke: sib sau ua ke rau lub launcher rau ntawm lub xaib nyob rau hauv kev saib xyuas ntawm cov kws tshaj lij choj.
Commissioning & kev thauj khoom: Ua kev xeem thauj khoom tiag tiag, kev kuaj xyuas kev nyab xeeb, thiab kev kho kom haum.
10. Heem & Kev Kawm
Tes Haujlwm rau Cov Neeg Siv Khoom: Ua raws li lub rooj sib sau ua ke tag nrho.
Cov neeg teb xov tooj kev cob qhia: Muab kev cob qhia rau cov neeg ua haujlwm ntawm kev nyab xeeb thiab txij nkawm.

2. Cov txheej txheem ntau lawm pib nrog tsim qauv thiab Engineering theem, qhov uas cov kev qhia txuj ci ua haujlwm tau tsim. Qhov no suav nrog kev ua tib zoo npaj thiab tsom xam, kev xav ua kev xav xws li siv tau siv, qhov muaj peev xwm thiab qhov chaw nyob. Cov kws txawj txua cov engineers ua haujlwm ua ke los tsim cov ncauj lus kom ntxaws ntawm tus choj Girer Launcher, uas ua haujlwm ua lub hauv paus rau qhov tiag tiag.

3. Qhov thib ob theem ob ntawm cov txheej txheem ntau lawm koom nrog rau cov ntaub ntawv tiag tiag ntawm tus choj Girer Launcher. Qhov no yuav tsum siv cov cuab yeej tshwj xeeb thiab kev txawj ntse, nrog rau kev ua raws kev nyab xeeb kom ntseeg tau tias muaj kev nyab xeeb thiab muaj txiaj ntsig ntau lawm. Cov kws tshaj lij cov thev naus laus zis ua haujlwm nrog cov ntaub ntawv los tsim cov khoom lag luam girder thiab cov sib sau ua ke los tsim tus choj tus choj kawg.

4. Thaum tus choj Girer Launcher tau ua tiav, nws undergoes ib tug qauv kev tswj hwm nruj ua kom ntseeg tau tias nws ua tau raws li txhua yam tshwj xeeb thiab cov qauv kev nyab xeeb. Qhov no suav nrog kev xeem lub launcher lub durability, qhov hnyav muaj peev xwm thiab qhov tseeb hauv kev tsim girders.

5. Nyob rau hauv tag nrho cov txheej txheem ntau lawm, tus cwjpwm zoo thiab muaj kev coj zoo yog qhov tseem ceeb los xyuas kom muaj kev ua tiav phiaj xwm. Txhua kauj ruam yuav tsum ua tib zoo saib xyuas kom nthuav dav thiab thev, nrog rau kev cog lus rau kev ua tau zoo thiab kev tsim kho tshiab.

6. Hauv kev xaus, kev tsim cov ntawm tus choj Girder Launcher yog qhov tseem ceeb ntawm cov txheej txheem kev tsim kho choj. Nws yuav tsum muaj kev txawj ntse thiab kev txawj ntse ntawm pab pawg kawm paub, uas nquag ua haujlwm thiab nrog tus cwj pwm zoo los xyuas kom muaj txiaj ntsig zoo. Los ntawm kev tswj kom muaj txiaj ntsig zoo, peb tuaj yeem tsim kho cov vaj tse uas yuav ua rau peb lub neej tom ntej.

Lub tuam txhab tau teeb tsa cov khoom siv tswj hwm kev txawj ntse platform, thiab tau teeb tsa 310 teev (teeb tsa) ntawm kev tuav thiab vuam hlau. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teev (teeb tsa), thiab cov khoom siv sib txuas lus yuav ncav cuag 95%. 32 VUAM txoj kab tau muab tso rau hauv kev siv, 50 tau npaj yuav tsum tau nruab, thiab kev siv lub tshuab ntawm cov kab ntawv tag nrho tau mus txog 85%.
