120ton Choj Nqeeb Launcher

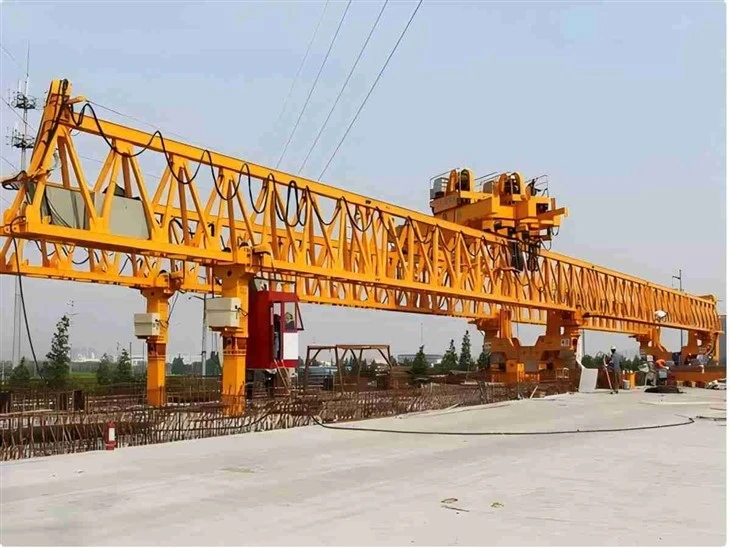

Tus{{0 {0}} tuj choj Nqaj Launcheryog cov khoom tshwj xeeb ntawm cov cuab yeej siv hnyav tsim rau cov khoom siv tau zoo thiab muaj kev nyab xeeb ntawm precast qhob xoo ci rau choj. Nws yog feem ntau siv nyob rau hauv txoj kev loj, kev tsheb ciav hlau, thiab kev tso dej hauv kev ua kom nrawm nrawm nrog cov teeb loj loj nrog kev nyab xeeb tsawg tshaj plaws thiab kev nyab xeeb tshaj plaws.





Ib qho 120- tuj Choj Beam Launcher yog cov khoom tshwj xeeb tsim rau kev nqa khoom thiab tso cov teeb txawb ntev thaum ua haujlwm tsim kho. Ntawm no yog nws cov yam tseem ceeb:

1. Load muaj peev xwm & qauv
Lifting muaj peev xwm: 120 tons, haum rau kev daws cov kab teeb ci loj ua ntej.

Tus qauv: feem ntau yog muaj ib qho loj loj girder, txhawb ob txhais ceg, thiab cov txheej txheem trolley.

Cov Khoom Siv: Kev Loj Siab-Lub Zog Hlau rau Kev Ruaj Ntseg thiab Ruaj Khwv.

2. Ua Haujlwm Mechanism
Girder Tshaj Lij System: Tseg Cov Teeb Txaj Ntawm Ib Ntoos mus rau lwm qhov kev siv cov kab hlau.

Trolley Txheej txheem: nruab nrog winch rau kev nqa thiab muab cov nqaj.

HYDRAULIC LOS SIV COV NQE FAIS: Ua kom cov haujlwm ua haujlwm du thiab tswj kom meej.

3. Kev ua haujlwm nta
Kev yoog tau: Haum rau cov choj ntev ntev ntev.

Adjustable kev txhawb nqa ceg: tso cai rau kev hloov pauv ntawm cov chaw sib txawv thiab kev ua haujlwm.

Tej thaj chaw deb & phau ntawv tswj: txhim kho kev nyab xeeb thiab precision hauv kev ua haujlwm.

4. Kev Nyab Xeeb Nta
Kev tiv thaiv ntau dhau: txwv tsis pub muaj qhov hnyav ntau dhau los ntawm lub tshuab ua kom puas.

Anti-Tilt System: tswj kev sib npaug thaum tuav cov nra hnyav.

Tso tseg thaum muaj xwm ceev: ua kom muaj kev kaw tam sim thaum tsis ua haujlwm.

5. Muaj Mob & Txhim Kho
Modular tsim: ua rau nws yooj yim sib dhos, disassemble, thiab thauj.

Tus kheej cov khoom siv tus kheej: Tsiv kev ywj pheej ntawm tus choj piers.

Compact qauv: Haum rau kev tsim kho cov chaw tsim kho.

6. Daim ntawv thov
Kev Loj & Kev Thauj Mus Hluav Taws Xob

Nroog hla dhau thiab cov kev sib tw

Precast Qhob Girder Erection





Ib qho 120- tuj choj nqaj hluav taws xob tua cov tshuab tshwj xeeb hnyav siv rau kev tsim kho hauv Choj. Ntawm no yog nws cov kev tshwj xeeb:

1. General tsis
Lifting muaj peev xwm: 120 tons

Muaj feem pheej yig ntev: 20-50 metres (txawv los ntawm qauv)

Siv tau nqaj nqaj: Ua kom zoo dua cov nqaj hlau (T-nqaj, thawv Girder, I-Beach, thiab lwm yam)

Cov qauv hom: truss lossis thawv girder

2. Neeg kho tshuab tshwj xeeb
Lub ntsiab Girder Ntev: 35-55 Meters (Customizable)

Tshaj tawm ceev: 3-5 m \/ min (txawv)

Txoj kev ntsuas nqaj erection: ntsuas cantilever lossis tag nrho-ntev sib dhos

Taug qab hom: kev tsheb nqaj hlau los yog roj hmab-nkees

3. Hoisting Mechanism
Lifting Winch Peev: 120 tons

Lifting Ceev: {0. 5-5 m \/ min

Tus naj npawb ntawm Winches: 2 lossis 4 (raws li kev tsim qauv)

4. Taug kev ncig
Transverse Tsiv Tshav Kub: 2-6 m \/ min

Ntev mus rhais chaw ceev: 3-8 m \/ min

Lub Hwj Chim Qhov Source: Hydraulic lossis Hluav Taws Xob Tsav

5. Khoom Siv Hluav Taws Xob
Voltage: 380V \/ 50Hz (Customizable)

Tswj hom: chaw taws teeb tswj + phau ntawv ua haujlwm

6. Kev ruaj ntseg nta
Kev tiv thaiv ntau tshaj

Tso Tseg Thaum Muaj Xwm Ceev

Kev tiv thaiv los tiv thaiv kev tiv thaiv

Cua tiv thaiv nce mus txog 10 m \/ s









Ib qho 120- tuj choj Nqaj Launcher (tseem hu ua tus choj Girder Launcher lossis Choj Siv Ua Ntej Siv Rau Cov Khaub Ncaws Zoo Nws muaj ntau qhov tseem ceeb:

1. Cov qauv tseem ceeb
Girder loj: Thawj cov ris nra-bearing nqaj uas spans tus choj txhawb nqa.

Txhawb ob txhais ceg (pem hauv ntej thiab nram qab): kho tau ceg uas pab txhawb nqa lub launcher ntawm piers.

Xaus Beams: Nyob ntawm ob qho kawg, txuas lub ntsiab girder rau cov ceg txhawb nqa.

2. Nqa thiab hoisting system
Winches thiab hoists: siv los nqa thiab muab cov tsiaj ua ntej.

Cov hlua hlau thiab cov pulleys: qhov tseem ceeb rau kev tswj kev nqa thiab txav mus los.

HYDRAUY HYDRAULIC: muab hwj huam rau kev nqa thiab muab tso.

3. Taug kev tsheb
Rail los yog taug qab cov kab ke: Tso cai rau tus Launcher tau txav mus raws tus choj sib ncag.

Trolley Txheej txheem: Tsiv lub zog ntawd rov qab thiab tawm.

Tsav Motors thiab iav System: Muab txav txav thiab tso.

4. Kev Nyab Xeeb thiab Tswj Xyuas
Tus tswj hwm hluav taws xob: PLC (programmable logic maub los) rau kev rho tawm.

Vaj tse tswj vaj huam sib luag: Tso cai rau cov neeg ua haujlwm los tswj lub launcher muaj kev nyab xeeb.

Sensors thiab txwv hloov chaw: kom muaj kev nyab xeeb thiab tiv thaiv kev tshaj lij.

Braking System: Tiv thaiv kev tsis tuaj yeem txav.

5. Khoom Siv Hluav Taws Xob
Fais lossis chav fais fab hydraulic: muab lub zog tsim nyog rau kev nqa thiab txav.

Cables thiab txuas: ua kom muaj kev sib kis tau zoo.

6. Txhawb nqa thiab cov cheebtsam ruaj khov
Counterweights: sib npaug ntawm cov qauv thiab tiv thaiv tilting.

Cov kev txhawb nqa tau yooj yim: ua kom muaj kev ruaj khov ntawm cov chaw sib txawv.









Ib qho 120- tuj choj nqaj hluav taws xob yog ib qho tshwj xeeb ntawm cov khoom siv uas siv rau kev ua kom pom cov tsiaj ua ntej lossis cov kab teeb thaum lub caij. Nws yog feem ntau siv nyob rau hauv loj-teev infrastrastrastrastrastrastrastrastrastrasure tej yaam num xws li kev loj thiab railway Txuas hniav. Nov yog qee qhov tseem ceeb ntawm ib qho 120- tuj tus choj Nqaj Launcher:

1. Kev Muaj Peev Xwm Lifting
Qhov 120- tuj} tuj tuj muaj nws los lis loj thiab hnyav precast precast choj ci, ua rau nws haum rau ntau txoj haujlwm tsim kho choj.

2. Nce efficiency
Txo qhov kev xav tau rau ntau lub cranes, streamlining cov nqaj tua cov txheej txheem.

Kev tsim kho nrawm nrawm, txo cov nqi zog thiab cov nqi zog.

3. Txhim Kho Kev Nyab Xeeb
Tsim nrog kev nyab xeeb kev nyab xeeb, suav nrog kev tiv thaiv kev tiv thaiv thiab ruaj khov.

Txo kev pheej hmoo txaus ntshai nrog kev tuav tuav thiab kev ua si crane-raws li lifting.

4. Versatility hauv Choj Tsim Kho
Haum rau ntau hom choj spans, suav nrog tsuas yog pab txhawb nqa tas li, txuas ntxiv cov kab kab teeb, thiab cov pas hlau cantilever.

Yuav siv tau rau ob txoj kev loj thiab kev tsheb nqaj hlau tsim kho.

5. Kev yoog raws rau cov chaw ua si nyuaj
Tuaj yeem ua haujlwm hauv cov chaw sib tw, suav nrog cov cheeb tsam nyuaj, dej ntws, thiab cov chaw hauv nroog nrog txwv chaw.

Ua rau kev tsim kho hauv cov cheeb tsam uas crane nkag yog qhov nyuaj.

6. Nqi siv cov tshuaj zoo
Txo kev nqis tes ntawm cov cranes loj thiab cov scaffolding, txo qis kev tsim cov nqi tsim kho.

Minimizes txoj kev kaw thiab kev cuam tshuam tsheb.

7. Precision thiab Automation
Nruab nrog kev tswj cov tshuab tswj cov tshuab hluav taws xob rau qhov chaw muaj tseeb thiab cov kab ntawm kab teeb.

Kev tswj cov chaw taws teeb tswj kev ua haujlwm kom precision thiab txo cov kev cuam tshuam tib neeg.

8. Modular thiab customizable
Yuav tuaj yeem kho tau kom tau raws li cov phiaj xwm tshwj xeeb, xws li ncua ntev thiab nqaj me me.

Modular tus qauv tso cai rau kev thauj mus los yooj yim thiab sib dhos.





Ib qho 120- tuj choj nqaj hluav taws xob yog ib qho khoom siv tshwj xeeb ntawm cov khoom siv Cov Launchers no yog qhov tseem ceeb rau cov phiaj xwm loj loj, tshwj xeeb rau txoj kev loj thiab cov railway txuas hniav.

Cov ntawv thov ntawm 120- tuj choj Beach Launcher
Kev Tsim Kev Loj

Siv los txhawb nqa thiab tso cov khoom ua kom zoo nkauj lossis hlau girders hla cov choj.

Ua haujlwm tau zoo nyob rau hauv qhov chaw kaw lossis thaj chaw uas muaj kev nkag mus rau crane.

Kev Siv Hluav Taws Xob Siv

Qhov tseem ceeb tshaj plaws rau kev tso tawm cov pej xeem hnyav

Paub meej precision sib ncab rau cov phiaj xwm kev tsheb ciav hlau siab.

Nroog Kev Siv Hauv Nroog

Siv nyob rau hauv kev txhawb nqa Metro thiab Urban thauj cov haujlwm rau nruab cov nqaj ua ntej.

Txo lub sij hawm siv rau hauv lub nroog cerested.

River and Hav Crossings

Siv los tsim cov choj hla dej ntau dua cov dej ntws, cov hav, lossis cov gorges uas av nkag tau yooj yim.

Tshem tawm cov kev xav tau rau kev ua yeeb yam ib ntus lossis cov tresles ib ntus.

Kev Siv Cuam Tshis thiab Flyover

Choj zoo heev teeb tsa Girders tshaj cov kev uas twb muaj lawm los yog cov ciav hlau uas tsis muaj kev cuam tshuam txog kev ntxhov siab.

Txo kev nqis tes ntawm cov cranes loj.

Segmental Choj Siv

Yuav siv tau ua ke nrog precast segenical choj tsim kev tsim kho cov tswv yim.

Pab hauv kev tsim cov ntu precast ua ntu zus.





1. Tsim & Engineering
Paub meej tias qhov project specifications (Spanish, nqa lub peev xwm, qhov chaw muaj kev mob).

Cov txheej txheem thiab cov neeg siv tshuab tsim (CAD kos duab, kev txheeb xyuas pojniam pojniam).

Hluav taws xob thiab cov qauv tsim hydraulic.

2. Cov Khoom Siv Pauv
High-zog Txheej txheem hlau (Q345B lossis sib npaug).

Cheebtsam hydraulic (twj, kheej kheej, hoses).

Cov Motors, Winches, thiab Lifting kho tshuab.

Hluav taws xob tswj lub tshuab (PlC, sensors, xaim).

Fasteners, vuam cov ntaub ntawv, thiab khoom siv kev nyab xeeb.

3. Fabrication & Raug
3.1 Hlau Txheej Txheem Fabrication
Txiav: CNC txiav ntawm cov hlau steel.

Vuam: Tag Nrho Nkag Vuam Vuam Rau Cov Pob Qij Txha Ntawv Tseem Ceeb.

Machining: precision drilling thiab shaping ntawm cov khoom siv.

Nto kho: Sandblasting, xeb-pov thawj txheej, thiab pleev xim.

3.2 Neeg kho tshuab & Hydraulic Los Ke
Kev teeb tsa lub ntsiab nqa tshuab (winches, pulleys, hooks).

Kev sib xyaw ua ke ntawm cov kheej kheej kheej thiab cov raj kab ke.

Tsav thiab Gearbox los ua ke.

3.3 kev sib xyaw ua ke hluav taws xob
Installation ntawm PLC tswj system.

Cov xov hlau thiab sensor tso.

Nres thaum muaj xwm ceev thiab kev nyab xeeb nta.

4. Los Ua Ke & Kev Ntsuas Ua Ntej
Ua ntej los ntawm cov ntu hauv lub hoobkas.

Kev thauj khoom ntawm tus kheej.

Ua haujlwm ntsuas ntawm cov tshuab hluav taws xob hydraulic thiab hluav taws xob.

5. Hoobkas Thauj Kev Xeem
Tsis muaj-thauj cov khoom: Kev tshuaj xyuas kev txav mus los thiab sib ncag.

Kev kuaj cov khoom lag luam zoo li qub: kev sim nrog 120- ny nyhav ib qho kev sib npaug.

Dynamic kev ntsuas: ua haujlwm raws li cov mob simulated.

6. Kev tshem tawm & Tsheb Thauj Mus Los
Khij suav tshwj xeeb rau kev rov ua kom yooj yim.

Cov ntim thiab tsheb thauj mus rau lub xaib.

7. Nyob rau ntawm qhov chaw teeb tsa & commissioning
Gantry erection thiab sib nciab.

Kawg ua ke ntawm Choj Launcher.

Kuaj hauv qab qhov chaw muaj tiag.

8. Kev cob qhia & ToVover
Tus neeg teb xov tooj rau kev ua haujlwm nyab xeeb.

Kev saib xyuas thiab kev daws teeb meem.

Cov ntaub ntawv kawg thiab cov ntaub ntawv.





Lub tuam txhab tau teeb tsa cov khoom siv tswj hwm kev txawj ntse platform, thiab tau teeb tsa 310 teev (teeb tsa) ntawm kev tuav thiab vuam hlau. Tom qab ua tiav ntawm txoj kev npaj, yuav muaj ntau tshaj 500 teev (teeb tsa), thiab cov khoom siv sib txuas lus yuav ncav cuag 95%. 32 VUAM txoj kab tau muab tso rau hauv kev siv, 50 tau npaj yuav tsum tau nruab, thiab kev siv lub tshuab ntawm cov kab ntawv tag nrho tau mus txog 85%.
